TP-Link AC1200 Wireless XPON Router - XC220-G3

Superfast Dual Band WiFi: Up to 1.2 Gbps WiFi speeds, 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz,

XPON Dual Modes: Supports GPON and EPON dual modes with automatic switch for flexible fiber internet access.

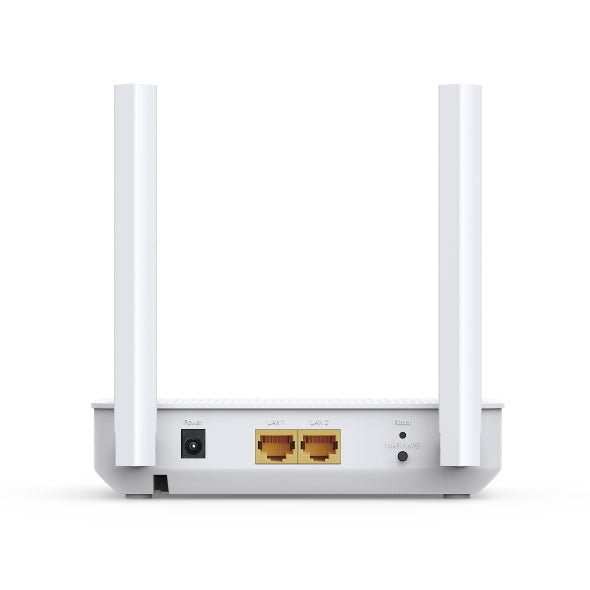

Gigabit Wired Connectivity: 2× Gigabit Ethernet LAN ports offer flexible and fast internet access.

EasyMesh-Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.

Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.

Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls offer personalized and safer online experiences.

Compact Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking.

Easy Setup and Use: Simplifies network and WiFi control and management via the robust Aginet app.

Remote Management: OMCI (ONT Management and Control Interface) and TR-069 protocols are supported.

XC220-G3 allows you to connect more devices and stream simultaneously with its dual 2.4 GHz and 5 GHz bands. The 5 GHz band delivers speeds up to 867 Mbps, great for bandwidth-intensive applications like video streaming and online gaming. The 2.4 GHz band provides reliable connections for sending emails, web browsing, and other simple tasks.

Thanks to MU-MIMO technology, the XC220-G3 enables your devices to achieve optimal performance by enhancing communication efficiency and reducing latency. With two simultaneous data streams on both the 2.4 GHz and 5 GHz bands, users can enjoy faster speeds and an improved online experience, even in high-density environments.

Beamforming technology and high-gain antennas combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

Equipped with a GPON + EPON dual-mode PON port, the XC220-G3 delivers up to 2.5 Gbps of internet access via GPON, catering to your high-speed home networking needs, while the EPON mode improves flexibility. The Gigabit Ethernet LAN ports provide your PCs, game consoles, and more with ultrafast and stable wired networking.

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

Service providers can remotely configure and manage devices using the Auto Configuration Server (ACS), which is based on the TR-069 standard, or the ONU Management Control Interface (OMCI) protocol. Compatibility with TR-181, TR-111, and TR-143 facilitates advanced operations, enhancing service efficiency while simultaneously improving the customer experience for home users.

The Aginet Solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, remote firmware upgrading, and troubleshooting.

SPECIFICATIONS:

WHAT’S IN THE BOX:

• AC1200 Wireless XPON Router XC220-G3 x1
• RJ45 Ethernet Cable x1
• Power Adapter x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
