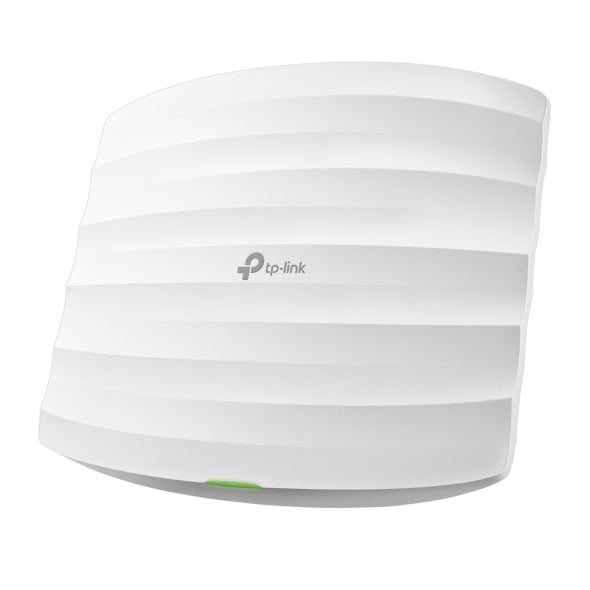

TP-Link AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point - EAP223

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

PoE Support: Support both standard 802.3af and Passive PoE (PoE adapter is not included) for flexible installations.

Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.

Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS authentication simplifies the captive portal even further to simplify connectivity and boost your business.

EAP223 supports both 802.3af PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible.

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

SPECIFICATIONS:

• Interface: 1 × Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3af PoE and Passive PoE)
• Physical Security Lock: Yes
• Button: Reset
• Power Supply: 802.3af PoE, 24V Passive PoE (+4,5 pins; -7,8 pins, PoE Adapter Not Included)
• Max. Power Consumption: 12.6W
• Dimensions (W × D × H): 205.5 × 181.5 × 37.1 mm (8.1 × 7.1 × 1.5 in.)
• Antenna: 3 Internal Omni Antennas (2.4 GHz: 4 dBi, 5 GHz: 5 dBi)
• Mounting: Ceiling/Wall Mounting (Kits Included)
• Coverage: Up to 115m² (1,250 ft²)
• Concurrent Clients: 220+
• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: Up to 867 Mbps (5 GHz), Up to 450 Mbps (2.4 GHz)
• Wireless Functions: Up to 16 SSIDs, Wireless Radio Enable/Disable, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, MU-MIMO, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Client Isolation, SSID-to-VLAN Mapping, Rogue AP Detection, 802.1X Support
• Transmission Power: CE: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz); FCC: ≤24 dBm (2.4 GHz), ≤22 dBm (5 GHz)
• Omada App: Yes
• Centralized Management: Omada Hardware Controller (OC300, OC200), Omada Software Controller, Omada Cloud-Based Controller
• Cloud Access: Yes
• Email Alerts: Yes
• LED On/Off Control: Yes
• Management Features: MAC Access Control, SNMP v1/v2c, Local/Remote Syslog, SSH, HTTP/HTTPS Web Management, L3 Management, Multi-site Management, Management VLAN, Zero-Touch Provisioning
• Certification: CE, FCC, RoHS

• System Requirements: Windows XP/Vista/7/8/10/11, Linux
• Environment: Operating Temperature: 0°C to 40°C; Storage Temperature: -40°C to 70°C; Operating Humidity: 10–90% RH Non-Condensing; Storage Humidity: 5–90% RH Non-Condensing

WHAT’S IN THE BOX:

• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point (EAP223) x1
• Mounting Kits x1
• Installation Guide x1

WARRANTY:

• 24 Months
