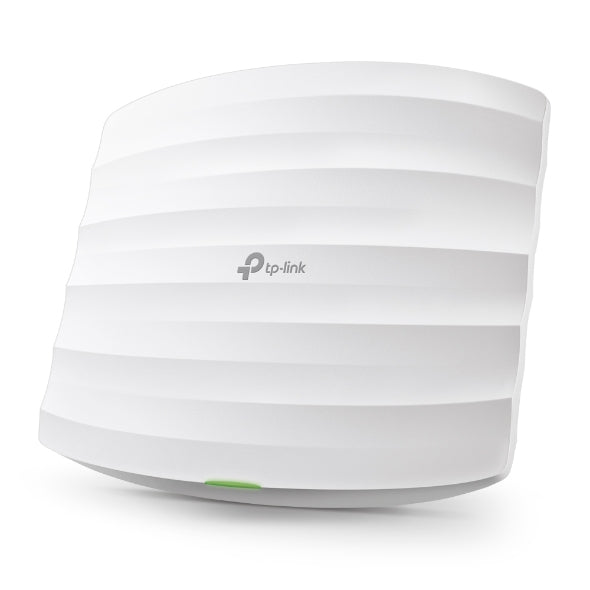

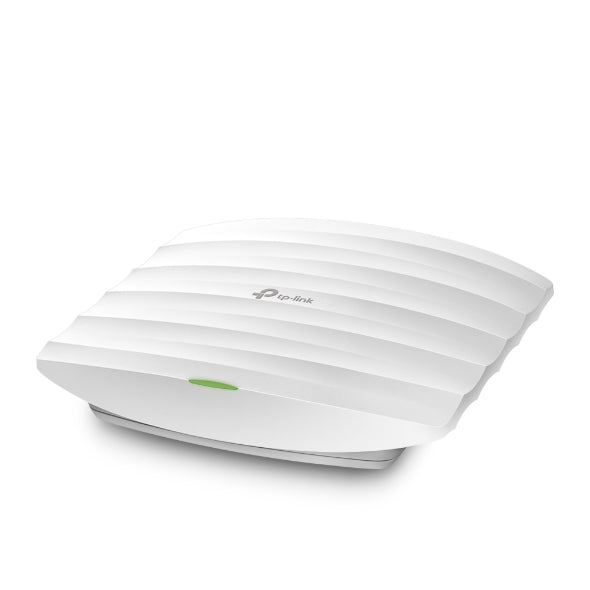

TP-Link AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point - EAP225

Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds

Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations

Free cloud centralized management and Omada app for ultra convenience and easy management

Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible

Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections

MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections

Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience

Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

SPECIFICATIONS:

• Interface: 1 × Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3af PoE and Passive PoE)
• Physical Security Lock: Yes
• Button: Reset
• Power Supply: 802.3af/A PoE, 24V Passive PoE (+4,5 pins; -7,8 pins, PoE Adapter Included)
• Max. Power Consumption: EU: 10.5W, US: 12.6W
• Dimensions (W × D × H): 205.5 × 181.5 × 37.1 mm (8.1 × 7.1 × 1.5 in.)
• Antenna: 3 Internal Omni Antennas (2.4 GHz: 4 dBi, 5 GHz: 5 dBi)
• Mounting: Ceiling/Wall Mounting (Kits Included)
• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: Up to 867 Mbps (5 GHz), Up to 450 Mbps (2.4 GHz)
• Wireless Functions: Up to 16 SSIDs, Wireless Radio Enable/Disable, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), Seamless Roaming, Band Steering, Load Balance, MU-MIMO, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Client Isolation, SSID-to-VLAN Mapping, Rogue AP Detection, 802.1X Support
• Transmission Power: CE: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz); FCC: ≤24 dBm (2.4 GHz), ≤22 dBm (5 GHz)
• Omada App: Yes
• Omada Cloud Controller: Yes
• Centralized Management: Omada Hardware Controller (OC300, OC200), Omada Software Controller, Omada Cloud-Based Controller (Supported on EAP225 V3.0, V4.0 and later; not supported on V3.20)
• Omada Controller Software: Yes
• Cloud Access: Yes (via OC300, OC200, Omada Software Controller, or supported Omada Cloud-Based Controller)
• Email Alerts: Yes
• LED On/Off Control: Yes
• Management Features: MAC Access Control, SNMP v1/v2c, Local/Remote Syslog, SSH, HTTP/HTTPS Web Management, L3 Management, Multi-site Management, Management VLAN, Zero-Touch Provisioning
• Certification: CE, FCC, RoHS

• System Requirements: Windows XP/Vista/7/8/10, Linux
• Environment: Operating Temperature: 0°C to 60°C; Storage Temperature: -40°C to 70°C; Operating Humidity: 10–90% Non-Condensing; Storage Humidity: 5–90% Non-Condensing

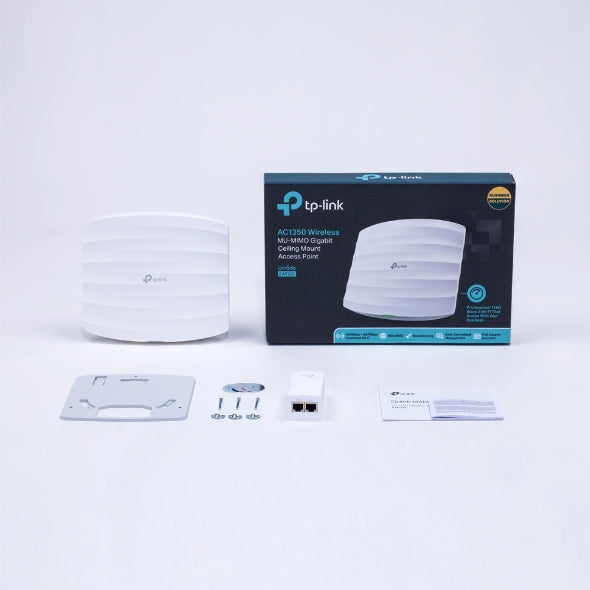

WHAT’S IN THE BOX:

• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point (EAP225) x1
• Passive PoE Adapter x1
• Power Cord x1
• Mounting Kits x1
• Installation Guide x1

WARRANTY:

• 24 Months
