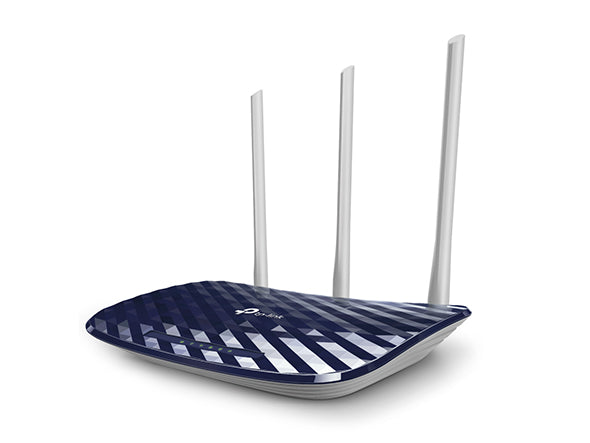

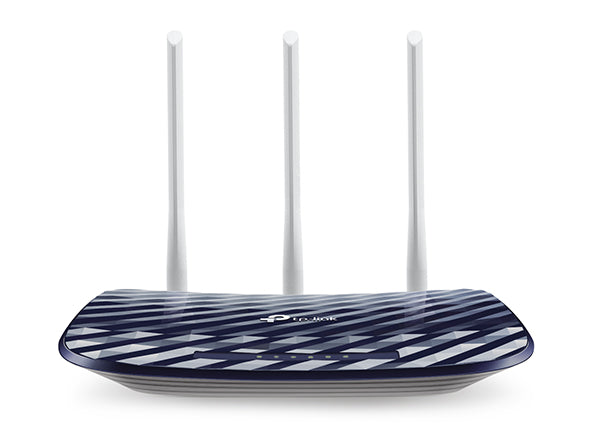

TP-Link AC750 Wireless Dual Band Router - Archer C20
TP-Link AC750 Wireless Dual Band Router - Archer C20
Ready to ship tomorrow
Couldn't load pickup availability
Share
Simultaneous 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz for 733 Mbps total available bandwidth
Three external antennas provide stable omnidirectional signal and superior wireless coverage
Supports three modes: Route, Range Extender and Access Point Modes
IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize HD streaming
Parental Controls manage when and how connected devices can access the internet
Guest Network provides separate access for guests while securing the host network
With 433 Mbps wireless speed over the 5GHz band and 300 Mbps over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.
With 3 fixed external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.
IGMP Proxy/Snooping, Bridge, and Tag VLAN optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free. Put an end to buffering and stuttering videos once and for all and enjoy pleasant home entertainment.
The Guest Network function provides secure access for guests to use your Wi-Fi network. Share with anyone, without compromising your private network. Make sharing easy and maintain security.
Set up the Archer C20 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS devices, including parental controls and access control.
SPECIFICATIONS:
- Wi-Fi Standard: Wi-Fi 5 (IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz)
- Wi-Fi Speed: AC750 (Up to 433 Mbps on 5 GHz, Up to 300 Mbps on 2.4 GHz)
- Wi-Fi Range: Suitable for 2-Bedroom Houses
- Antennas: 3 × Fixed External Antennas
- Wi-Fi Capacity: Medium, Dual-Band with Band Steering
- Operating Modes: Router Mode, Access Point Mode, Range Extender Mode
- Processor: Single-Core CPU

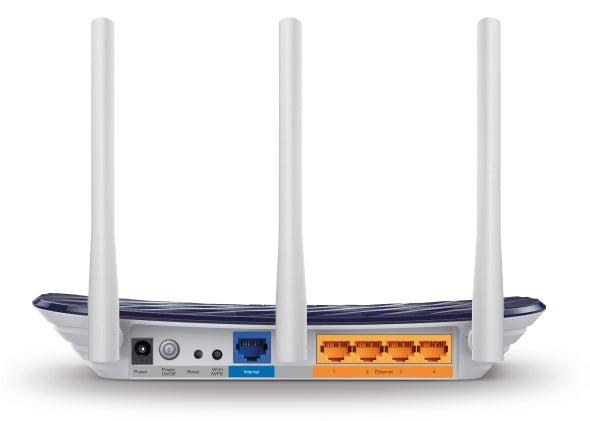

- Ethernet Ports: 1 × 10/100 Mbps WAN Port, 4 × 10/100 Mbps LAN Ports
- Buttons: WPS/Wi-Fi Button, Power On/Off Button, Reset Button
- Power Supply: 9V ⎓ 0.6A
- Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
- Guest Network: 1 × 2.4 GHz Guest Network, 1 × 5 GHz Guest Network
- Wi-Fi Security: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1X)
- Protocols: IPv4, IPv6
- Parental Controls: URL Filtering, Time Controls
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Quality of Service: QoS by Device
- NAT Features: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
- IPTV: IGMP Proxy, IGMP Snooping
- DHCP Features: Server, Address Reservation, DHCP Client List
- Dynamic DNS: NO-IP, Comex, DynDNS
- Management: Tether App, Web Interface
- Wi-Fi Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
- Wi-Fi Reception Sensitivity: 5 GHz: -76 dBm to -62 dBm; 2.4 GHz: -76 dBm to -71 dBm (depending on wireless mode)
- Dimensions (W × D × H): 230 × 144 × 35 mm (9.1 × 5.7 × 1.4 in.)
- Certifications: FCC, CE, RoHS
- System Requirements: Internet Explorer 11+, Firefox 12+, Chrome 20+, Safari 4+, or other JavaScript-enabled browser; Cable or DSL modem (if required); Internet service subscription
- Environment: Operating Temperature: 0°C to 40°C; Storage Temperature: -40°C to 70°C; Operating Humidity: 10–90% Non-Condensing; Storage Humidity: 5–90% Non-Condensing
WHAT’S IN THE BOX:
- Wi-Fi Router (Archer C20) x1
- Power Adapter x1
- RJ45 Ethernet Cable x1
- Quick Installation Guide x1
WARRANTY:
- 12 Months
