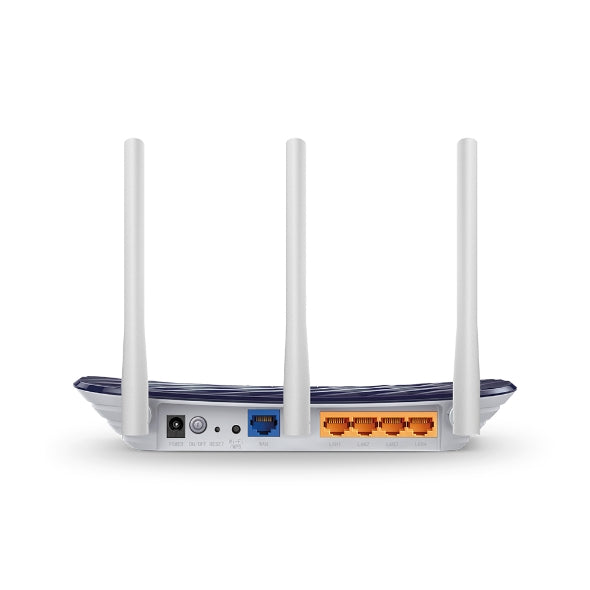

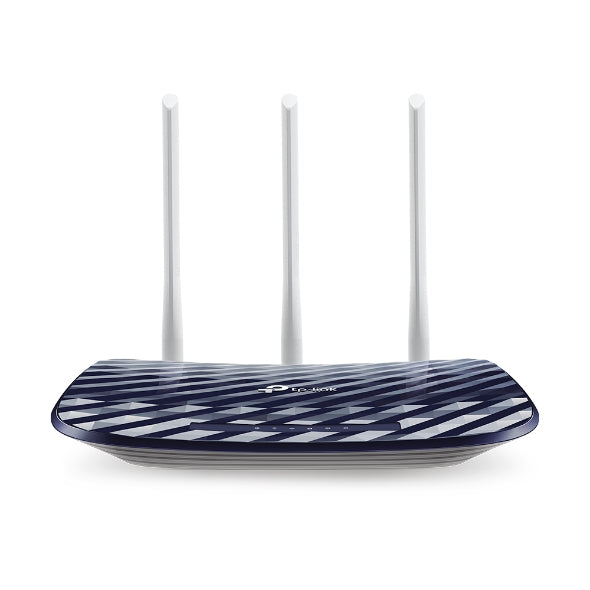

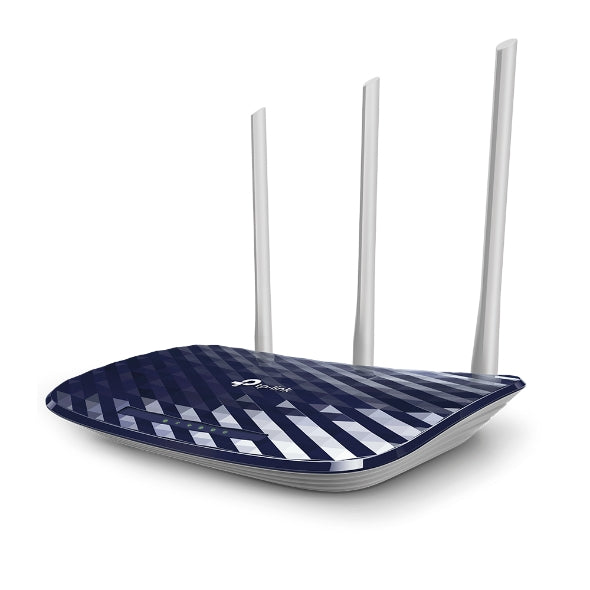

TP-Link AC750 Wireless Dual Band Router - EC120-F5

Supports 802.11ac standard - the next generation of Wi-Fi

Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth

3 external antennas provide stable omnidirectional signal and superior wireless coverage

Easy Remote Management, TR-069 protocol enables an operator to remotely configure and manage end-user devices

TP-Link’s Archer C20 comes with the next generation Wi-Fi standard – 802.11ac, backward compatible with 802.11n and 3 times faster than wireless N speeds. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.

With 433Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.

With 3 fixed external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.

Set up the Archer C20 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

SPECIFICATIONS:

• Interface: 4× 10/100 Mbps LAN Ports, 1× 10/100 Mbps WAN Port
• Power Supply: 9V DC / 0.6A
• Dimensions: 230 × 144 × 35 mm
• Antenna: 2× 2.4 GHz Antennas, 1× 5 GHz Antenna
• Frequency:
  • 5 GHz: Europe (ETSI) 5.18–5.24 GHz (CH36–48, without DFS), North America (FCC/IC) 5.18–5.24 GHz (CH36–48, without DFS)
  • 2.4 GHz: Europe (ETSI) 2.412–2.472 GHz (CH1–13), North America (FCC/IC) 2.412–2.462 GHz (CH1–11)
• Signal Rate: 300 Mbps (2.4 GHz), 433 Mbps (5 GHz)
• Reception Sensitivity:
  • 5 GHz: 11a 54M: -73 dBm, 11ac VHT20 MCS8: -66 dBm, 11ac VHT40 MCS9: -61 dBm, 11ac VHT80 MCS9: -58 dBm
  • 2.4 GHz: 11g 54M: -75 dBm, 11n HT20 MCS7: -73 dBm, 11n HT40 MCS7: -70 dBm
• Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
• Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz); FCC: <30 dBm
• Quality of Service: WMM, Bandwidth Control
• Security: DoS, SPI Firewall, IP Address Filter/MAC
• Management Features: Access Control, Local Management, Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
• Certification: CE, FCC, RoHS

• Environment:
  • Operating Temperature: 0°C–40°C (32°F–104°F)
  • Storage Temperature: -40°C–60°C (-40°F–140°F)
  • Operating Humidity: 10%–90% Non-Condensing
  • Storage Humidity: 5%–90% Non-Condensing

WHAT’S IN THE BOX:

• Archer C20 AC750 Wireless Dual Band Router x1
• Power Adapter x1
• RJ45 Ethernet Cable x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
