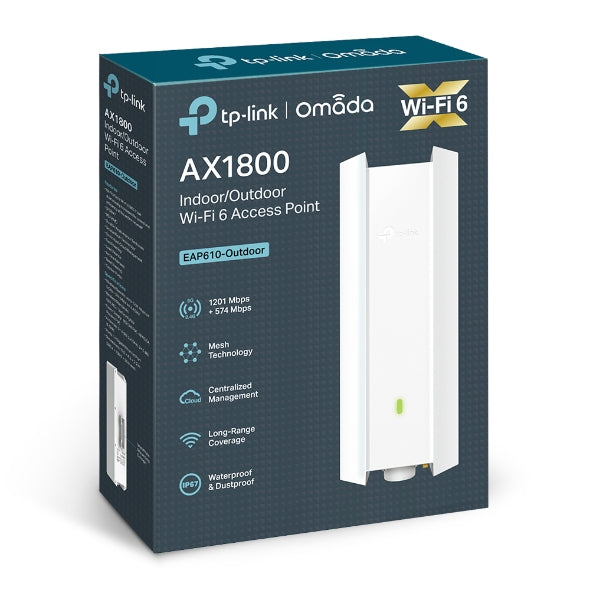

TP-Link AX1800 Indoor/Outdoor WiFi 6 Access Point - EAP610-Outdoor

Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology

Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO

Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure

Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment

Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points

Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps, providing higher data rates on both 5 GHz and 2.4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks.

Professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments. The maximum range reaches up to 200 meters over 2.4 GHz band and 300 meters over 5 GHz band.

OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas.

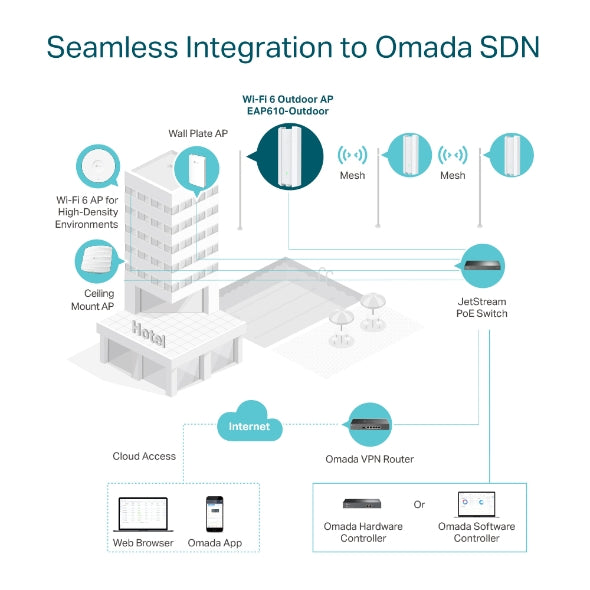

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

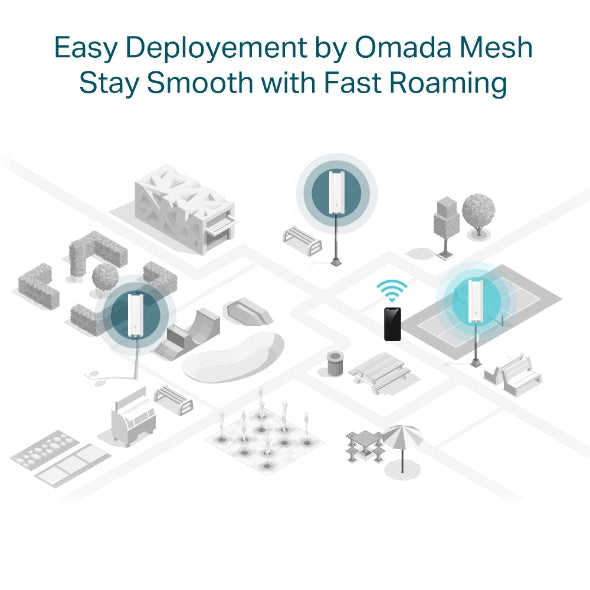

Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

EAP610-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.

Our mounting kits provide flexible installation, whether inside or outside.

The AP supports both 802.3at PoE+ and Passive PoE power supply. It can be either powered by a PoE switch or the provided PoE adapter for convenient deployment.

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

SPECIFICATIONS:

• Interface: 1× Gigabit Ethernet (RJ-45) Port (supports 802.3at PoE and Passive PoE)
• Button: Reset
• Power Supply: 802.3at PoE | 48 V/0.5 A Passive PoE (PoE Adapter Included)
• Max. Power Consumption: EU: 13.2 W | US: 14.7 W
• Dimensions: 11 × 4.2 × 2.2 in (280.4 × 106.5 × 56.9 mm)
• Antenna: 2.4 GHz: 2× 4 dBi | 5 GHz: 2× 5 dBi
• Weatherproof Enclosure: IP67
• Mounting: Pole/Wall Mounting (Kits included)
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz | 5 GHz
• Signal Rate: 802.11ax: 8 Mbps–1201 Mbps | 802.11ac: 6.5 Mbps–867 Mbps | 802.11n: 6.5 Mbps–300 Mbps | 802.11g: 6–54 Mbps | 802.11b: 1–11 Mbps | 802.11a: 6–54 Mbps
• Wireless Functions: 1024-QAM | 4× Longer OFDM Symbol | OFDMA | Multiple SSIDs (up to 16, 8 per band) | Enable/Disable Wireless Radio | Automatic Channel Assignment | Transmit Power Control | QoS (WMM) | MU-MIMO | Omada Mesh | Seamless Roaming | Band Steering | Load Balance | Airtime Fairness | Beamforming | Rate Limit | Reboot Schedule | Wireless Schedule | Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication | Access Control | Wireless MAC Address Filtering | Wireless Isolation Between Clients | SSID to VLAN Mapping | Rogue AP Detection | 802.1X Support | WEP | WPA-Personal/Enterprise | WPA2-Personal/Enterprise | WPA3-Personal/Enterprise
• Transmission Power: CE: <20 dBm (2.4 GHz EIRP), <30 dBm (5 GHz EIRP) | FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)
• Omada App: Yes
• Centralized Management: Omada Hardware Controller (OC300) | Omada Hardware Controller (OC200) | Omada Software Controller
• Cloud Access: Yes (via OC300, OC200, or Omada Software Controller)
• Email Alerts: Yes
• Management MAC Access Control: Yes
• SNMP: v1 | v2c
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-based Management: Yes
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (requires Omada Cloud-Based Controller)
• Certification: CE | FCC | RoHS

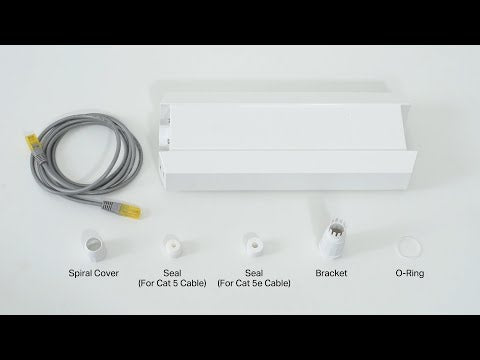

• Package Content: Access Point EAP610-Outdoor | Passive PoE Adapter | Power Cord | Mounting Kits | Installation Guide
• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
• Environment: Operating Temperature: -30°C–70°C (-22°F–158°F) | Storage Temperature: -40°C–70°C (-40°F–158°F) | Operating Humidity: 10%–90% RH non-condensing | Storage Humidity: 5%–90% RH non-condensing

WHAT’S IN THE BOX:

• Access Point EAP610-Outdoor x1
• Passive PoE Adapter x1
• Power Cord x1
• Mounting Kits x1
• Installation Guide x1

WARRANTY:

• 24 Months
