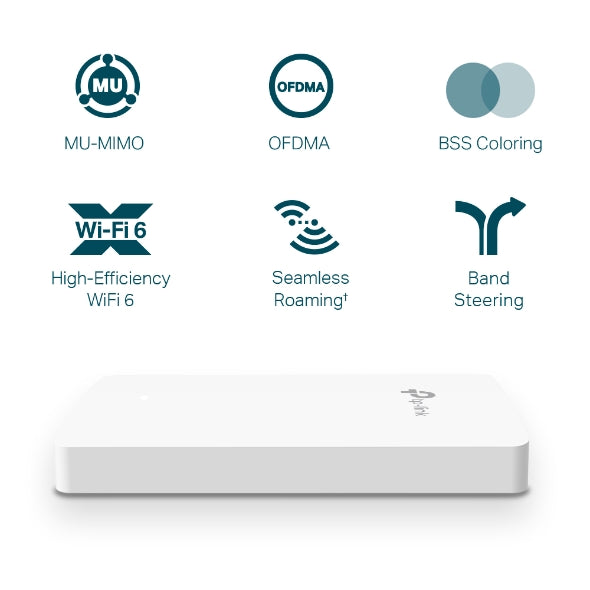

TP-Link AX1800 Wall Plate WiFi 6 Access Point - EAP615-Wall

Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.

Centralized Management: Integrates into Omada SDN for cloud access and remote management.

Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.

Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Meet the demands for smoother online activities and more device connections. The latest 802.11ax technologies such as 1024 QAM and Long OFDM Symbol allows the EAP to boost overall speeds up to 1775 Mbps.

The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Safeguard your network and data against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

With 802.3af/802.3at Power over Ethernet supported, there’s no need to install additional wiring in the building. Plug the existing Ethernet cables in, and you’re ready to go.

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

With advanced enterprise security, WPA3 provides strengthened data security for previously unsecured and open WiFi hotspots.

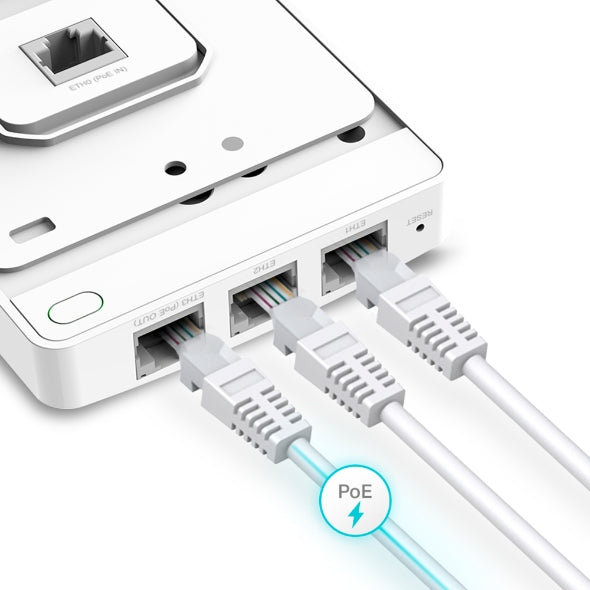

Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple Gigabits, allowing you to connect several devices to your gigabit network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port.

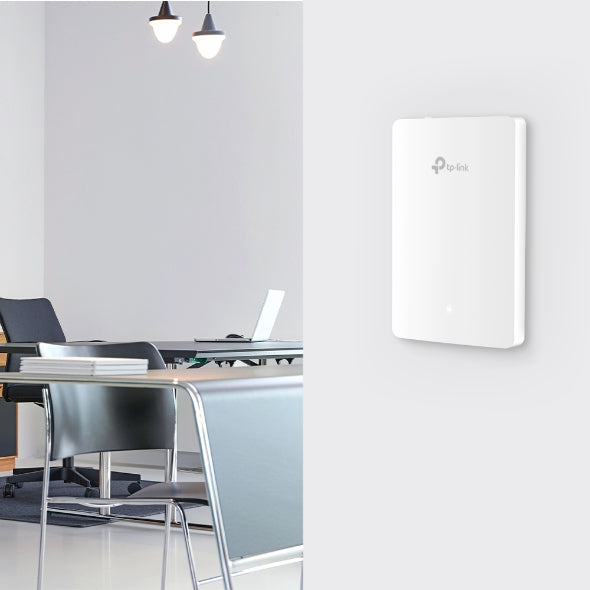

With an easy-to-install design, there is no need to spend time and money bringing someone in to install our EAP.

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

SPECIFICATIONS:

• Interface: 1× 10/100/1000 Mbps Uplink Ethernet Port, 3× 10/100/1000 Mbps Downlink Ethernet Ports (1× PoE OUT port, requires 802.3at PoE+ input, max PoE output: 13 W EU / 12 W US)
• Physical Security Lock: Yes
• Button: Reset
• Power Supply: 802.3af/at PoE
• Max. Power Consumption: EU: 10W (802.3at PoE, PoE Out off), US: 11.5W (802.3at PoE, PoE Out off)
• Dimensions: 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
• Antenna: 2× Dual-Band Antennas (2.4 GHz: 2× 3 dBi, 5 GHz: 2× 4 dBi)
• Mounting: Wall Plate Mounting
• Coverage: 50㎡ (600 ft²)
• Concurrent Clients: 120+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 1201 Mbps, 2.4 GHz: Up to 574 Mbps
• Wireless Functions: 16 SSIDs (8 per band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), Seamless Roaming, Beamforming, MU-MIMO, Rate Limit, Load Balance, Airtime Fairness, Band Steering, Reboot Schedule, Wireless Schedule, RADIUS Accounting, MAC Authentication, Wireless Statistics, Static/Dynamic IP
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, 802.1X Support, WPA/WPA2/WPA3 Personal & Enterprise
• Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz); FCC: <21 dBm (2.4 GHz), <21 dBm (5 GHz)
• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Cloud Access: Yes (via OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (requires Omada Cloud-Based Controller)
• Certification: CE, FCC, RoHS

• System Requirements: Microsoft Windows XP/Vista/7/8/10/11, Linux
• Environment: Operating Temperature: 0–40 ℃ (32–104 ℉), Storage Temperature: -40–70 ℃ (-40–158 ℉), Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing

WHAT’S IN THE BOX:

• AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall x1
• Installation Guide x1
• Mounting Kits x1

WARRANTY:

• 24 Months
