TP-Link AX1800 Whole Home Mesh WiFi AP - HX220 (2 Pack)

Dual Band Wi-Fi 6: Speeds up to 1800 Mbps—1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger WiFi signal.

One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.

Enhanced Security: WPA3 encryption, Multi-SSID, and Parent Control provide personalized and safer online experience.

EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.

Easy Setup: Set up your router in minutes with intuitive Aginet App.

TR-069 Remote Management: TR-098, TR-181, TR-111, and TR-143 are supported for automatic provisioning.

Armed with WiFi 6 technology, HX220 provides faster speeds up to 1.8 Gbps for buffer-free 8K/4K streaming and gaming even with all smart home, mobile, and other electronic devices connected.

Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.

Empowered by EasyMesh™, HX220 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HX220 whenever you want.

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless Wi-Fi experience.

Enhanced by WiFi 6, featuring with OFDMA and MU-MIMO technology, HX220 allows you to connect over 250+ devices. Enjoy a more efficient network that loads faster without dragging down performance.

Flexible and multifunctional, HX220 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.

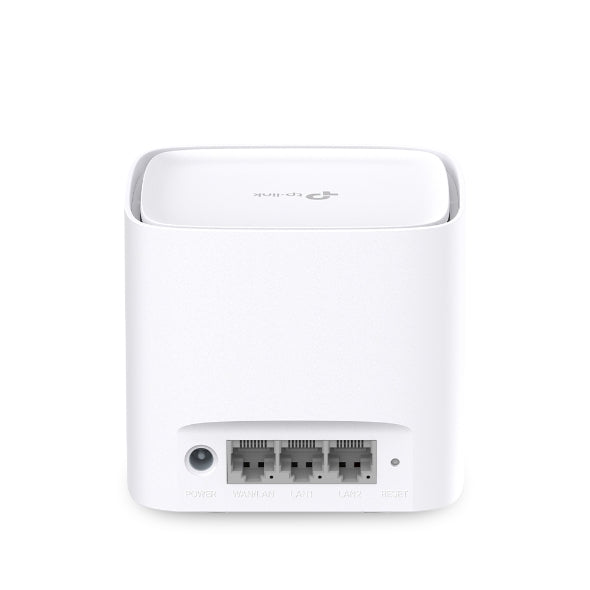

Each unit has 3 Gigabit Ethernet ports for fast and reliable wired connections. Supports wired Ethernet Backhaul for more stable speeds.

You can set up your device in minutes, whether you prefer the intuitive Aginet app or the powerful web interface. The Agient app allows you to manage network settings from your smart phone or tablet.

ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Sever). High-level operations support TR-181, TR-111, and TR-143 protocols.

Aginet Solution offer ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.

SPECIFICATIONS:

• Interface: 3 × Gigabit Ports (per unit), including 1 × WAN/LAN Auto-Sensing Port
• Buttons: Reset Button, WPS Button
• External Power Supply: 12V ⎓ 1.0A
• Dimensions (W × D × H): 100 × 100 × 89.5 mm (3.9 × 3.9 × 3.5 in.)
• Wireless Standards: Wi-Fi 6 (IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz)
• Frequency: 2.4 GHz and 5 GHz
• Wireless Speed: AX1800
  • Up to 1201 Mbps on 5 GHz
  • Up to 574 Mbps on 2.4 GHz
• Wireless Security: WPA, WPA2, WPA3 Encryption
• Transmission Power:
  • FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz)
  • CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
• Multi-SSID:
  • 3 × 5 GHz Multi-SSID
  • 3 × 2.4 GHz Multi-SSID
• Quality of Service: WMM
• Advanced Features: Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, Wi-Fi Schedule
• WAN Types: Dynamic IP, Static IP, PPPoE
• Management Features: Local Management, Remote Management, TR-069 (TR-098/TR-181), TR-111, TR-143
• Firewall Security: SPI Firewall
• Protocols: IPv4, IPv6
• Encryption: WPA, WPA2-PSK, WPA3
• Working Modes: Router Mode, Access Point Mode
• Smartphone/Tablet Requirements: Android 4.4 or later, iOS 9.0 or later
• Certifications: CE, FCC
• Environment:
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Humidity: 10%–90% Non-Condensing
  • Storage Humidity: 5%–90% Non-Condensing

WHAT’S IN THE BOX:

• HX220 Units x2
• RJ45 Ethernet Cable x1
• Power Adapters x2
• Quick Installation Guide x1

WARRANTY:

• 24 Months
