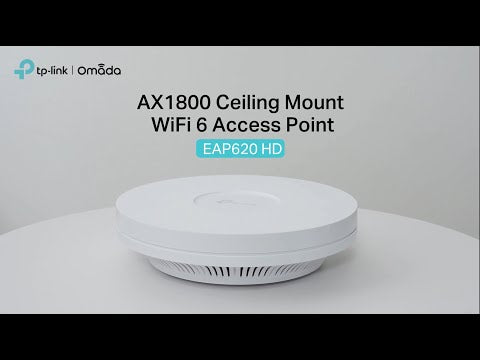

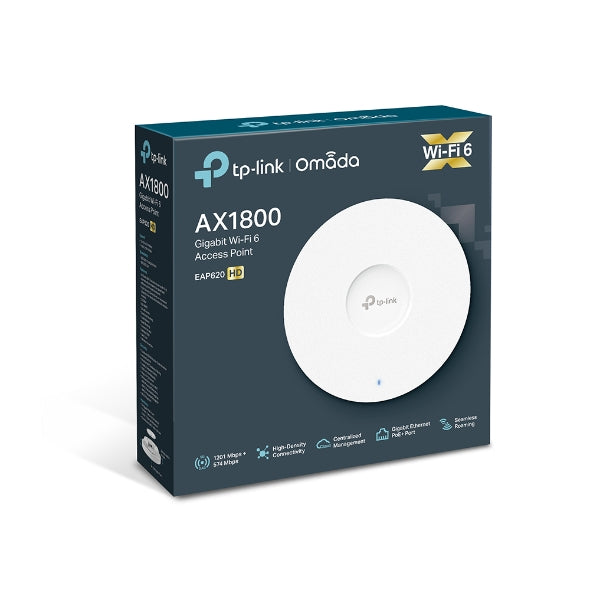

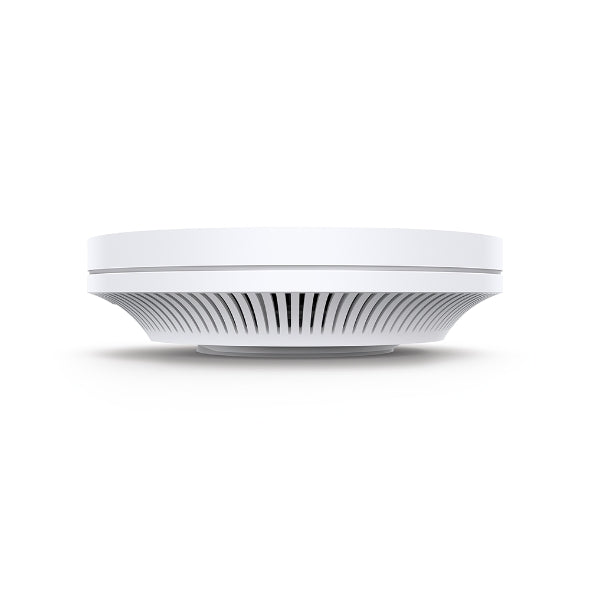

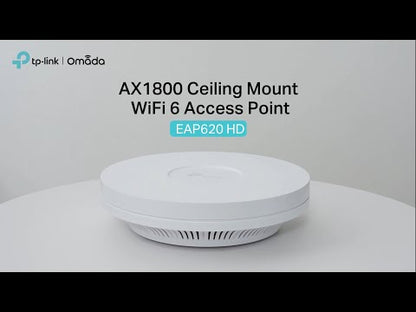

TP-Link AX1800 Wireless Dual Band Ceiling Mount Access Point - EAP620 HD

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.

PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Ensures large numbers of users have smooth network experiences in high-density business networks.

Increases average network throughput in heavily congested environments.

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

SPECIFICATIONS:

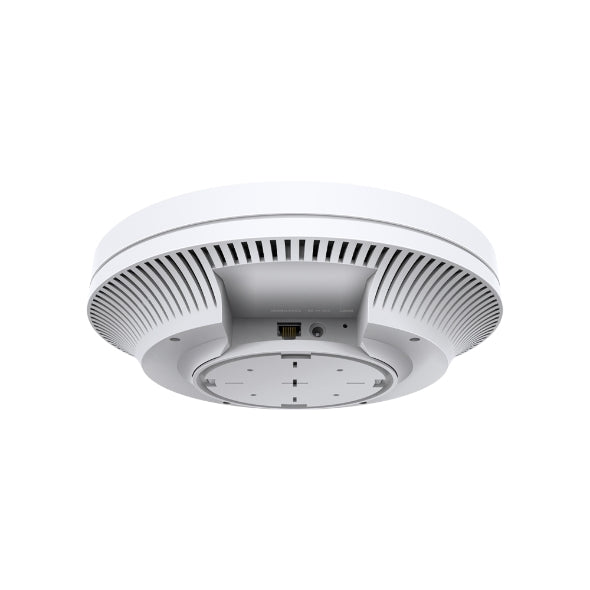

• Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE 802.3at PoE)
• Button: Reset
• Power Supply: 802.3at PoE | 12 V DC
• Max. Power Consumption: EU: 12 W | US: 13.5 W
• Dimensions: 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
• Antenna: Internal Omni | 2.4 GHz: 2× 4 dBi | 5 GHz: 2× 5 dBi
• Mounting: Ceiling/Wall Mounting (Kits included)
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 1201 Mbps | 2.4 GHz: Up to 574 Mbps
• Wireless Functions: 1024-QAM | 4× Longer OFDM Symbol | OFDMA | Multiple SSIDs (up to 16, 8 per band) | Enable/Disable Wireless Radio | Automatic Channel Assignment | Transmit Power Control | QoS (WMM) | MU-MIMO | Seamless Roaming | Band Steering | Load Balance | Airtime Fairness | Beamforming | Rate Limit | Reboot Schedule | Wireless Schedule | Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication | Access Control | Wireless MAC Address Filtering | Wireless Isolation Between Clients | SSID to VLAN Mapping | Rogue AP Detection | 802.1X Support | WEP | WPA-Personal/Enterprise | WPA2-Personal/Enterprise | WPA3-Personal/Enterprise
• Transmission Power: CE: <20 dBm (2.4 GHz EIRP), <23 dBm (5 GHz EIRP) | FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)
• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller | Omada Hardware Controller (OC300) | Omada Hardware Controller (OC200) | Omada Software Controller
• Cloud Access: Yes (via OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1 | v2c | v3
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Certification: CE | FCC | RoHS

• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Linux
• Environment: Operating Temperature: 0–40°C (32–104°F) | Storage Temperature: -40–70°C (-40–158°F) | Operating Humidity: 10–90% RH non-condensing | Storage Humidity: 5–90% RH non-condensing

WHAT’S IN THE BOX:

• EAP620 HD x1
• Power Adapter x1
• Ceiling/Wall Mounting Kits x1
• Installation Guide x1

WARRANTY:

• 24 Months
