Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5. Every application feels more fluid with drastically improved WiFi speeds.
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

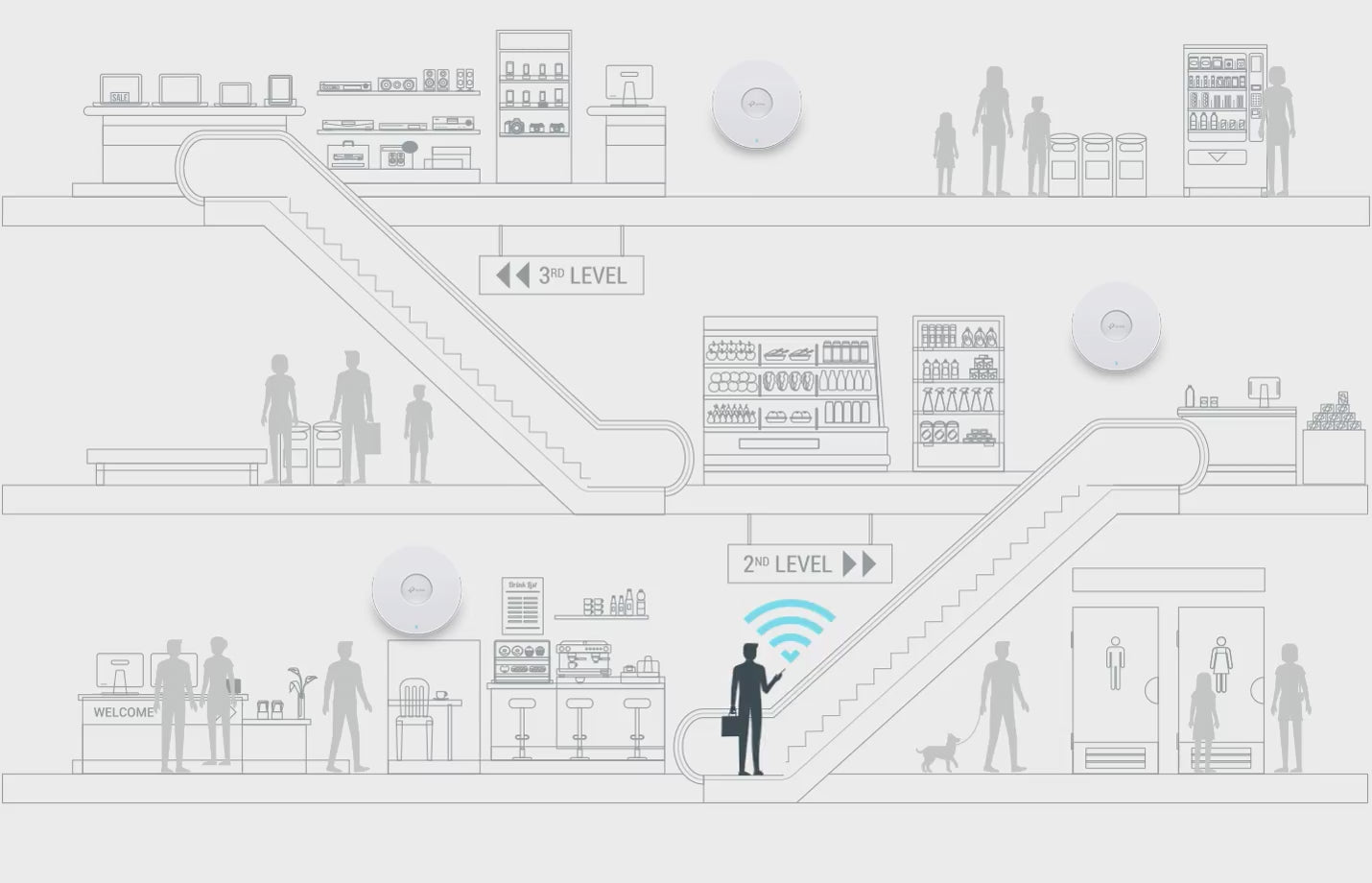

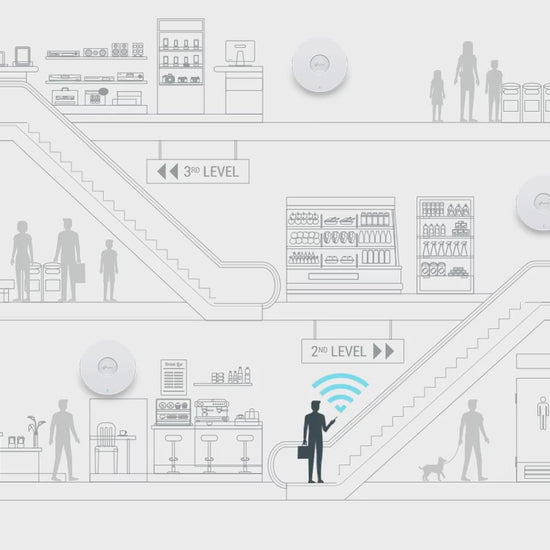

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Ensures large numbers of users have smooth network experiences in high-density business networks.
Increases average network throughput in heavily congested environments.
SPECIFICATIONS:

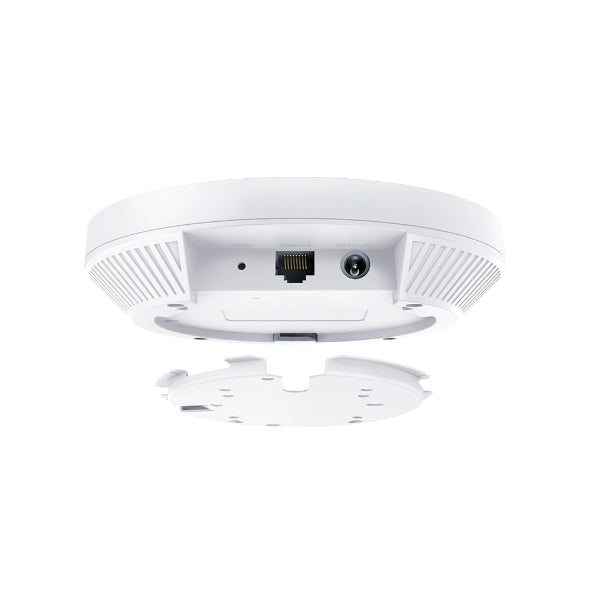

- Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Button: Reset
- Power Supply: 802.3at PoE, 12V DC (Power Adapter included – EU: 12V/1.0A, US: 12V/1.5A), 48V Passive PoE
- Power Consumption: EU: 13.5 W, US: 14.7 W
- Dimensions (W × D × H): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
- Antenna Type: Internal Omni, 2× 4 dBi (2.4 GHz), 2× 5 dBi (5 GHz)
- Mounting: Ceiling/Wall Mounting (kits included), Junction Box Mounting
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz, 5 GHz
- Signal Rate: 5 GHz: Up to 2402 Mbps, 2.4 GHz: Up to 574 Mbps
- Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Up to 16 SSIDs (8 per band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), MU-MIMO, HE160 (160 MHz Bandwidth), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics
- Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA/WPA2/WPA3 Personal & Enterprise
- Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz Band 1 & 2), <30 dBm (5 GHz Band 3); FCC: <25 dBm (2.4 GHz & 5 GHz)
- Omada App: Yes
- Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada Cloud-Based Controller
- Cloud Access: Yes (via OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (requires Omada Cloud-Based Controller)
- Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows XP/Vista/7/8/10/11, Linux
- Environment: Operating Temperature: 0–40 ℃ (32–104 ℉), Storage Temperature: -40–70 ℃ (-40–158 ℉), Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing
WHAT’S IN THE BOX:
- EAP650 x1
- Power Adapter x1
- Ceiling/Wall Mounting Kits x1
- Installation Guide x1
