Dual-Band WiFi 6: Speeds up to 3000 Mbps—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
Boosted Coverage: Four high-performance antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.
More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience.
Gigabit Wired Connections: 1x GE WAN port and 4x GE LAN ports provide fast and flexible internet access.
Easy Setup: Set up your network in minutes with the powerful Aginet app.
Remote Management: TAUC (TP-Link Aginet Unified Cloud), and TR-069, TR-098, TR-181, TR-111, TR-143 protocols are supported.
Wi-Fi 6 (802.11ax) technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. Every application feels more fluid with drastically improved WiFi speeds. Both the 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K/8K streaming, online gaming, and fast downloading.
Easily handle dozens of devices streaming and gaming at the same time. OFDMA and MU-MIMO future-proof your home network by providing greater capacity to connect more devices.
OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.
Simultaneously transfers data to multiple devices for 2× faster performance.
Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

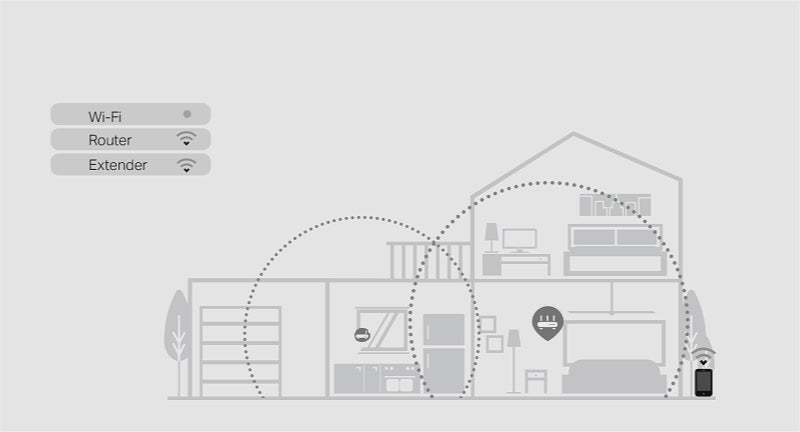

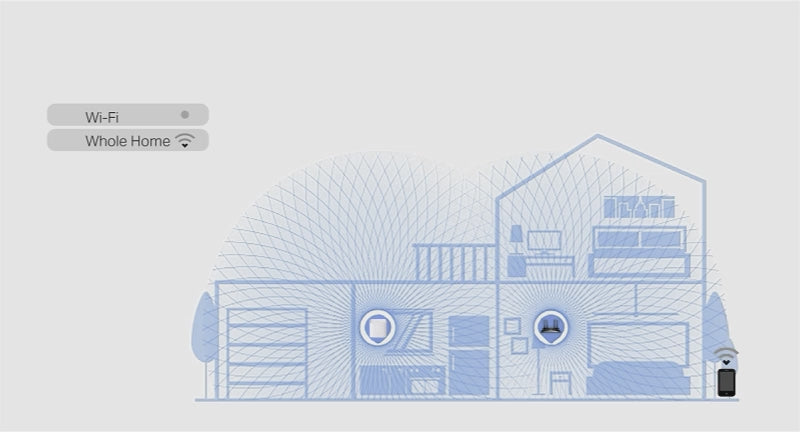

Create a unified mesh WiFi network with several EX521’s working together or with other EasyMesh-compatible router or mesh AP for seamless whole home coverage.
The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the three Gigabit Ethernet LAN ports for fast and reliable wired connections.
WPA3 Security: Higher password safety and enhanced protection against brute-force attacks.
Parental controls: Block inappropriate content and restrict time spent online.
Multi-SSID: Create separate networks for visitors and keep your main network secure.
You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.
ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations support TR-181, TR-111, and TR-143 protocols.
The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.
SPECIFICATIONS:

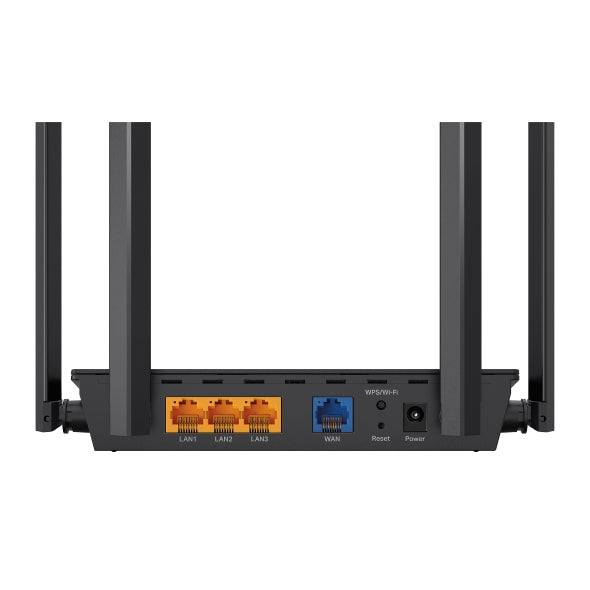

- Interface: 1× 10/100/1000 Mbps RJ45 WAN Port, 3× 10/100/1000 Mbps RJ45 LAN Ports
- Buttons: Power On/Off Button, Reset Button, Wi-Fi/WPS Button
- External Power Supply: 12V/1.5A
- Dimensions: 7.2 × 3.7 × 1.3 in (182.7 × 94.0 × 33.3 mm)
- Antenna: Four High-Performance External Antennas
- Wireless Standards: IEEE 802.11a/n/ac/ax (5 GHz), IEEE 802.11b/g/n/ax (2.4 GHz)
- Frequency: 2.4 GHz, 5 GHz
- Signal Rate: AX3000, 5 GHz: Up to 2402 Mbps, 2.4 GHz: Up to 574 Mbps
- Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
- Wireless Security: WPA/WPA2/WPA3 Encryptions
- Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5.15–5.35 GHz), <30 dBm (5.47–5.725 GHz)
- Multi-SSID: 2× 5 GHz Multi-SSID, 2× 2.4 GHz Multi-SSID
- Wireless Schedule: Supports 2.4 GHz and 5 GHz Wireless Schedule
- Mesh Technology: EasyMesh Compatible, Supports 802.11k/v/r
- Quality of Service: Hardware QoS, Flow Classification
- Advanced Features: TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness
- Operating Modes: Router, Access Point
- WAN Type: Dynamic IP, Static IP, PPPoE, PPTP, L2TP (Multi-EWAN)
- Management Features: Local Management (WebGUI, Aginet App), Remote Management (Aginet ACS, TR-069, TR-098, TR-181, TR-111, TR-143), Cloud Management (TP-Link Aginet Unified Cloud - TAUC)
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, NO-IP
- VPN Pass-Through: IPSec, PPTP, L2TP
- Access Control: Parental Controls, White List, Black List
- Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
- Protocols: IPv4, IPv6
- VPN Server: PPTP, OpenVPN, IPSec
- Certification: CE
- System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or Other Java-Enabled Browser, Internet Service Provider Subscription
- Operating Temperature: 0℃–40℃ (32℉–104℉)
- Storage Temperature: -40℃–60℃ (-40℉–140℉)
- Operating Humidity: 10%–90% Non-Condensing
- Storage Humidity: 5%–90% Non-Condensing
WHAT’S IN THE BOX:
- WiFi 6 Router EX521 x1
- Power Adapter x1
- RJ45 Ethernet Cable x1
- Quick Installation Guide x1
