TP-Link AX3000 Dual Band WiFi 6 XPON Router - XX530v

Ultra-fast Wi-Fi Speeds: Up to 3 Gbps dual band Wi-Fi enables faster browsing, streaming, and downloading—all at the same time.

Boosted Coverage: Four high-performance antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.

More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.

EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.

XPON Dual Modes: Supports GPON and EPON dual modes for flexible fiber internet access.

Gigabit Wired Connections: 1× GbE WAN/LAN port and 3× GbE LAN ports provide fast and flexible internet access.

VoIP Calls: Support multiple VoIP accounts and various call features to surpass traditional landlines.

Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.

Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experience.

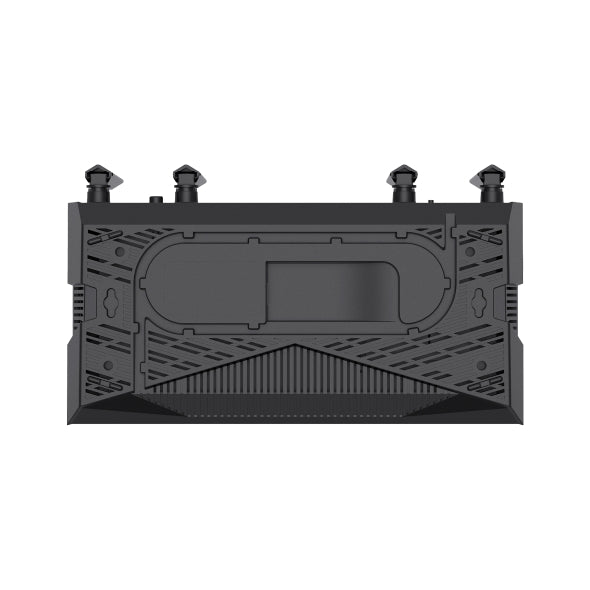

Compact Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking.

Easy Setup and Use: Set up your network in minutes with the powerful Aginet app.

Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

WiFi 6 (802.11ax) technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. Every application feels more fluid with drastically improved WiFi speeds. Both the 2.4 GHz band and 5 GHz band get upgraded to the WiFi 6 generation—perfect for 4K/8K streaming, online gaming, and fast downloading.

Easily handle dozens of devices streaming and gaming at the same time. OFDMA and MU-MIMO future-proof your home network by providing greater capacity to connect more devices.

OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.

Simultaneously transfers data to multiple devices for 2× faster performance.

High-performance antennas and beamforming technology combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

Create a unified mesh WiFi network with other EasyMesh-compatible routers or mesh APs for seamless whole home coverage.

Enjoy fast and stable internet with flexible fiber access through XPON technology, compatible with both GPON and EPON standards. The Ethernet WAN/LAN port allows wired connections to modems or switches, while the USB port supports 3G/4G dongles for backup, ensuring you stay connected at all times.

XX530v integrates a high-performance phone system. You can connect your analog phone to the router with voicemail storage and various VoIP call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.

The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the Gigabit Ethernet LAN ports (including the WAN/LAN port) for reliable wired connections. The USB port can be used to share files, music, and videos within your network at high speeds.

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

Service provider can remotely configure and manage devices via their ACS (Auto-Configuration Server, based on TR-369/069) system or the OMCI (ONU Management Control Interface) protocol. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols. While the home user can enjoy more efficient service experiences.

The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.

SPECIFICATIONS:

• Interface: 1× SC/APC GPON Port, 1× 10/100/1000 Mbps WAN/LAN Port, 3× 10/100/1000 Mbps LAN Ports, 1× Phone Port, 1× USB 2.0 Port
• Buttons: WPS/Wi-Fi Button, Reset Button, Power On/Off Button
• External Power Supply: 12V/1.5A
• Data Rates: Downstream 2.488 Gbps (GPON), Upstream 1.244 Gbps (GPON)
• Antenna: 2× External Dual-Band Antennas, 1× Internal 5G Antenna
• Wireless Standards: IEEE 802.11a/n/ac/ax (5 GHz), IEEE 802.11b/g/n/ax (2.4 GHz)
• Frequency: 2.4 GHz, 5 GHz
• Signal Rate: AX3000, 5 GHz: Up to 2402 Mbps (HE160), 2.4 GHz: Up to 574 Mbps (HE40)
• Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
• Wireless Security: WPA/WPA2/WPA3 Encryptions
• Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
• Multi-SSID: 2× 5 GHz Multi-SSID, 2× 2.4 GHz Multi-SSID
• Wireless Schedule: Supports 2.4 GHz and 5 GHz Wireless Schedule
• Mesh Technology: EasyMesh Compatible, Supports 802.11k/v/r
• Quality of Service: Hardware QoS, Flow Classification
• Advanced Features: Parental Controls, Guest Network, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
• Security: NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, DoS Defense, SYN Flooding Protection, Ping of Death Protection
• Management Features: Local Management (WebGUI, Aginet App), Remote Management (Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143), Cloud Management (TP-Link Aginet Unified Cloud - TAUC)
• DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
• Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
• Dynamic DNS: DynDns, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec
• Protocols: IPv4, IPv6
• VPN Server: PPTP VPN, IPSec VPN, OpenVPN

• Operating Temperature: 0℃–40℃ (32℉–104℉)
• Storage Temperature: -40℃–60℃ (-40℉–140℉)
• Operating Humidity: 10%–90% Non-Condensing
• Storage Humidity: 5%–90% Non-Condensing

WHAT’S IN THE BOX:

• GPON Router XX530v x1
• RJ45 Ethernet Cable x1
• Power Adapter x1
• Quick Installation Guide x1

WARRANTY:

• 24 Months
