Our mounting kits provide flexible installation, whether inside or outside.

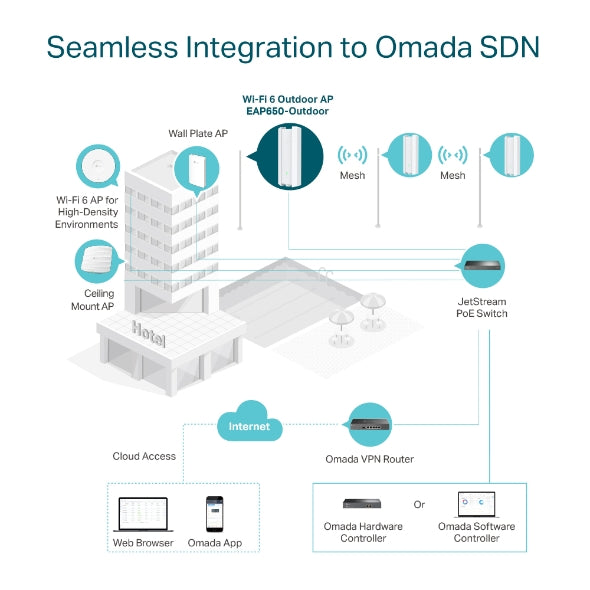

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a phone or tablet.
SPECIFICATIONS:
- Interface: 1× Gigabit Ethernet (RJ-45) Port (Supports 802.3at PoE and Passive PoE)
- Button: Reset
- Power Supply: 802.3at PoE, 48V Passive PoE (PoE Adapter Included)
- Max. Power Consumption: EU: 12.5W (802.3at PoE or Passive PoE), US: 14.7W (802.3at PoE or Passive PoE)
- Dimensions: 280.4 × 106.5 × 56.8 mm (Without Antenna & Mounting Kit)
- Antenna: 2× 4 dBi (2.4 GHz), 2× 5 dBi (5 GHz)
- Weatherproof Enclosure: IP67
- Mounting: Pole/Wall Mounting (Kits Included)
- Concurrent Clients: 250+
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz, 5 GHz

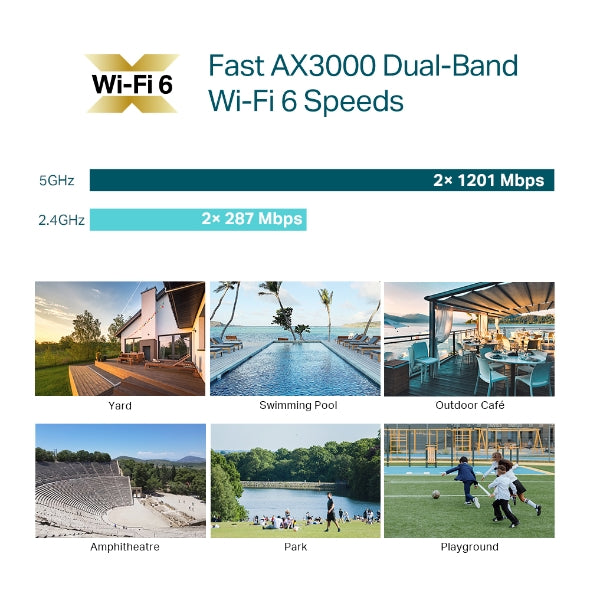

- Signal Rate: 802.11ax: 8 Mbps–1201 Mbps, 802.11ac: 6.5 Mbps–1083.3 Mbps, 802.11n: 6.5 Mbps–300 Mbps, 802.11g: 6–54 Mbps, 802.11b: 1–11 Mbps, 802.11a: 6–54 Mbps
- Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16, 8 Per Band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), MU-MIMO, Omada Mesh, Seamless Roaming, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics Based on SSID/AP/Client
- Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA/WPA2/WPA3 Personal & Enterprise
- Transmission Power: CE: <20 dBm (2.4 GHz), <30 dBm (5 GHz); FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)
- Omada App: Yes
- Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300, OC200), Omada Software Controller
- Cloud Access: Yes (Through Omada Cloud-Based Controller, OC300, OC200, or Omada Software Controller)
- Email Alerts: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging: Local/Remote Syslog
- SSH: Yes
- Web-Based Management: Yes
- L3 Management: Yes
- Multi-Site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
- Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
- Operating Temperature: -30–70 ℃ (-22–158 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH Non-Condensing
- Storage Humidity: 5–90% RH Non-Condensing
WHAT’S IN THE BOX:
- Access Point EAP650-Outdoor x1
- Passive PoE Adapter x1
- Power Cord x1
- Mounting Kits x1
- Installation Guide x1
WARRANTY:
- 24 Months
