TP-Link AXE11000 Ceiling Mount Quad-Band WiFi 6E Access Point - EAP690E HD

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 4804 Mbps on 6 GHz, 4804 Mbps on 5 GHz, and 1148 Mbps on 2.4 GHz for 10.8 Gbps WiFi speeds.

High-Density Connectivity up to 2000 Clients: Improves WiFi performance in dense environments with OFDMA, MU-MIMO, and BSS Coloring.

160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.

Smart Antennas: Professional antennas with high-power amplifiers provide strong wireless coverage in high-density environments.

PoE++ Support: Supports Power over Ethernet (802.3bt) for convenient  deployment and installation.

Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and the Omada app offer ultra convenience and easy management.

Improve performance, lower interference, and extend coverage for user-heavy scenarios through TP-Link Smart Antenna technology. Equipped with an ingenious 6 GHz/5 GHz/2.4 GHz antenna array, EAP690E HD automatically selects the optimal antennas to cover all terminal devices via intelligent algorithms, delivering lag-free and superb WiFi experiences.

With the intelligent power supply feature of EAP690E HD, the PoE switch can act as a backup power source. Intelligent power supply automatically and smoothly powers EAP690E HD when the DC adapter is accidentally disconnected, delivering a reliable and safe business network experience.

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.

Provides powerful wireless performance that significantly reduces WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

With Mesh technology, Omada APs save you from redundant wires by wirelessly extending your WiFi signal farther and more flexibly to hard-to-wire areas.

Intelligent self-organization optimizes the best path between APs, while self-healing ensures your devices stay online even when one AP is disrupted.

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Automatically moves dual band devices onto the wider 5 GHz/6 GHz band for faster connections.

Ensures large numbers of users have smooth network experiences in high-density business networks.

Increases average network throughput in heavily congested environments.

SPECIFICATIONS:

• Interface: 1× 10 Gbps Ethernet Port
• Button: Reset
• Power Supply: 802.3bt PoE or 12 V / 4.5 A DC
• Max. Power Consumption: Smart Power Consumption Management Supported; EU: 44.9 W (802.3bt, Full Functionality), 40.6 W (12 V / 4.5 A, Full Functionality), 25.5 W (802.3at, 5 GHz-2 and 6 GHz Off), 12.95 W (802.3af, Radio Off, Only Main Chip and LAN Working); US: 50.5 W (802.3bt, Full Functionality), 44.2 W (12 V / 4.5 A, Full Functionality), 25.5 W (802.3at, 5 GHz-2 and 6 GHz Off), 12.95 W (802.3af, Radio Off, Only Main Chip and LAN Working)
• Dimensions: 11 × 11 × 2.3 in (280 × 280 × 59.1 mm)
• Antenna: 2.4 GHz: 4× 4.0 dBi; 5 GHz-1: 4× 5.0 dBi (Smart Antennas); 5 GHz-2: 4× 5.5 dBi (Smart Antennas); 6 GHz: 4× 5.0 dBi
• Bluetooth: Yes

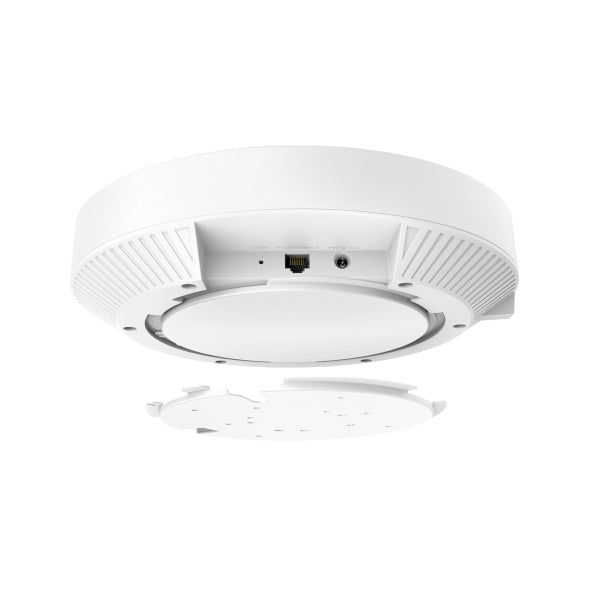

• Mounting: Ceiling / Wall Mounting (Kits Included)
• Coverage: 200㎡ (2150 ft²)
• Concurrent Clients: 2,040+
• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
• Frequency: 2.4 GHz, 5 GHz, 6 GHz
• Signal Rate: 6 GHz: 4804 Mbps; 5 GHz-1: 2402 Mbps; 5 GHz-2: 2402 Mbps; 2.4 GHz: 1148 Mbps
• Wireless Functions: MIMO (2.4 GHz: 4×4 SU-MIMO/MU-MIMO DL/UL; 5 GHz: 4×4 SU-MIMO/MU-MIMO DL/UL; 6 GHz: 4×4 SU-MIMO/MU-MIMO DL/UL), Seamless Roaming (802.11k/v)
• Wireless Security: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
• Transmission Power: CE: <20 dBm (2.4 GHz, EIRP), <23 dBm (5 GHz-1, EIRP), <30 dBm (5 GHz-2, EIRP), <23 dBm (6 GHz, EIRP); FCC: <28 dBm (2.4 GHz), <28 dBm (5 GHz-1), <28 dBm (5 GHz-2), <25 dBm (6 GHz)
• Multi-SSID: 32 (8 on Each Band)
• SNMP: v1, v2c, v3
• Certification: CE, FCC, RoHS, IC
• Package Content:
• Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% Non-Condensing
• Storage Humidity: 5%–90% Non-Condensing

WHAT’S IN THE BOX:

• EAP690E HD x1

WARRANTY:

• 24 Months
