TP-Link BE19000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point - EAP783

BE19000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 5760 Mbps on 5 GHz + 1376 Mbps on 2.4 GHz).

A clear 6 GHz band brings cleaner and wider band resources.

2× 10G ports unlock the full potential of Wi-Fi 7.

320 MHz bandwidth enables many more simultaneous transmissions.

Multi-Link Operation and Multi-RUs ensure the high performance of your network.

Advanced Functions: Centralized management, mesh, and Seamless roaming.

The TP-Link EAP783 is a ceiling-mounted, tri-band access point designed for high-density network environments. It uses the Wi-Fi 7 (802.11be) standard to deliver combined speeds of up to 19 Gbps. The device operates across three bands, providing 11520 Mbps on the 6 GHz band, 5760 Mbps on the 5 GHz band, and 1376 Mbps on the 2.4 GHz band. Key Wi-Fi 7 features include 320 MHz channel support, 4K-QAM, and Multi-Link Operation (MLO) to increase data throughput and reduce network latency. Connectivity is handled by dual 10 Gbps PoE++ ports, which supply both data and power over a single Ethernet cable. The EAP783 integrates with the Omada Software-Defined Networking (SDN) platform, allowing for centralised management of the network through a single interface. Its ceiling mount design facilitates discreet installation in professional settings such as offices, schools, and hospitality venues.

SPECIFICATIONS:

• Interface: 2× 10 G Ethernet Ports (20 G Aggregation Speed)
• Button: Reset
• Power Supply: 802.3bt PoE++, 12 V DC (Power Adapter Not Included)
• Max. Power Consumption: 39 W
• Dimensions: 11.0 × 11.0 × 1.8 in (280 × 280 × 46.5 mm)
• Antenna: Internal Omni; 2.4 GHz: 4× 4 dBi; 5 GHz: 4× 5.5 dBi; 6 GHz: 4× 5 dBi
• Bluetooth: V5.2

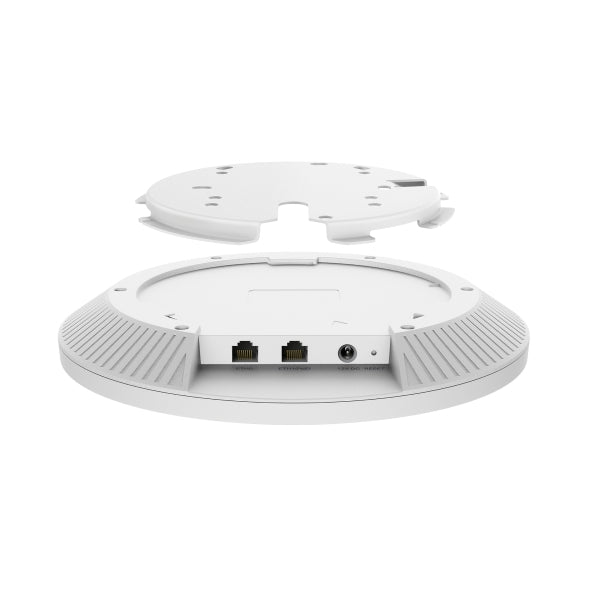

• Mounting: Ceiling / Wall Mounting (Kits Included)
• Coverage: 200㎡ (2150 ft²)
• Concurrent Clients: 760+
• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax/be
• Frequency: 6 GHz, 5 GHz, and 2.4 GHz
• Signal Rate: 6 GHz: Up to 11520 Mbps; 5 GHz: Up to 5760 Mbps; 2.4 GHz: Up to 1376 Mbps
• Wireless Functions: MLO, 4K-QAM, 4×4 MU-MIMO DL/UL, HE320 (320 MHz Bandwidth), Mesh, Seamless Roaming (802.11k/v/r), Automatic Channel Selection and Power Adjustment, BSS Coloring, UL/DL OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP
• Wireless Security: PPSK, VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication, Maximum MAC Filters: 4,000, Wireless Isolation Between Clients, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
• Transmission Power: CE: <20 dBm (2.4 GHz, EIRP), <23 dBm (5 GHz Band 1 & Band 2, EIRP), <30 dBm (5 GHz Band 3, EIRP), <23 dBm (6 GHz, EIRP)
• Omada App: Yes
• Restore & Backup: Yes
• Firmware Update via Web: Yes
• NTP: Yes
• Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
• Cloud Access: Yes (Requires OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• SSH: Yes
• Web-Based Management: Yes
• Weight: Net Weight: 1384.6 g
• Certification: CE, FCC, RoHS, IC

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% Non-Condensing
• Storage Humidity: 5%–90% Non-Condensing

WHAT’S IN THE BOX:

• EAP783 x1
• Installation Guide x1
• Ceiling/Wall Mounting Kits x1

WARRANTY:

• 24 Months
