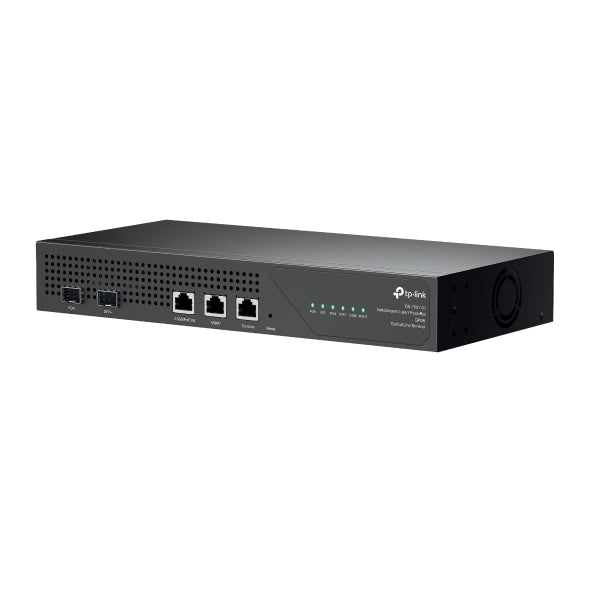

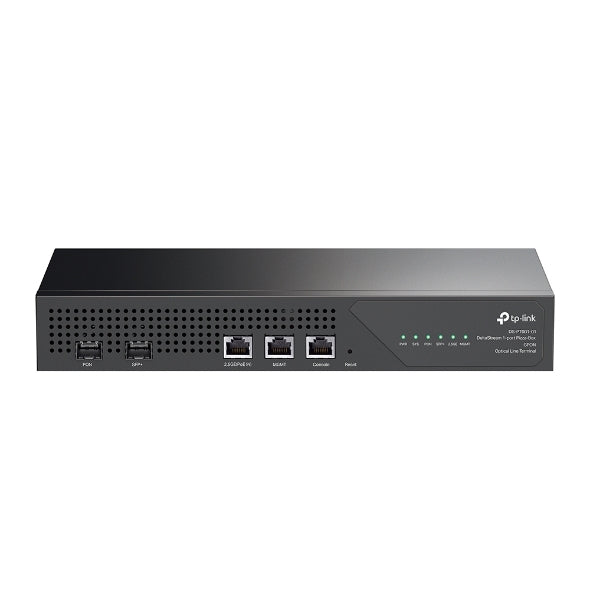

TP-Link DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal - DS-P7001-01

GPON Port: Supports 1:128 splitting ratio—up to 128 ONTs by one device—perfect for small businesses and home offices.

High-Speed Uplink Ports: 1× 10G SFP+ port and 1× 2.5 GbE uplink port offer high-bandwidth connectivity.

Flexible Deployment: Supports both DC and 802.3at PoE power supplies to fit various application scenarios.

Zero-Touch Activation: Simplifies field operations with automated ONU onboarding.

Auto Provisioning: Deliver personalized broadband plans based on predefined service profiles.

Multi-Level QoS: Delivers differentiated services to meet Service Level Agreements (SLAs) and enhance user experience.

Advanced L2/L2+ Functions: Rich and robust functions satisfy flexible deployment and scalability needs.

Centralized Management: Supports management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.

With its compact, 1RU rack-mountable design, the DS-P7001-01 delivers high-speed GPON services, offering flexible scalability to meet the internet needs of small communities, hotels, Multi-Dwelling Units (MDUs) and more. Additionally, its compact casing and PoE features enable efficient and versatile deployment.

Adopting a hierarchical Quality of Service (QoS) strategy, DS-P7001-01 delivers differentiated services to meet Service Level Agreements (SLAs) and enhance user experiences. It prioritizes critical, time-sensitive traffic, optimizes overall bandwidth based on refined policies, and implements detailed scheduling at the port, ONU, user, and service flow levels.

Safeguards against service disruption by providing single-homing protection at the Optical Line Terminal (OLT) level. With active-standby PON ports and independent fiber paths, this architecture ensures seamless switchover and service continuity in the event of a PON or fiber failure.

Easy Mode transforms the complicated configuration process by turning the OLT into a centralized platform for ONT management. Simply apply a service profile based on the end-user's broadband needs and the system does the rest. All technical parameters are auto-configured in the background, making deployment faster, smarter, and easier than ever.

With the DeltaStream PON Management System (DPMS), service providers can easily configure and manage multiple devices simultaneously, either locally or remotely via the cloud, at any time and from anywhere. Compatibility with command-line interface (CLI) and out-of-band management through TR-069/TR-369 protocols enhances flexibility and efficiency and reduces operation costs.

Under the Aginet flagship, TP-Link offers comprehensive one-stop solutions for FTTH applications to service providers, whether based on GPON or XGS-PON. Service providers can roll out their service plans with reduced operation and maintenance costs and increase ARPU with improved user satisfaction, while home users can enjoy a better networking experience.

*Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.

SPECIFICATIONS:

• Interface: 1× GPON Port, 1× 10 Gbps SFP+ Uplink Port, 1× 10/100/1000/2500 Mbps RJ45 Uplink Port, 1× RJ45 Console Port, 1× RJ45 MGMT Port
• Button: Reset Button
• Power Supply: Dual Power Supplies (DC and 802.3at PoE), DC Adapter: 12.0V/2.5A, 802.3at PoE: 42.5~57V/0.6A
• Max. Power Consumption: 17 W
• Dimensions: 294 × 140 × 44 mm (11.6 × 5.5 × 1.7 in)
• Security: ACL (IPv4/IPv6), DHCP Filter, Port Security, Access Security
• DHCP: DHCP Server, DHCP Relay
• OMCI: Standard OMCI Management Supported
• ONU Authentication: ONU Auto Authentication
• ONU Security: Rogue ONU Detection and Isolation, Uplink and Downlink Data Encryption
• Multi-Service: Multi-Service Traffic Identification and Rate Limiting
• QoS: IEEE 802.1p/DSCP QoS, Voice VLAN, Auto VoIP
• Routing: Static Routing
• Multicast: IGMP Snooping, MLD Snooping
• Centralized Management: Large-Scale Device Management, OLT Batch Configuration, Upgrade & Reboot, Multi-Site Management, Intelligent Network Monitoring, Real-Time Network Overview
• Max. Splitting Ratio: 1:128
• Transmission Distance: 60 km
• Data Rate: Downstream 2.5 Gbps, Upstream 1.25 Gbps
• Wavelength: Tx 1490 nm, Rx 1310 nm
• Certification: CE, FCC

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

WHAT’S IN THE BOX:

• OLT Device x1
• DC Adapter x1
• Console Cable x1
• Installation Guide x1
• Mounting Brackets x1
• Screws x1
• Rubber Feet x1

WARRANTY:

• 24 Months
