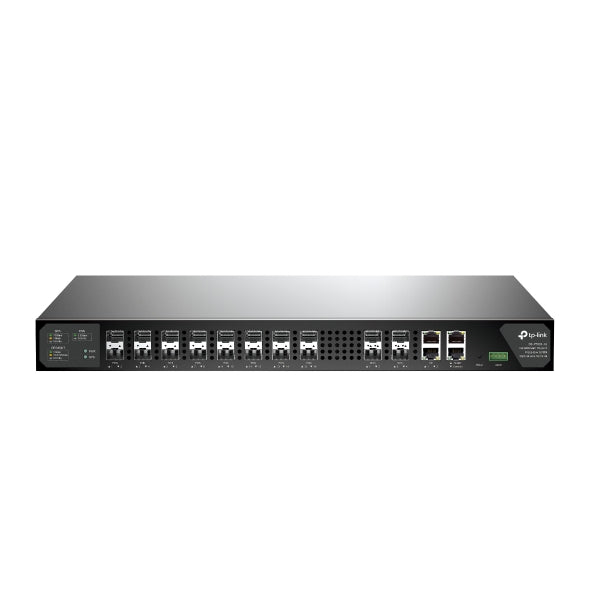

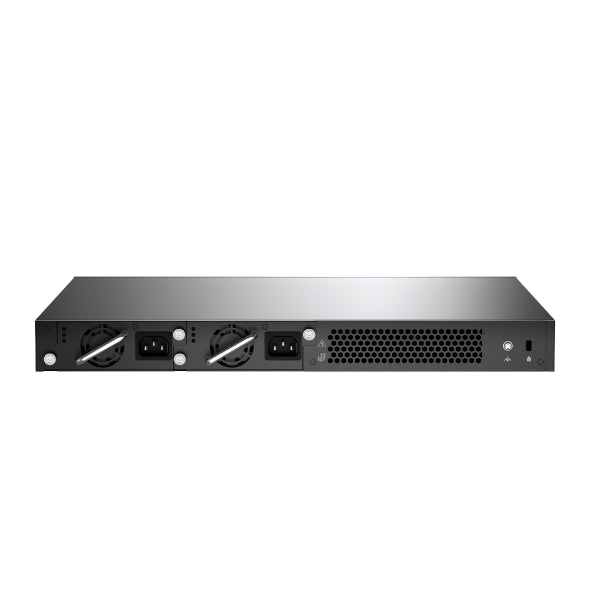

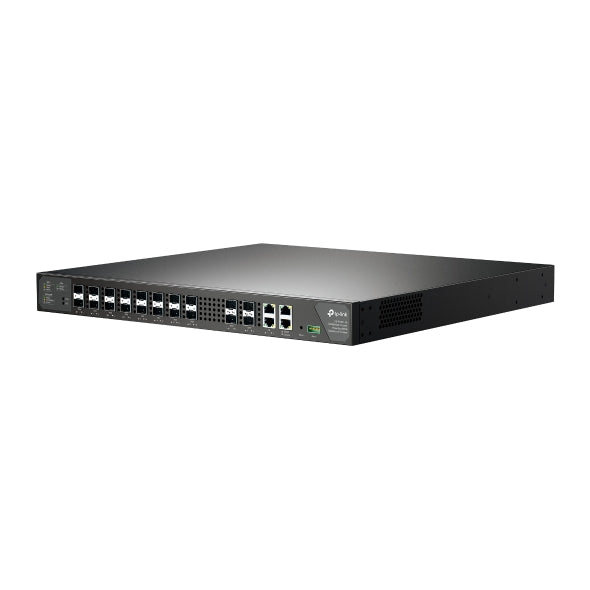

TP-Link DeltaStream 16-Port Pizza-Box GPON Optical Line Terminal - DS-P7001-16

16 GPON Ports: Supports 1:128 splitting ratio for every port—up to 2048 ONTs by one device.

High-Speed Uplink Ports: 4× 10G SFP+ ports and 2× gigabit uplink ports offer high-bandwidth connectivity.

Dual Power Supplies: Carrier-class reliability with dual hot-swappable power supplies: AC, DC, or mixed-power supplies.

Zero-Touch Activation: Simplifies field operations with automated ONU onboarding.

Auto Provisioning: Deliver personalized broadband plans based on predefined service profiles.

Multi-Level QoS: Delivers differentiated services to meet Service Level Agreements (SLAs) and enhance user experience.

Advanced L2/L2+ Functions: Rich and robust functions satisfy flexible deployment and scalability needs.

Centralized Management: Supports management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.

With its compact, 1RU rack-mountable design, the DS-P7001-16 supports up to 16x GPON ports for high-speed GPON service delivery, offering flexible scalability to meet the internet needs of small to medium-sized communities. Additionally, its compact casing enables efficient and versatile deployment in areas with lower user density.

Adopting a hierarchical Quality of Service (QoS) strategy, DS-P7001-16 delivers differentiated services to meet Service Level Agreements (SLAs) and enhance user experiences. It prioritizes critical, time-sensitive traffic, optimizes overall bandwidth based on refined policies, and implements detailed scheduling at the port, ONU, user, and service flow levels.

Safeguards against service disruption by providing single-homing protection at the Optical Line Terminal (OLT) level. With active-standby PON ports and independent fiber paths, this architecture ensures seamless switchover and service continuity in the event of a PON or fiber failure.

Easy Mode transforms the complicated configuration process by turning the OLT into a centralized platform for ONT management. Simply apply a service profile based on the end-user's broadband needs and the system does the rest. All technical parameters are auto-configured in the background, making deployment faster, smarter, and easier than ever.

With the DeltaStream PON Management System (DPMS), service providers can easily configure and manage multiple devices simultaneously, either locally or remotely via the cloud, at any time and from anywhere. Compatibility with command-line interface (CLI) and out-of-band management through TR-069/TR-369 protocols enhances flexibility and efficiency and reduces operation costs.

Dual redundant power supplies offer reliable performance by utilizing both DC and AC power sources, with the AC power supply taking precedence. This configuration ensures carrier-class reliability and continuous service delivery.

Under the Aginet flagship, TP-Link offers comprehensive one-stop solutions for FTTH applications to service providers, whether based on GPON or XGS-PON. Service providers can roll out their service plans with reduced operation and maintenance costs and increase ARPU with improved user satisfaction, while home users can enjoy a better networking experience.

SPECIFICATIONS:

• Interface: 16× GPON Ports, 4× 10 Gbps SFP+ Uplink Ports, 2× 10/100/1000 Mbps RJ45 Uplink Ports, 1× RJ45 Console Port, 1× RJ45 MGMT Port, 1× Alarm Port
• Button: Reset Button
• Power Supply: Dual Power Supply (2× AC, 2× DC, or AC + DC), AC: 100–240 V, 50/60 Hz, DC: -38.4 V to -72 V
• Max. Power Consumption: 103 W
• Dimensions: 440 × 440 × 44 mm (17.3 × 17.3 × 1.7 in)
• Security: ACL, 802.1X Authentication, ARP Inspection, IP Source Guard
• DHCP: DHCP Server, DHCP Relay
• OMCI: Standard OMCI Management Supported
• ONU Authentication: ONU Auto Authentication
• ONU Security: Rogue ONU Detection and Isolation, Uplink and Downlink Data Encryption
• Multi-Service: Multi-Service Traffic Identification and Rate Limiting
• QoS: IEEE 802.1p/DSCP QoS, Voice VLAN, Auto VoIP
• Routing: Static Routing
• Multicast: IGMP Snooping, MLD Snooping
• Centralized Management: Large-Scale Device Management, OLT Batch Configure/Upgrade/Reboot, Multi-Site Management, Intelligent Network Monitoring, Real-Time Network Overview
• Max. Splitting Ratio: 1:128
• Transmission Distance: 60 km
• Data Rate: 2.5 Gbps Downstream, 1.25 Gbps Upstream
• Wavelength: Tx 1490 nm, Rx 1310 nm
• Interface Type: SC/UPC
• Fiber Type: 9/125 μm Single-Mode Fiber (SMF)
• Tx Power: Class C+
• Certification: CE, FCC

• Operating Temperature: 0–50°C (32–122°F)
• Storage Temperature: -40–70°C (-40–158°F)

WHAT’S IN THE BOX:

• OLT Device x1
• Power Cord x1
• Console Cable x1
• Installation Guide x1
• Mounting Brackets x1
• Screws x1
• Rubber Feet x1

WARRANTY:

• 24 Months
