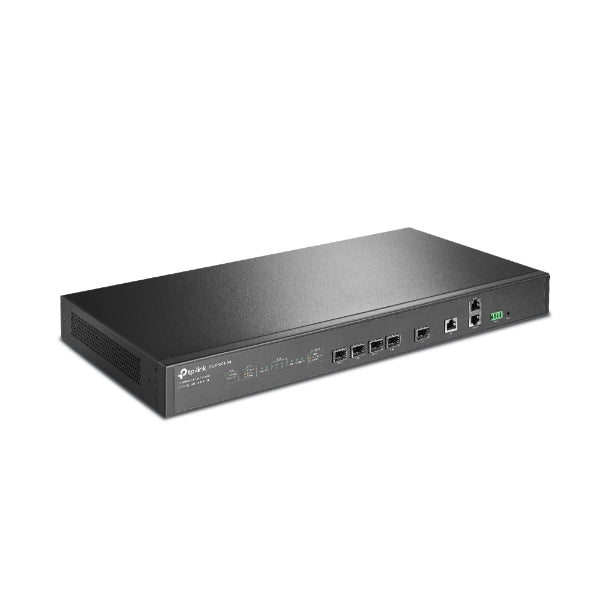

TP-Link DeltaStream 4-port Pizza-box GPON Optical Line Terminal - DS-P7001-04

4 GPON Ports: Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device.

High-Speed Uplink Ports: Provides 1× 10GE SFP+ port and 1× gigabit uplink port.

Redundant Dual Power Supplies: Carrier-class reliability with dual built-in AC+DC power supplies.

Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.

Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.

Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.

Supports 1:128 splitting ratio for every port—up to 512 ONTs by one device.

Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.

Mount in a rack for flexible deployment with all your other products.

Dual built-in AC and DC power supplies ensures carrier-class reliability.

• AC input: 100V~240V 50/60Hz
• DC input: 38.4V~72V

SPECIFICATIONS:

• Interface: 4× 2.5G PON Ports, 1× 10 Gbps SFP+ Uplink Port, 1× 10/100/1000 Mbps RJ45 Uplink Port, 1× RJ45 Console Port, 1× RJ45 MGMT Port, 1× Alarm Port (Reserved)
• Button: Reset Button
• Power Supply: Dual Power Supplies, AC: 100V–240V, 50/60Hz, DC: -38.4V–-72V
• Max. Power Consumption: 58W
• Dimensions (W×D×H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
• Security: ACL, 802.1X Authentication, ARP Inspection, IP Source Guard
• DHCP: DHCP Server, DHCP Relay
• OMCI: Standard OMCI Management Supported
• ONU Authentication: ONU Auto Authentication
• ONU Security: Rogue ONU Detection and Isolation, Uplink and Downlink Data Encryption
• Multi-Service: Multi-Service Traffic Identification and Rate Limiting
• QoS: IEEE 802.1p/DSCP QoS, Voice VLAN, Auto VoIP
• Routing: Static Routing
• Multicast: IGMP Snooping, MLD Snooping
• Centralized Management: Large-Scale Device Management, OLT Batch Configure/Upgrade/Reboot, Multi-Site Management, Intelligent Network Monitoring, Real-Time Network Overview
• Max. Splitting Ratio: 1:128
• Transmission Distance: 20 km
• Data Rate: Downstream: 2.5 Gbps, Upstream: 1.25 Gbps
• Wavelength: Tx: 1490 nm, Rx: 1310 nm
• Interface Type: SC/UPC
• Fiber Type: 9/125 μm SMF (Single Mode Fiber)
• Tx Power: Class C+
• Certification: CE, FCC

• Environment: Operating Temperature: 0°C–50°C (32°F–122°F), Storage Temperature: -40°C–70°C (-40°F–158°F)

WHAT’S IN THE BOX:

• OLT Device x1
• Power Cord x1
• Console Cable x1
• Installation Guide x1
• Mounting Brackets x1
• Screws x1
• Rubber Feet x1

WARRANTY:

• 24 Months
