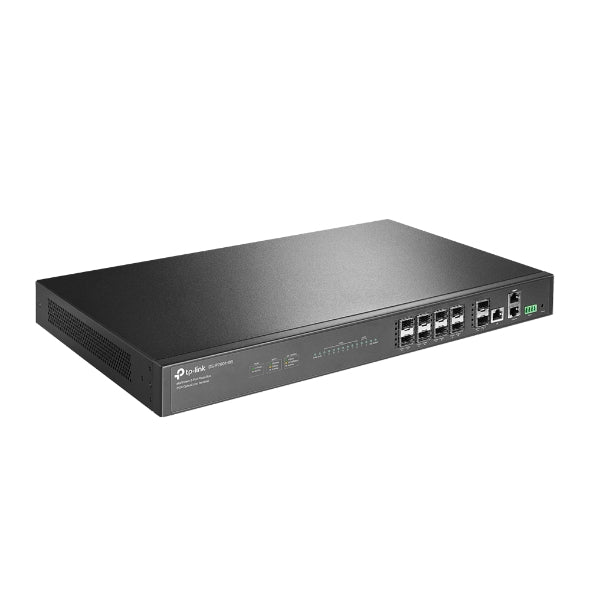

TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal - DS-P7001-08
TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal - DS-P7001-08
Ready to ship in 2-4 days
Couldn't load pickup availability
Share
8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port.
Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies.
Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.
Mount in a rack for flexible deployment with all your other products.

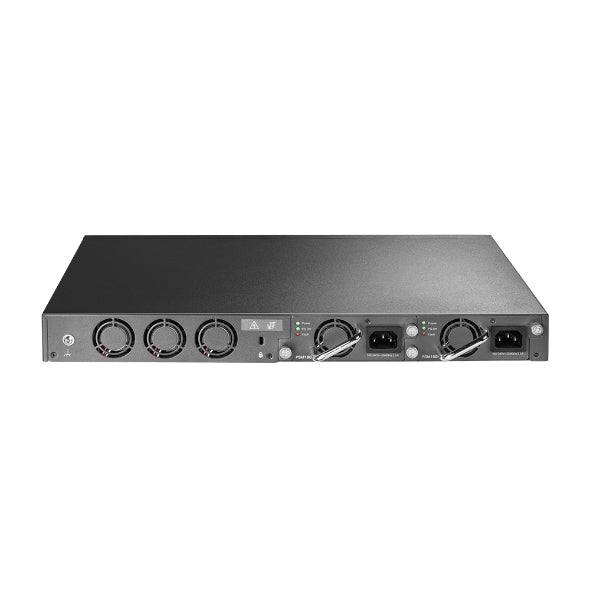

Dual redundant power supplies ensures carrier-class reliability. AC, DC and mixed power input supported.
- AC input: 100V~240V 50/60Hz
- DC input: 38.4V~72V
- Hot Swapping
SPECIFICATIONS:
- Interface: 8× 2.5G PON Ports, 2× 10 Gbps SFP+ Uplink Ports, 1× 10/100/1000 Mbps RJ45 Uplink Port, 1× RJ45 Console Port, 1× RJ45 MGMT Port, 1× Alarm Port (Reserved)
- Button: Reset Button
- Power Supply: Dual Power Supplies (2 AC, 2 DC, or AC+DC), AC: 100V–240V, 50/60Hz, DC: -38.4V–-72V
- Max. Power Consumption: 70W
- Dimensions (W×D×H): 17.3 × 10.2 × 1.7 in (440 × 260 × 44 mm)
- Security: ACL, 802.1X Authentication, ARP Inspection, IP Source Guard
- DHCP: DHCP Server, DHCP Relay
- OMCI: Standard OMCI Management Supported
- ONU Authentication: ONU Auto Authentication
- ONU Security: Rogue ONU Detection and Isolation, Uplink and Downlink Data Encryption
- Multi-Service: Multi-Service Traffic Identification and Rate Limiting
- QoS: IEEE 802.1p/DSCP QoS, Voice VLAN, Auto VoIP
- Routing: Static Routing
- Multicast: IGMP Snooping, MLD Snooping
- Centralized Management: Large-Scale Device Management, OLT Batch Configure, Upgrade, Reboot, Multi-Site Management, Intelligent Network Monitoring, Real-Time Network Overview
- Max. Splitting Ratio: 1:128
- Transmission Distance: 20 km
- Data Rate: Downstream: 2.5 Gbps, Upstream: 1.25 Gbps
- Wavelength: Tx: 1490 nm, Rx: 1310 nm
- Interface Type: SC/UPC
- Fiber Type: 9/125 μm SMF (Single Mode Fiber)
- Tx Power: Class C+
- Certification: CE, FCC
- Environment: Operating Temperature: 0°C–50°C (32°F–122°F), Storage Temperature: -40°C–70°C (-40°F–158°F)
WHAT’S IN THE BOX:
- OLT Device x1
- Power Cord x1
- Console Cable x1
- Installation Guide x1
- Mounting Brackets x1
- Screws x1
- Rubber Feet x1
WARRANTY:
- 24 Months
