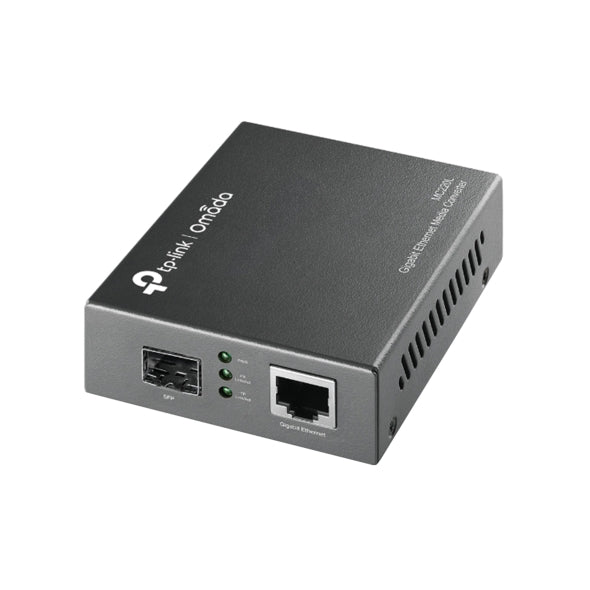

TP-Link Gigabit SFP Media Converter - MC220L

1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

Complies with IEEE 802.3ab and IEEE 802.3z

FX port supports hot-swappable

Maximum transmission distance depends on the inserting SFP

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will extend the fiber optic distance when utilizing SFP Module, and the maximum transmission distance depends on the inserting SFP Module.

SPECIFICATIONS:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
• Basic Function: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode; Maximum transmission distance depends on the inserted SFP module
• Interface: 1× 1000M SFP port; 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
• Wave Length: Depends on the used SFP module
• Network Media (1000BASE-X): Multi-mode/Single-mode SFP module
• Network Media (1000BASE-T): UTP Category 5/5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
• Dimensions (W × D × H): 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm)
• Power Supply: External Power Adapter
• Max. Power Consumption: 1.7 W
• LED Indicators: PWR, Link/Act
• Safety & Emission: FCC, CE, RoHS

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

WHAT’S IN THE BOX:

• Media Converter MC220L x1
• Power Adapter x1
• Installation Guide x1

WARRANTY:

• 12 Months
