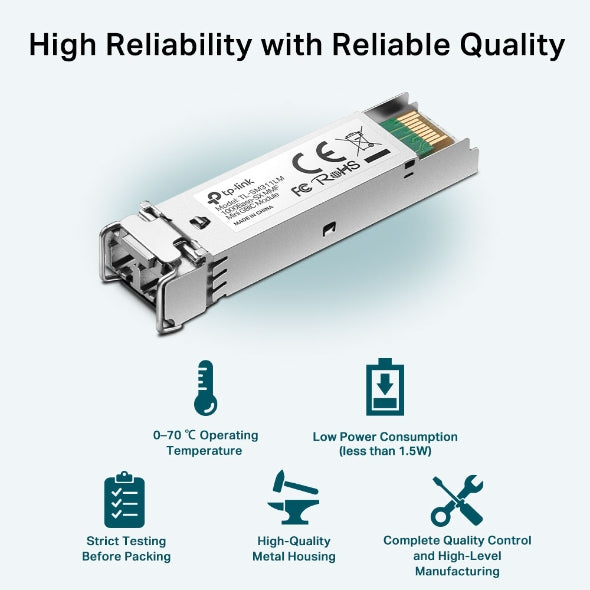

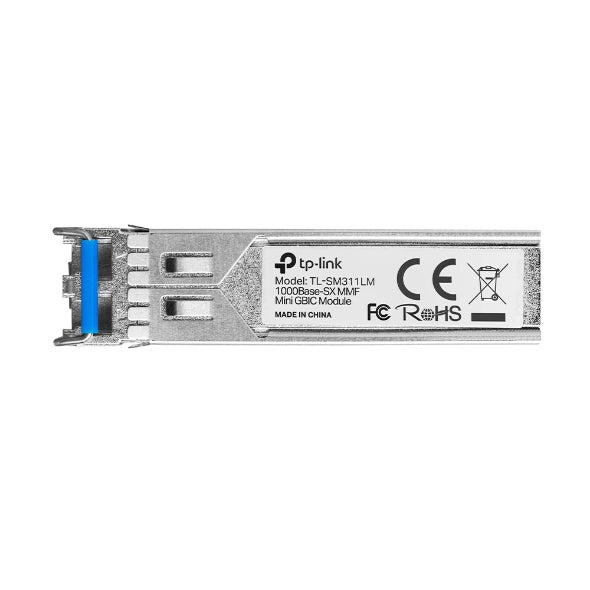

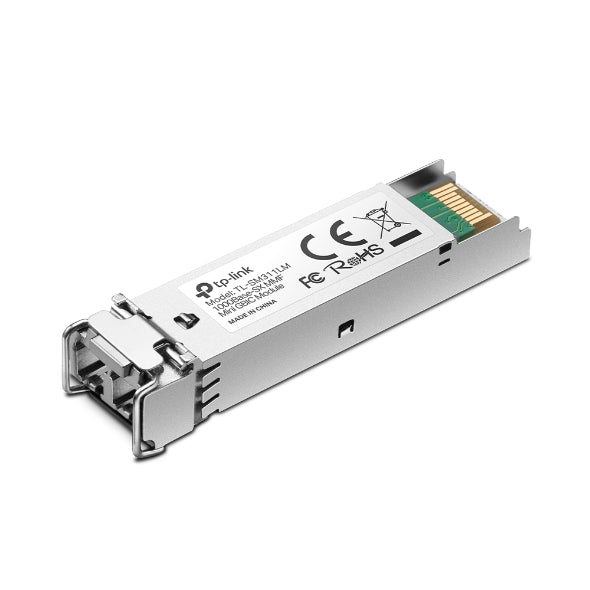

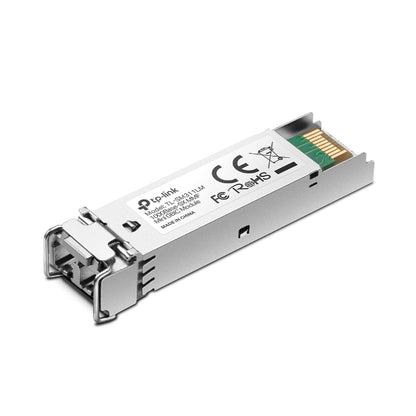

TP-Link MiniGBIC Module - TL-SM311LM

Multi-mode MiniGBIC module

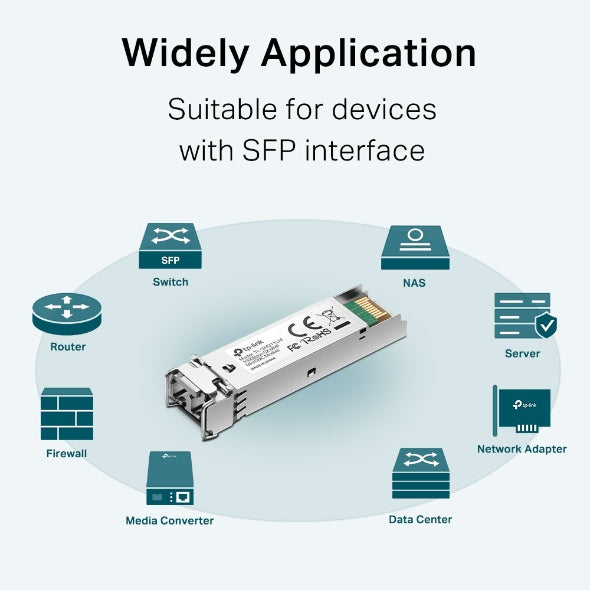

Compatible with T3700 series, T2700 series,T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L

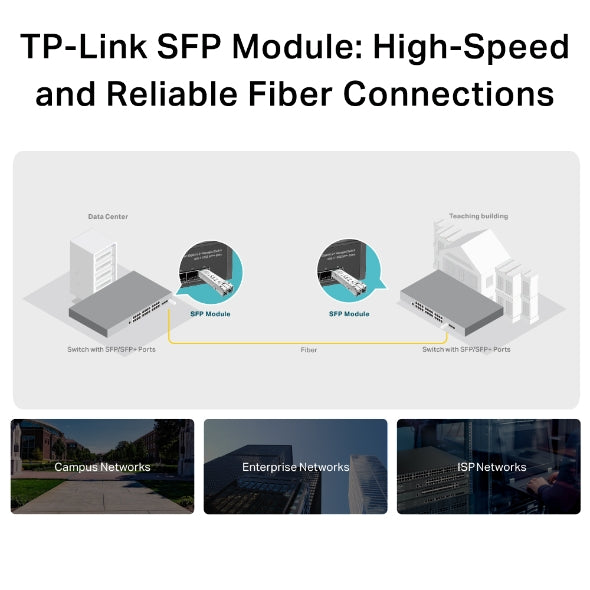

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

SPECIFICATIONS:

• Standards and Protocols: IEEE 802.3z, CSMA/CD, TCP/IP
• Wave Length: 850 nm
• Dimensions (W × D × H): 2.2 × 0.5 × 0.5 in (55.4 × 13.7 × 12.9 mm)
• Power Supply: 3.3 V
• Safety & Emission: FCC, CE
• Cable: Multi-mode Fiber
• Fiber Type: 50/125 μm or 62.5/125 μm Multi-mode
• Max. Cable Length: 550 m
• Data Rate: 1.25 Gbps

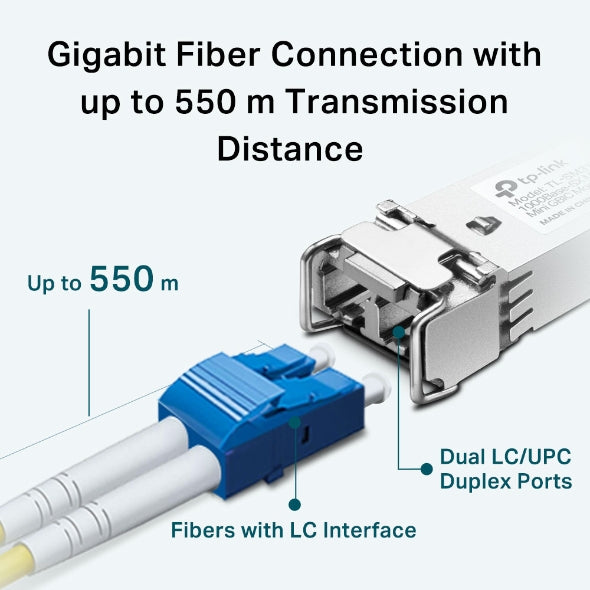

• Port Type: LC/UPC
• Operating Temperature: 0°C–70°C (32°F–158°F)
• Storage Temperature: -40°C–80°C (-40°F–176°F)
• Operating Humidity: 10%–90% Non-Condensing
• Storage Humidity: 5%–90% Non-Condensing


WHAT’S IN THE BOX:

• SFP Module TL-SM311LM x1
• Installation Guide x1

WARRANTY:

• 24 Months
