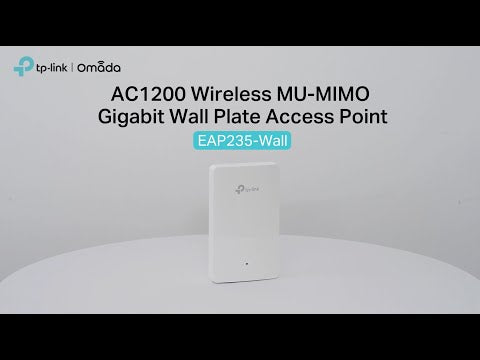

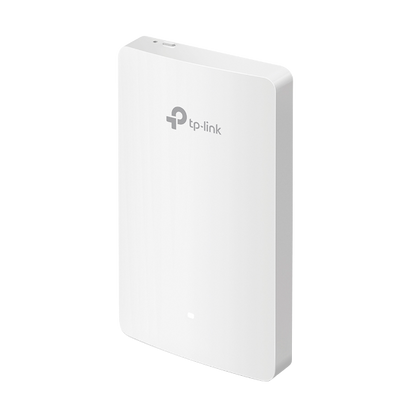

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point -EAP235-Wall

Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.

Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.

Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.

Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

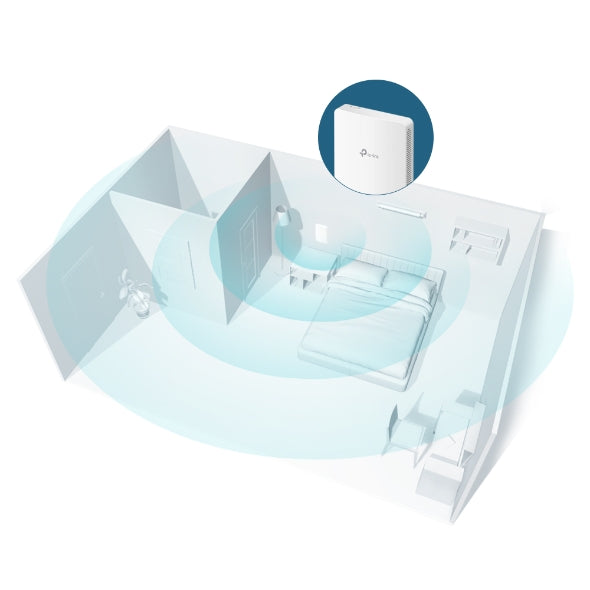

An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

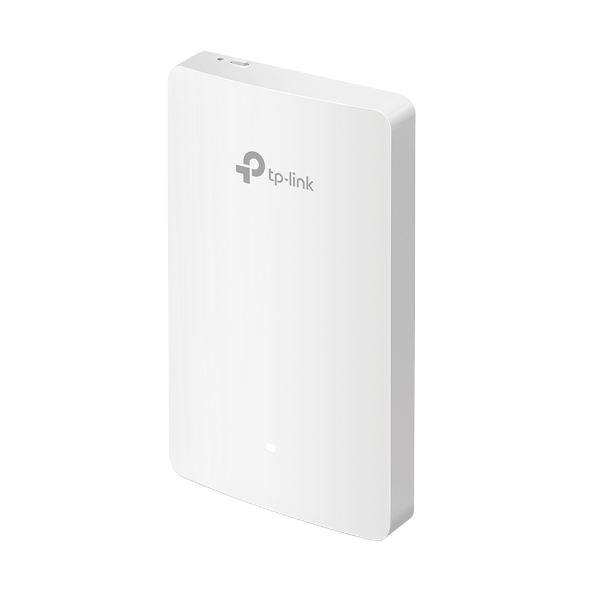

The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

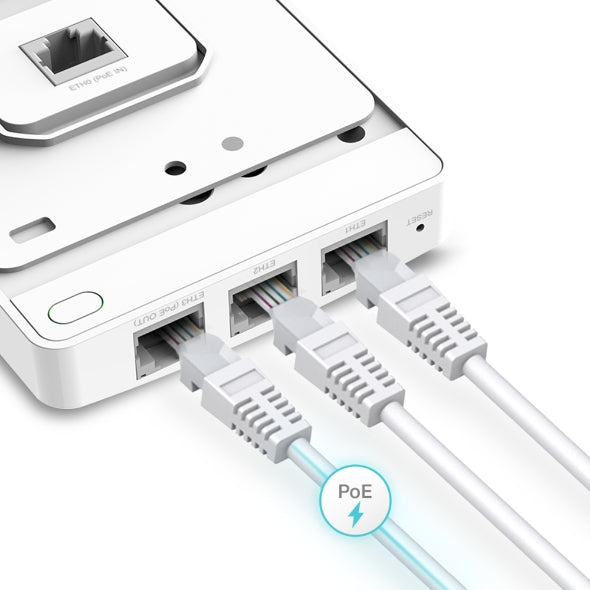

Equipped with four Gigabit data ports (1uplink + 3downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

SPECIFICATIONS:

• Interface: 1× Gigabit Ethernet uplink port, 3× Gigabit Ethernet downlink ports (1 with PoE Out up to 13W)
• Physical Security Lock: Yes
• Button: Reset
• Power Supply: 802.3af/802.3at PoE
• PoE Out: PoE Passthrough, 13W max (requires 802.3at PoE+ input)
• Max. Power Consumption: 9.8W / 24.4W (with PoE Out)
• Dimensions: 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
• Antenna: 2× Dual-Band Antennas (2.4GHz: 4dBi, 5GHz: 4dBi)
• Mounting: Wall Plate Mounting
• Coverage: Up to 25m² (300ft²)
• Concurrent Clients: 200+
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Frequency: 2.4GHz, 5GHz
• Signal Rate: Up to 300Mbps (2.4GHz), Up to 867Mbps (5GHz)

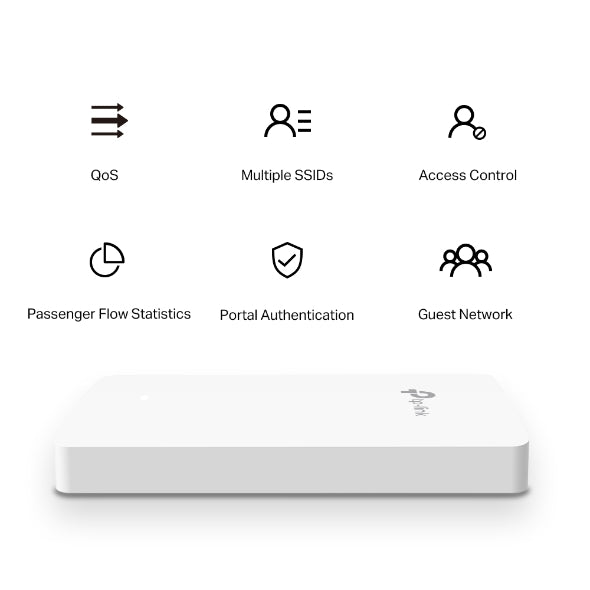

• Wireless Functions: 16 SSIDs, Automatic Channel Assignment, QoS (WMM), MU-MIMO, Band Steering, Beamforming, Load Balance, Rate Limit, Wireless Schedule, Wireless Statistics
• Wireless Security: Captive Portal, Access Control, MAC Filtering, Client Isolation, SSID to VLAN Mapping, Rogue AP Detection, 802.1X, WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
• Transmission Power: CE: ≤20dBm (2.4GHz), ≤23dBm (5GHz); FCC: ≤21dBm (2.4GHz & 5GHz)
• Omada App: Yes
• Omada Cloud Controller: Yes
• Centralized Management: Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
• Cloud Access: Yes
• Email Alerts: Yes
• LED Control: Yes
• Management Features: MAC Access Control, SNMP v1/v2c, Local/Remote Syslog, SSH, HTTP/HTTPS Web Management, L3 Management, Multi-site Management, Management VLAN, Zero-Touch Provisioning
• Certification: CE, FCC, RoHS

• System Requirements: Windows XP/ Vista/ 7/ 8/ 10
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing

WHAT’S IN THE BOX:

• Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point (EAP235-Wall) x1
• Installation Guide x1
• Mounting Screw x1

WARRANTY:

• 24 Months
