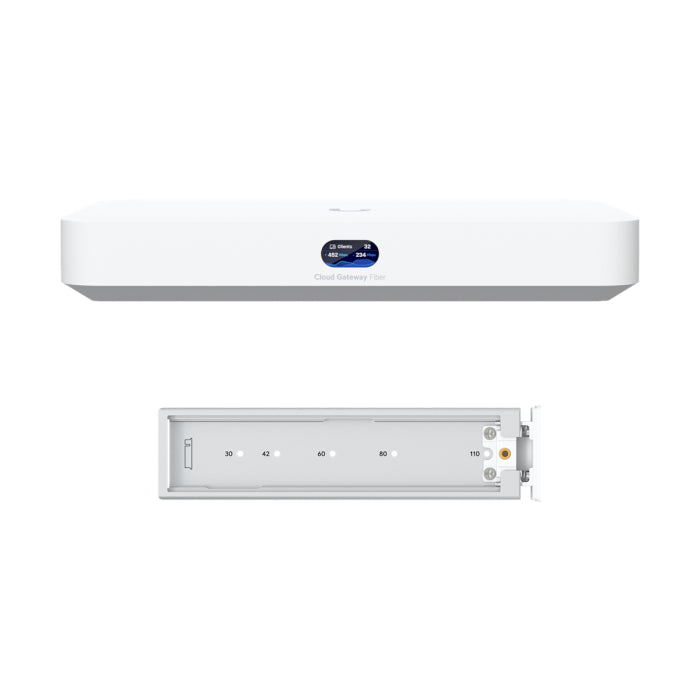

Ubiquiti 10G Multi-WAN UniFi Cloud Gateway Fiber with M.2 SSD Tray

Ubiquiti's UCG-Fiber & UACC-SSD-Tray is a desktop 10Gbps dual-WAN UniFi Cloud Gateway with selectable NVR storage via SSD up to 2TB and an included M.2 SSD Tray. The unit runs the complete UniFi application suite for full-stack network management and features 1x 10Gbps WAN port, 4x 2.5Gbps LAN Ports, one with 802.3at (PoE+) PoE output, as well as 2x SFP+ ports.

It can be configured and managed with the UniFi Network Application.

*Note: This version of the UCG-FIBER includes an M.2 SSD Tray. SSD not included.

FEATURES:

• Full UniFi OS: Runs Network, Protect, Access, and Talk concurrently out of a single compact desktop unit.
• 10G Routing: Equipped with dual 10G WAN ports (one SFP+ and one RJ45) featuring 5 Gbps IDS/IPS throughput.
• High-Speed Switch: Built-in 4-port 2.5 GbE RJ45 LAN switch for fast local networking.
• Massive Capacity: Built to handle 50+ UniFi devices and over 500 active network clients.
• Storage Activation: Required tool-less caddy to add an internal NVMe SSD for running video recording in UniFi Protect.
• Universal Fitting: Accommodates standard naked M.2 NVMe SSD sizes ranging from 2230 up to 22110.
• Interface Speed: Interfaces via a PCIe Gen3 x2 connection inside the gateway slot.

SPECIFICATIONS:

• Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
• System Memory: 3 GB DDR4
• IDS/IPS Throughput: 5 Gbps
• WAN Ports: (1) 10G SFP+ and (1) 10 GbE RJ45
• LAN Ports: (1) 10G SFP+ and (4) 2.5 GbE RJ45
• PoE Output: 802.3at PoE+ on LAN Port 4 (30W power budget)
• Supported Storage: 1x M.2 NVMe SSD up to 2 TB
• Display: 0.96" LCM status display
• Capacity Limit: Supports 50+ managed UniFi devices and 500+ simultaneous users
• Power Supply: 54V DC, 1.1A power adapter included
• Max. Power Consumption: 29.4W (excluding PoE output)
• Enclosure Material: Polycarbonate
• Dimensions: 212.8 x 127.6 x 30 mm
• Weight: 675 g (without SSD) / 734 g (with SSD
• Supported Drive Form Factor: Single M.2 NVMe SSD
• Supported Card Sizes: 2230, 2242, 2260, 2280, and 22110
• Bus Interface Speed: PCIe Gen 3 x2 lanes (when inside the UCG-Fiber)
• Enclosure Materials: Aluminum alloy, polycarbonate, and stainless steel
• Dimensions: 123.4 x 31.1 x 11.2 mm
• Weight: 53 g

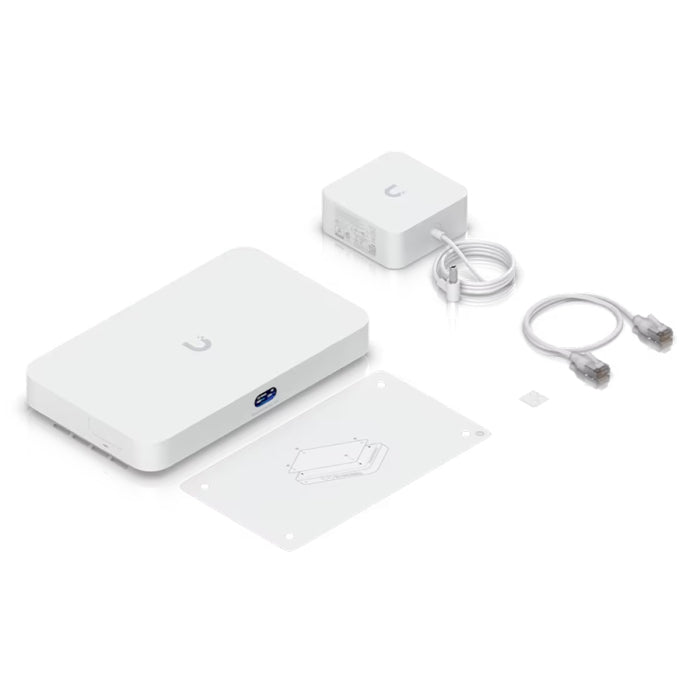

WHAT’S IN THE BOX:

• UCG-Fiber desktop gateway unit x1
• Mains power cord (AC power cable) x1
• Etherlighting patch cable (short color-matching network cable) x1
• Quick start / Get started guide x1
• UACC-SSD-Tray physical adapter/insert enclosure x1
• Small securing hardware / installation components x1

WARRANTY:

• 12 Months
