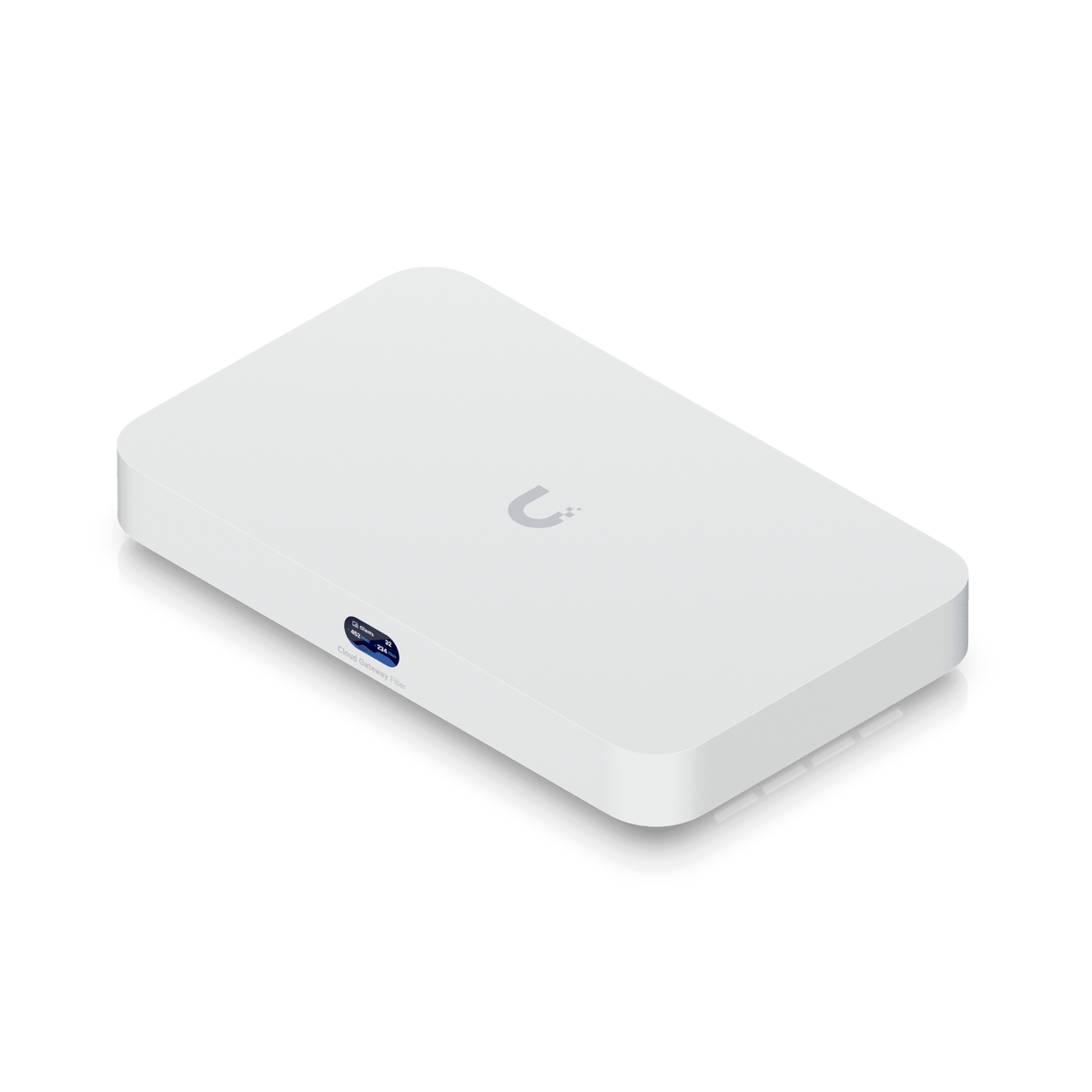

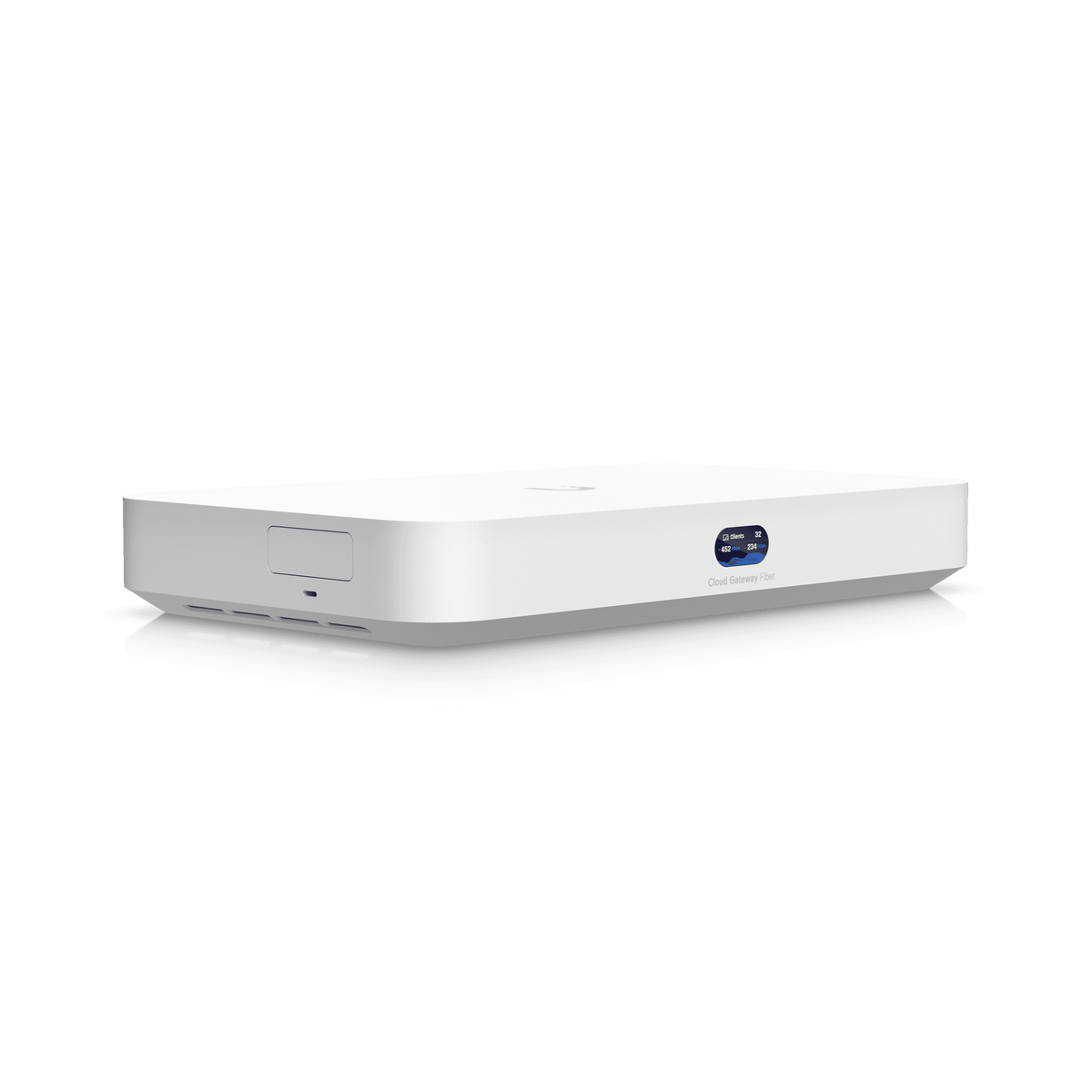

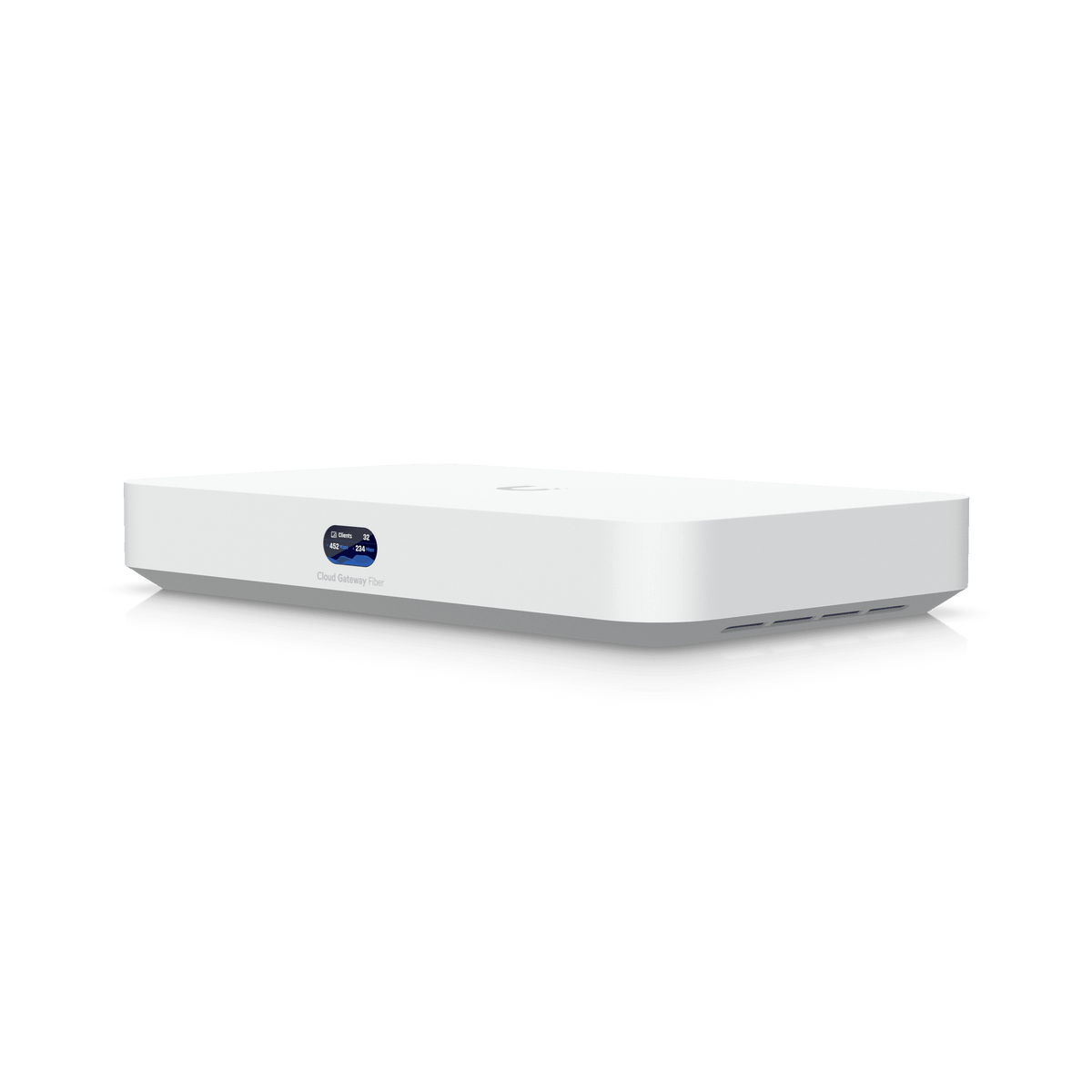

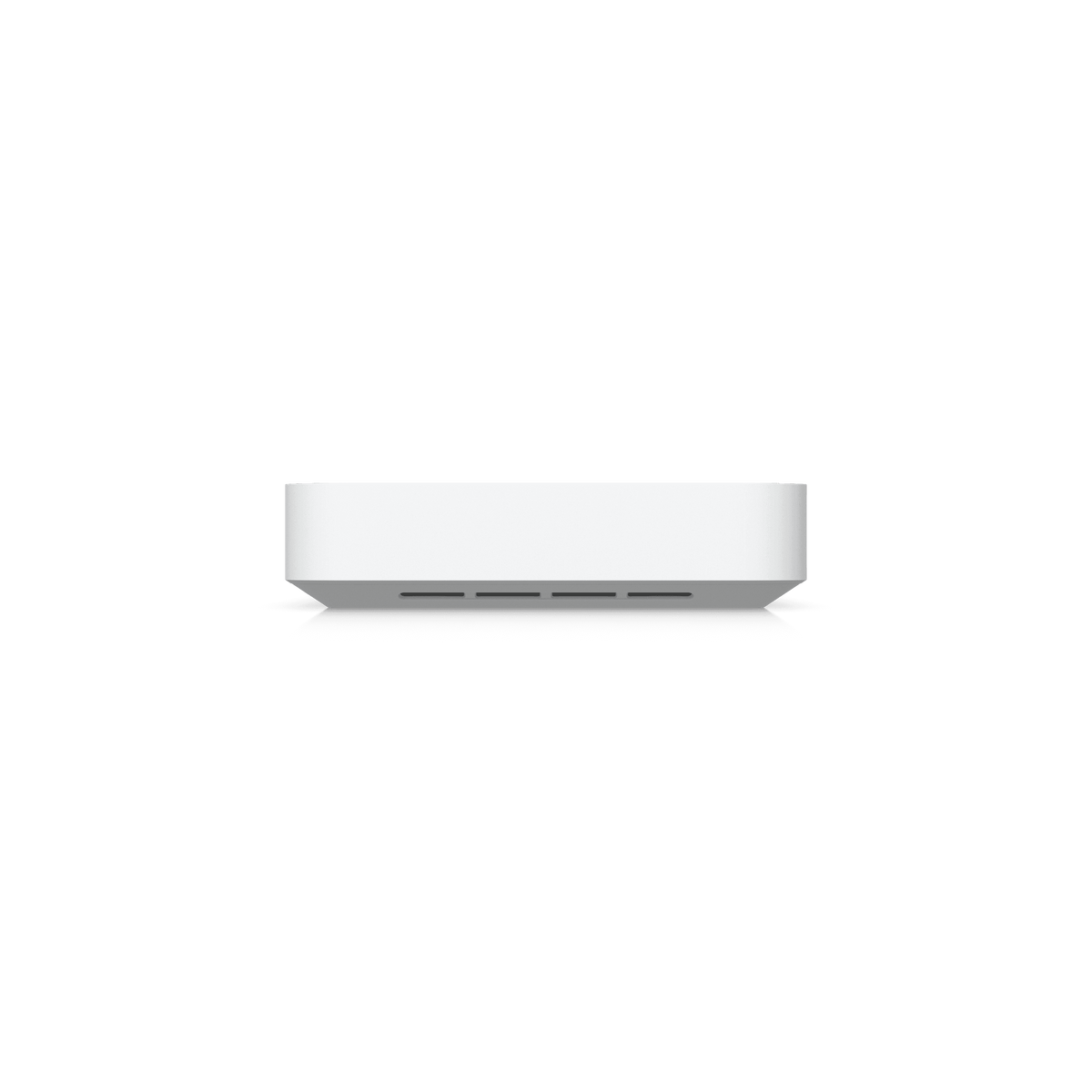

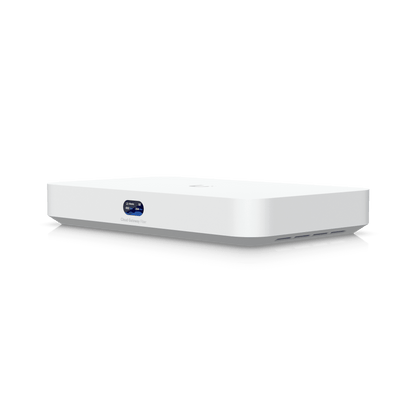

Ubiquiti 10G Multi-WAN UniFi Cloud Gateway Fiber without M.2 SSD Tray

Ubiquiti's UCG-Fiber is a desktop 10Gbps dual WAN, UniFi cloud gateway with selectable NVR storage via SSD up to 2TB. The unit runs the complete UniFi application suite for full stack network management and features 1x 10Gbps WAN port, 4x 2.5Gbps LAN Ports, one with 802.3at (PoE+) PoE output, as well as 2 x SFP+ ports.

It can be configured and managed with the UniFi Network Application.

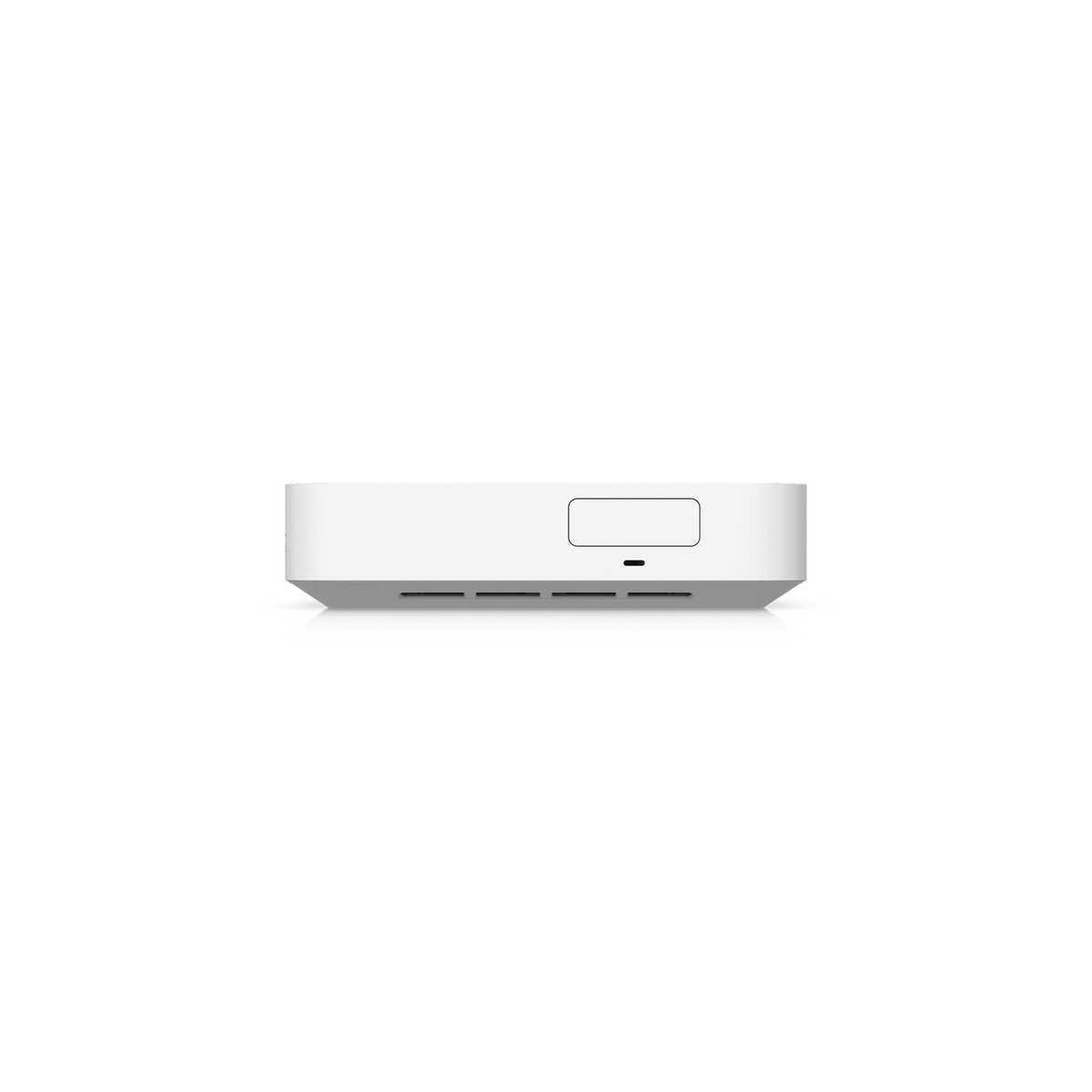

Note: NVMe SSD not included. SSD installation requires UACC-SSD-TRAY accessory. Alternatively purchase the UCG-FIBER-TRAY.

FEATURES:

• Dual 10G Multi-WAN: Features 10G SFP+ and 10GbE RJ45 WAN ports for ultra-fast fibre internet with seamless failover.
• 2.5 GbE LAN Switch: Offers four 2.5 GbE ports, including one PoE+ port (30W) to power an access point or camera directly.
• 5 Gbps Security Throughput: Quad-core processor delivers up to 5 Gbps routing performance even with full Threat Detection (IDS/IPS) active.
• Built-in NVR Storage: Includes an internal M.2 NVMe SSD slot (up to 2 TB) to store security camera footage locally.
• Full UniFi OS Suite: Manages 50+ UniFi devices and 500+ clients while running Network, Protect, Access, Talk, and Connect apps.

SPECIFICATIONS:

• Dimensions: 212.8 × 127.6 × 30 mm (8.4 × 5 × 1.2")
• UniFi Application Suite: Network ✓, Protect ✓, Access ✓, Talk ✓, Connect ✓
• Managed UniFi Devices: 50+
• Managed Cameras: 15 HD, 8 2K, 5 4K
• Managed Access Hubs: 50
• Simultaneous Users Connected: 500+
• Max. WAN Port Count: 6
• Default WAN Ports: (1) 10G SFP+, (1) 10 GbE RJ45

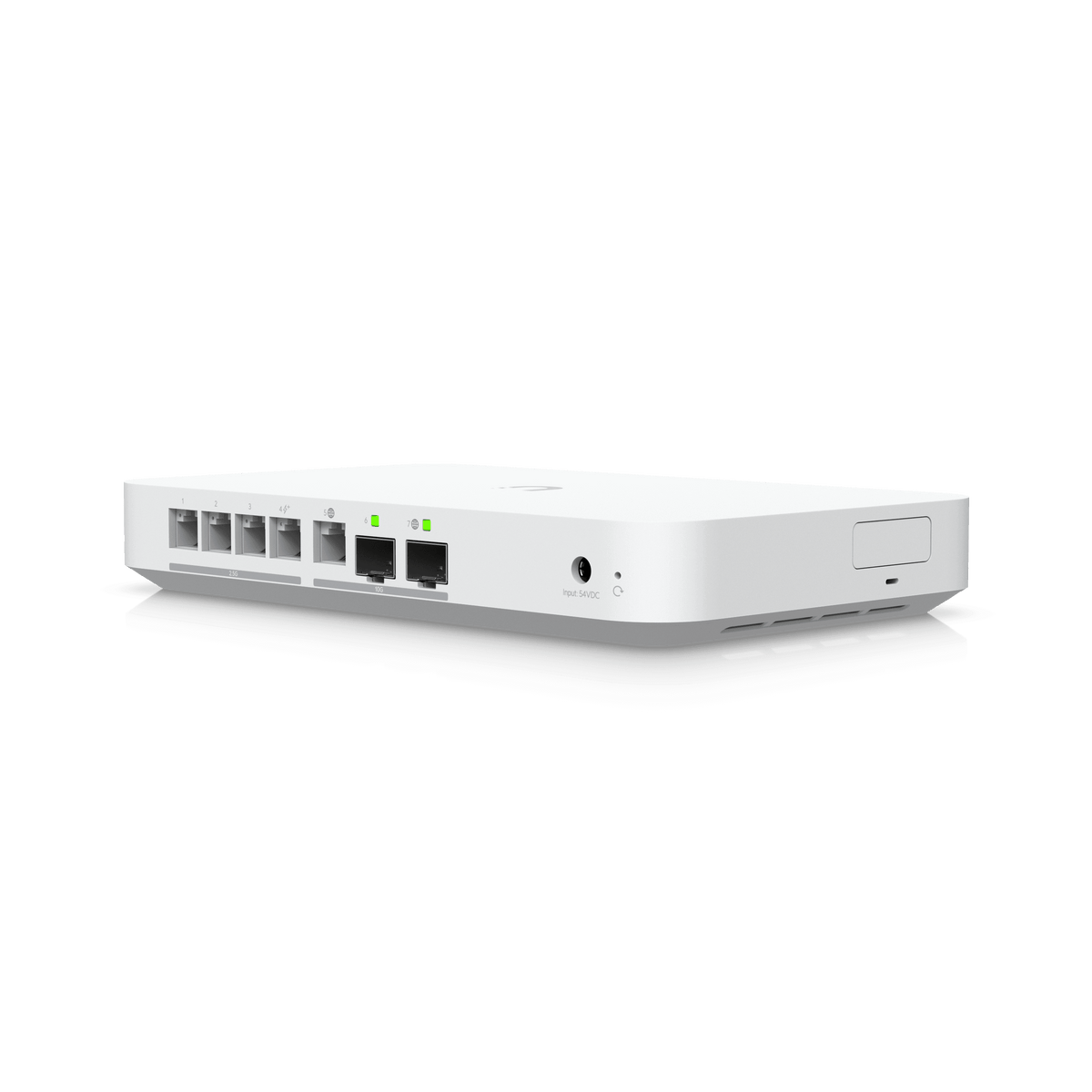

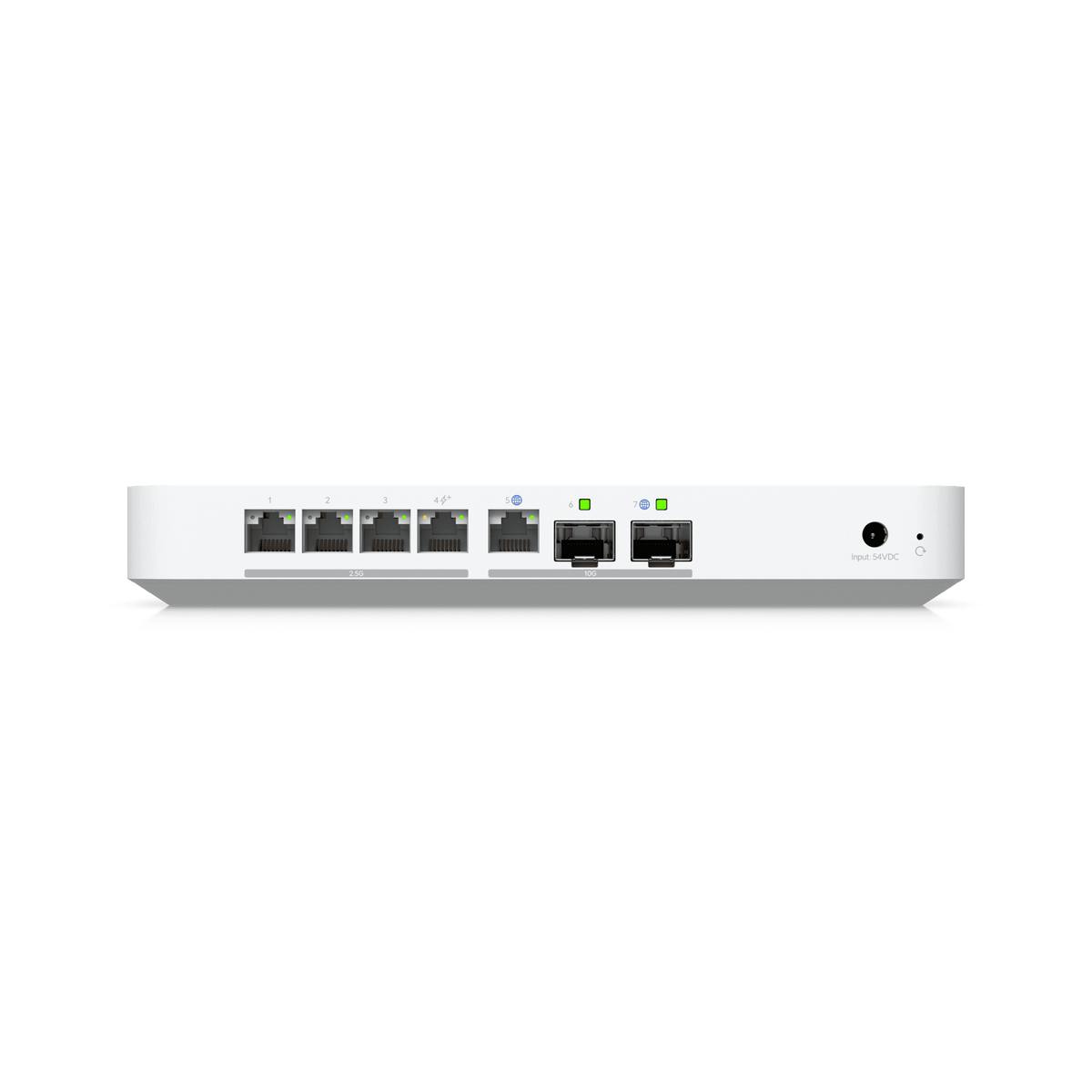

• Port Layout: 4 × 2.5 GbE RJ45 (2.5G/1G/100M/10M), 1 × 10 GbE RJ45 (10G/2.5G/1G), 2 × 10G SFP+ (10G/1G)
• IDS/IPS Throughput: 5 Gbps
• Form Factor: Compact desktop
• Security: Stateful Firewall ✓, Application-Aware Layer 7 Firewall ✓, DPI & Traffic Identification ✓, Zone-Based Firewall Advanced Filtering ✓, Content Filtering ✓, Intrusion Prevention (IPS/IDS) ✓, Ad Blocking ✓
• IDS/IPS Signatures: 55,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation: ✓
• License-Free SD-WAN: ✓
• Site-to-Site VPN: Site Magic ✓, IPsec ✓, OpenVPN ✓
• VPN Server: Identity Endpoint One-Click VPN ✓, Teleport Zero-Configuration VPN ✓, WireGuard ✓, OpenVPN ✓, L2TP ✓
• VPN Client: OpenVPN ✓, WireGuard ✓
• Multi-WAN Load Balancing: ✓
• Dynamic Routing: OSPF ✓, BGP ✓
• Advanced QoS: ✓
• Multicast DNS (mDNS): ✓
• Advanced NAT: SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT ✓
• Integrated RADIUS Server: ✓
• RADIUS over TLS (RadSec): ✓
• Additional Internet Failover with UniFi LTE Backup: ✓
• Internet Quality and Outage Reporting: ✓
• MAC Address Table Size: 4,000
• Virtual Network Override: ✓
• All Traffic Flows: ✓
• NVR Storage: Selectable NVMe SSD up to 2 TB
• PoE Budget: 30W
• Voltage Range PoE Mode: 50–57V
• Max. Power Consumption: 29.4W (excluding PoE output)
• Power Method: DC jack (54V DC/1.1A)
• Power Supply: 54V DC/1.1A (adapter included)
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 100 BTU/hr (excluding PoE output)
• Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
• System Memory: 3 GB
• Weight: 675 g (1.5 lb) without SSD; 734 g (1.6 lb) with SSD
• Enclosure Material: Polycarbonate

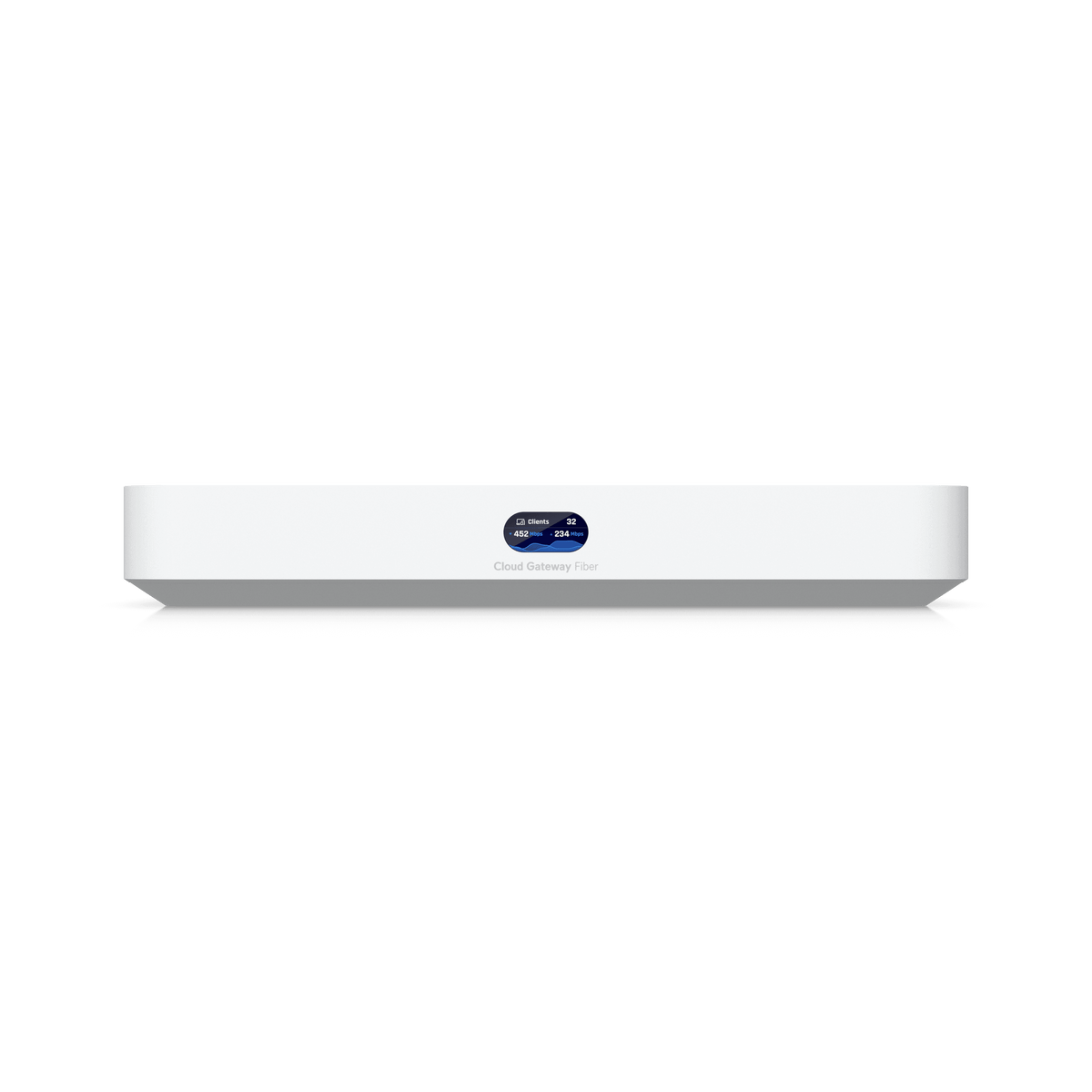

• LCM Display: 0.96" status display
• Management: Ethernet, Bluetooth
• LEDs: Ethernet ✓, SFP+ ✓
• Button: (1) Factory reset
• ESD/EMP Protection: Air: ±8 kV, contact: ±4 kV
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, SRRC, Anatel: 04395-25-08356

WHAT’S IN THE BOX:

• UCG-Fiber device x1
• Power Supply Unit (PSU) x1
• Network cable x1
• Installation guide x1

WARRANTY:

• 12 Months
