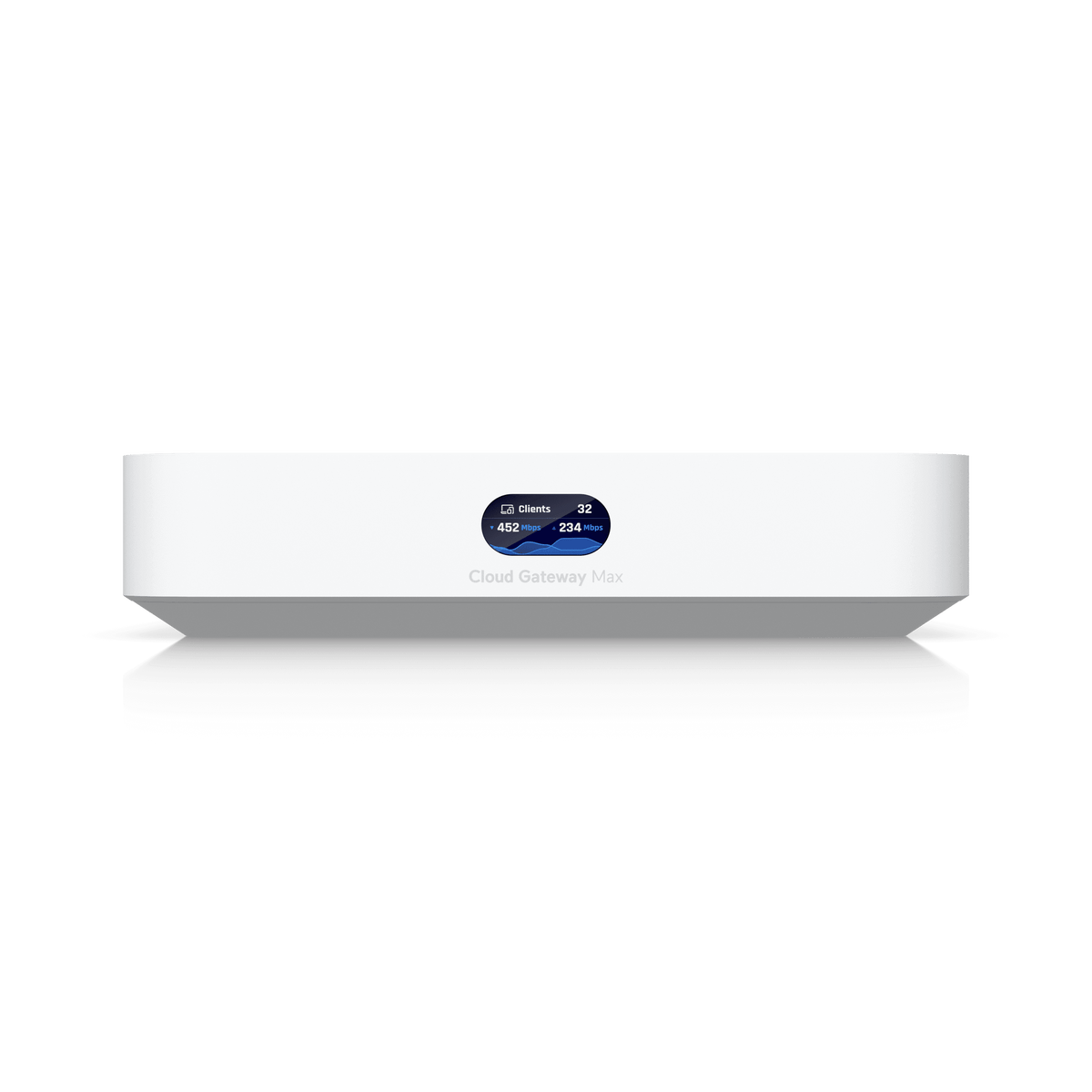

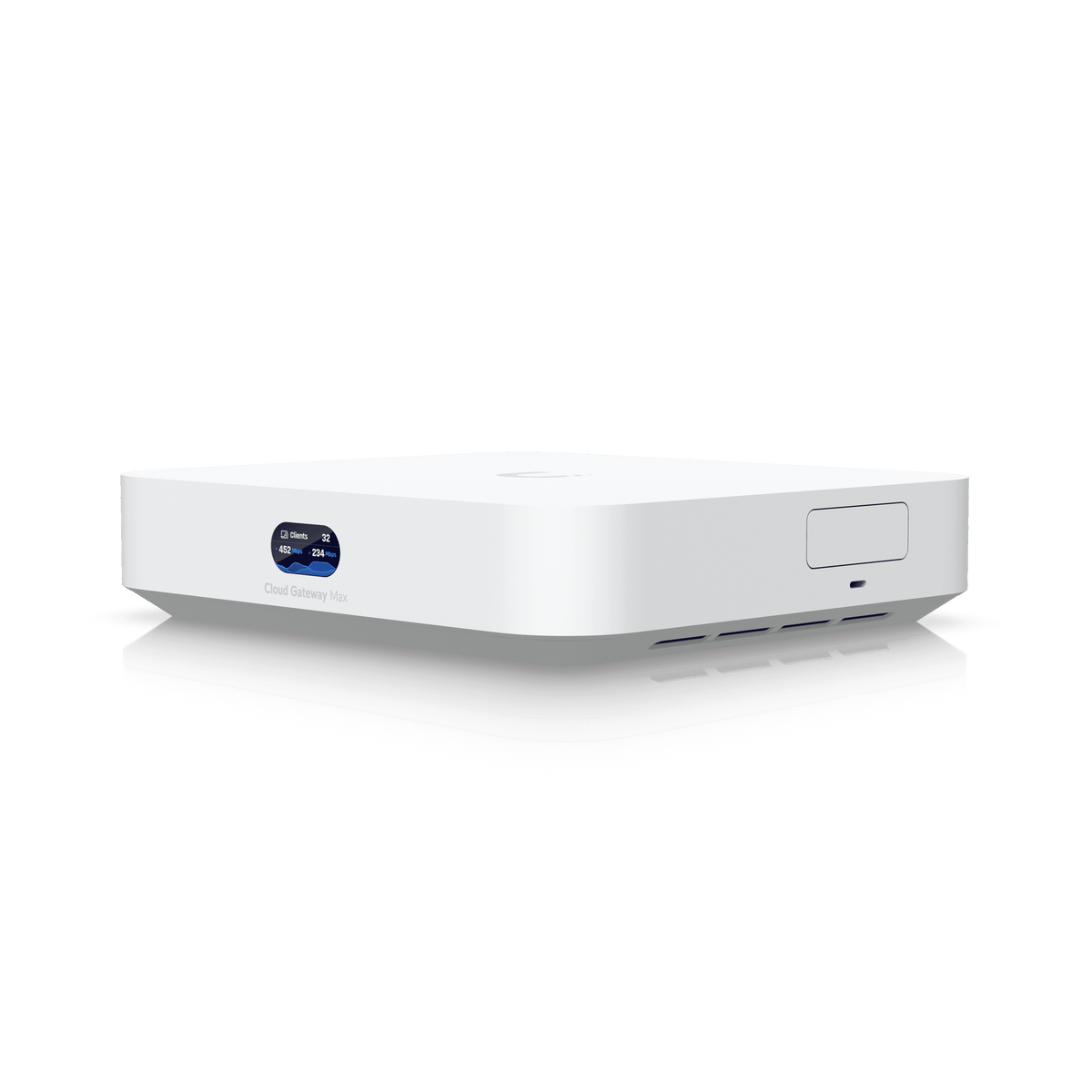

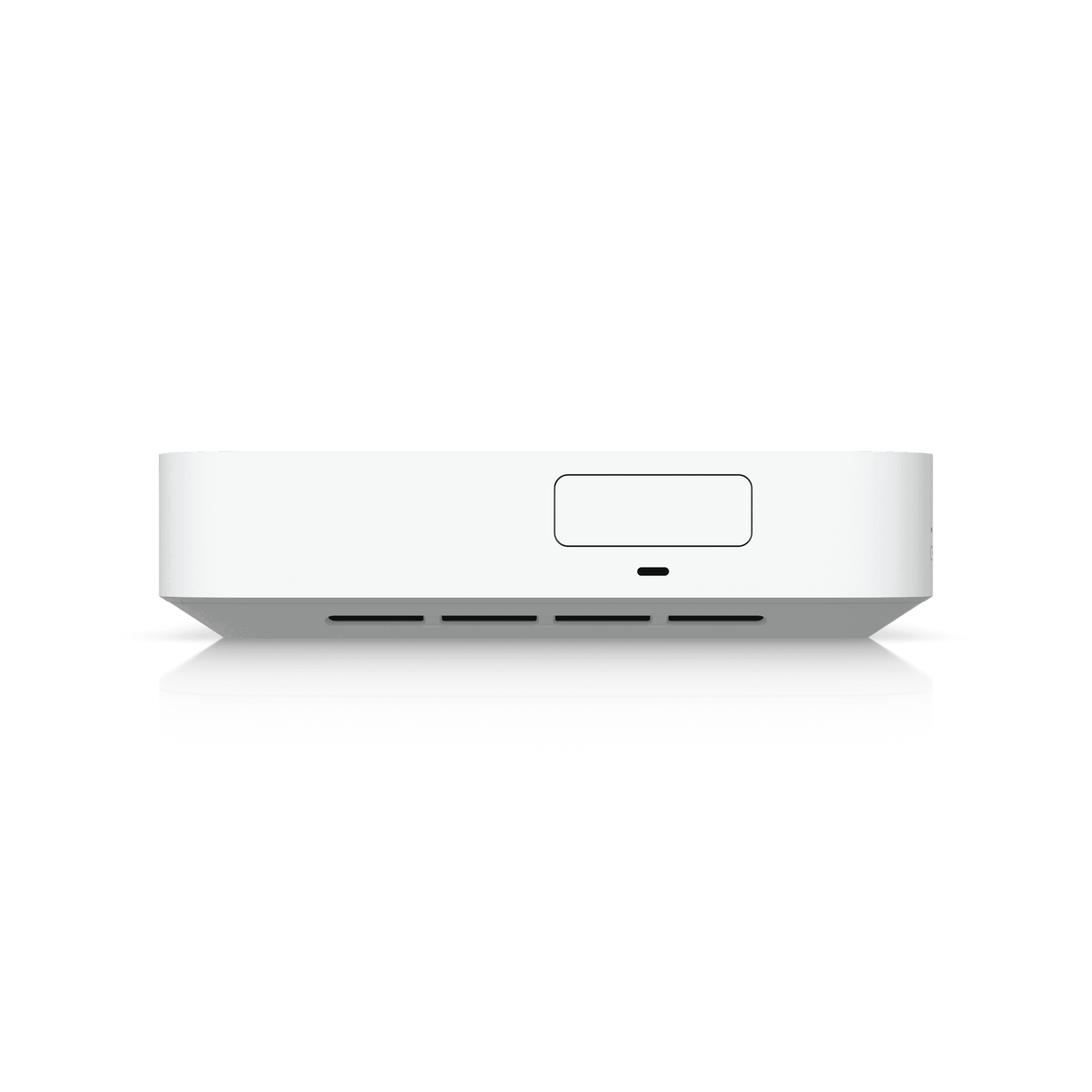

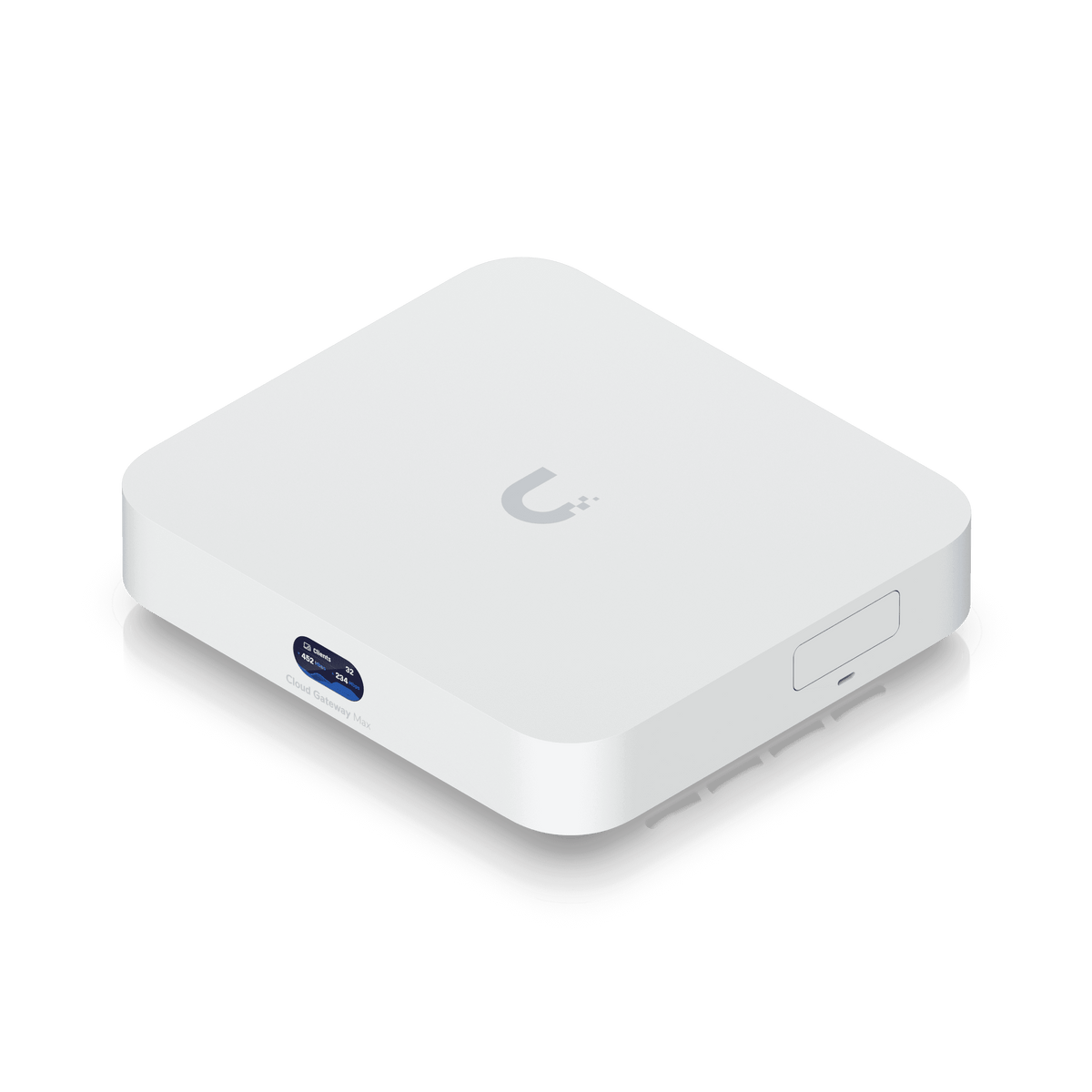

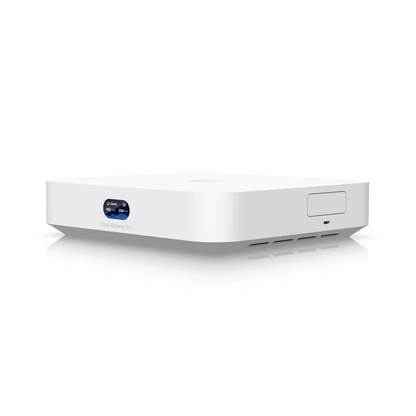

Ubiquiti 2.5Gbps Multi-WAN UniFi Cloud Gateway Max

Ubiquiti's UCG-Max is a powerful and compact 2.5Gbps multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features with 1.5Gbps IPS routing and a 512GB SSD for NVR storage. The unit can run all UniFi applications for full-stack network management and features 4x 2.5Gbps Ethernet ports, 1x 2.5Gbps WAN Port, a quad-core 1.5GHz CPU, 0.96" LCM status display, and Multi-WAN load balancing.

It can be configured and managed with the UniFi Network Application.

Note: Includes 512GB onboard SSD storage for UniFi Protect.

FEATURES:

• Ports: Five 2.5 GbE RJ45 ports total—1 dedicated WAN port and 4 LAN ports (with support to remappable additional WAN ports for load-balancing or failover).
• Performance: Up to 2.3 Gbps IDS/IPS (Intrusion Detection/Prevention System) throughput.
• Storage: Selectable internal NVMe SSD storage options (ranging from no storage up to 512 GB, 1 TB, or 2 TB configurations) to run UniFi Protect for security cameras.
• Capacity: Manages 30+ UniFi devices, up to 15 HD cameras, and 300+ simultaneous connected users.
• Display: Small 0.96" LCM status display screen on the front.
• Management: Full-stack management running all native UniFi applications (Network, Protect, etc.)

SPECIFICATIONS:

• Dimensions: 141.8 × 127.6 × 30 mm (5.6 × 5 × 1.2")
• UniFi Application Suite: Network ✓, Protect ✓, Access ✓, Talk ✓, Connect ✓
• Managed UniFi Devices: 30+
• Managed Cameras: 15 HD, 8 2K, 5 4K
• Managed Access Hubs: 50
• Simultaneous Users Connected: 300+
• Max. WAN Port Count: 4
• Default WAN Port: (1) 2.5 GbE RJ45

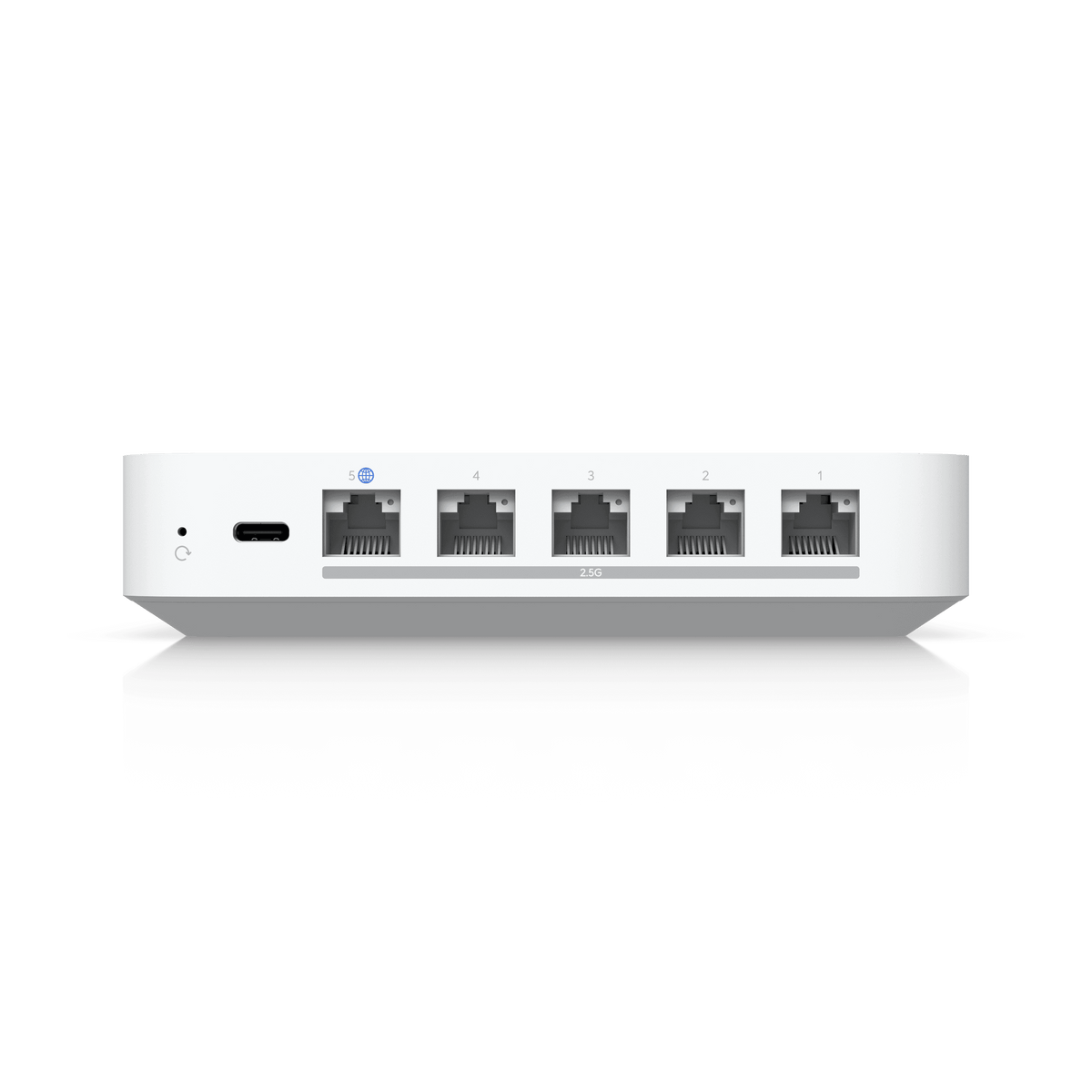

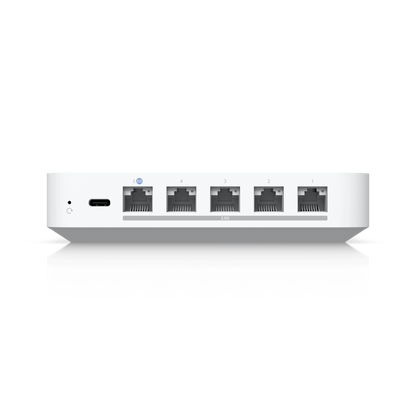

• Port Layout: 5 × 2.5 GbE RJ45 (2.5G/1G/100M/10M)
• IDS/IPS Throughput: 2.3 Gbps
• Form Factor: Compact desktop
• Security: Stateful Firewall ✓; Application-Aware Layer 7 Firewall ✓; DPI & Traffic Identification ✓; Zone-Based Firewall Advanced Filtering ✓; Content Filtering ✓; Intrusion Prevention (IPS/IDS) ✓; Ad Blocking ✓
• IDS/IPS Signatures: 55,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation: ✓
• License-Free SD-WAN: ✓
• Site-to-Site VPN: Site Magic ✓; IPsec ✓; OpenVPN ✓
• VPN Server: Identity Endpoint One-Click VPN ✓; Teleport Zero-Configuration VPN ✓; WireGuard ✓; OpenVPN ✓; L2TP ✓
• VPN Client: OpenVPN ✓; WireGuard ✓
• Multi-WAN Load Balancing: ✓
• Dynamic Routing: OSPF ✓; BGP ✓
• Advanced QoS: ✓
• Multicast DNS (mDNS): ✓
• Advanced NAT: SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT ✓
• Integrated RADIUS Server: ✓
• RADIUS over TLS (RadSec): ✓
• Additional Internet Failover with UniFi LTE Backup: ✓
• Internet Quality and Outage Reporting: ✓
• MAC Address Table Size: 2,000
• Policy-based WAN and VPN Routing: ✓
• Customizable DHCP Server: ✓
• IPv6 ISP Support: ✓
• IGMP Proxy: ✓
• Virtual Network Override: ✓
• All Traffic Flows: ✓
• NVR Storage: Selectable NVMe SSD up to 2 TB
• Max. Power Consumption: 16.1W
• Power Method: USB Type-C (5V DC/5A)
• Power Supply: USB Type-C (5V DC/5A), adapter included
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 55 BTU/hr
• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
• System Memory: 3 GB
• Weight: 460 g (1 lb) without SSD; 519 g (1.1 lb) with SSD
• Enclosure Material: Polycarbonate
• LCM Display: 0.96" status display
• Management: Ethernet, Bluetooth
• LEDs: Ethernet ✓
• Button: (1) Factory reset
• ESD/EMP Protection: Air: ±8 kV; contact: ±4 kV
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 09004-24-08356, SRRC
• Application Requirements: UniFi iOS™ and Android™ v10.17.2 and later

WHAT’S IN THE BOX:

• UniFi Cloud Gateway Max main unit x1
• USB-C power adapter / brick (25W, 5V/5A) with regional power cable x1
• Short Ethernet patch cable x1
• SIM / storage ejector tool / security key (used to pop out the internal SSD drive tray) x1
• Rubber feet for desktop placement x4

WARRANTY:

• 12 Months
