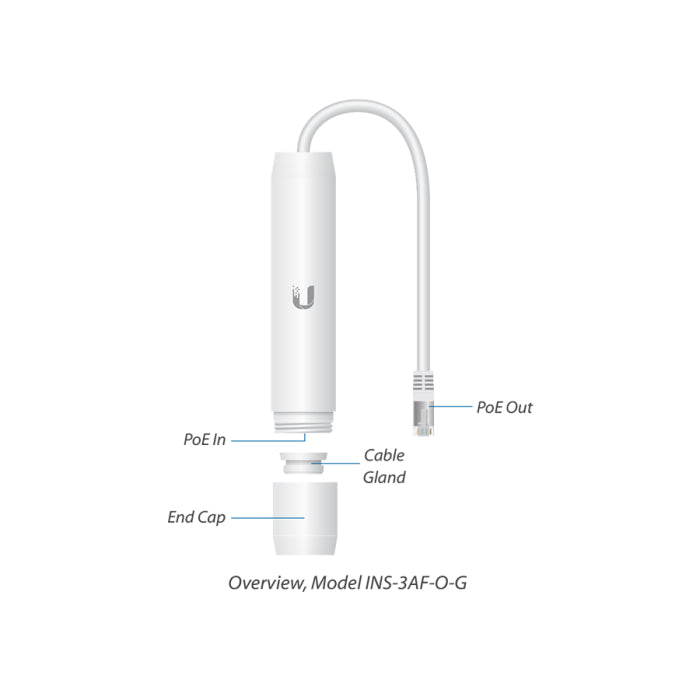

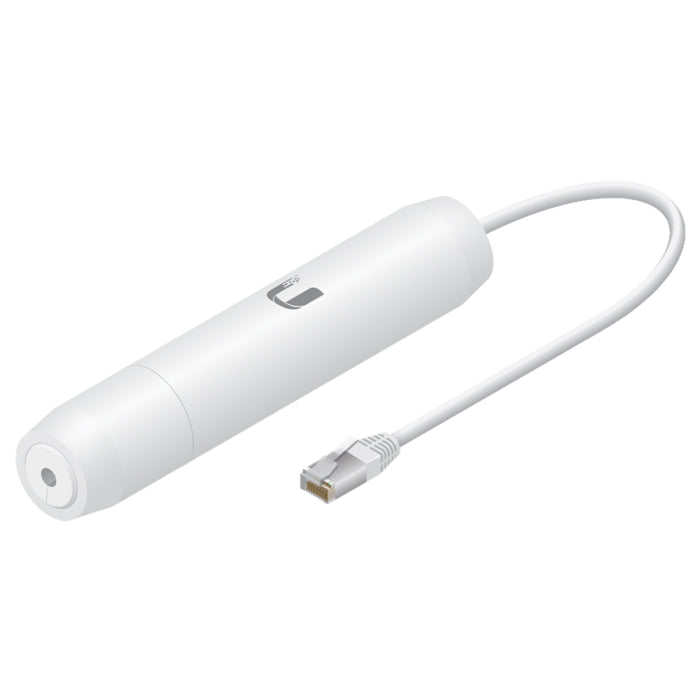

Ubiquiti 802.3af to 24VDC Gigabit Outdoor Adapter

The INS-3AF-O-G adapter transforms almost any Ubiquiti PoE device into a fully compliant 48V, PoE-compatible product.

The Instant PoE Adapter works seamlessly with a variety of PoE switches for remote power control applications. You can conveniently power or power cycle your remote devices using your PoE switch.

FEATURES:

• Power Transformer: Converts standard 48V active PoE from a modern network switch into the 24V passive PoE required to turn on outdoor airMAX antennas.
• Full Gigabit Speeds: Passes wired data at full 10/100/1000 Mbps rates without bottlenecking your network.
• Weatherproof Body: Wrapped in a rugged, UV-protected shell designed to survive heavy rain, snow, and extreme outdoor sun right on the tower.
• Remote Reboots: Allows you to remotely power-cycle, turn off, or reboot your outdoor 24V antennas directly from your main office switch management software.
• Lightning Surge Shield: Equipped with integrated ±15kV ESD isolation protection to shield your delicate radio gear from electrical spikes.
• Wired Accessory Only: Contains no wireless parts or Wi-Fi capabilities; it is strictly a passive, inline wired adapter.

SPECIFICATIONS:

• Model: INS-3AF-O-G
• Dimensions:
  • Without RJ45 cable: Ø30.2 × 166 mm (Ø1.2 × 6.5")
  • With RJ45 cable: Ø30.2 × 366.6 mm (Ø1.2 × 14.4")
• Weight: 90 g (3.2 oz)
• Networking Interface:

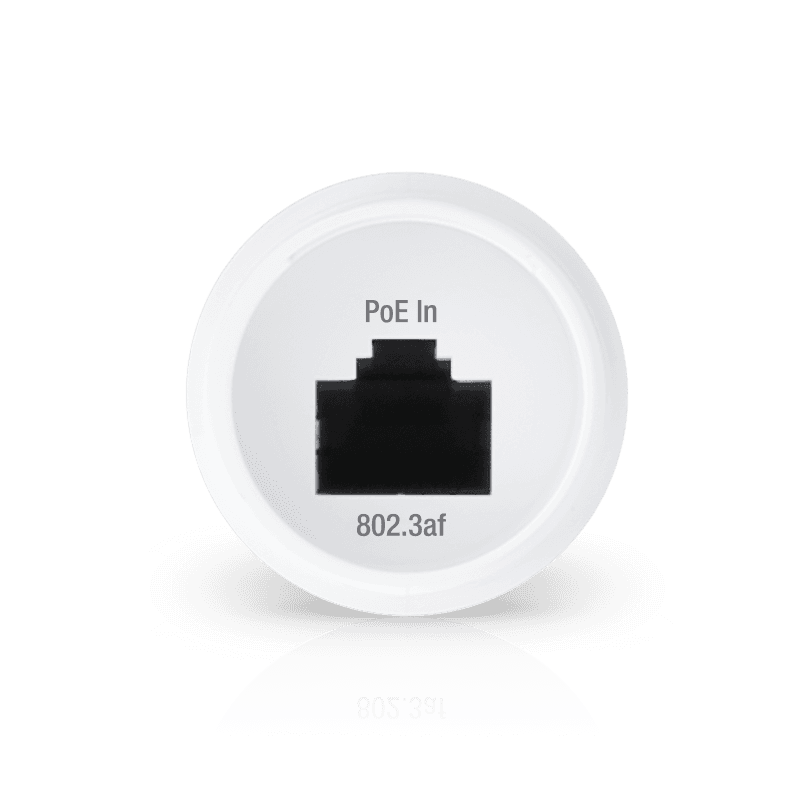

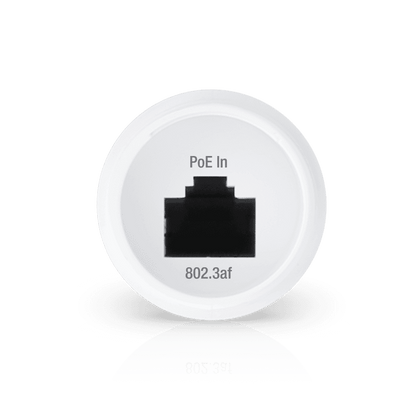

  • 1 × GbE RJ45 port (PoE in)
  • 1 × GbE RJ45 port (PoE out)
• Power Method: 24V passive PoE (Pairs 4, 5+; 7, 8 return)
• Power Input: PoE, 48V DC, 0.5A
• Max. Power Output: 24V DC, 0.5A
• Ethernet ESD/Surge Protection: ±15 kV
• Ambient Operating Temperature: -30 to 70°C (-22 to 158°F)
• NDAA Compliant: Yes

WHAT’S IN THE BOX:

• Instant 802.3af Gigabit Outdoor Adapter (INS-3AF-O-G) x1
• Rubber Weatherproofing Shrouds/Gaskets (To seal the RJ45 cable entry points from rain) x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
