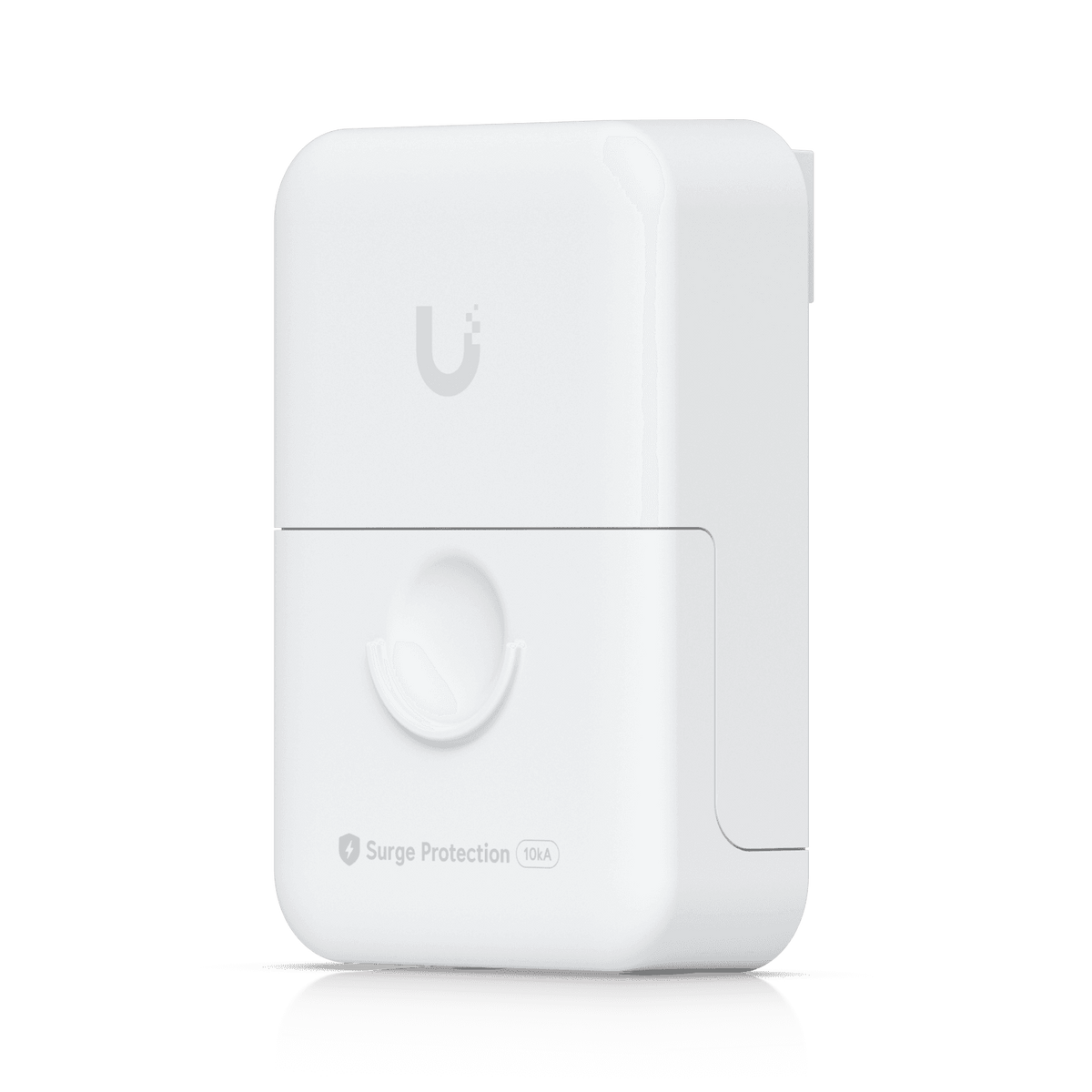

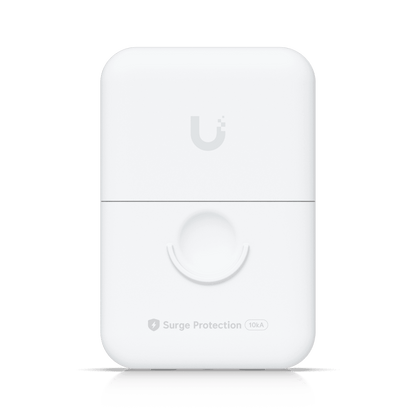

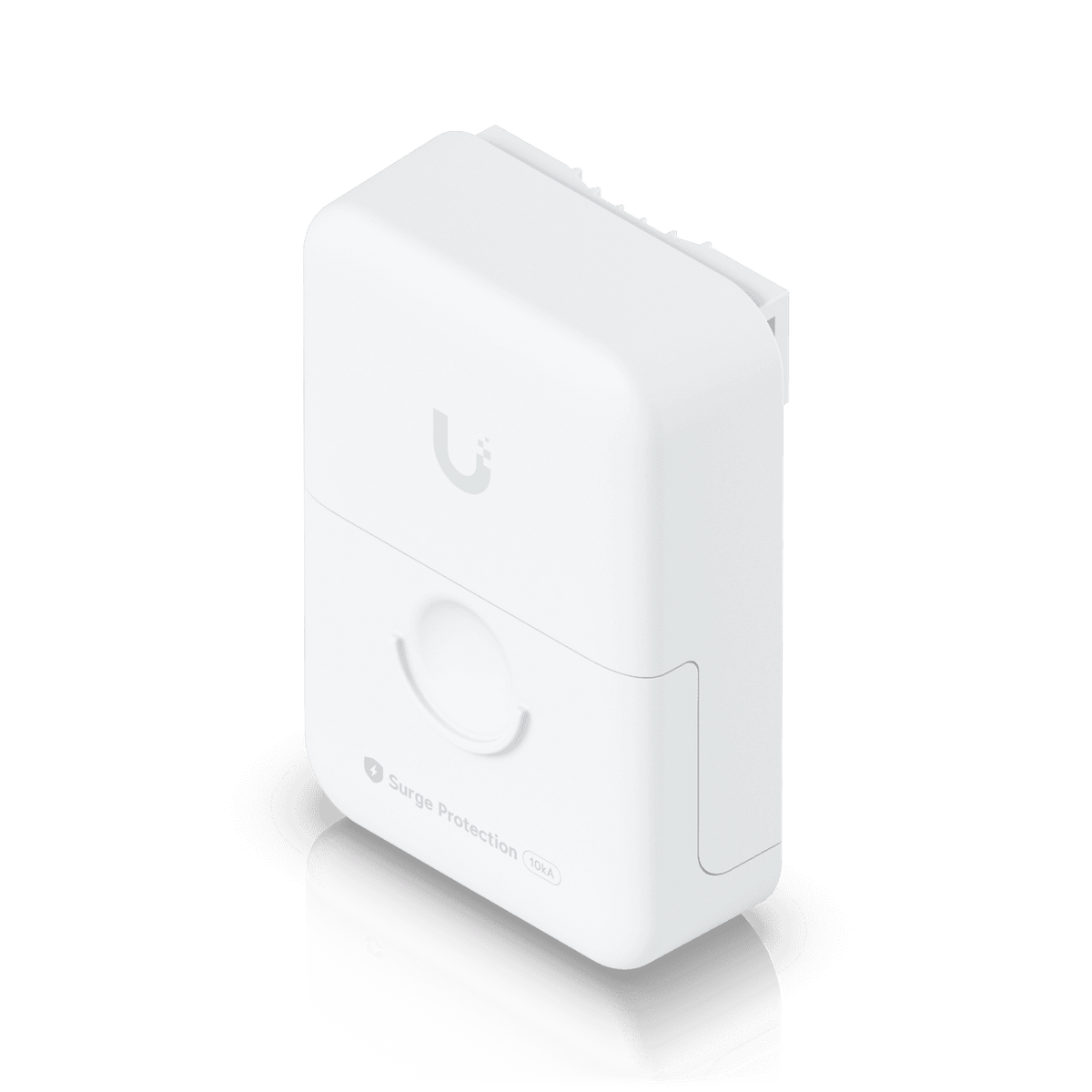

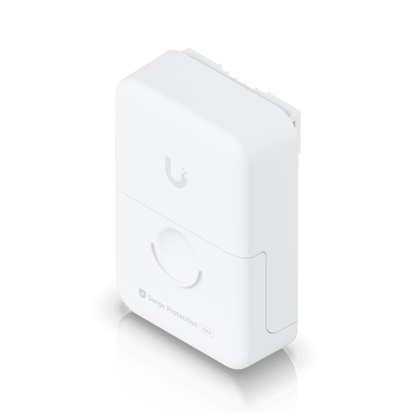

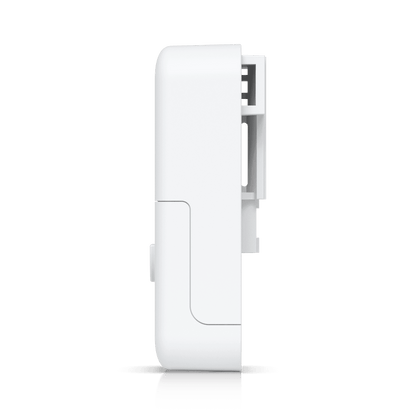

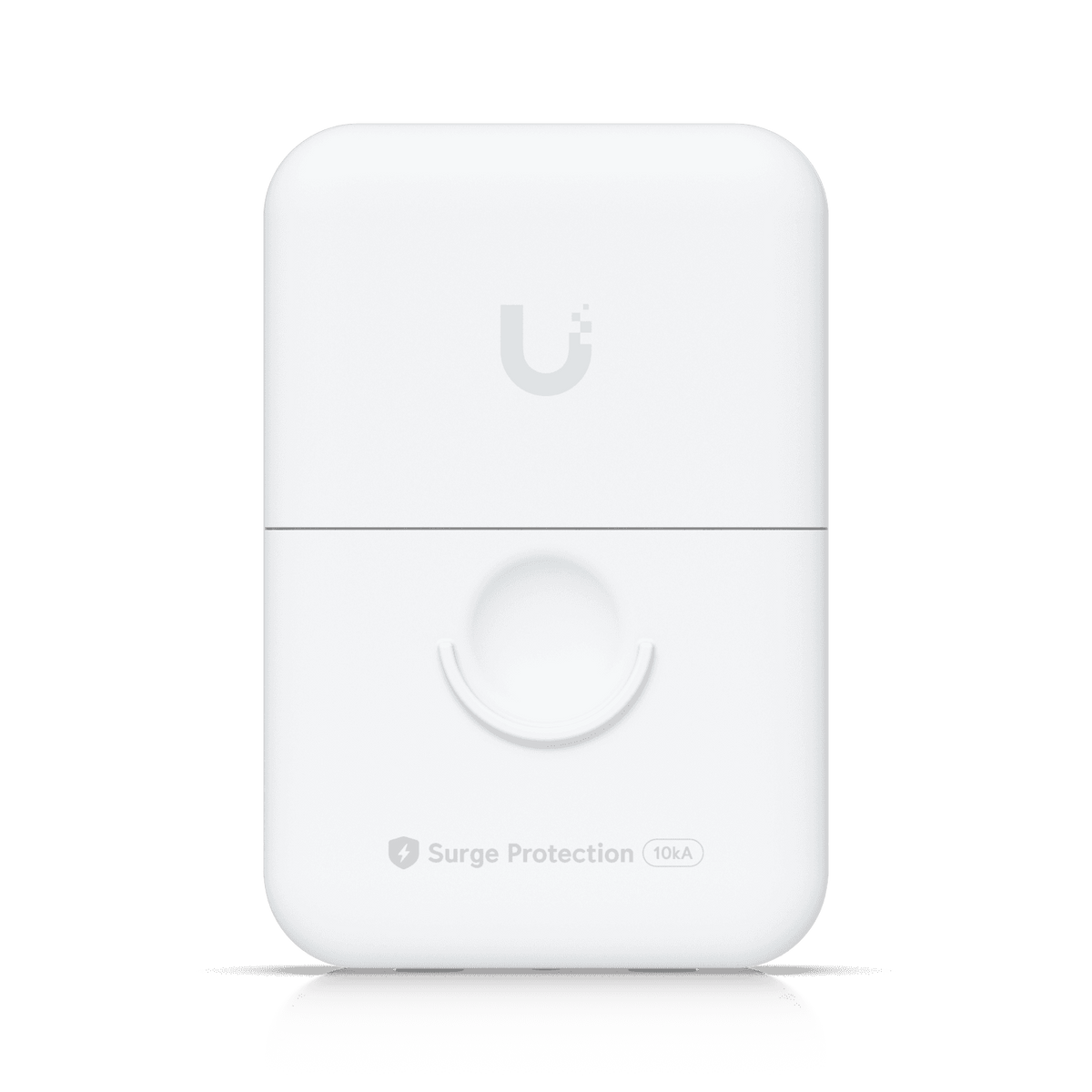

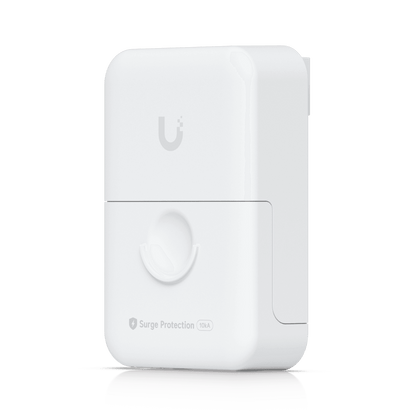

Ubiquiti Grounded Ethernet Surge Protector

Ubiquiti's UB-ETHSP is a Gigabit Ethernet surge protector designed to protect outdoor, PoE or non-PoE Ethernet devices from electrostatic discharge and surges.

FEATURES:

• Dual Port Protection: Features two surge-protected RJ45 ports to safeguard inline outdoor network connections.
• Gigabit Speeds: Supports high-speed data transmission rates up to 10/100/1000 Mbps with no throughput loss.
• PoE Passthrough: Natively handles both passive PoE and 802.3af/at PoE standards to keep your devices powered.
• ESD Mitigation: Absorbs and diverts damaging electrostatic discharge up to 100V/s to 1kV/μs.
• Weatherproof Enclosure: Housed in a compact, UV-stabilized polycarbonate shell built for harsh outdoor environments.
• Physical Profile: Measures 93 x 64 x 36.5 mm and weighs only 80 grams.

SPECIFICATIONS:

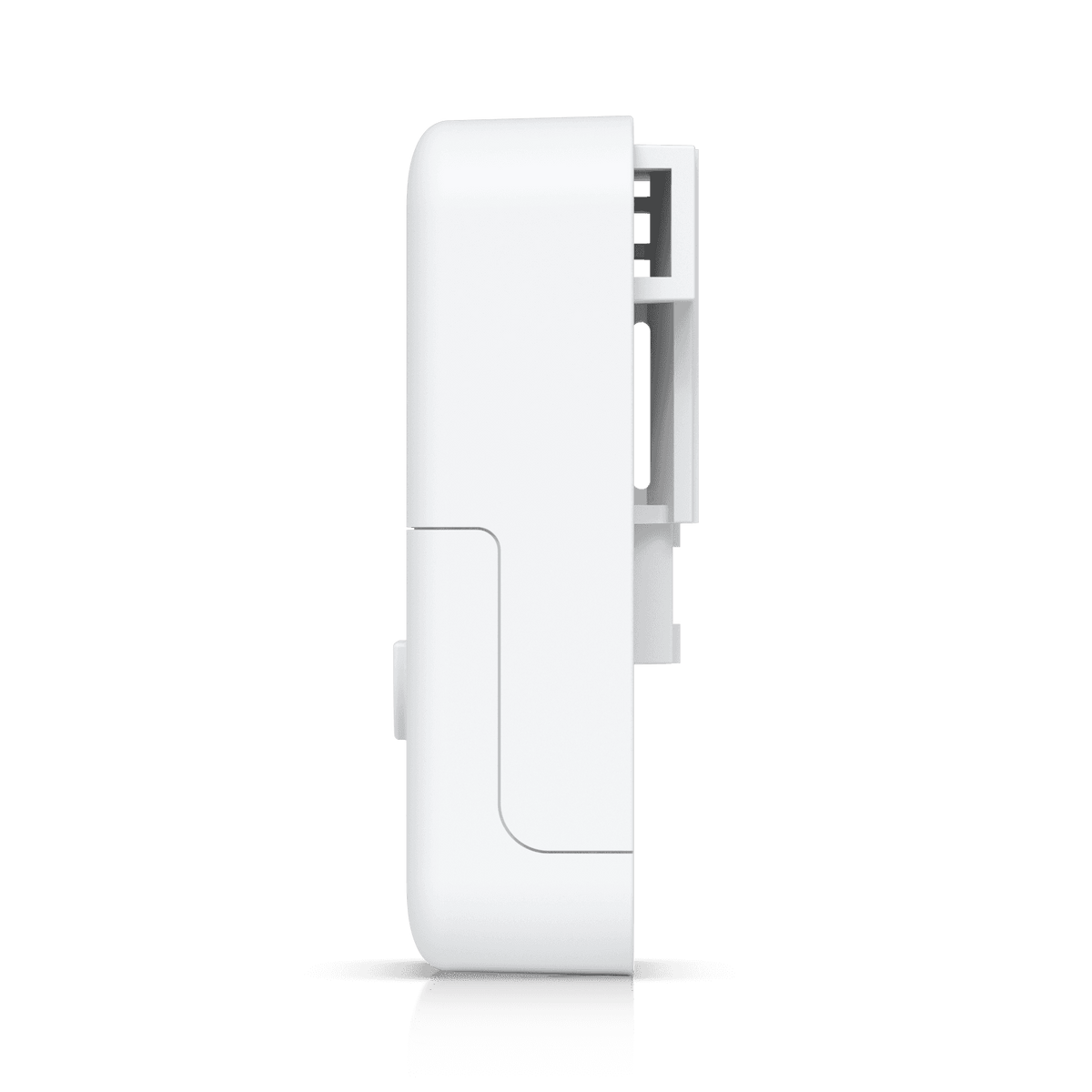

• Dimensions: 91 × 61 × 32.5 mm (3.6 × 2.4 × 1.3")
• Weight: 80 g (2.8 oz)
• Enclosure Material: Polycarbonate
• Weatherproofing: IPX5

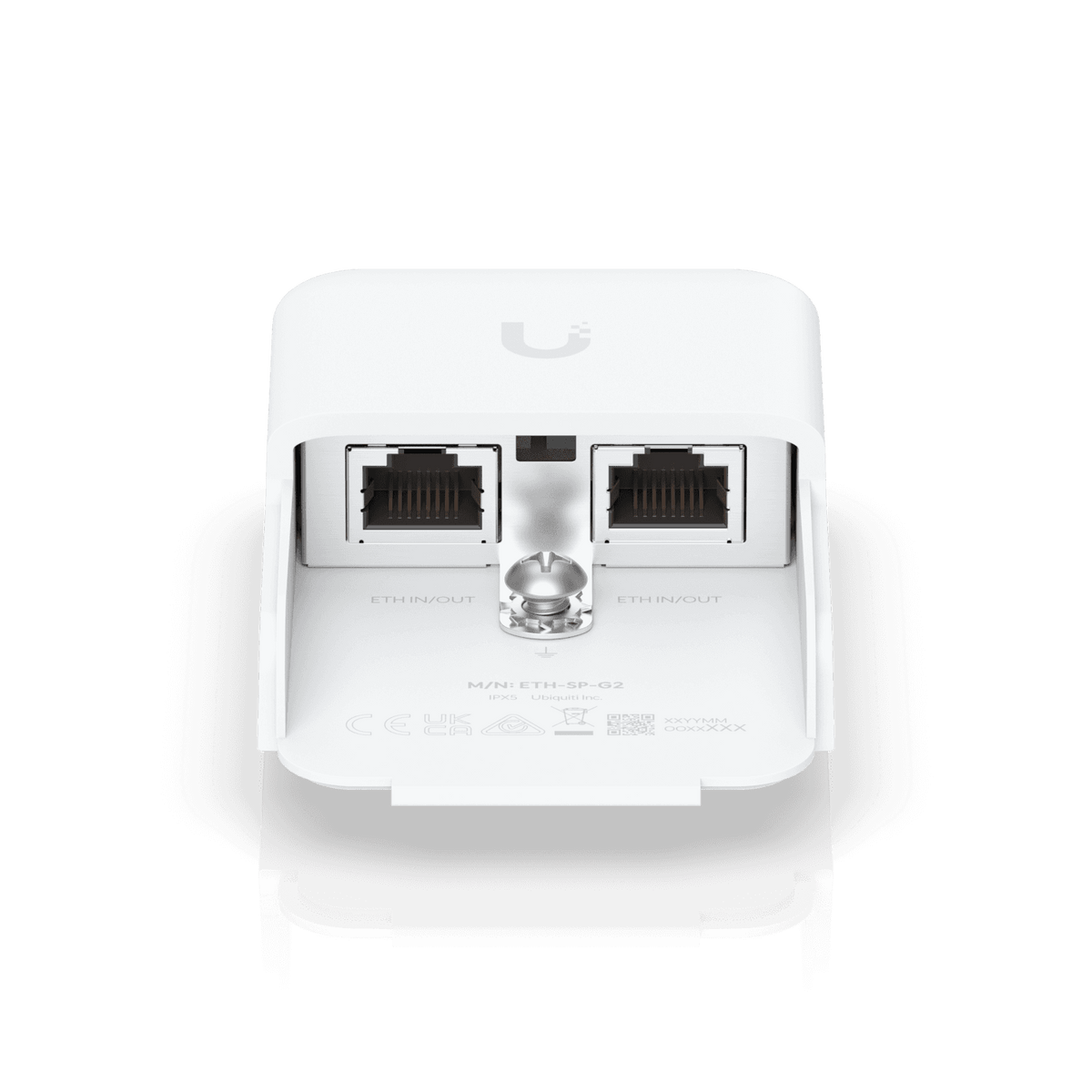

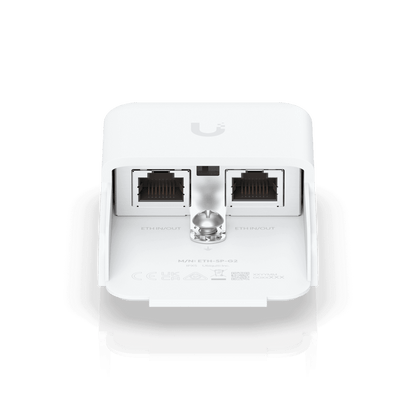

• Networking Interface: (2) RJ45 female connectors
• DC Spark-Over Voltage: 90V @ 100V/s
• Max. Impulse Spark-Over Voltage: 700V @ 1 kV/µs
• Discharge Current: 10 kA+
• Insulation: Max. resistance: 1 GΩ @ 50V
• Max. Capacitance: 1.0 pF @ 1 MHz
• Data Line Protection: Up to 2.5 Gbps
• PoE Support: ✓
• ESD Protection: Absorbing transient current with response to surge voltage from 100V/s to 1 kV/µs
• Ambient Operating Temperature: -30 to 65° C (-22 to 149° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Shock and Vibration Certification: ETSI300-019-1.4 Standard

WHAT’S IN THE BOX:

• Ethernet Surge Protector Gen 2 x1

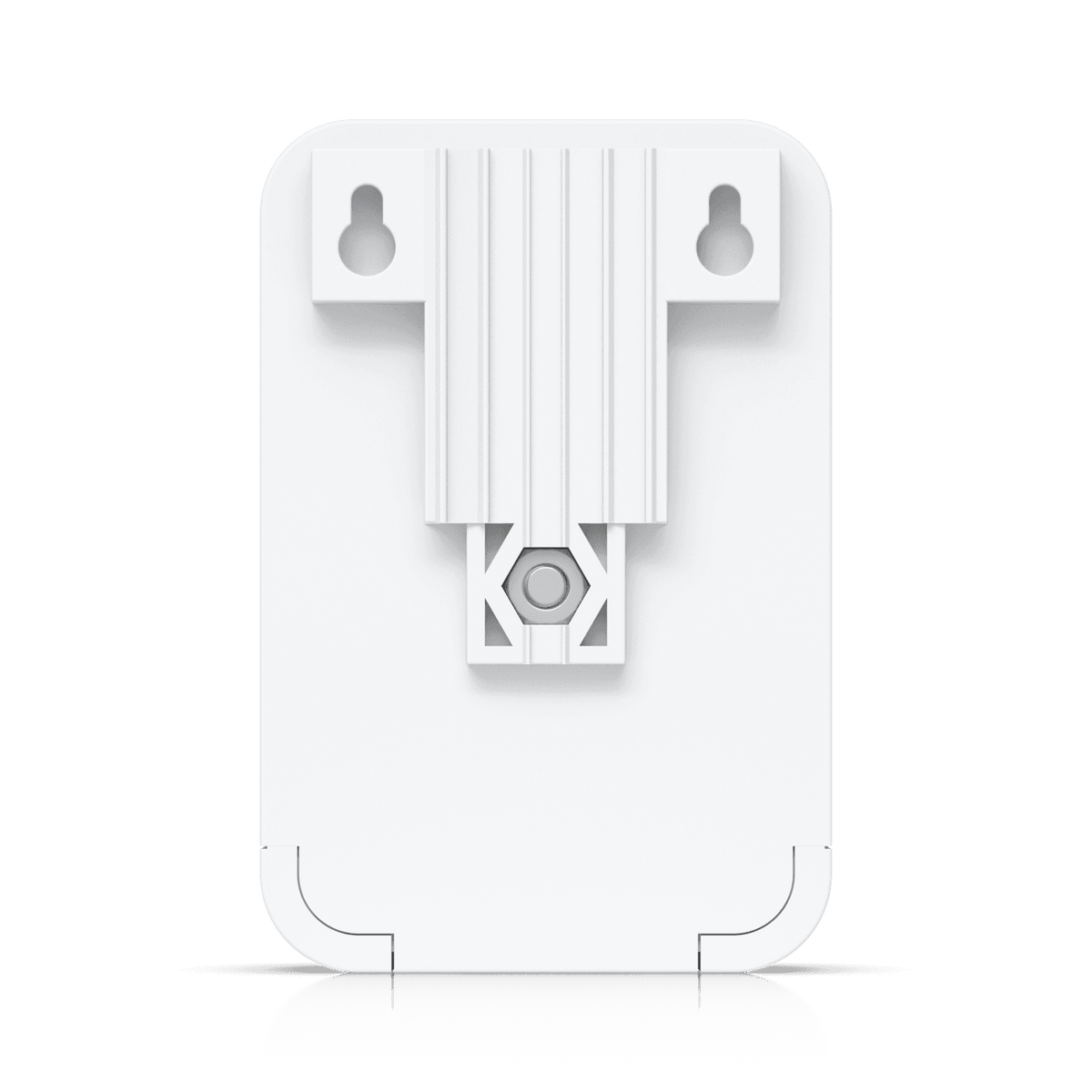

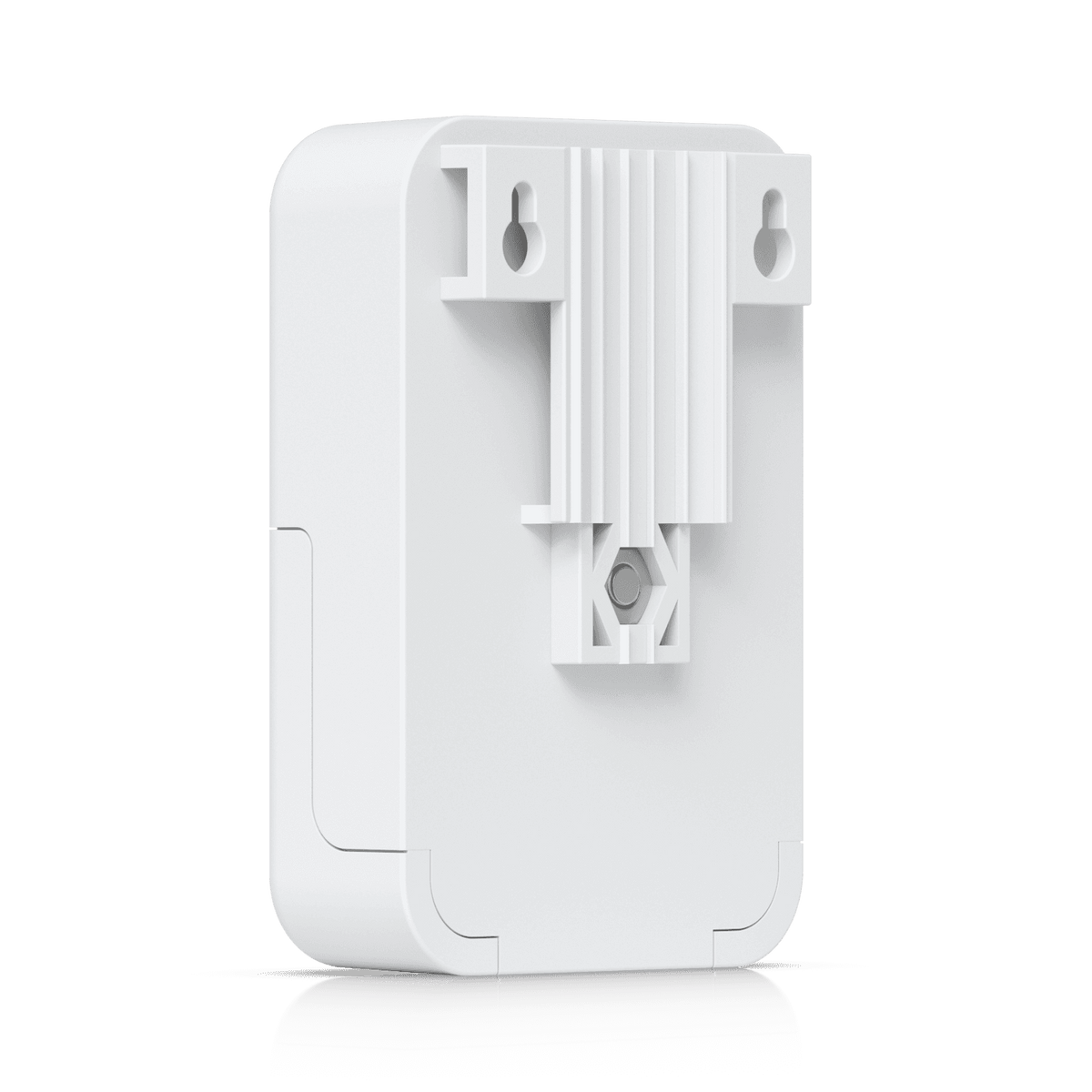

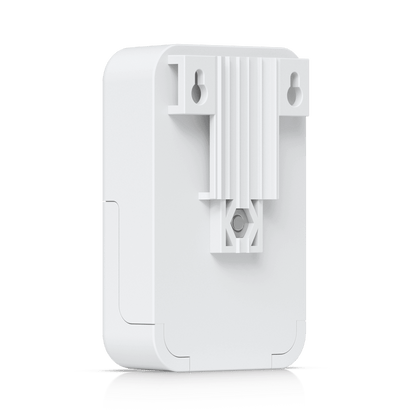

• Self-tapping screw (for ground connection or wall mounting) x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
