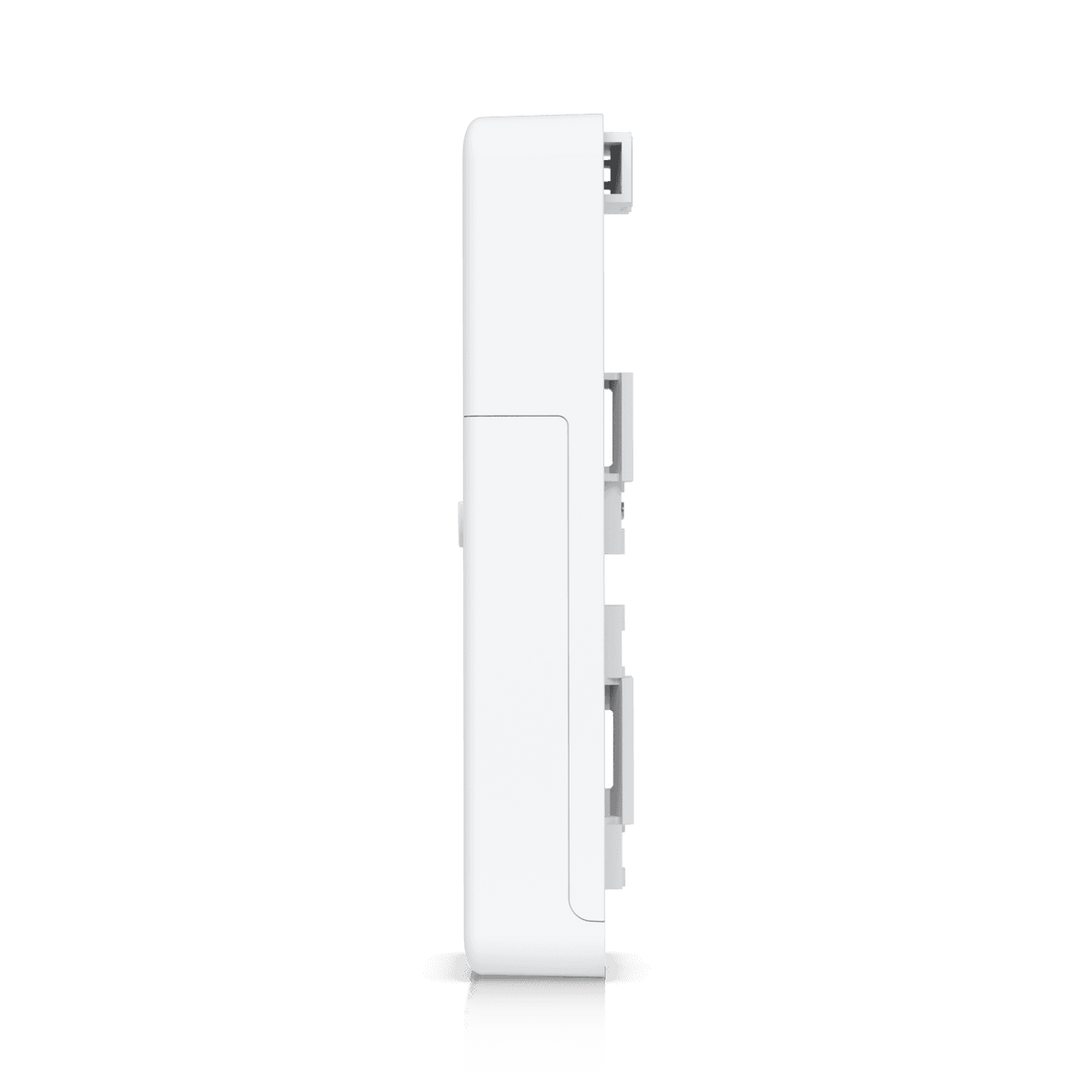

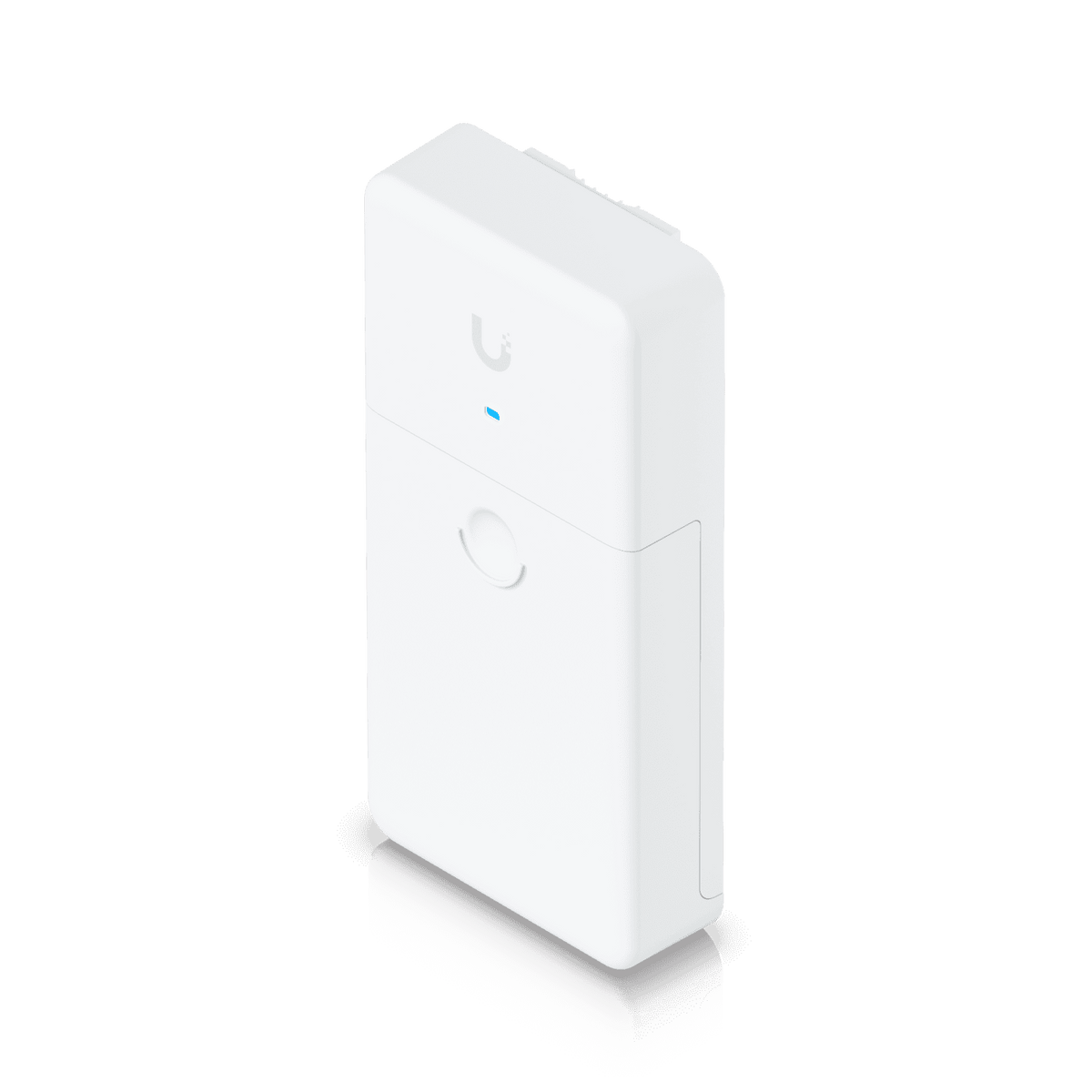

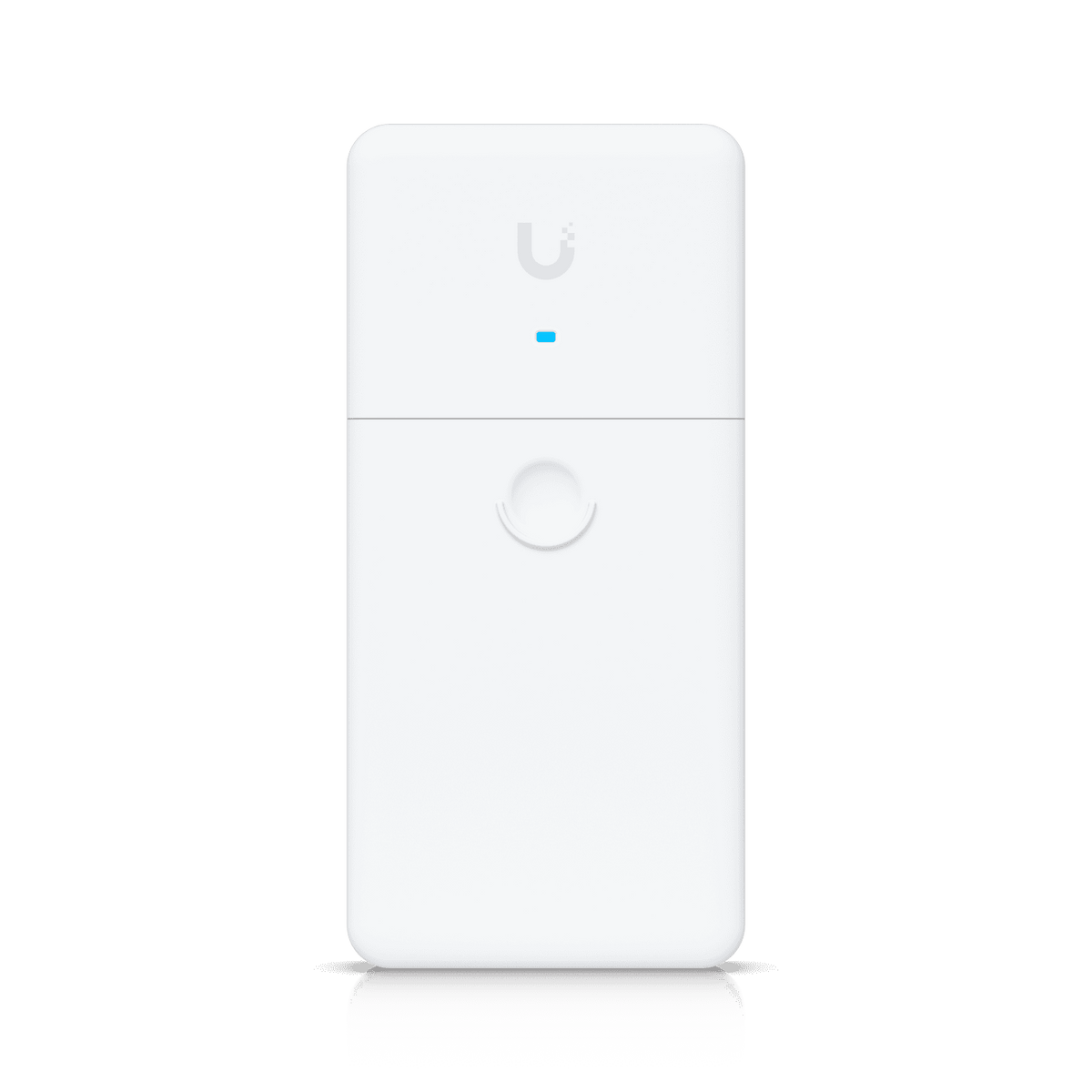

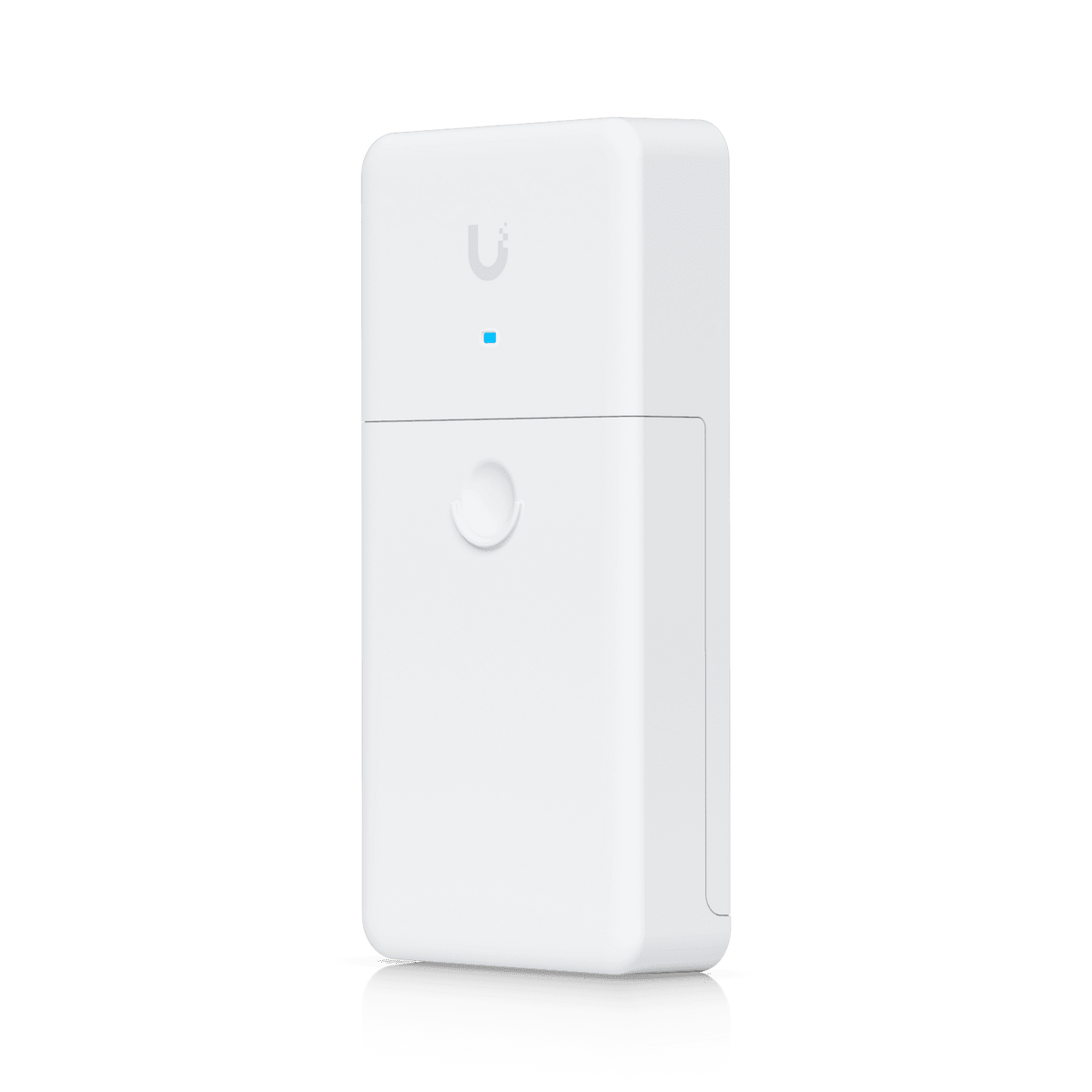

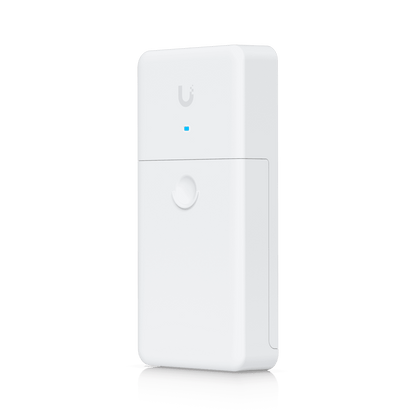

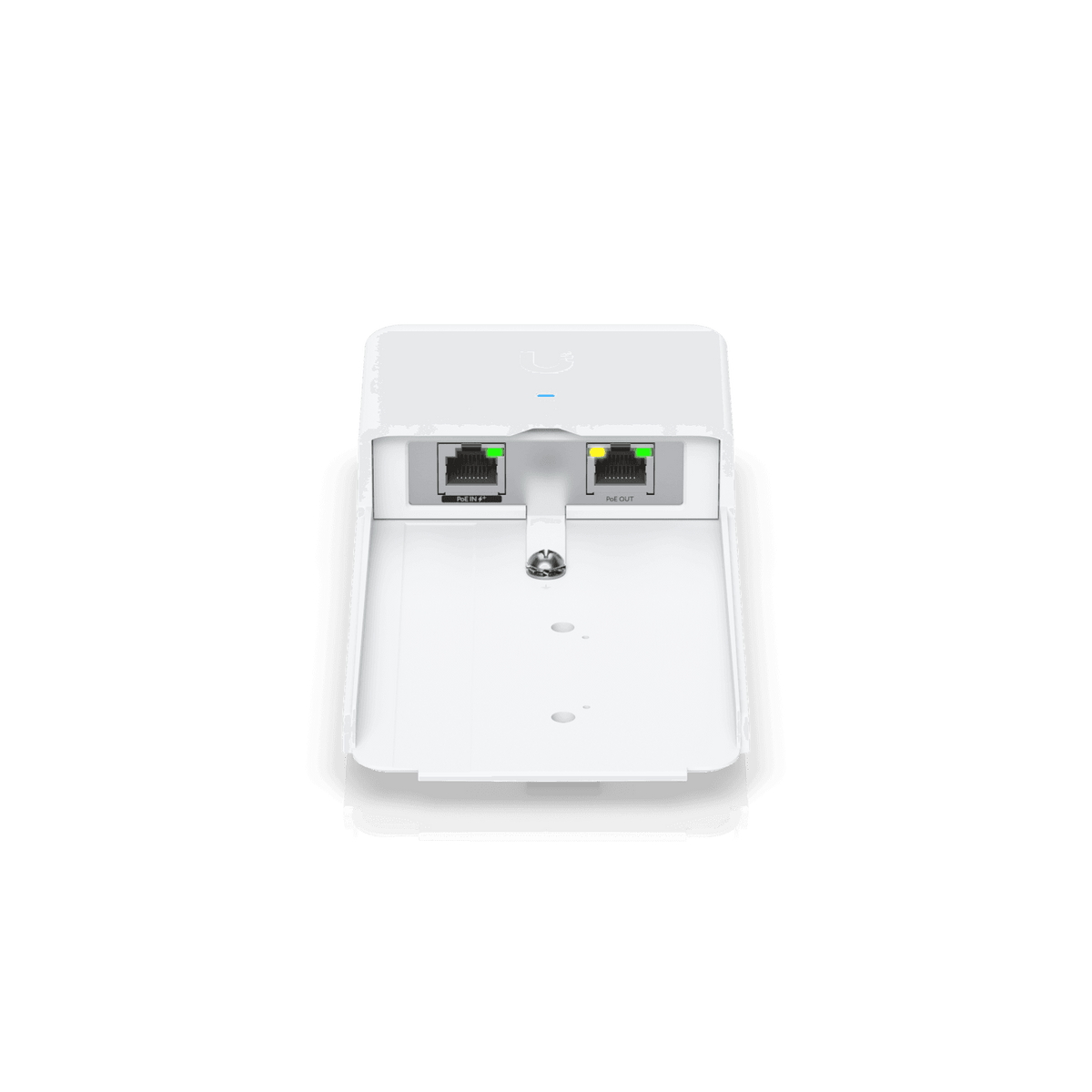

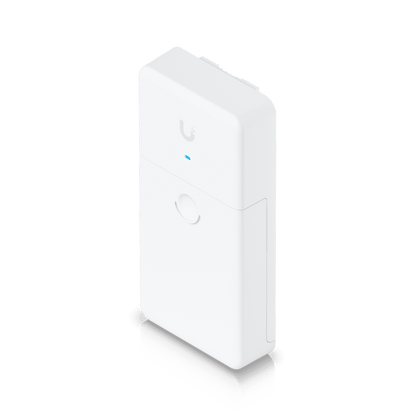

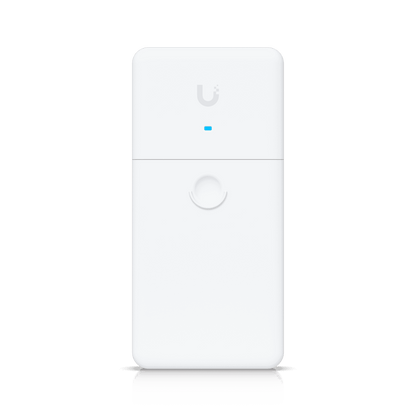

Ubiquiti Long Range PoE Repeater and Surge Protector

Ubiquiti's UACC-LRE is an outdoor Gigabit Ethernet adapter which establishes long-range connections between PoE switches and devices. The unit features 2x Gigabit Ethernet ports. Port one receives 802.3af/at PoE input while port two provides PoE passthrough for distances up to 1km when making use of multiple adapters. The unit also offers 10kA+ surge protection and works reliably in extreme temperatures to protect your deployment from weather and electrical damage.

*Note: This device does not support MTU's larger than 1500. If making use of jumbo frames across the device, it will not work.

FEATURES:

• Massive Range Extension: Extends Gigabit connections up to 1 kilometre when daisy-chained back-to-back (up to 9 units max).
• PoE Passthrough: Powers itself via incoming 802.3af/at PoE+ and delivers up to 22.5W of downstream PoE to your terminal device.
• Industrial-Grade Safeguards: Features built-in 10kA+ surge protection and ±30kV ESD shielding to protect remote devices from lightning and electrical spikes.
• Extreme Weather Performance: Built with an IPX5-rated weatherproof enclosure that operates reliably in extreme temperatures from -40°C to 80°C.
• Zero Latency Degradation: Delivers full line-rate Gigabit throughput to ensure remote devices perform without data bottlenecks.

SPECIFICATIONS:

• Dimensions: 196.5 × 93.5 × 39 mm (7.7 × 3.7 × 1.5")
• Weight: 350 g (12.3 oz)
• Enclosure Material: UV stabilized polycarbonate
• Mounting Material: Stainless steel
• Weatherproofing: IPX5
• Power Method: PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-)
• Max. Power Consumption: 1.5 W (excluding PoE output)

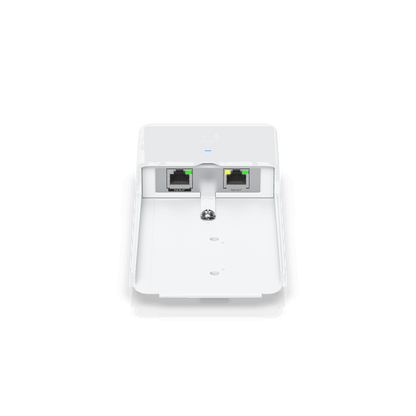

• Networking Interface: (2) GbE RJ45 ports
• PoE Interface: (1) Passthrough PoE output, 2-pairs (Pins 1, 2+; 3, 6-)
• Total Non-Blocking Line Rate: 2 Gbps
• Switching Capacity: 4 Gbps
• Forwarding Rate: 1.488 Mpps
• Total Available PoE: 22.5 W
• Voltage Range PoE Mode: 37–57 V DC
• ESD/EMP Protection: Air/contact: ±30 kV
• DC Sparkover Voltage: 90 V at 100 V/s
• Max. Impulse Sparkover Voltage: 700 V at 1 kV/μs
• Discharge Current: 10 kA+
• Max. MTU: 1,500 bytes
• LEDs — System: Blue: power ON
• LEDs — Ethernet: Green: 1 Gbps; Amber: 10/100 Mbps
• LEDs — PoE: Amber: passthrough PoE out
• Ambient Operating Temperature: -40 to 80 °C (-40 to 176 °F)
• Ambient Operating Humidity: 10 to 95% noncondensing

WHAT’S IN THE BOX:

• Long-Range Ethernet Repeater (UACC-LRE) x1

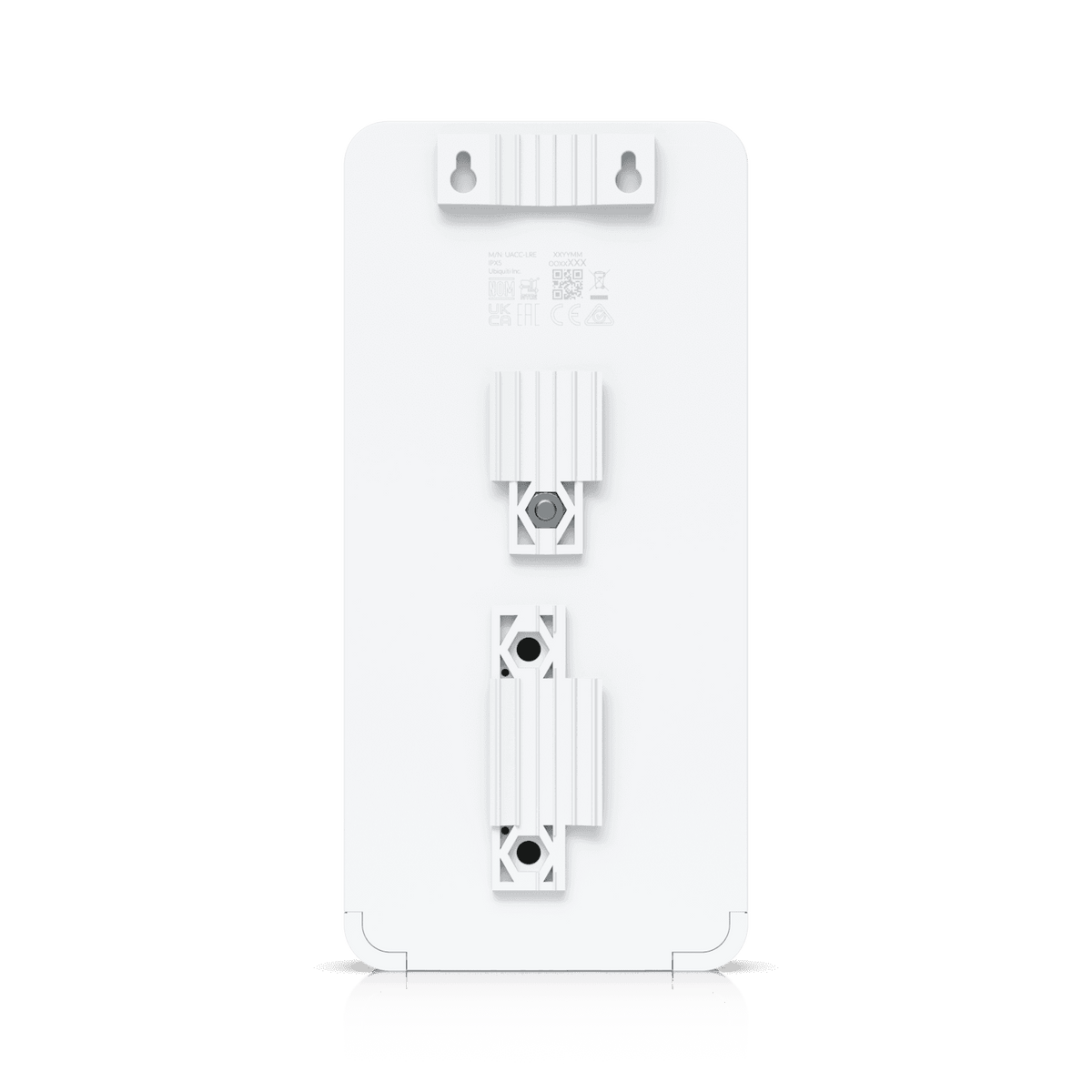

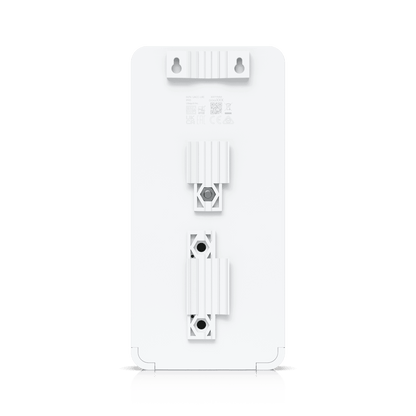

• Mounting accessories (For pole and wall installation options) x1
• Weather-sealing rubber grommets/covers x1

WARRANTY:

• 12 Months
