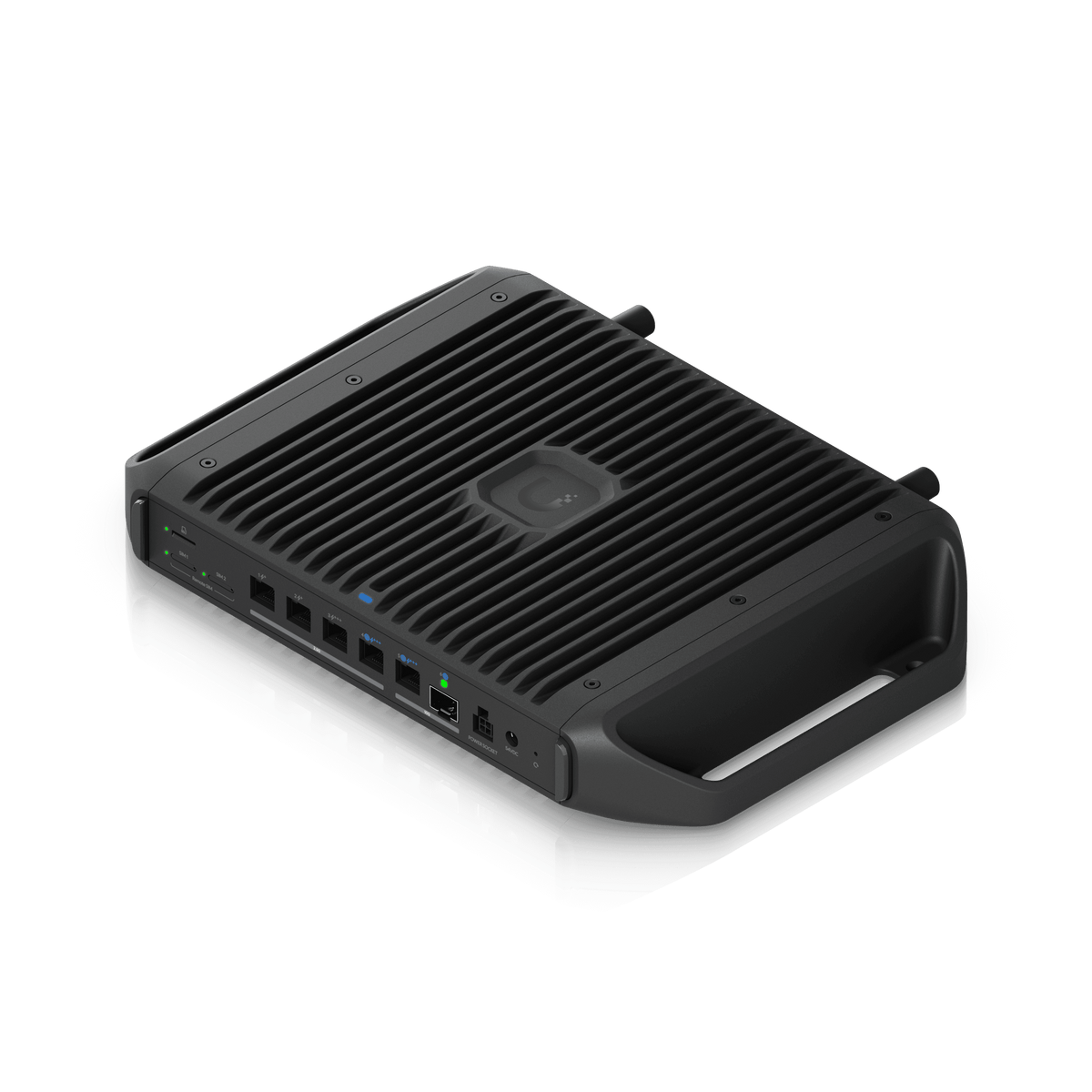

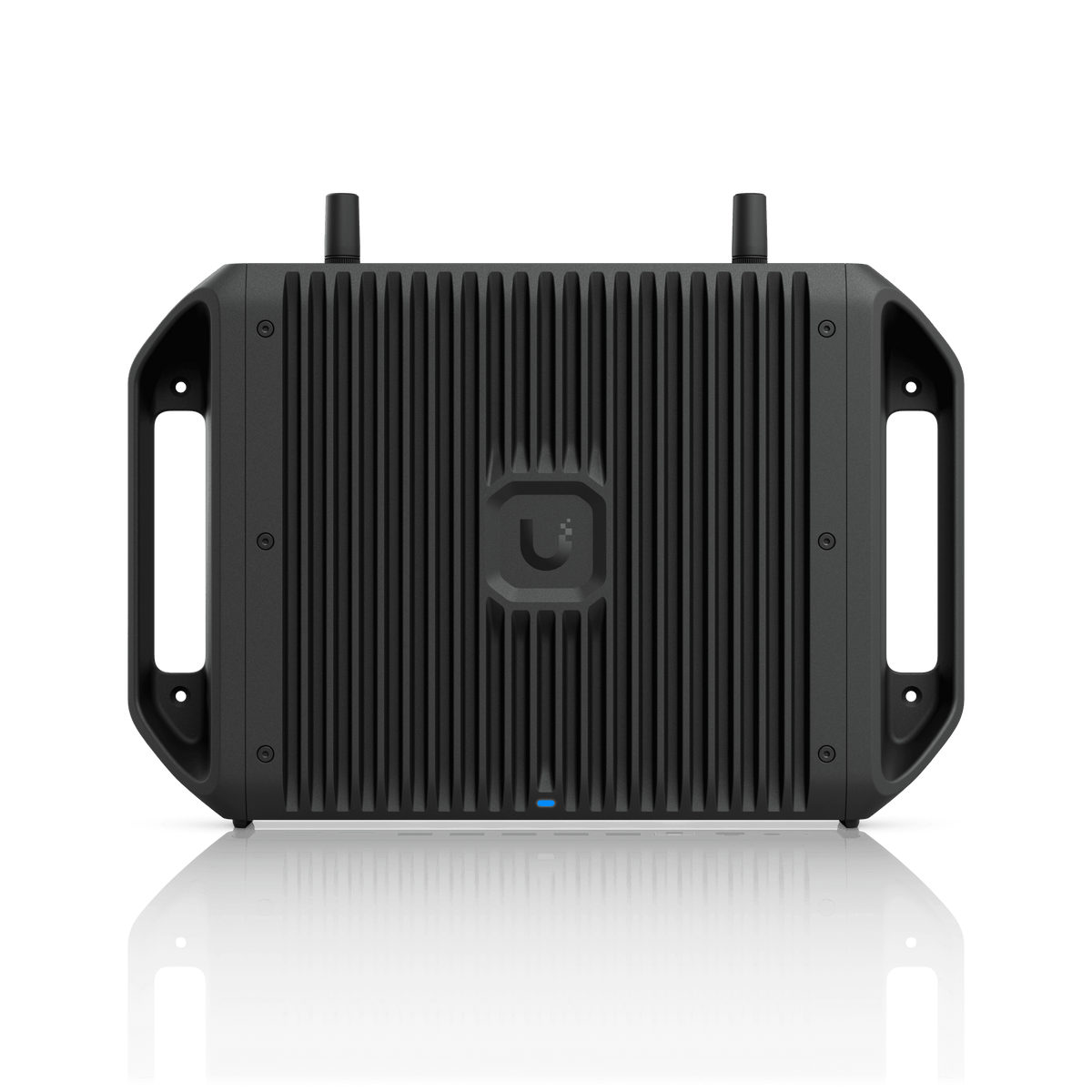

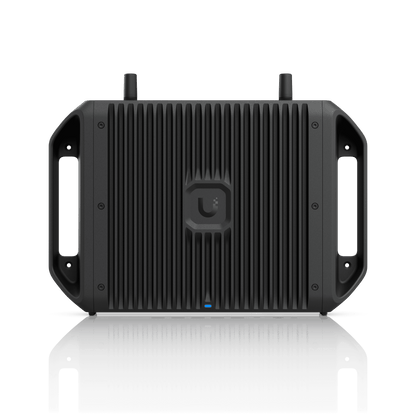

Ubiquiti Multi-Gigabit PoE Multi-WAN UniFi Cloud Gateway Industrial

Ubiquiti's UCG-Industrial is a ruggedised, fanless Multi WAN UniFi Cloud Gateway featuring a dual WiFi 7 radio, 5Gbps IDS/IPS, 1x 10Gbps SFP+, 4x 2.5Gbps (2x PoE+++ & 2x PoE+) ports, 1x 10Gbps PoE+++ port, and a PoE Budget of 350W. The unit also features advanced routing capabilities and microSD storage for full UniFi application support.

It can be configured and managed with the UniFi Network Application.

FEATURES:

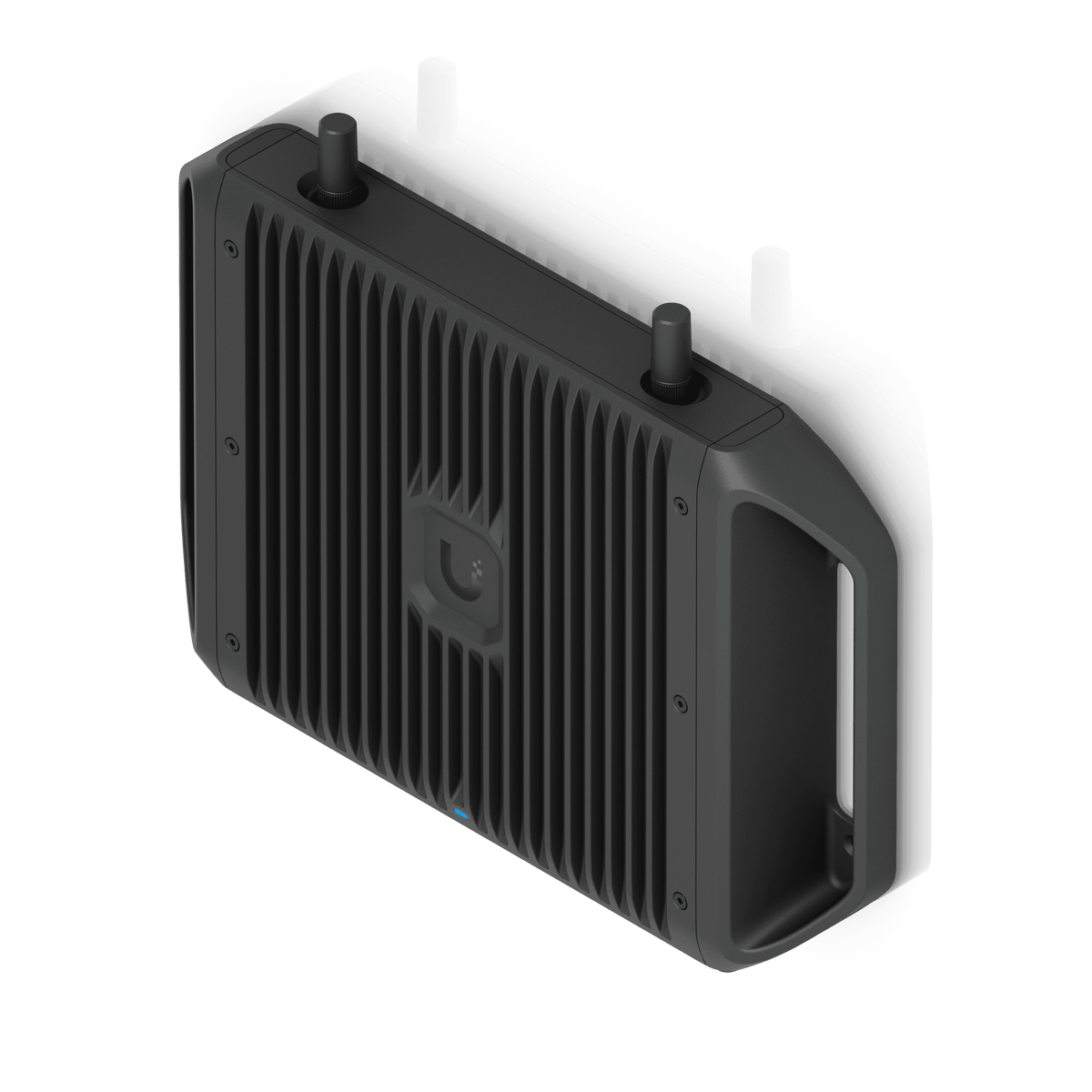

• Ruggedized & Fanless Design: Built to withstand dust and extreme ambient temperatures in areas like manufacturing floors, barns, remote sites, or basements.
• Power Budget: Delivers up to 350W of total system power budget to support high-density Power over Ethernet (PoE) deployments, including multi-port 90W PoE+++ capabilities.

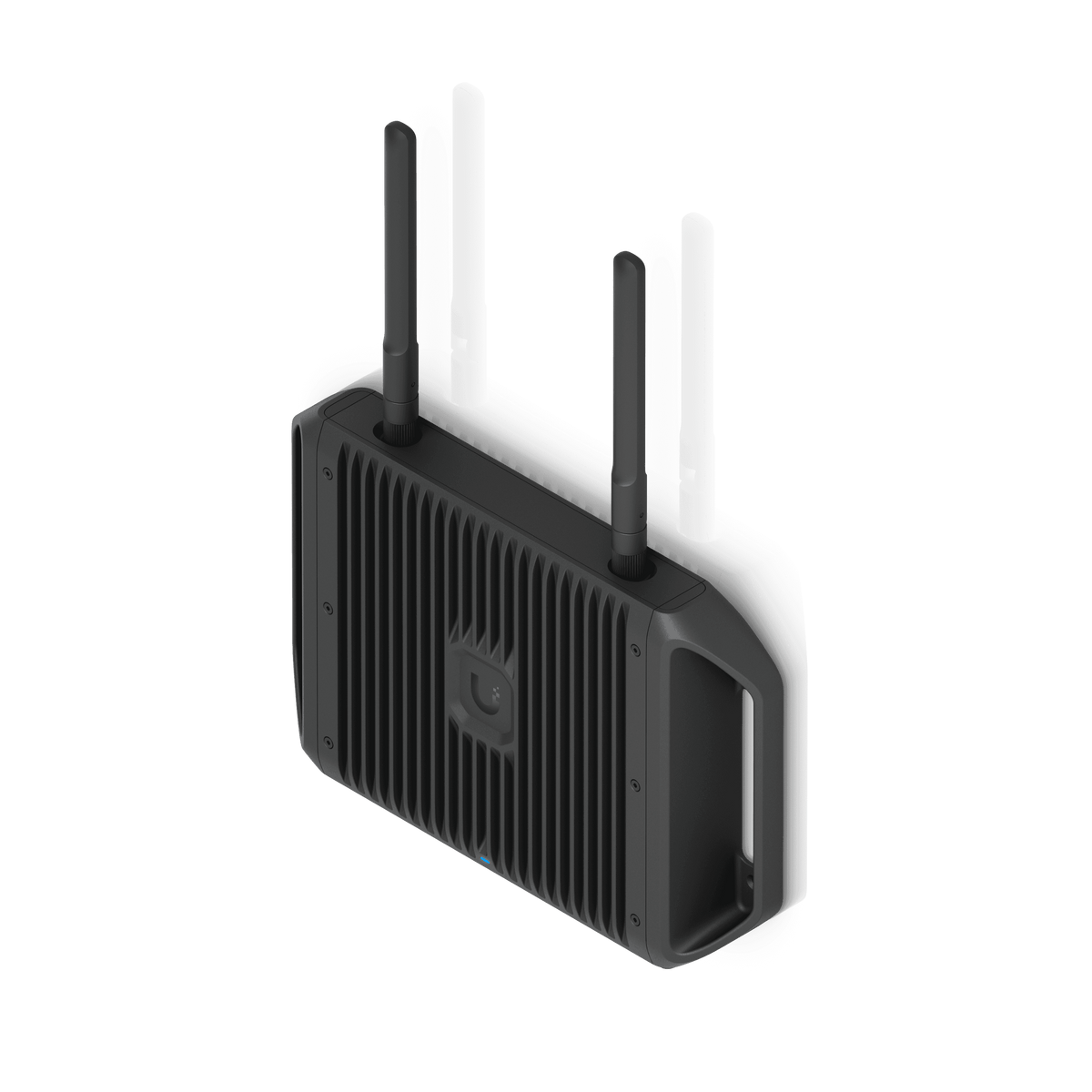

• Integrated Wi-Fi 7: Equipped with built-in Wi-Fi 7 connectivity (2.4 GHz and 5 GHz bands) backed by adjustable external antennas.
• Port Configuration: Includes a 10G SFP+ port, a 10 GbE RJ45 port (supporting high-power PoE+++), multiple 2.5 GbE RJ45 ports (some supporting PoE+ or PoE+++).
• Storage & Application Support: Features a pre-installed micro-SD storage card (e.g., 128GB high-endurance) for running the full UniFi application suite locally (Network, Protect, Access, Talk, Connect).

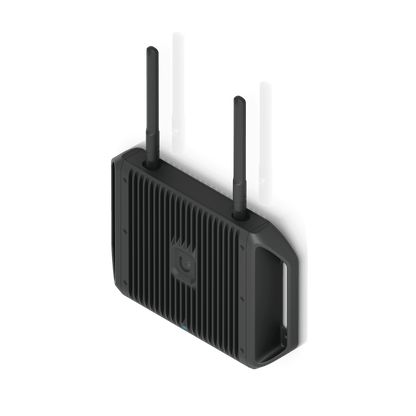

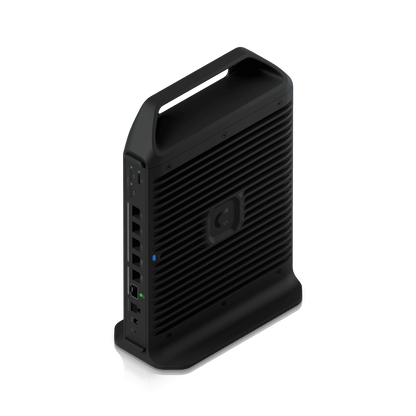

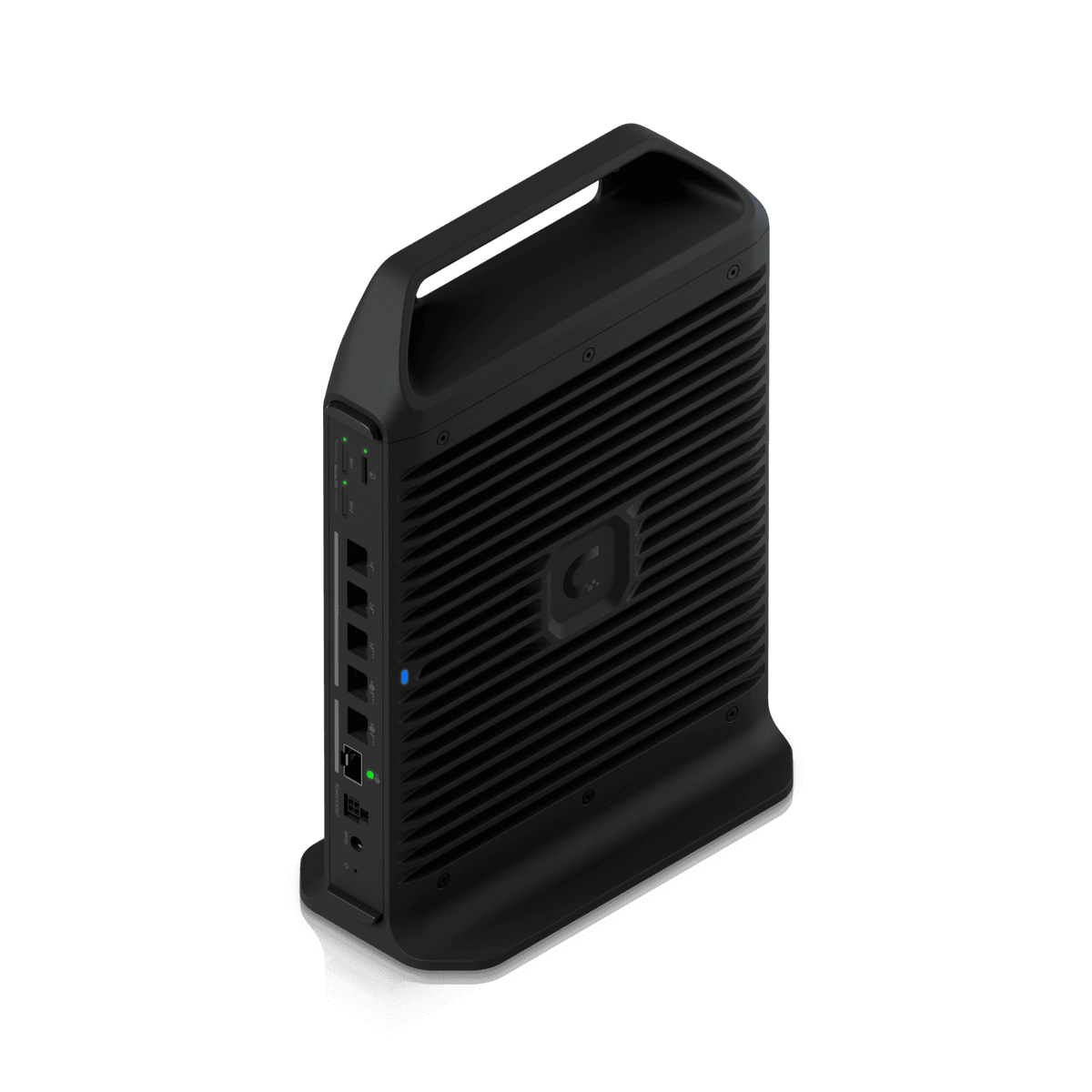

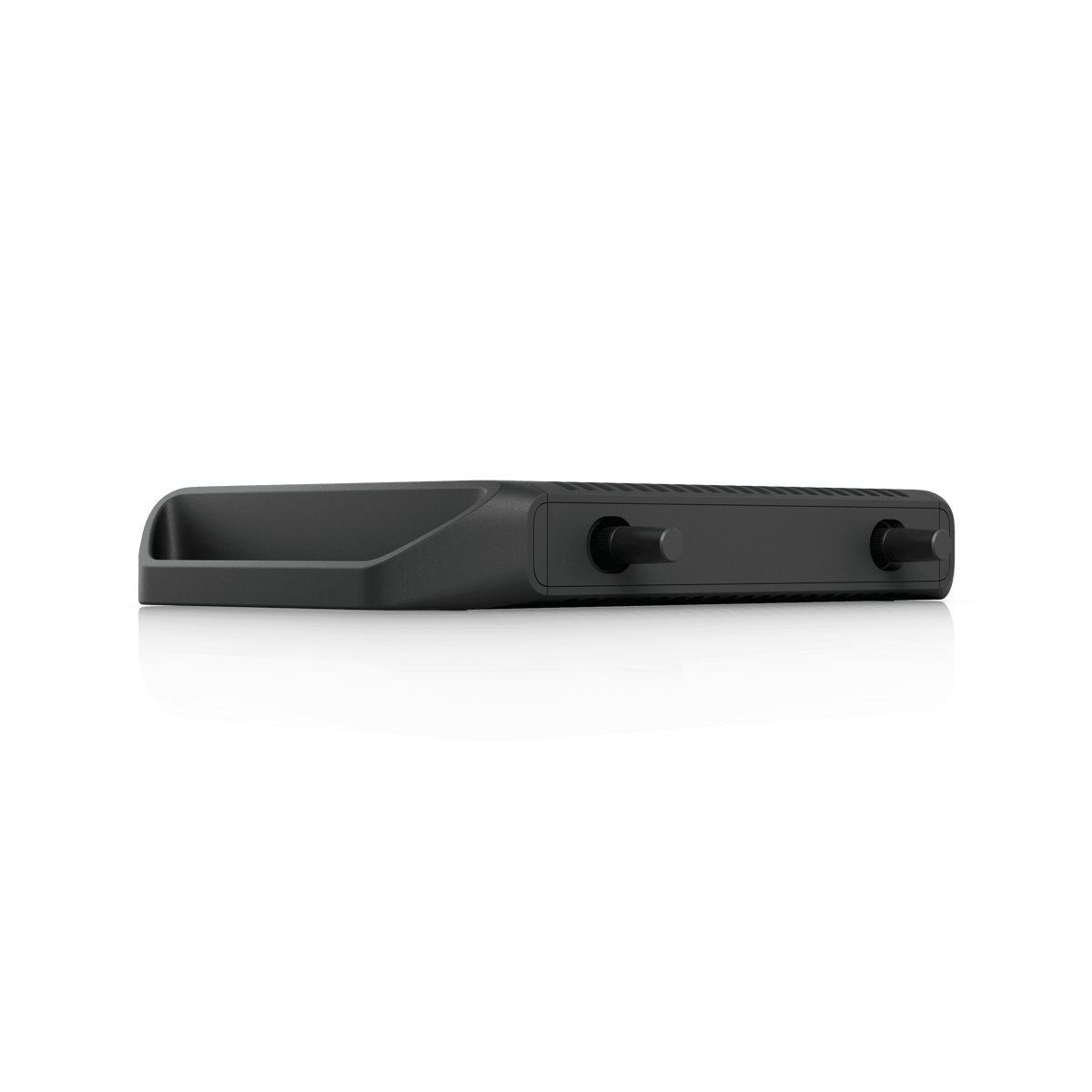

• Modular Mounting: Adapts instantly to flat or vertical desktop use, under-desk placement, wall mounting, or rack mounting by sliding out its side handles.

SPECIFICATIONS:

• Dimensions: Device: 307.9 × 203.5 × 43.7 mm (12.1 × 8 × 1.7"); Table stand: 203.5 × 100.2 × 21.9 mm (8 × 3.9 × 0.9")
• UniFi Application Suite: Network ✓, Protect ✓, Access ✓, Talk ✓, Connect ✓
• Managed UniFi Devices: 50+
• Managed Cameras: 15 HD, 8 2K, 5 4K
• Managed Access Hubs: 50
• Simultaneous Users Connected: 500+
• Max. WAN Port Count: 5
• Default WAN Ports: 10G SFP+, 10 GbE RJ45, 2.5 GbE RJ45

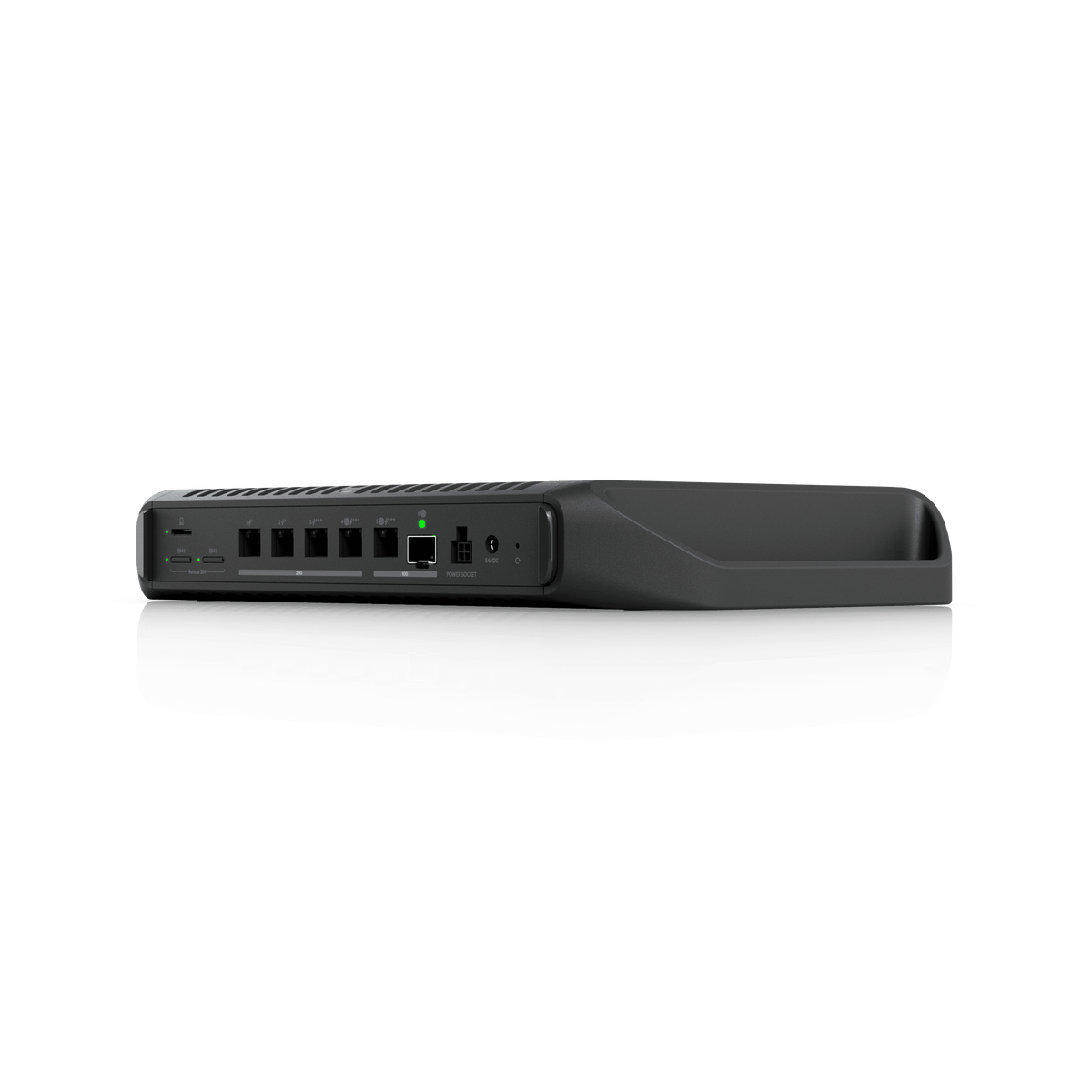

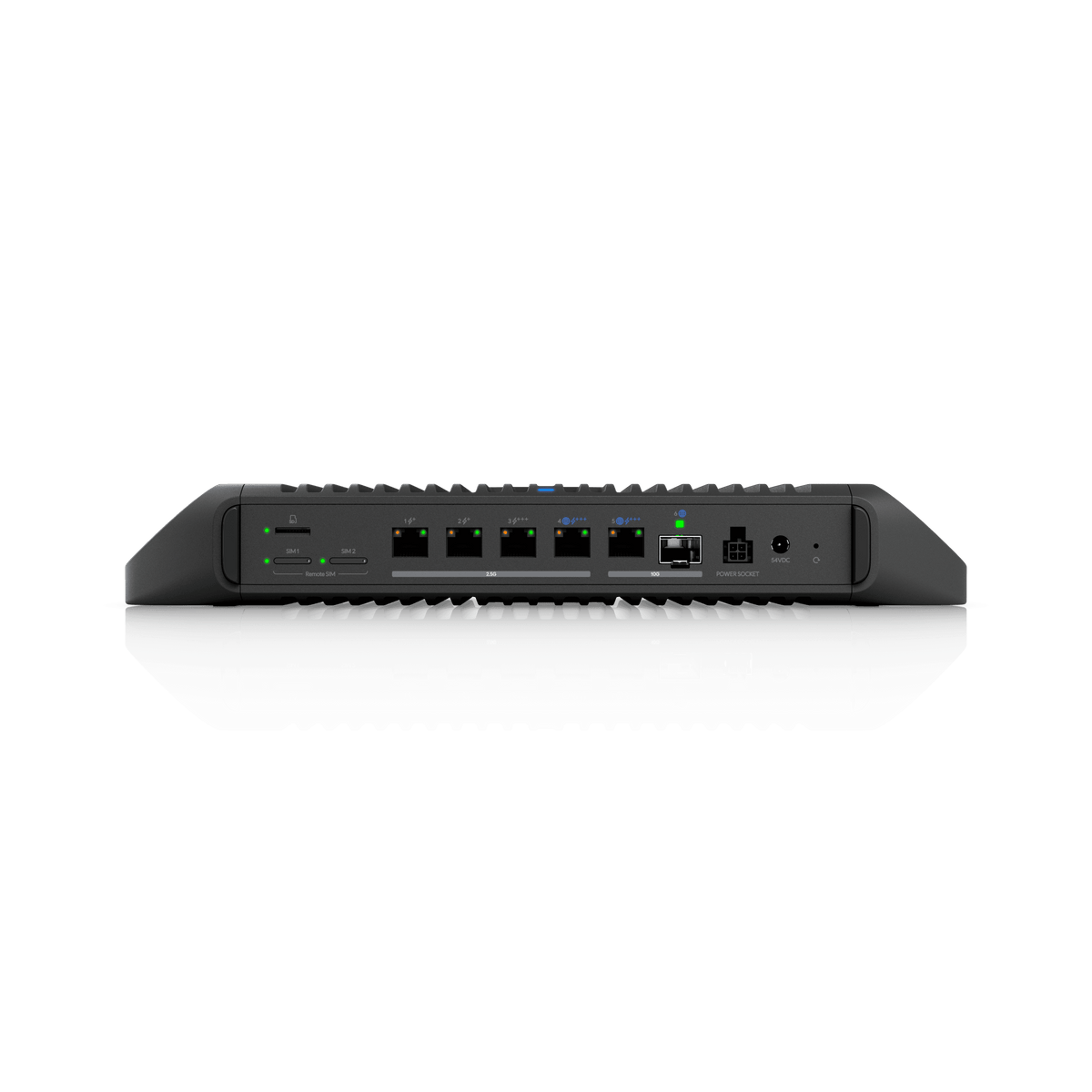

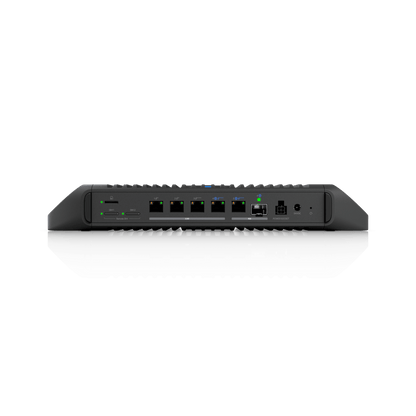

• Port Layout: 4 × 2.5 GbE RJ45 (2 PoE+++, 2 PoE+); 1 × 10 GbE RJ45 (PoE+++); 1 × 10G SFP+
• IDS/IPS Throughput: 5 Gbps
• Form Factor: Wall-mounted; compact desktop (table stand included); rack mount (accessory sold separately)
• Coverage Area: 115 m² (1,250 ft²)
• Security: Stateful Firewall ✓; Application-Aware Layer 7 Firewall ✓; DPI & Traffic Identification ✓; Zone-Based Firewall Advanced Filtering ✓; Content Filtering ✓; Intrusion Prevention (IPS/IDS) ✓; Ad Blocking ✓
• IDS/IPS Signatures: 55,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation: ✓
• License-Free SD-WAN: ✓
• Site-to-Site VPN: Site Magic ✓; IPsec ✓; OpenVPN ✓
• VPN Server: Identity Endpoint One-Click VPN ✓; Teleport Zero-Configuration VPN ✓; WireGuard ✓; OpenVPN ✓; L2TP ✓
• VPN Client: OpenVPN ✓; WireGuard ✓
• Multi-WAN Load Balancing: ✓
• Dynamic Routing: OSPF ✓; BGP ✓
• Advanced QoS: ✓
• Multicast DNS (mDNS): ✓
• Advanced NAT: SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT ✓
• Integrated RADIUS Server: ✓
• RADIUS over TLS (RadSec): ✓
• Additional Internet Failover with UniFi LTE Backup: ✓
• Internet Quality and Outage Reporting: ✓
• MAC Address Table Size: 4,000
• Virtual Network Override: ✓
• WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
• Throughput: 5 GHz: 4.3 Gbps; 2.4 GHz: 688 Mbps
• MIMO: 5 GHz: 2 × 2 (DL/UL MU-MIMO); 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
• Antenna Gain: 5 GHz: Stub antenna 5 dBi, Terminal (Omni) antenna 6 dBi; 2.4 GHz: Stub antenna 3 dBi, Terminal (Omni) antenna 6 dBi
• Max. TX Power: 5 GHz: 26 dBm; 2.4 GHz: 23 dBm
• Supported Data Rates: 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps; 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps; 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps; 802.11n: 6.5 Mbps to 300 Mbps; 802.11g: 6–54 Mbps; 802.11b: 1–11 Mbps; 802.11a: 6–54 Mbps
• NVR Storage: Pre-installed 128 GB microSD for NVR
• Expansion Slot: MicroSD Card
• PoE Budget: DC input: 270W; ATX power: 75W
• Max. PoE Wattage per Port: PoE+: 30W; PoE+++: 90W
• Voltage Range PoE Mode: 50–57V
• Max. Power Consumption: 28W (excluding PoE output)
• Power Method: (1) DC Input (350W PSU); (1) ATX power (48V)
• Power Supply: 54V DC, 350W (adapter included); ATX power (48V)
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 95 BTU/hr (excluding PoE output)
• Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
• System Memory: 3 GB
• Weight: Device: 2.4 kg (5.3 lb); Table stand: 321 g (11.3 oz)
• Enclosure Material: Device: Polycarbonate, aluminium alloy; Table stand: Polycarbonate, galvanized steel, silicone rubber
• Management: Ethernet, Bluetooth
• LEDs: Ethernet ✓; SFP+ ✓; System ✓; MicroSD ✓; SIM ✓
• Buttons: (1) Factory reset; (2) Handle release buttons
• ESD/EMP Protection: Air: ±8 kV; contact: ±4 kV
• Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC
• Application Requirements: Mobile App — UniFi iOS™ v10.32.0 and later; UniFi Android™ v10.35.0 and later

WHAT’S IN THE BOX:

• UCG-Industrial Device (with sliding/removable side handles for versatile mounting) x1
• External Power Brick / Supply with an accompanying mounting plate x1
• AC Power Cord (region-specific) x1
• External Antennas (flexible/extended-range Wi-Fi antennas) x1
• Drilling / Mounting Template & Hardware for wall/surface installation x1
• Quick Start Guide x1

WARRANTY:

• 12 Months
