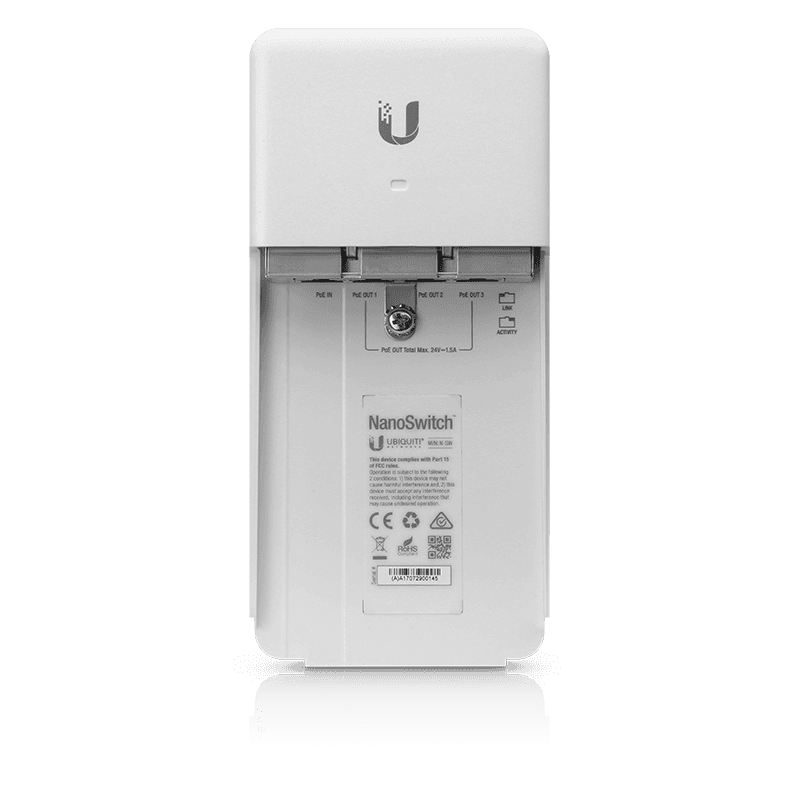

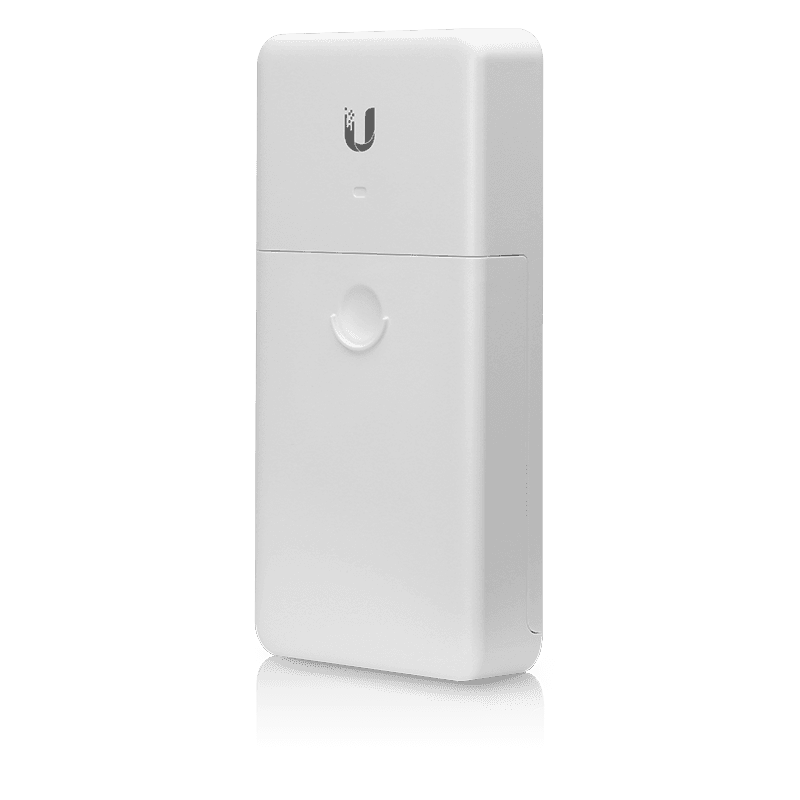

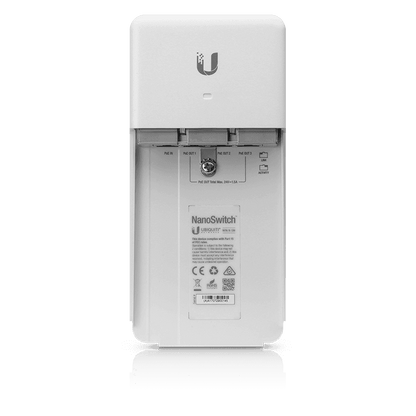

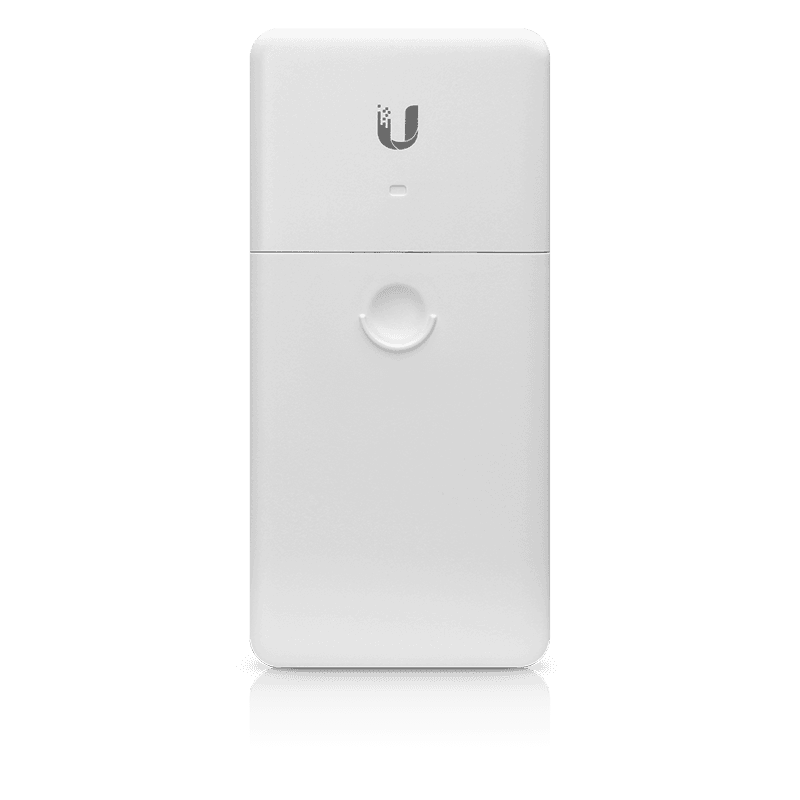

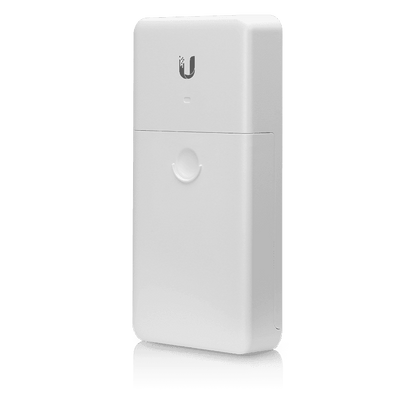

Ubiquiti NanoSwitch Outdoor 4 Port Gigabit with 3 POE Out

Ubiquiti's N-SW is an unmanaged, outdoor, 4 port Gigabit switch with PoE passthrough. If powered by 24V Passive PoE can provide up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

*Note: PoE Injector not Included.

FEATURES:

• Outdoor Power Splitter: Takes a single incoming ethernet cable and splits it to connect and power up to three outdoor devices at the top of a tower or roof.

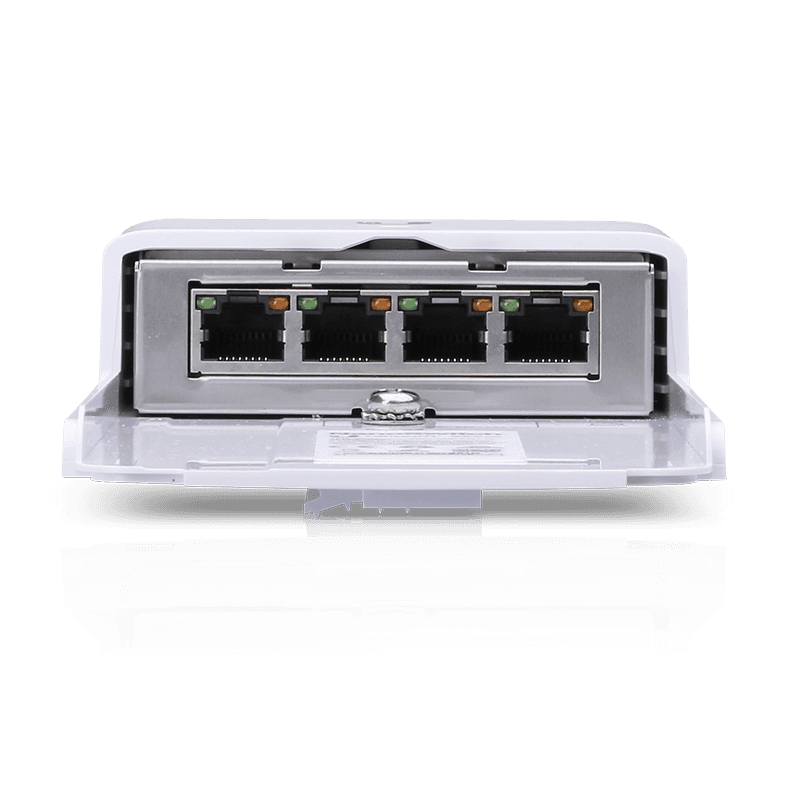

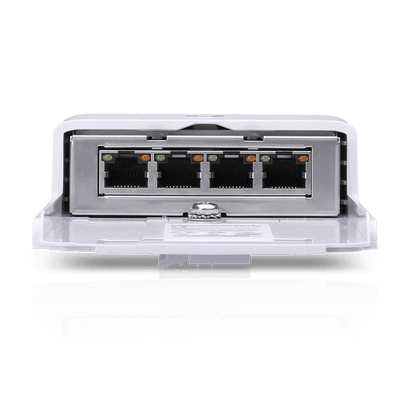

• 4-Port Gigabit Performance: Equipped with four high-speed Gigabit RJ45 ports (1 input, 3 outputs) supporting a total bandwidth of 4 Gbps.
• Always-On 24V PoE: Automatically pushes 24V passive PoE out of all three output ports, making it optimal for running a clean cluster of outdoor cameras or bridge radios.
• Weatherproof Enclosure: Built inside a durable, UV-protected shell that mounts directly onto poles outdoors without needing an extra protective box.
• True Plug-and-Play: Completely unmanaged switch that requires no software setup or configuration—just plug it in and it works instantly.
• Power Not Included: Does not come with a power supply; it must be powered by a 24V passive PoE switch or a standalone 30W PoE injector (sold separately).

SPECIFICATIONS:

• Dimensions: 196 × 93 × 32 mm (7.7 × 3.7 × 1.3")
• Weight: 269 g (9.5 oz)
• Enclosure Material: White polycarbonate
• Networking Interface: 4 × GbE RJ45 ports:
  • 1 × PoE-in
  • 3 × PoE passthrough
• Total Non-Blocking Line Rate: 4 Gbps
• Power Method: Passive 24V, 2-pair PoE-in
• Supported Voltage Range: 21.6–30V
• Power Consumption:
  • Typical: 1.5W
  • Max: 30W
• Power Supply: POE-24-30W-G PoE adapter (Not included)
• ESD/EMP Protection: Air/contact: ±24 kV
• Passive PoE Max. Wattage per Port: 24V, 2-pair, 1A per port (24W)
• Total Passive PoE Max. Wattage: 24V, 2-pair, 1A for 3 ports (30W)
• LEDs: Speed/Link/Activity (All ports)
• Ambient Operating Temperature: -30 to 70°C (-22 to 158°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes

WHAT’S IN THE BOX:

• NanoSwitch (N-SW) Unit x1

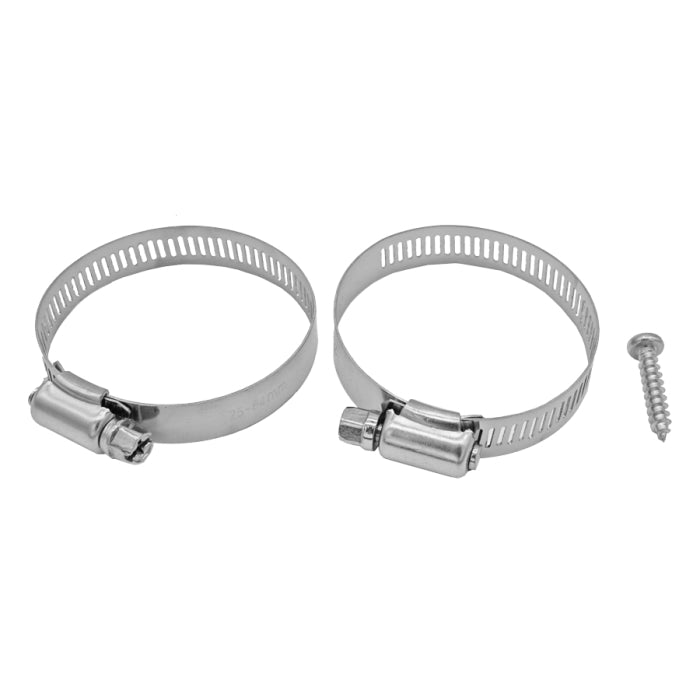

• Metal Straps / Clamps (Qty. 2) (For rapid pole-mounting) x2
• Self-Tapping Grounding Screw x1

WARRANTY:

• 12 Months
