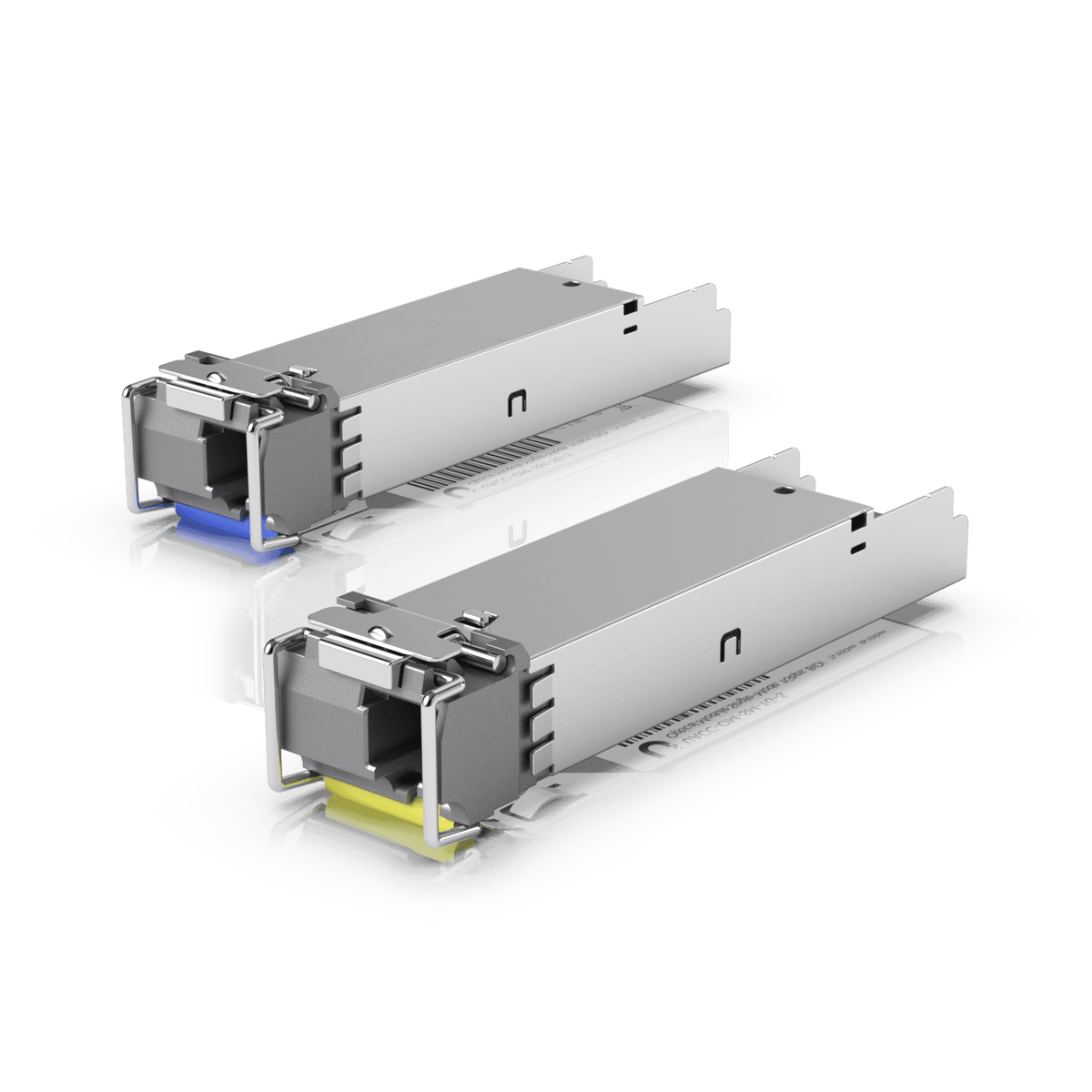

Ubiquiti Single Mode 1.25G LC Bi-Directional SFP 3km

Ubiquiti's UACC-OM-SM-1G-S-2 is ideal for long-distance, bi-directional, single-mode connections. It can deliver up to 1.25Gbps speeds at distances of up to 3km.

These SFP modules make use of Wavelength-Division Multiplexing (WDM). This means it uses two different light wavelengths to transmit data in both directions at once, resulting in fewer fibre cables required to run. It also aids in maximising the use of existing infrastructure and simplifying installations.

*Note: The price reflected is for a pair (one box of 2 units). This product is only sold as a pair and no single units are available.

FEATURES:

• Single-Strand BiDi Optics: Uses Wavelength-Division Multiplexing (WDM) to transmit and receive data over a single fiber strand, cutting cabling costs in half.

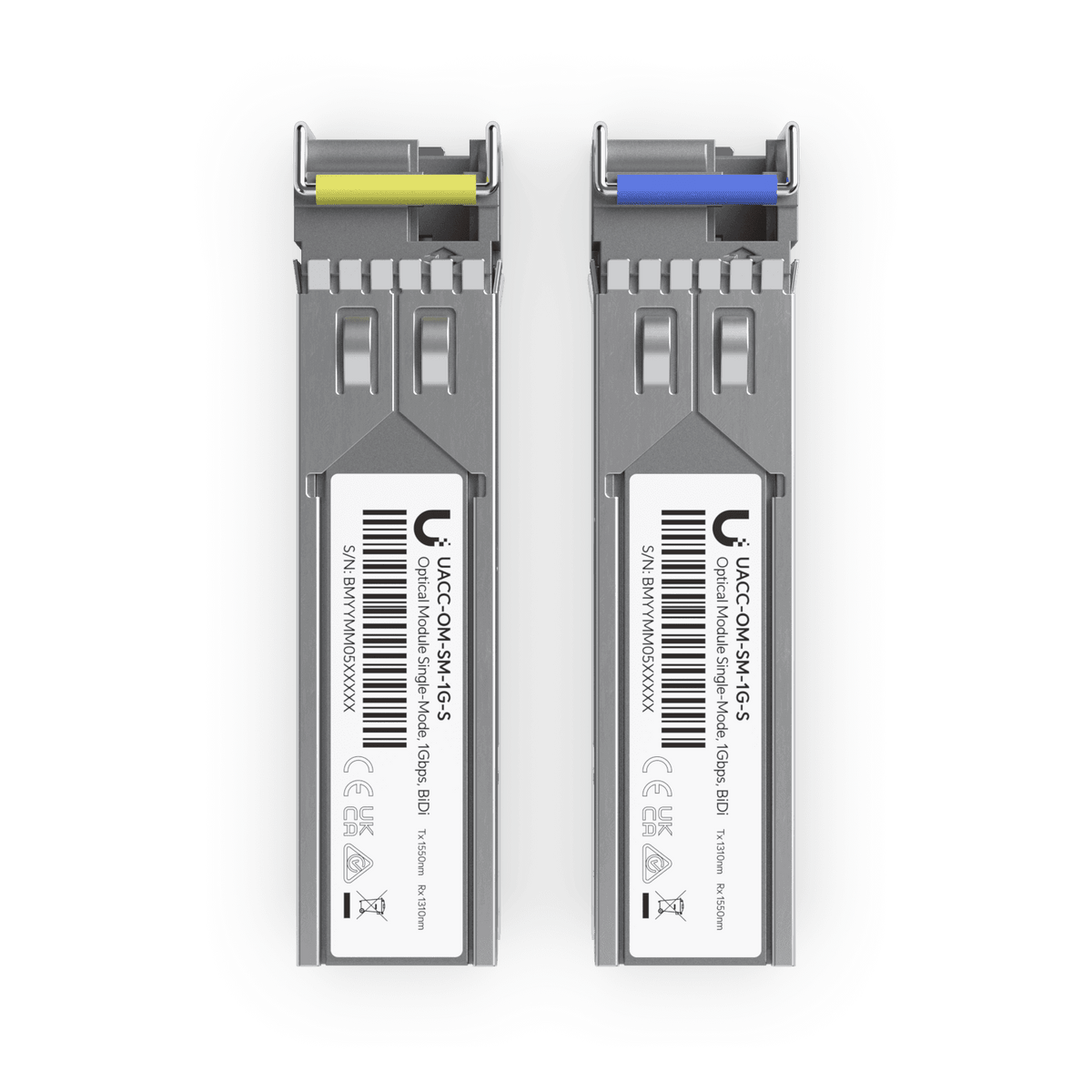

• Matched Dual-Wavelengths: Includes two complementary modules that work as an interlocking pair (Blue latch: 1310nm TX/1550nm RX; Yellow latch: 1550nm TX/1310nm RX).
• Gigabit Line Speed: Delivers reliable full-duplex data transfer rates up to 1.25 Gbps.
• 3-Kilometre Reach: Sustains strong, high-performance signal integrity across Single-Mode Fiber (SMF) runs up to 3 km (1.9 miles).
• Simplex LC Connector: Built with a single LC UPC port interface for quick and easy fiber termination.
• Ultra-Low Power Consumption: Draws a maximum of just 0.66W per module to keep network switches running cool.

SPECIFICATIONS:

• Form Factor: SFP
• Connector: Simplex LC UPC
• Supported Media: Single-Mode Fiber
• BiDi: ✓
• TX Wavelength: 1310 / 1550 nm
• RX Wavelength: 1550 / 1310 nm
• Supported Data Rate: 1 Gbps
• Supported Cable Distance: 3 km (1.9 mi)
• Max. Power Consumption: 0.66 W
• Pack Options: 2-Pack
• Ambient Operating Temperature: 0 to 70 °C (32 to 158 °F)
• Warning: CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014
• Laser Safety: Do not look into the ends of the fiber optic cable or SFP module while converters are powered.

WHAT’S IN THE BOX:

• UACC-OM-SM-1G-S SFP Modules x2

WARRANTY:

• 12 Months
