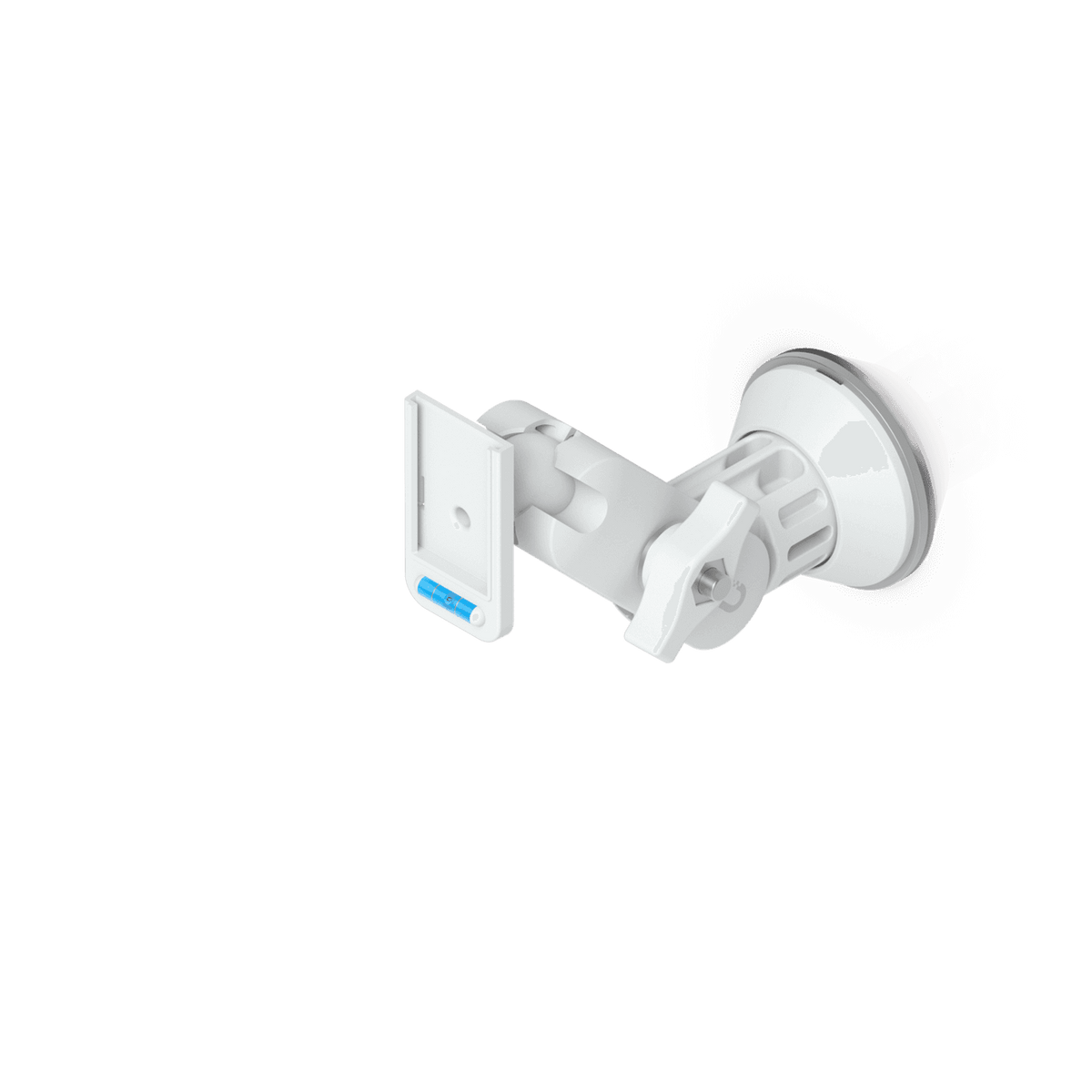

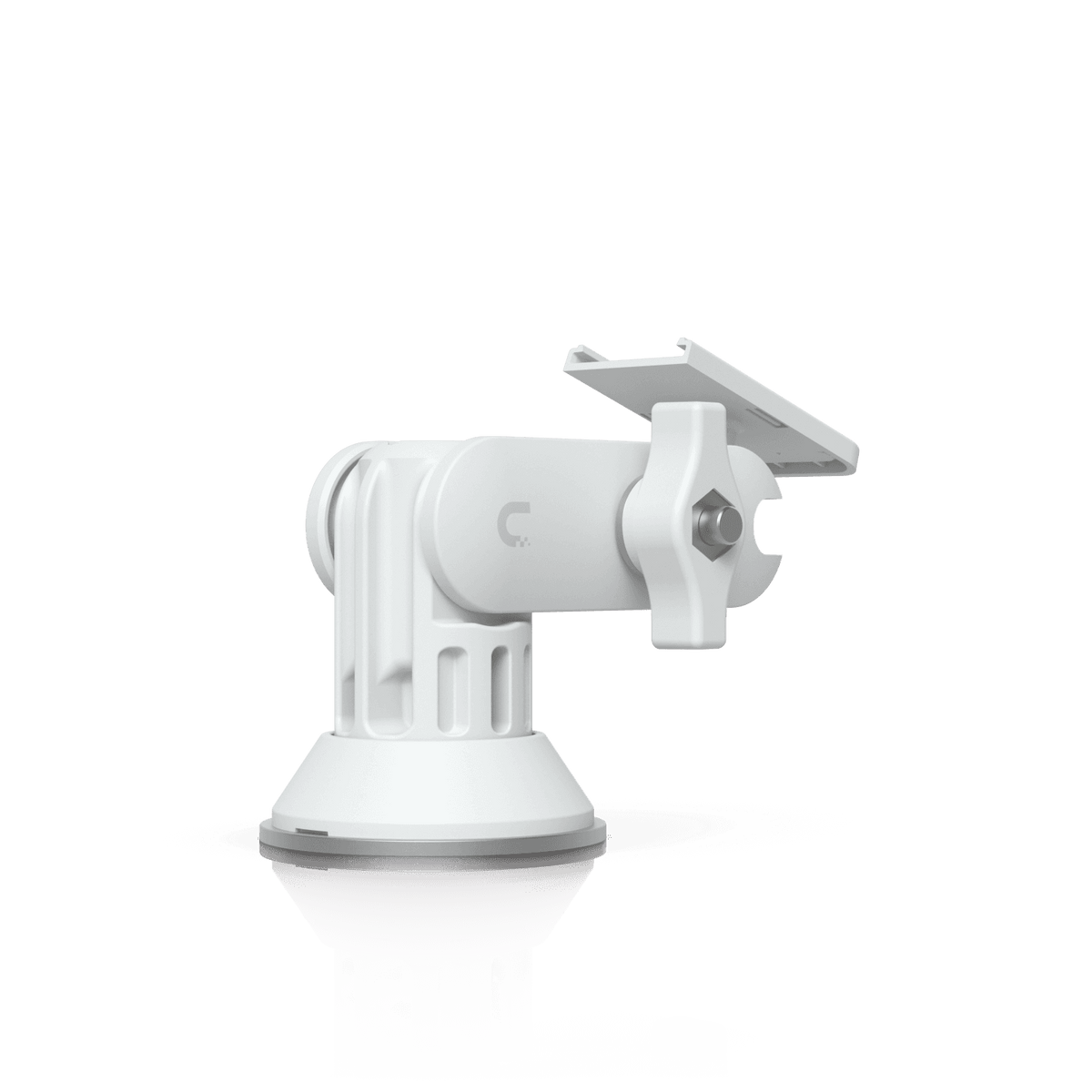

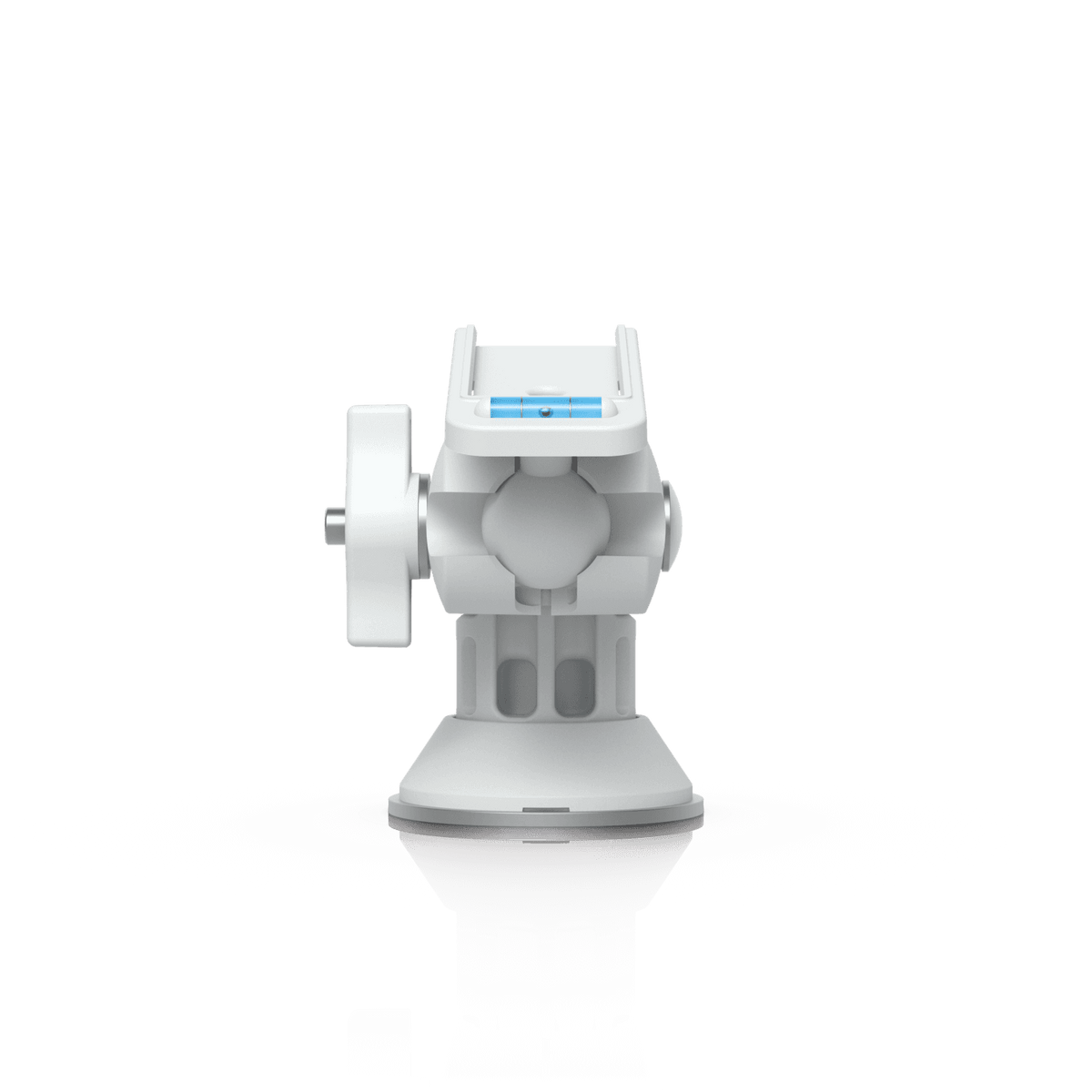

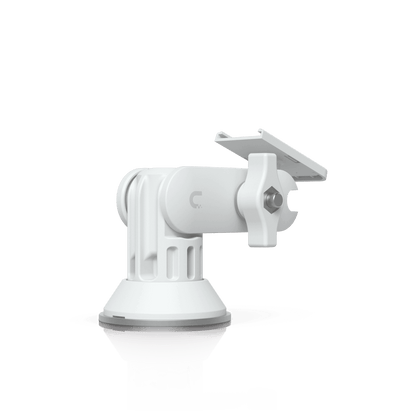

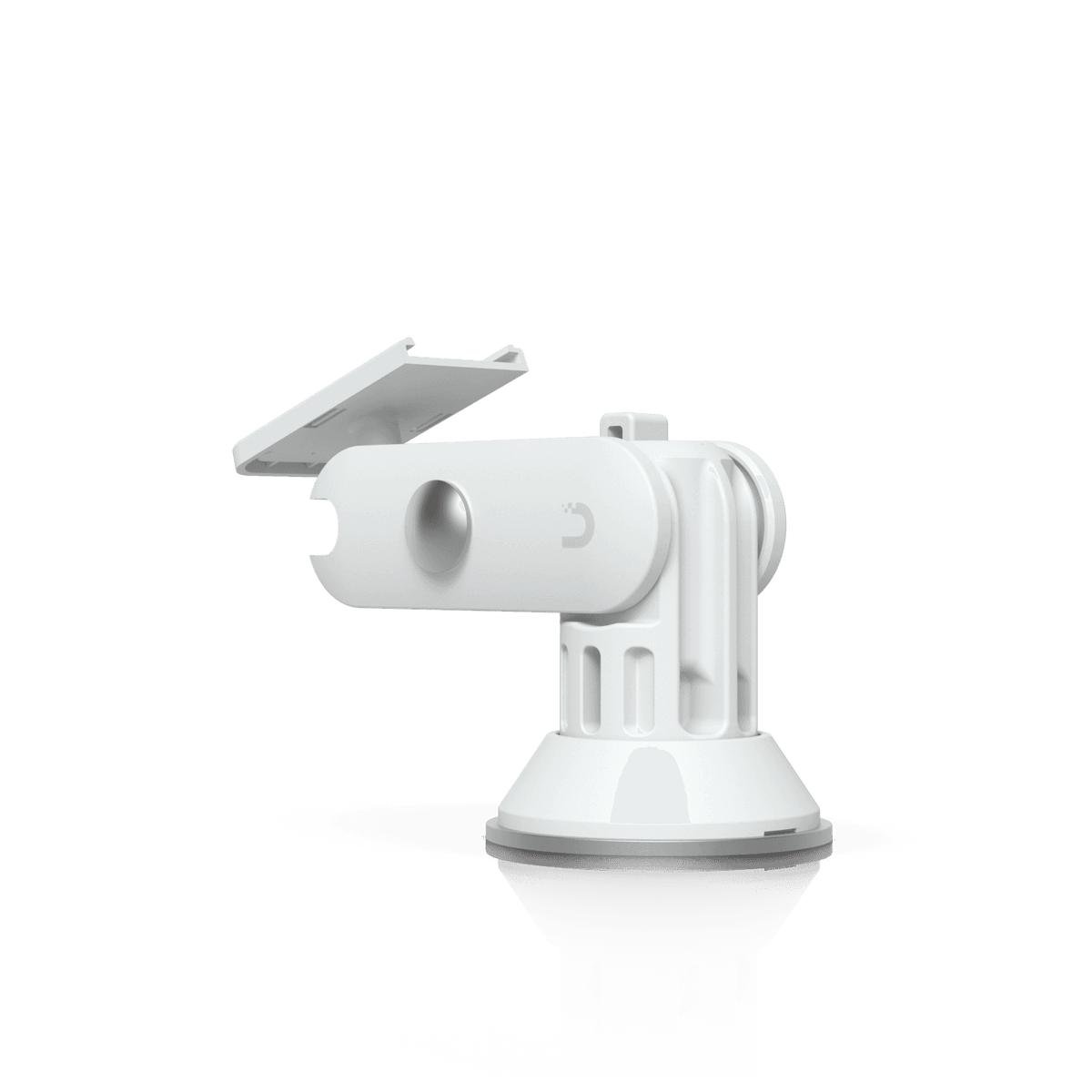

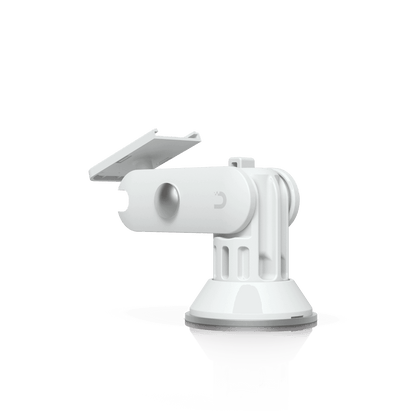

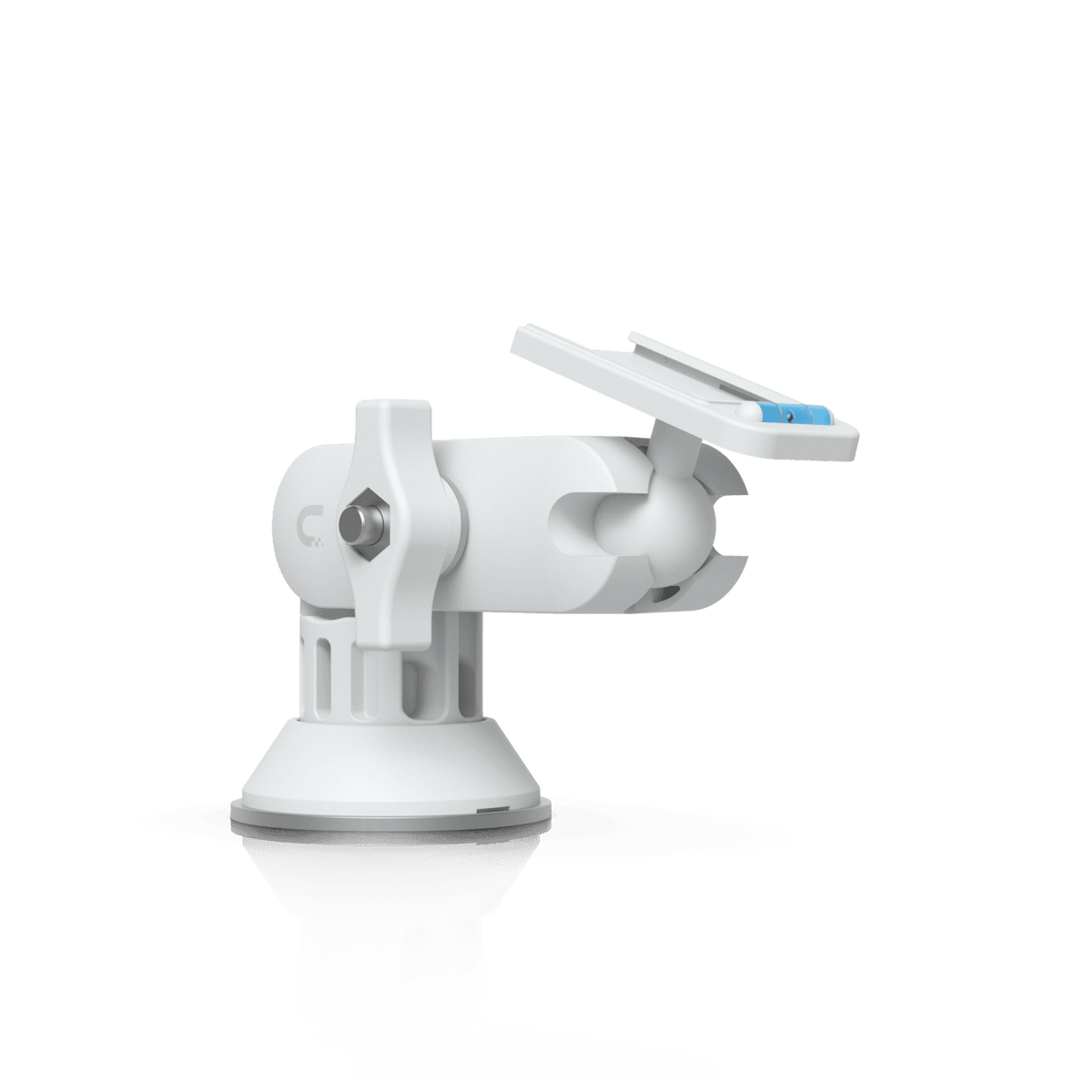

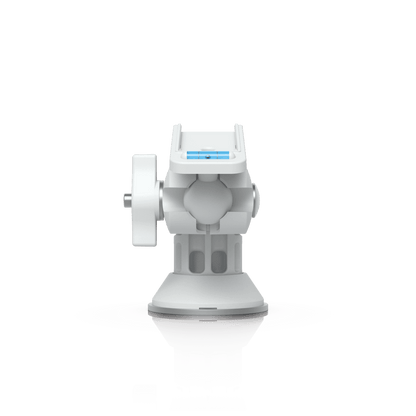

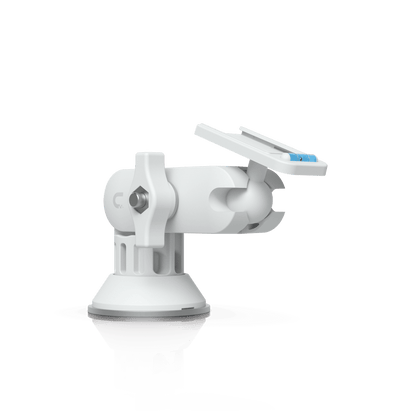

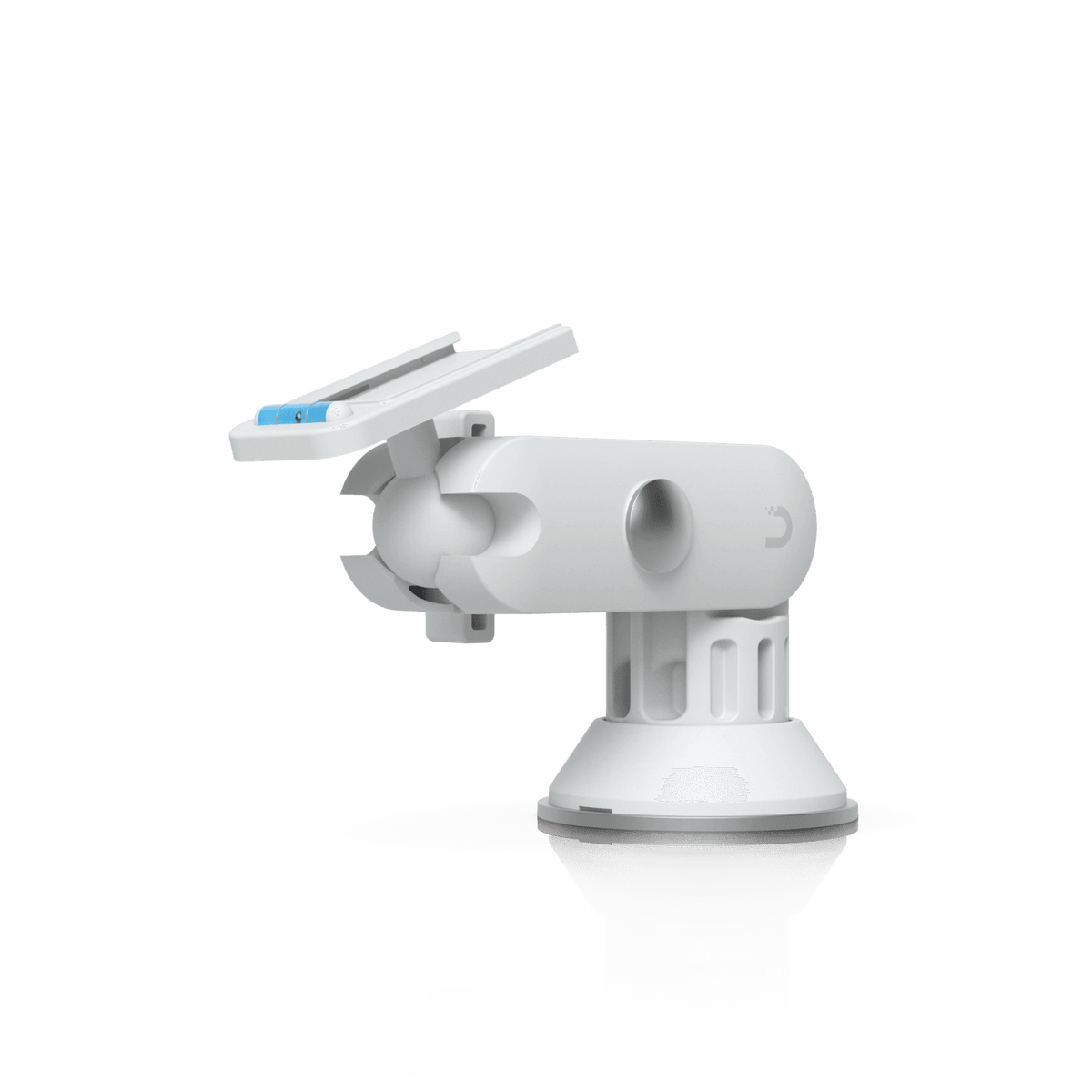

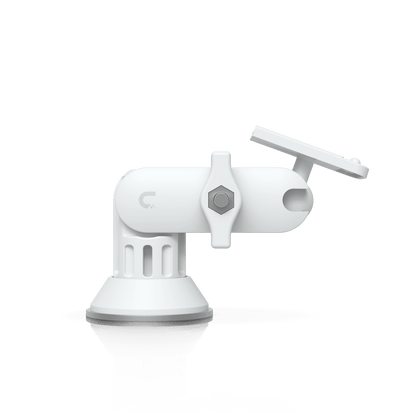

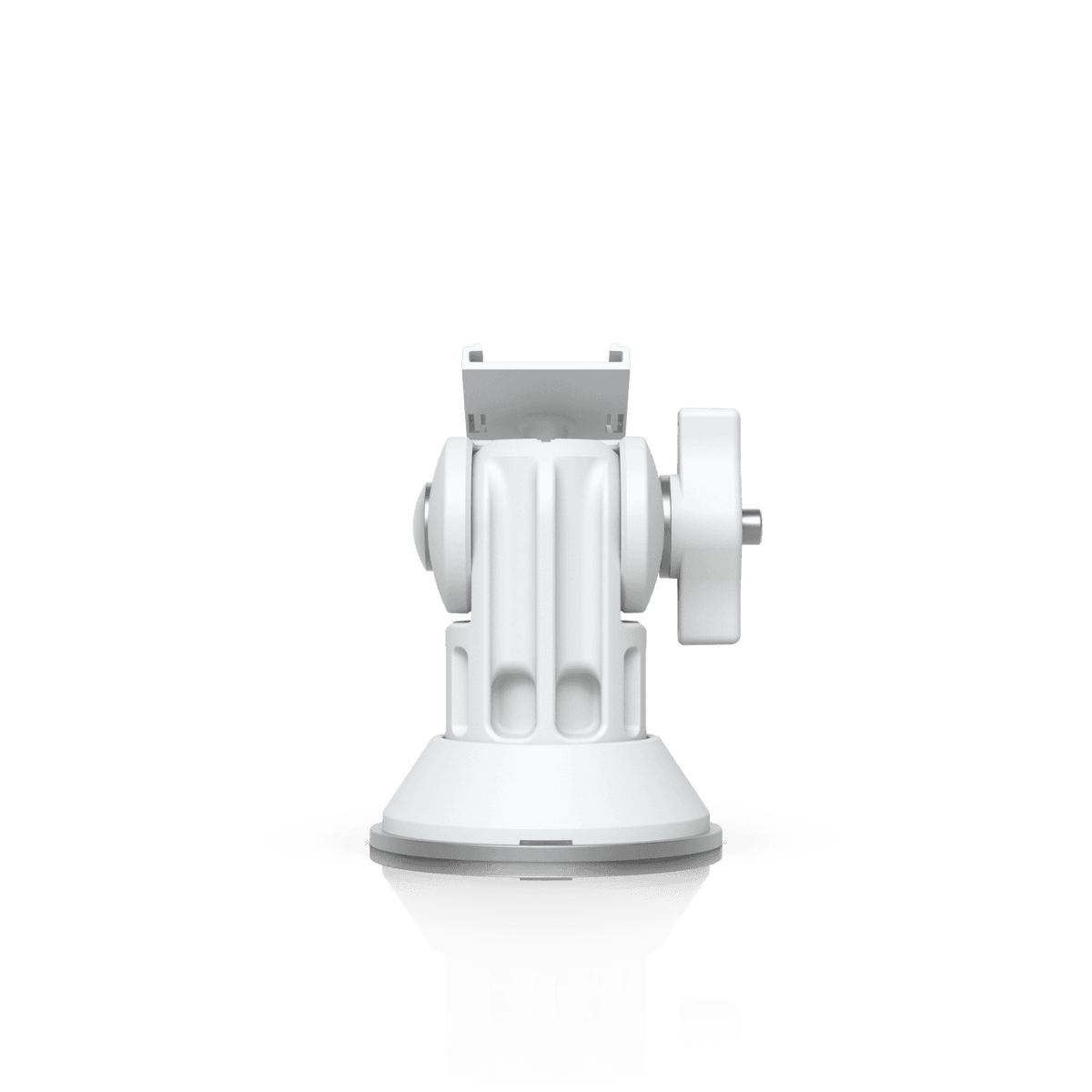

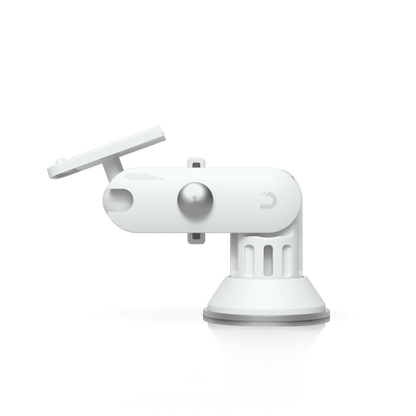

Ubiquiti's UB-QM is a toolless quick-mount which is compatible with various Ubiquiti CPE devices.
NBE-213AC; NBE-516- Using the Universal Ball Mount NBE-519ACG2 - Using the Universal Ball Mount & Metal Washer LOCO-5ACL; NS-5AC; UAP-ACM - Using the Ball Mount Assembly
*Note: CPE devices are not included.
FEATURES:
Toolless Adjustments: Designed for incredibly fast installation, allowing manual alignment changes without extra tools.
Flexible 360° Alignment: Uses an articulating ball joint to provide multi-axis tilt and rotation for exact line-of-sight wireless bridging.
Secure Locking System: Heavy-duty locking mechanisms dampen vibrations and prevent shifting under high wind loads.

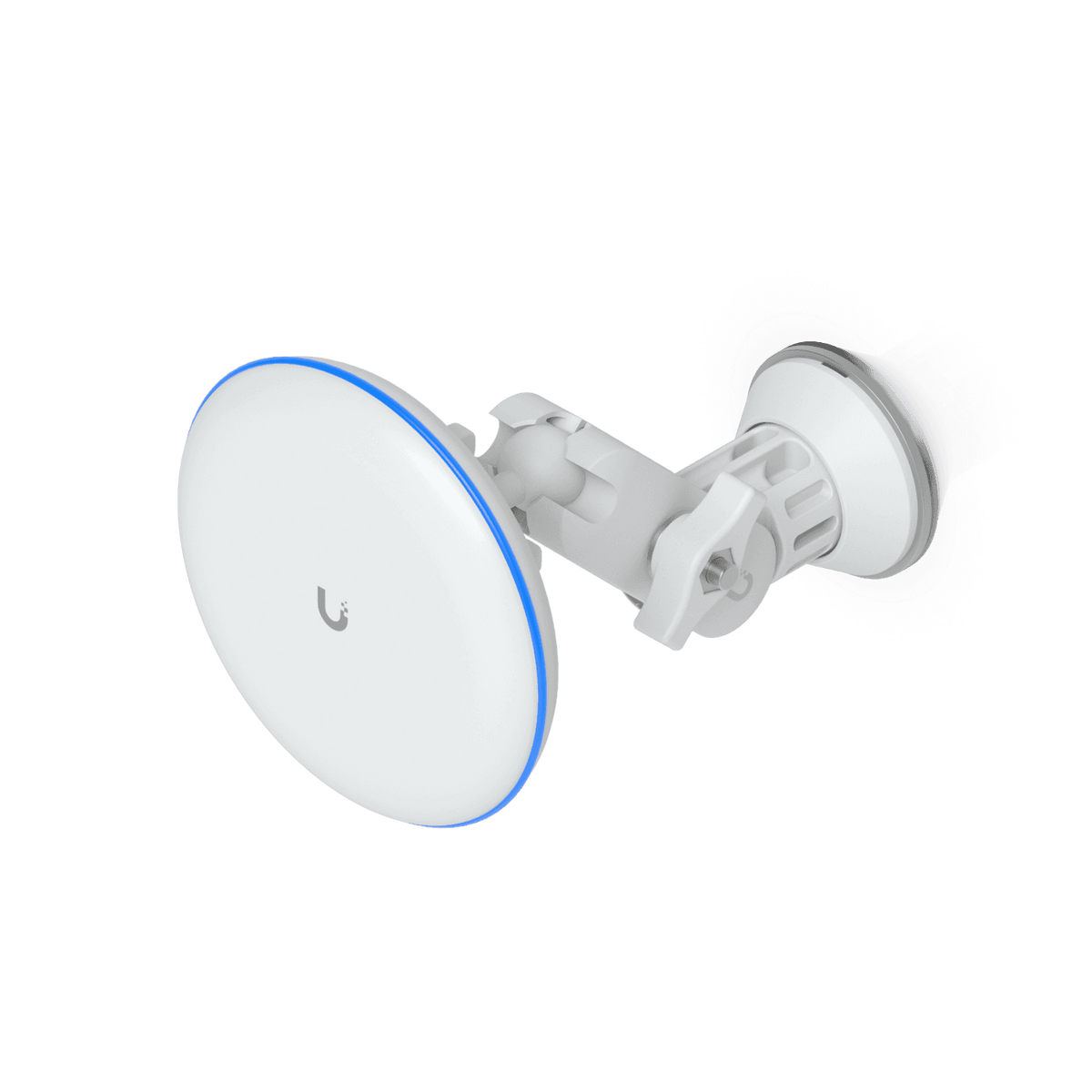

Interchangeable Mount Heads: Natively supports three distinct device profiles, fitting NanoStation, NanoBeam, GigaBeam, LTU Lite, and UniFi Building-to-Building bridges.
Compact Build: Measures a slim 104 x 122 x 81 mm and weighs a total of 375 grams.
SPECIFICATIONS:
Dimensions: 104 × 122 × 81 mm (4.1 × 4.8 × 3.2")
Weight: 50.1 g (1.8 oz)
Enclosure Material: Polycarbonate, metal
Compatibility:
NBE-M5-16, UBB, GBE: Using the universal ball mount
UDB-Pro, NBE-5AC-Gen2, NBE-M5-19: Using the universal ball mount and metal washer
loco5AC, NS-5AC, LTU-Lite: Using the ball mount assembly
WHAT’S IN THE BOX:
Mount Arm (The main adjustable mount body) x1
Rotation Collar (Stabilises the base of the mount arm) x1
Stacking Washer (Locks the rotation collar into place) x1

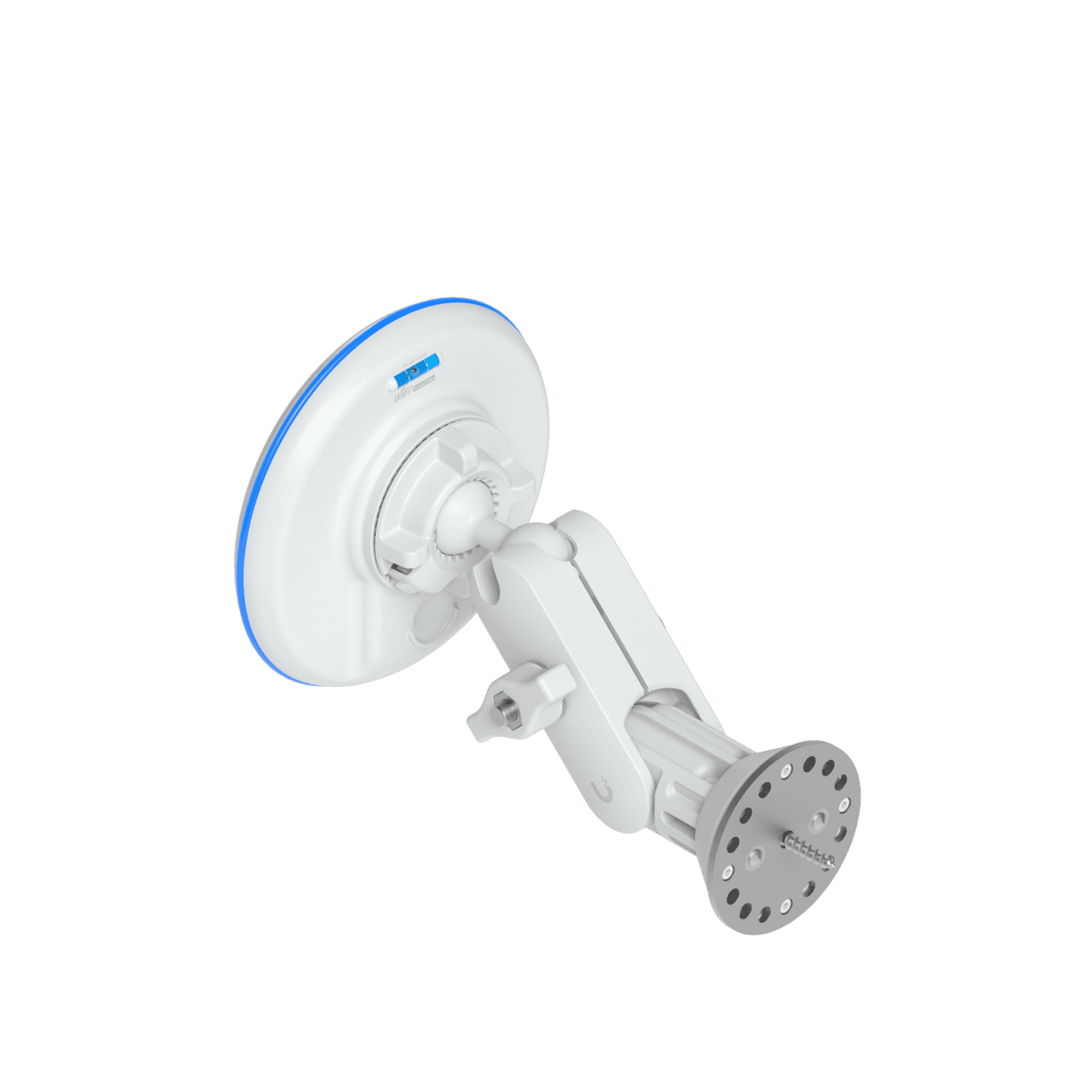

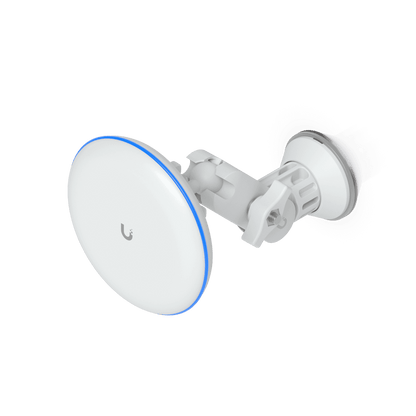

Universal Ball Mount (For NanoBeam, GigaBeam, and UBB variants) x1

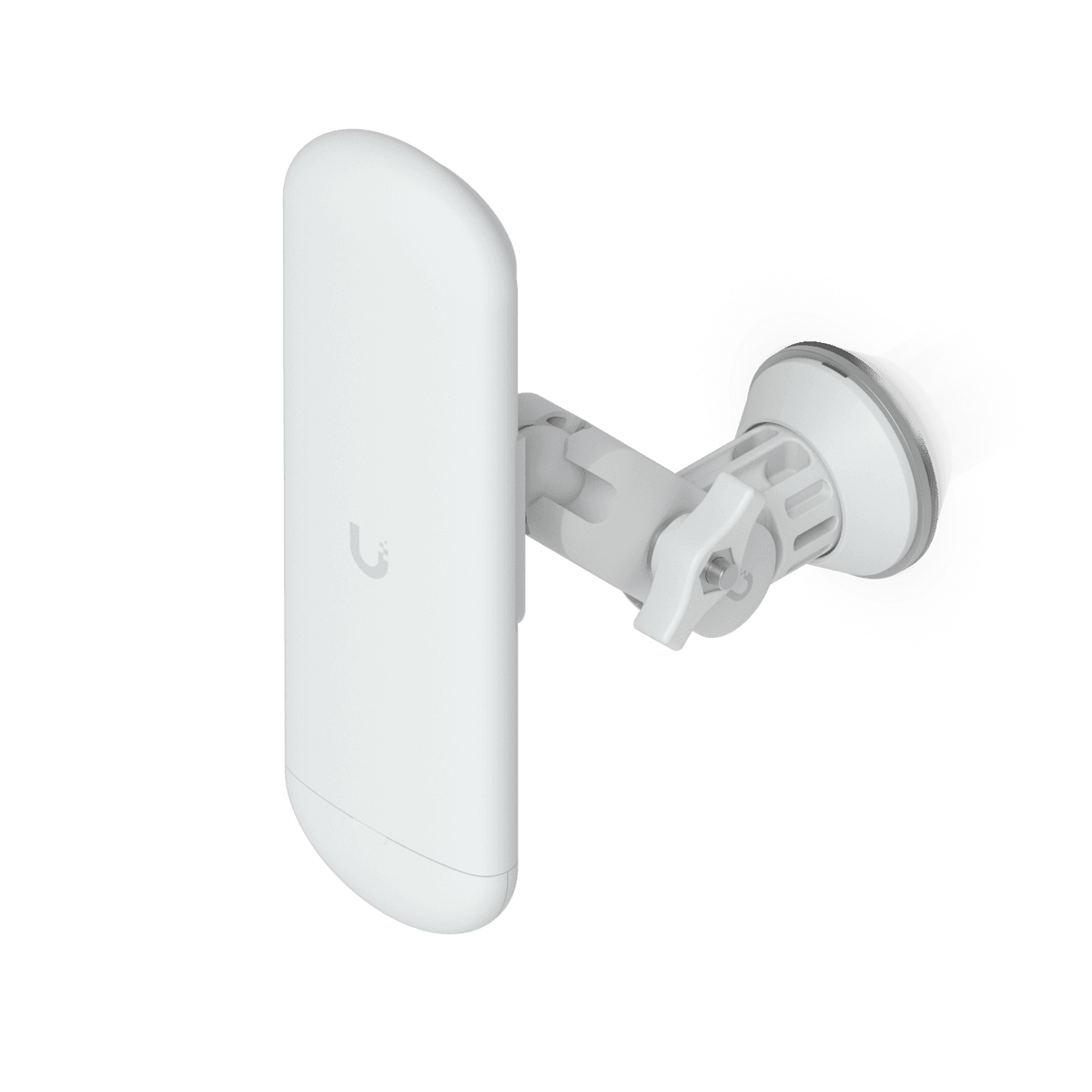

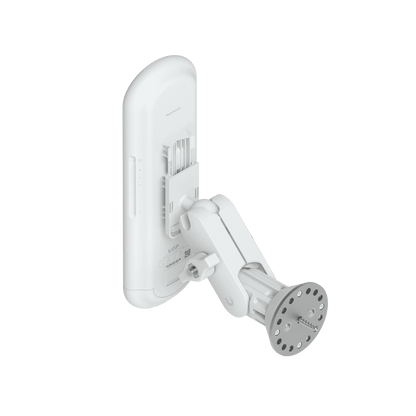

Bracket Mount (For standard NanoStation and LTU Lite profiles) x1
Ball Mount Washer (Metal washer used for specific NanoBeam installations) x1
