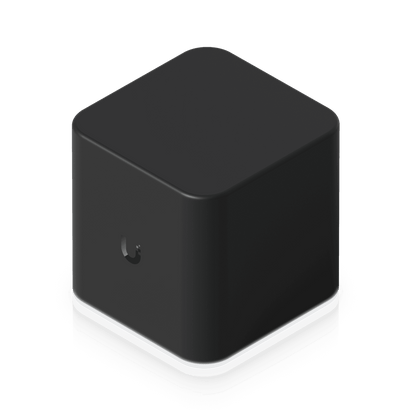

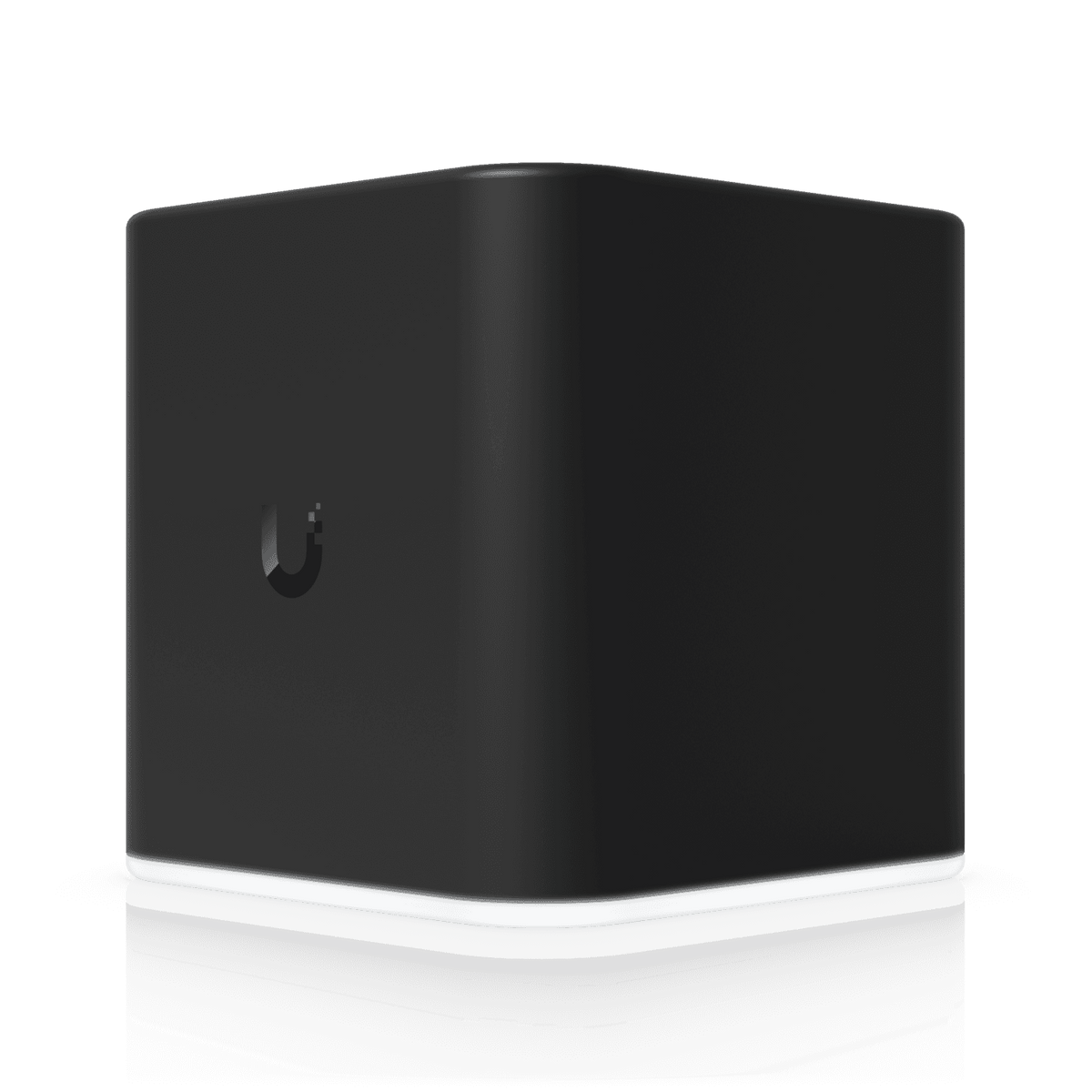

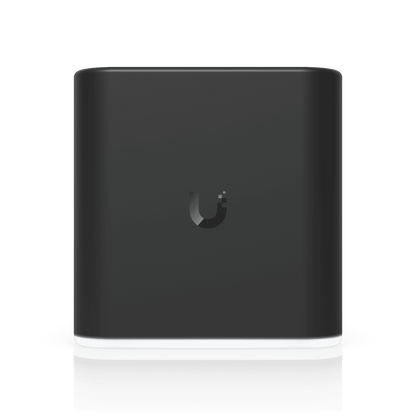

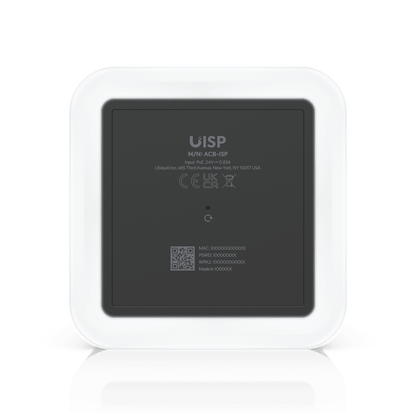

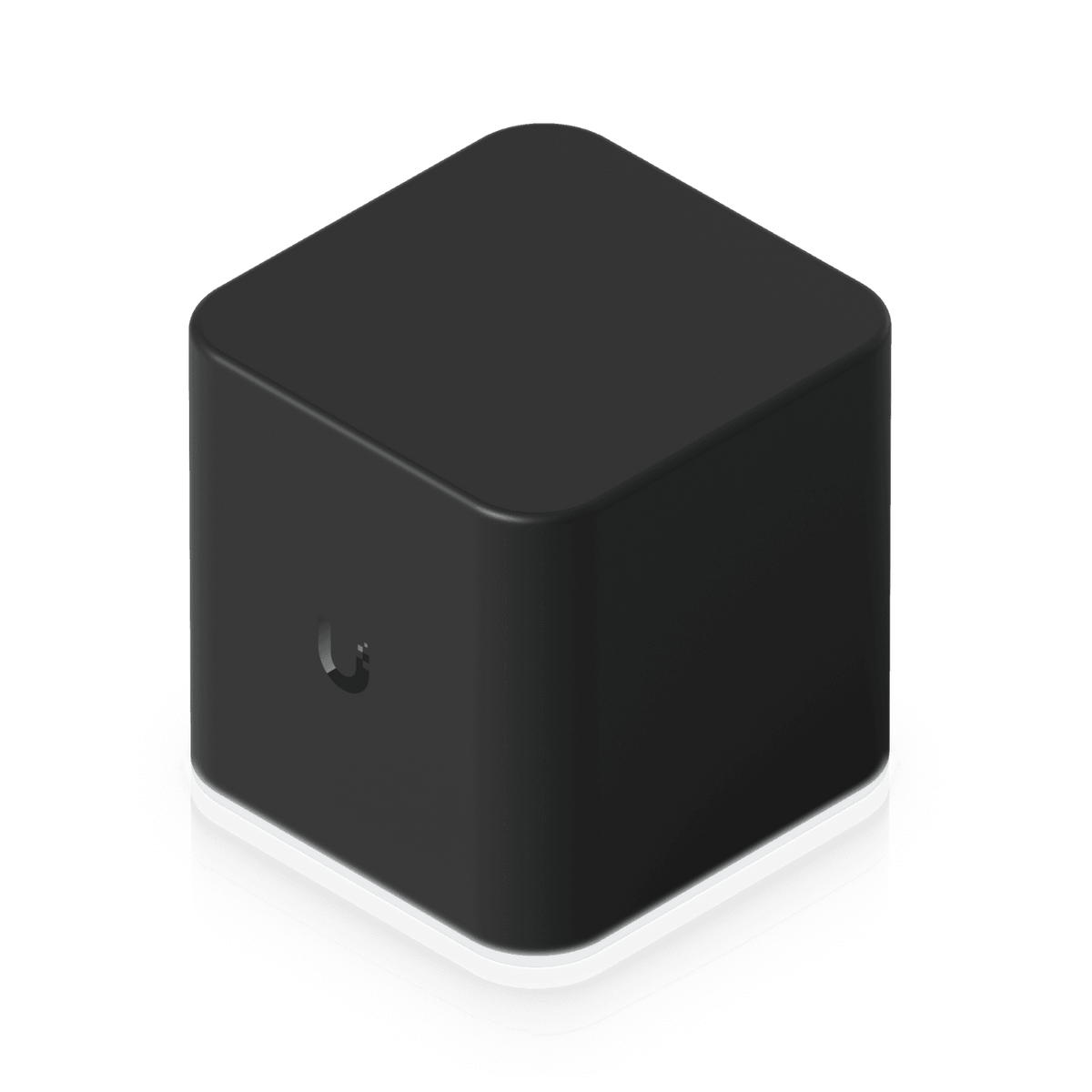

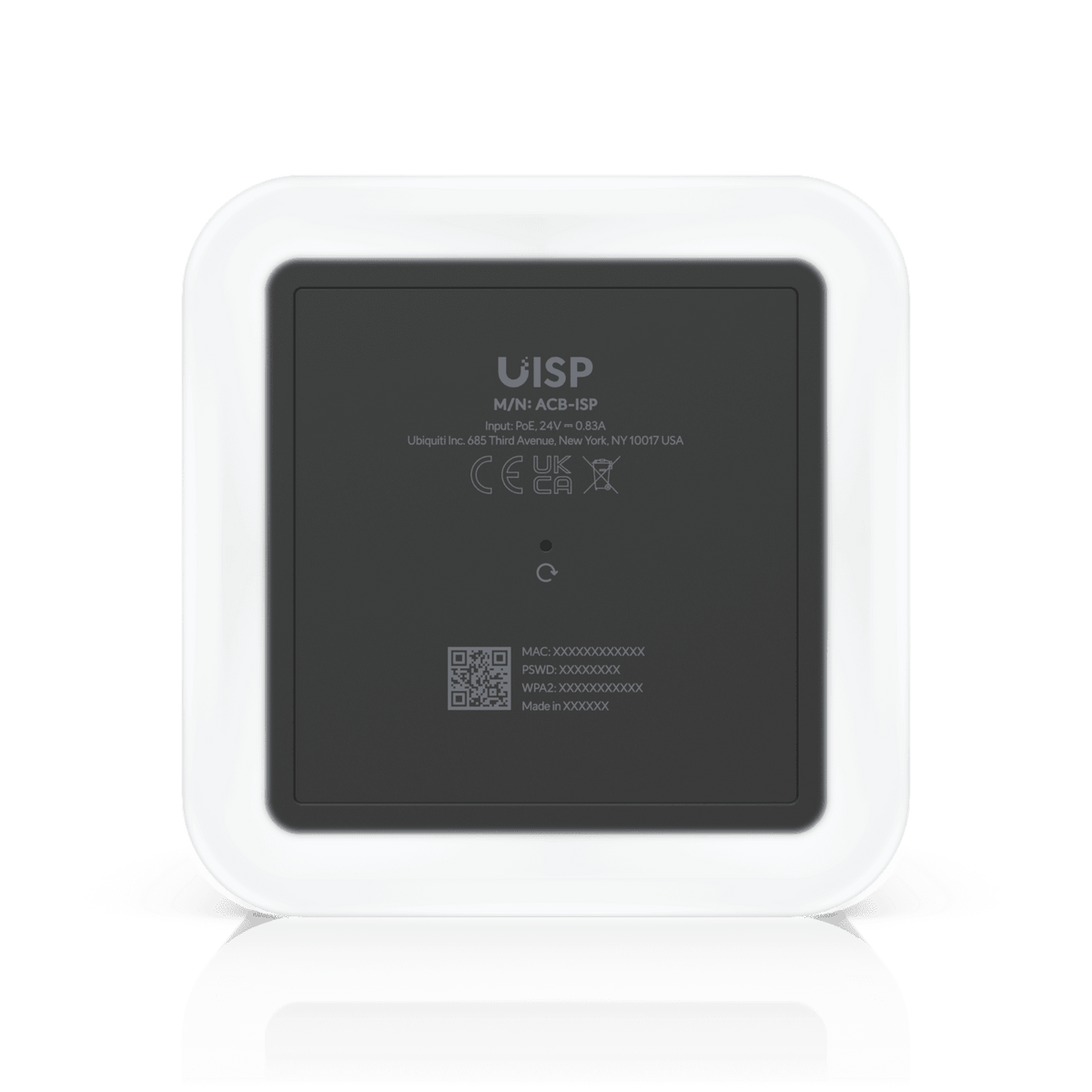

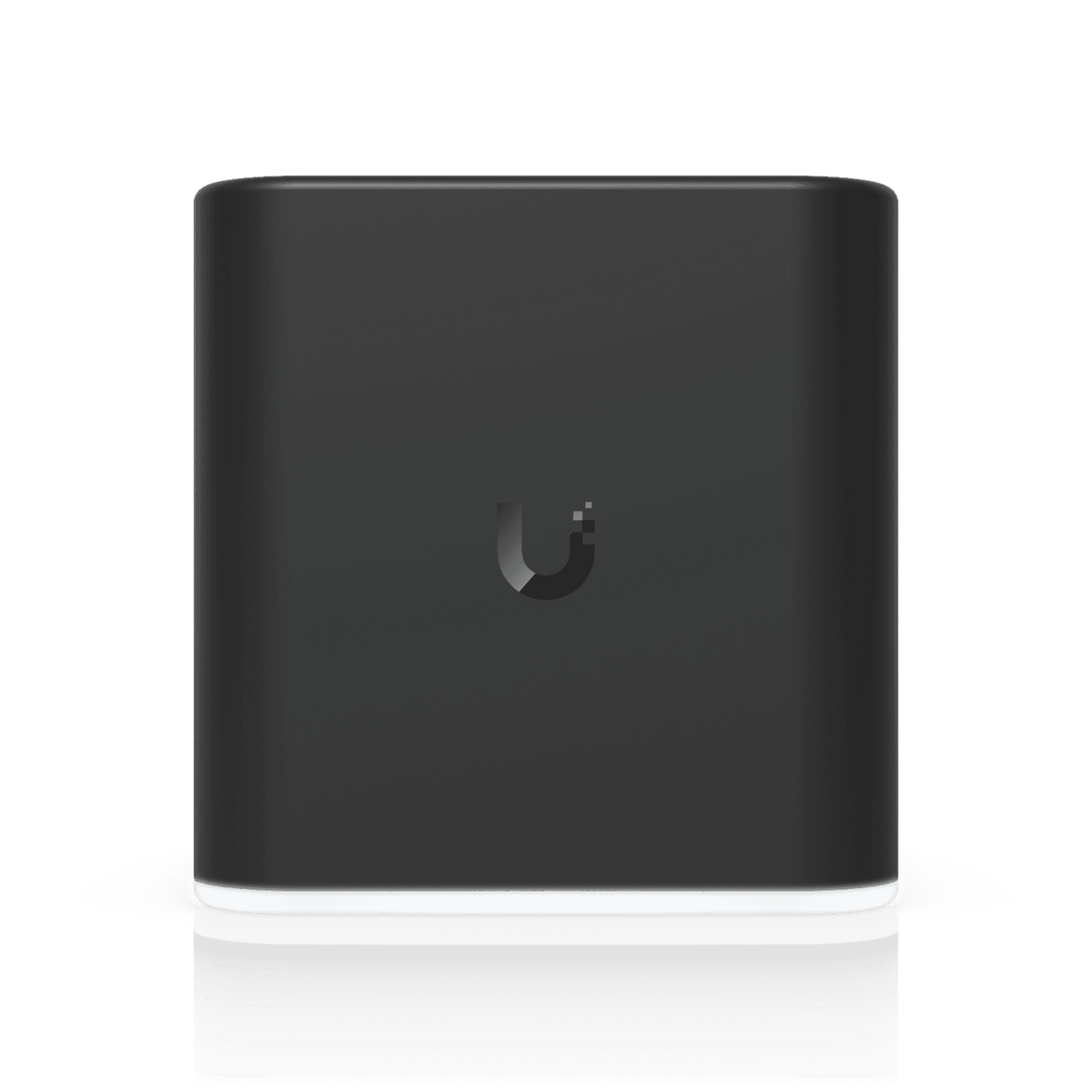

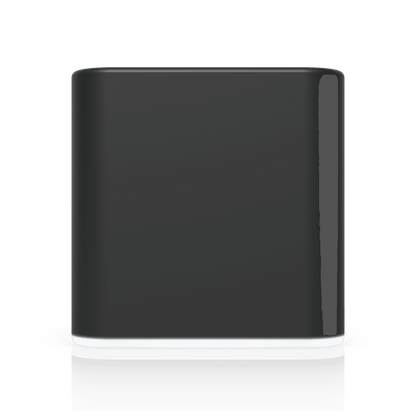

Ubiquiti UISP airCube ISP WiFi Access Point

Ubiquiti's ACB-ISP is a 2.4Ghz, WiFi 4 Router/Access Point. It features 24V PoE pass-through to easily integrate with airMAX® CPEs. It is designed to work with the UISP network management platform.

FEATURES:

• Wi-Fi Performance: Operates on the 2.4 GHz band (802.11n Wi-Fi 4) with speeds up to 300 Mbps.
• Antenna Design: Features an innovative "super antenna" that provides wide-area home and office coverage.

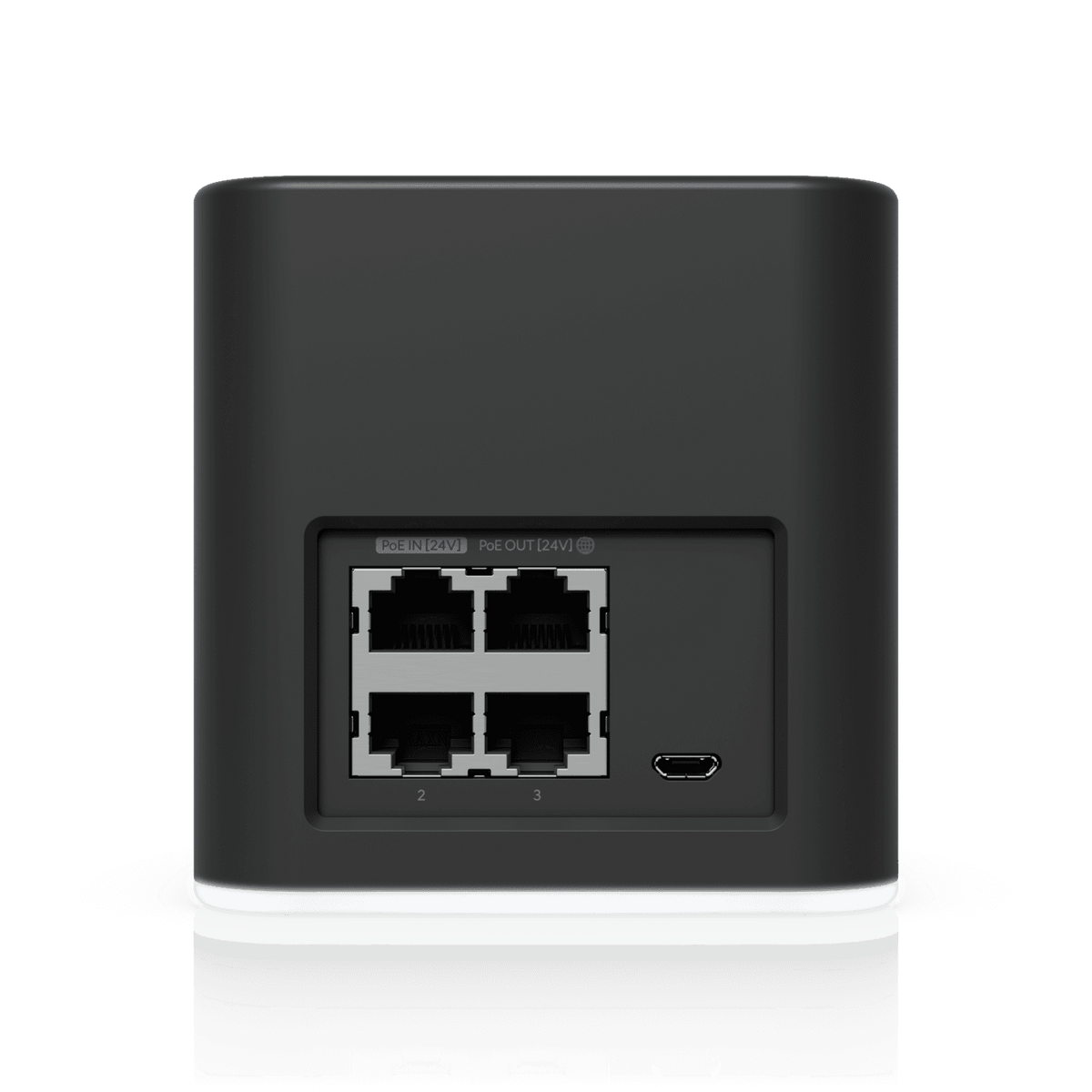

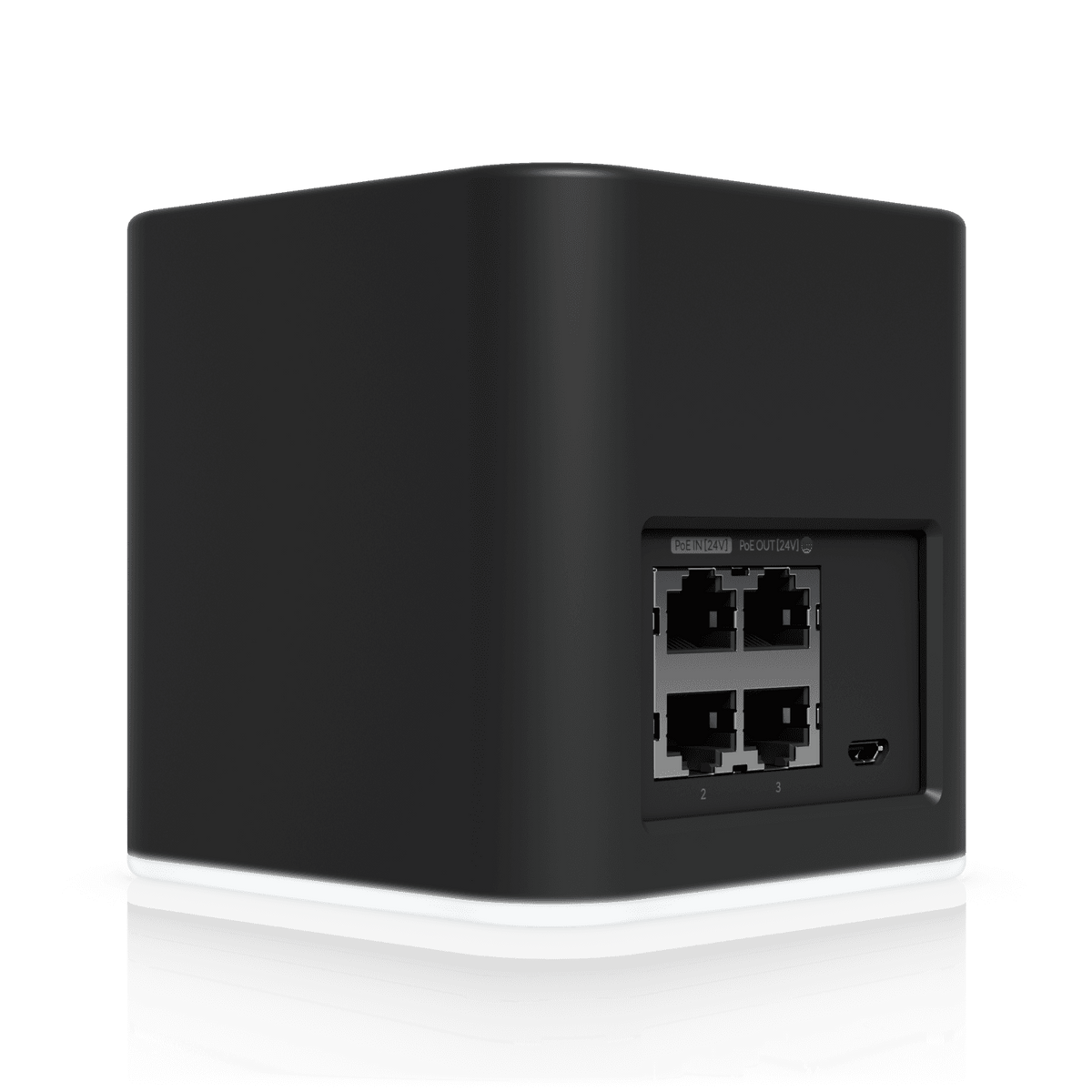

• Ethernet Ports: Four 10/100 Fast Ethernet ports (1 WAN port and 3 LAN ports).
• PoE Passthrough: Supports 24V PoE input on Port 1 / WAN and can supply 24V PoE output to power an outdoor airMAX CPE radio.
• Dual Power Options: Can be powered via 24V PoE or a 5V Micro-USB adapter.
• Management: Integrates smoothly with the UISP (formerly UNMS) platform and can be easily configured via mobile apps.

SPECIFICATIONS:

• Dimensions: 87.8 × 89.5 × 89.25 mm (3.5 × 3.5 × 3.5")
• Weight: 280 g (9.9 oz)

• Networking Interface: 10/100 Fast Ethernet ports
• Management Interface: Ethernet

• Power Method: Micro-USB adapter (not included)
• PoE 24V In: On LAN port 1
• Power Supply: 5V
• Max. Power Consumption: 5W
• Supported Power Voltage: 4.95–5.05V
• PoE Out: Controllable 24V PoE Out (4, 5+, 7, 8-) on WAN port
• Operating Frequency: 2.4 GHz
• Antenna Gain: 4 dBi
• Max. Speeds: 300 Mbps
• Max. TX Power: 20 dBm
• ESD/EMP Protection: ±24 kV RJ45 interface
• LED: Status
• Ambient Operating Temperature: -10 to 50°C (14 to 122°F)
• Ambient Operating Humidity: 5–95% noncondensing
• Certifications: CE, FCC, IC
• NDAA Compliant: Yes

WHAT’S IN THE BOX:

• Ubiquiti airCube ISP (ACB-ISP) router/access point x1
• Quick start guide / documentation x1

WARRANTY:

• 12 Months
