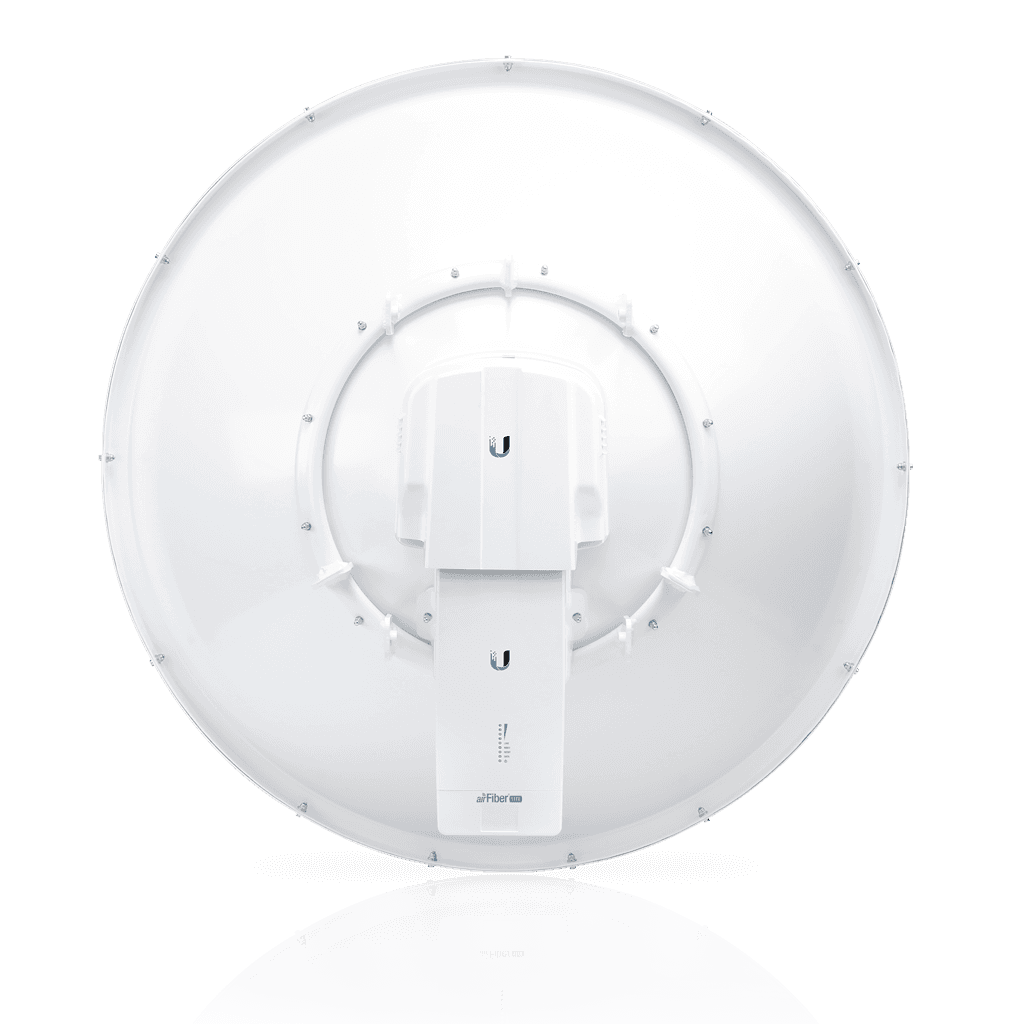

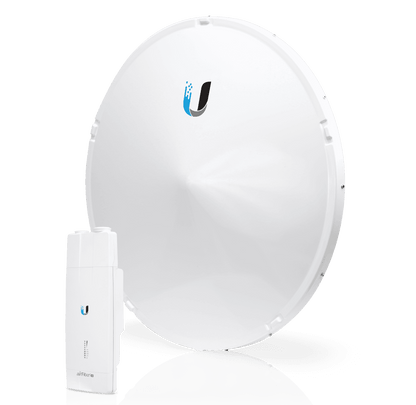

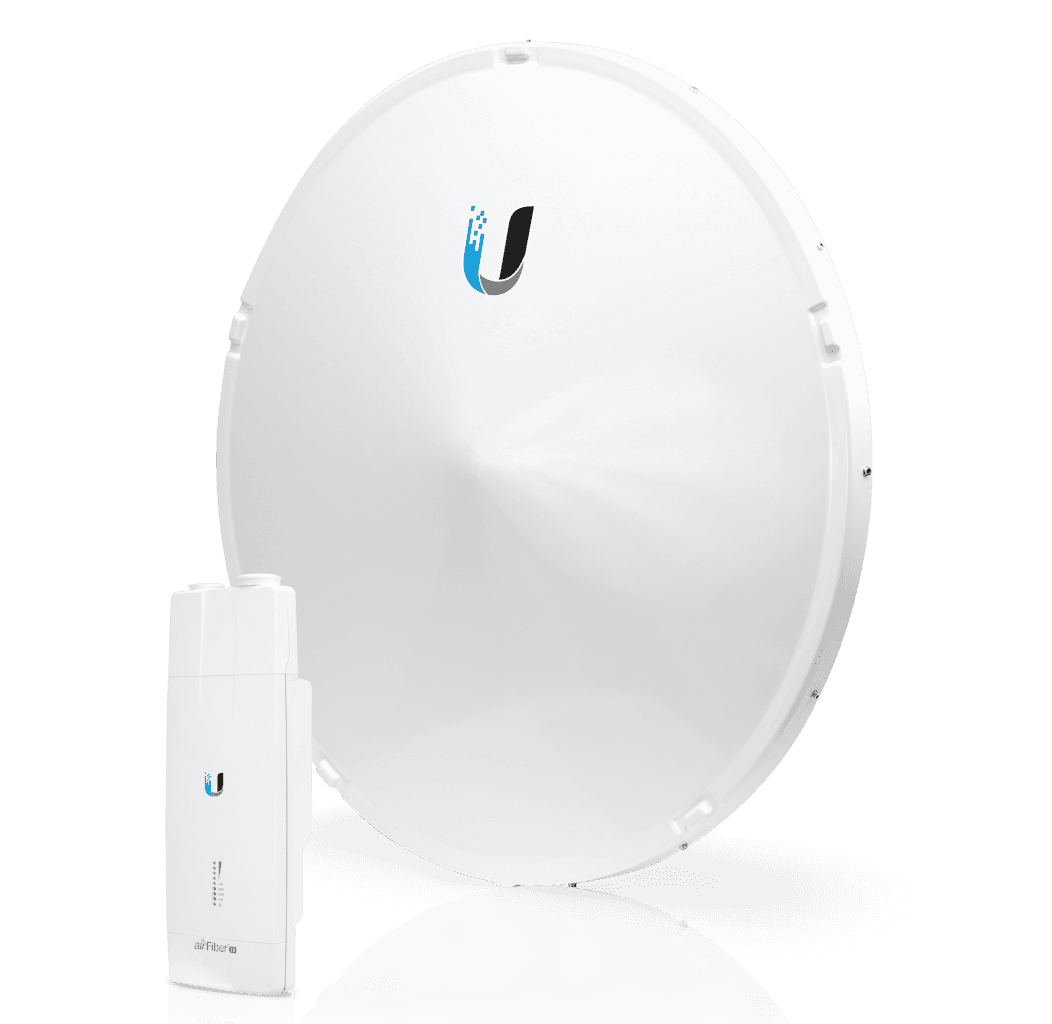

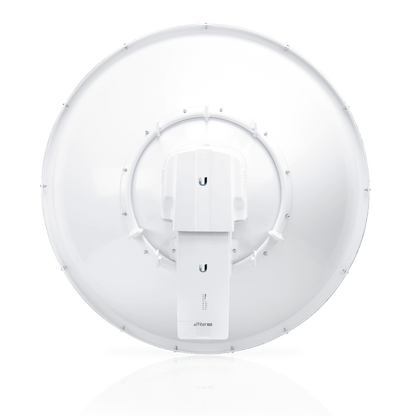

Ubiquiti UISP airFiber 11GHz Dish Radio and Duplexer Kit

Ubiquiti's AF11-Complete-LB includes an AF-11 radio, an AF-11G35 35dBi dish antenna and an AF-DUPL single low band duplexer. Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

FEATURES:

• Frequency Band: Operates in the licensed 11 GHz frequency range (10.7–11.7 GHz) to avoid congested 5 GHz bands.
• High Throughput: Delivers wireless speeds exceeding 1.2+ Gbps.
• Long Range: Supports point-to-point link ranges over 300+ km under ideal conditions.
• Full Duplex (FDD): Supports separate TX/RX frequencies and full-duplex operation for very low latency.
• Modular Configuration: Comes ready for SISO mode (single duplexer) and can be upgraded to MIMO mode by adding a second optional low-band duplexer (AF-11-DUP-L).
• Flexible Power: Accepts 50V passive Power over Ethernet (PoE) or direct DC power via a terminal block.

SPECIFICATIONS:

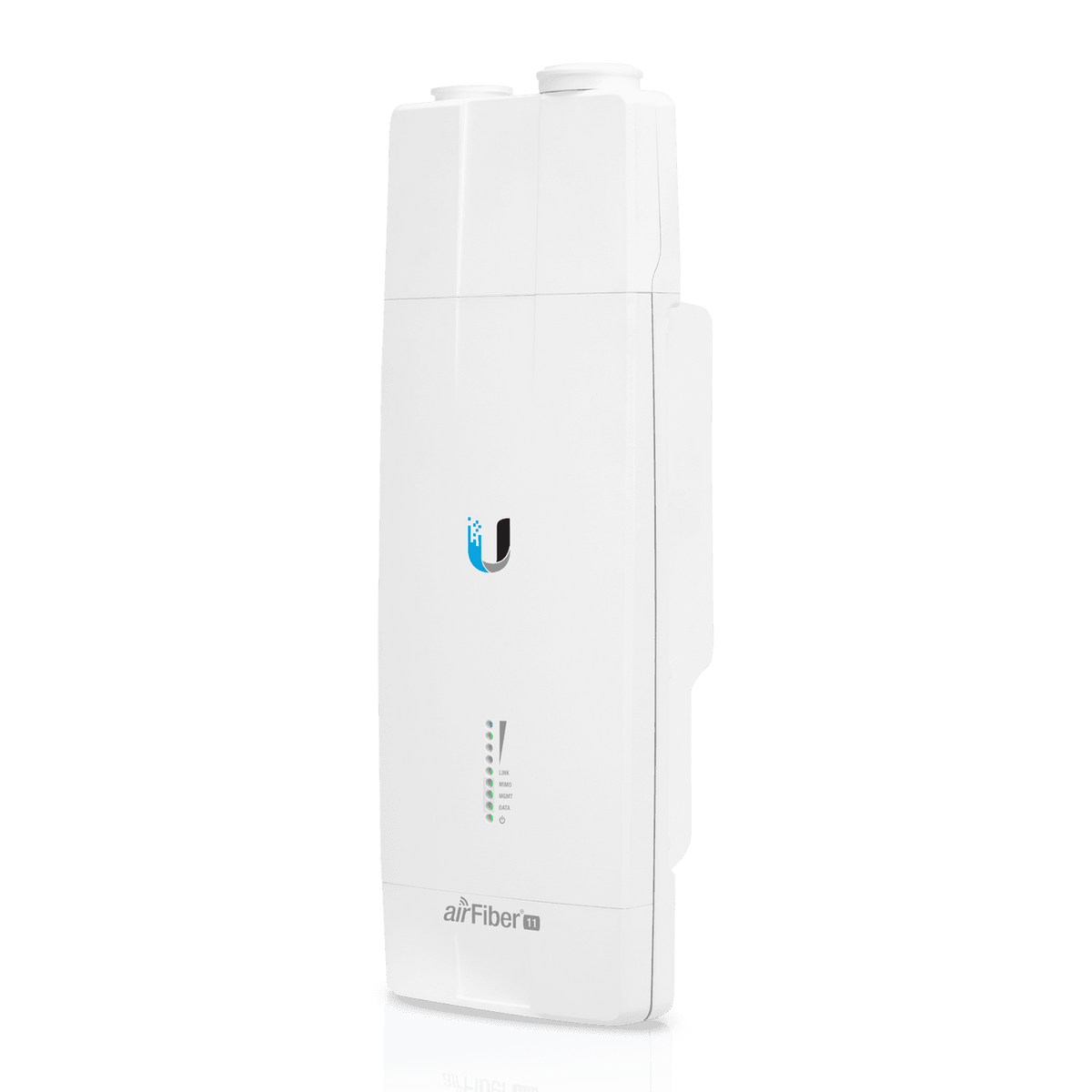

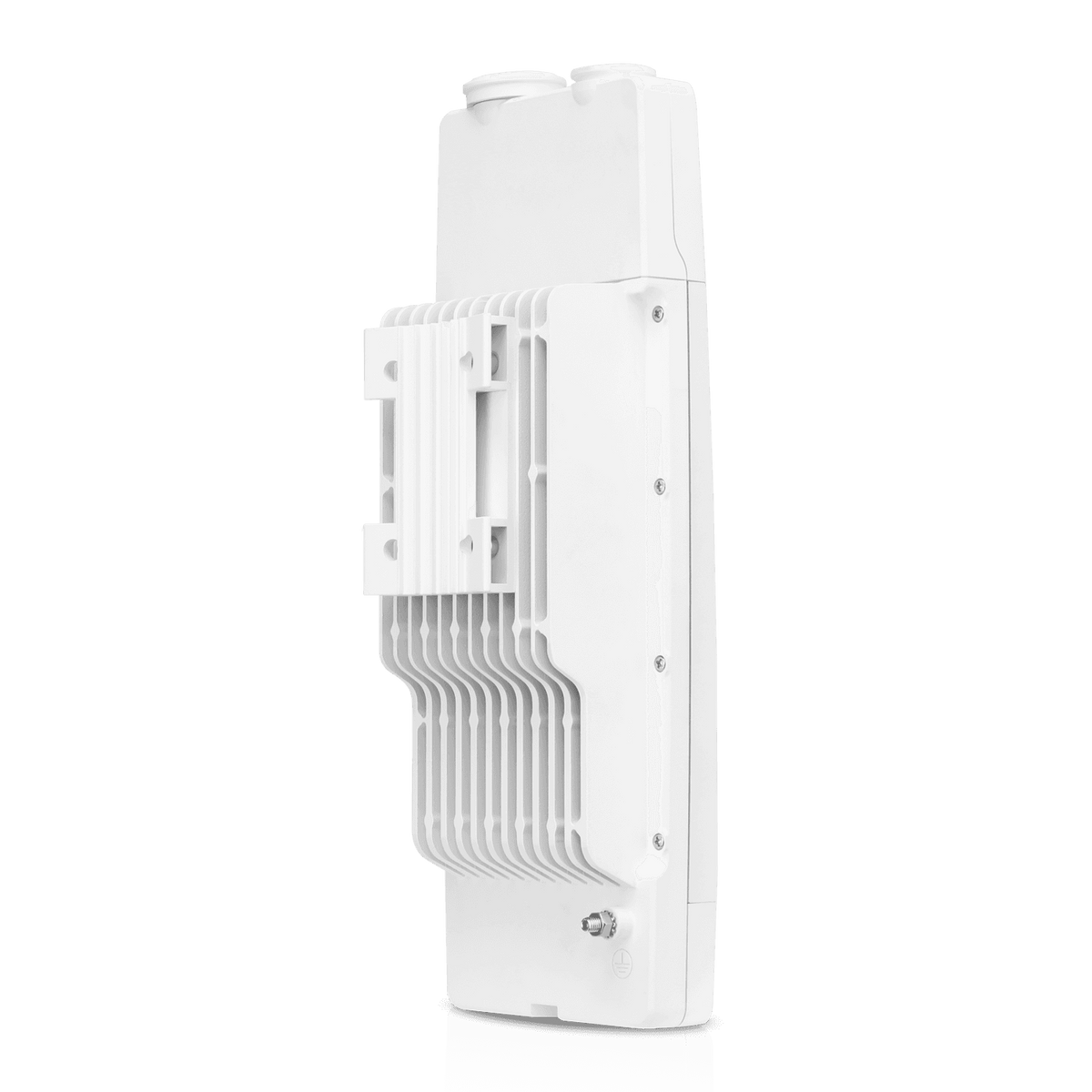

• airFiber AF-11
• Dimensions: 327 × 112 × 86 mm (12.9 × 4.4 × 3.4")
• Weight: 2.3 kg (5 lb)
• Mounting: AF-11G35 mount compatible
• Networking Interface: (1) GbE RJ45 port; (1) 10/100 MbE RJ45 port
• Power Method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); terminal block direct-wire
• Power Supply: 50V DC, 1.2A gigabit PoE adapter (included)
• Supported Voltage Range: 38–56V DC
• Max. Power Consumption: 36W
• RF Connectors: (4) SMA weatherproof, two per chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1); (2) N-Type waterproof, one per duplexer
• Ambient Operating Temperature: -40 to 55°C (-40 to 131°F)
• Certifications: CE, FCC, IC
• NDAA Compliant: Yes
• Modes: SISO/MIMO*
• Max. Throughput: 1.2+ Gbps
• Max. Range: 300+ km
• Encryption: 128-bit AES
• Operating Frequency*: 10.7–11.7 GHz
• Max. Conducted TX Power*: 30 dBm
• Frequency Accuracy: ±1 ppm
• Channel Bandwidth*: 3.5 / 5 / 7 / 10 / 14 / 20 / 28 / 30 / 40 / 50 / 56 MHz selectable**
• Programmable Uplink and Downlink Duty Cycles

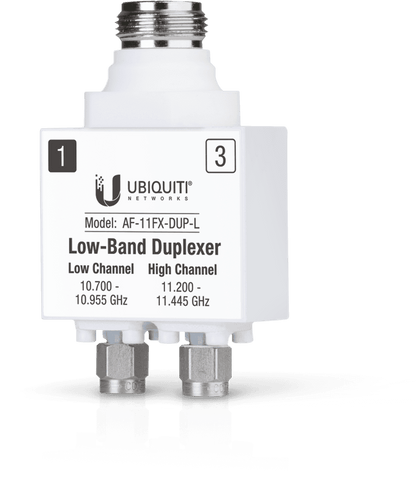

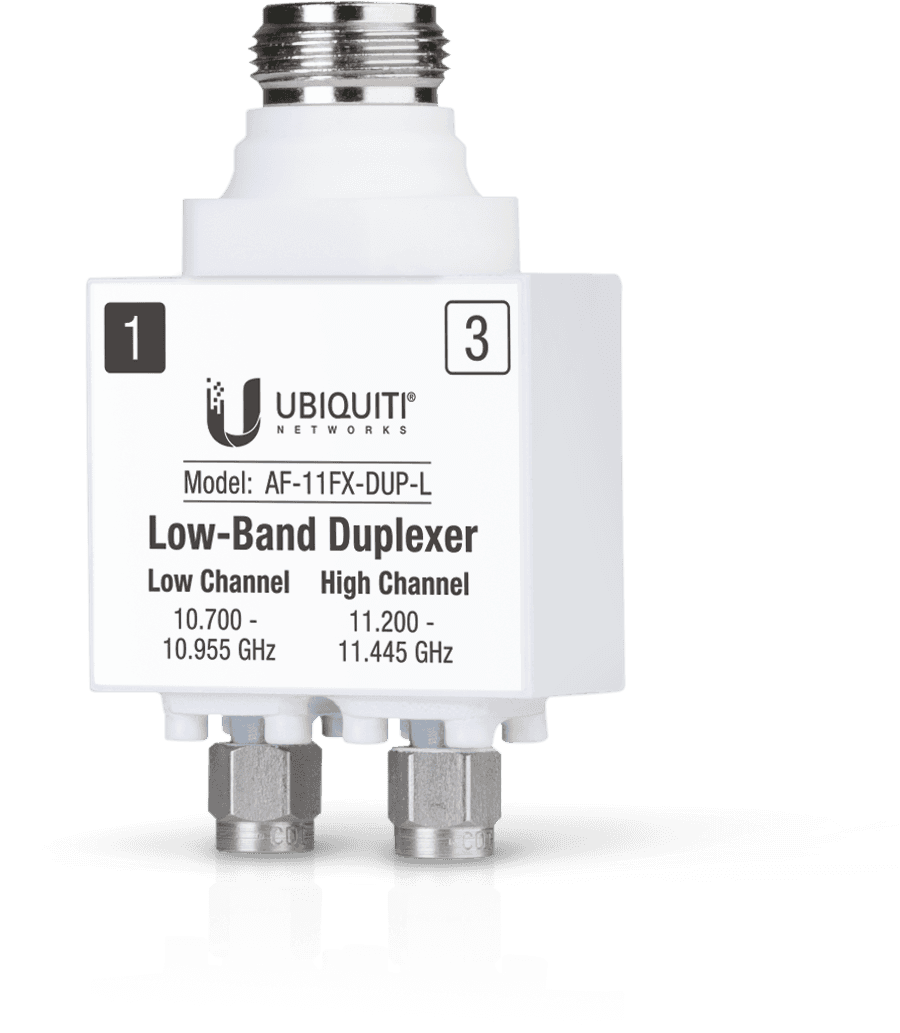

• *Comes with (1) Low-Band Duplexer pre-installed for SISO mode. For MIMO mode, a second Duplexer is available, model AF-11-DUP-L.
• For region-specific details, refer to the Compliance chapter of the airFiber AF-11FX User Guide.
• Channel widths may vary according to country/region regulations.

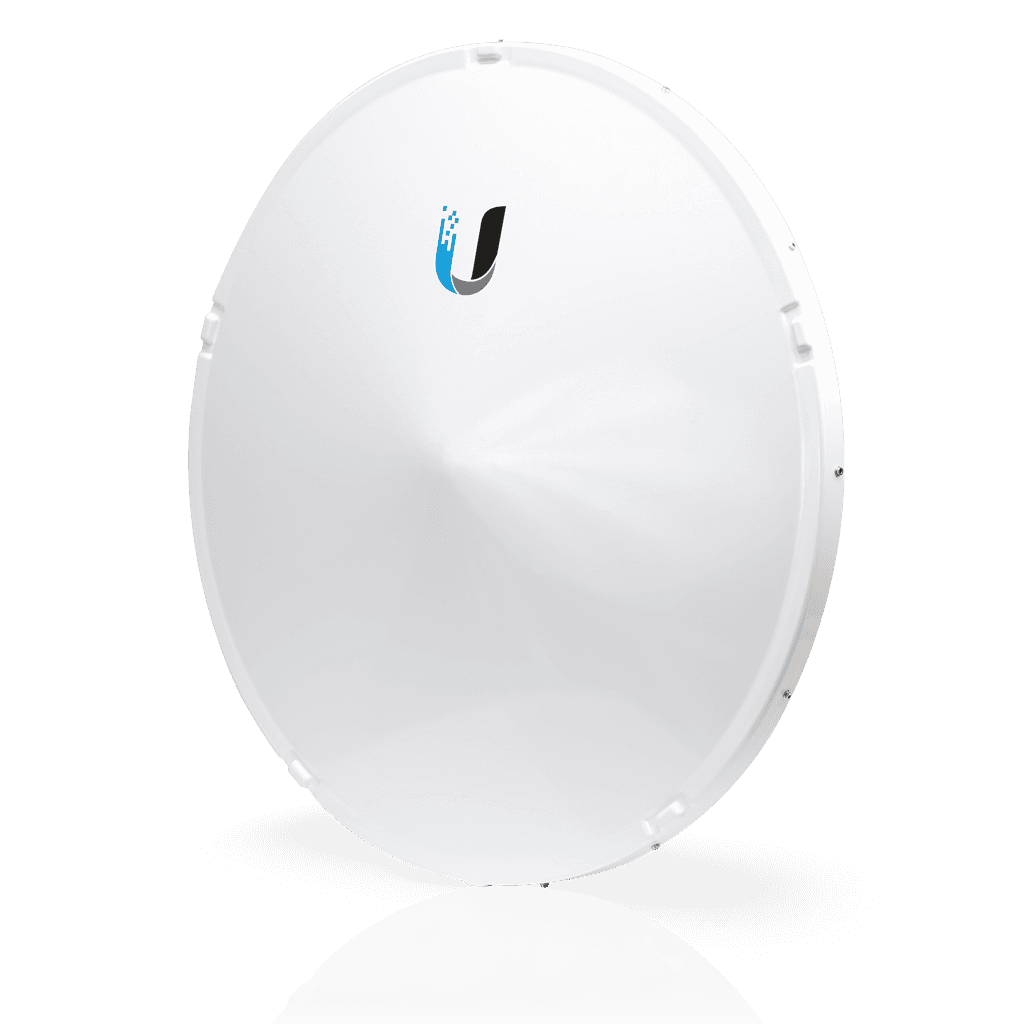

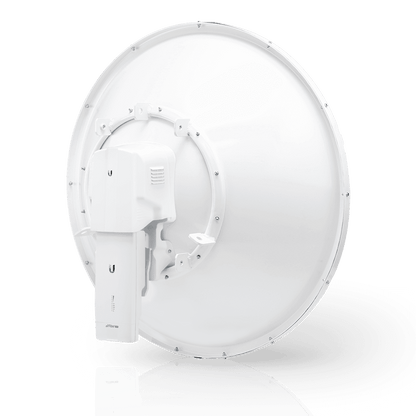

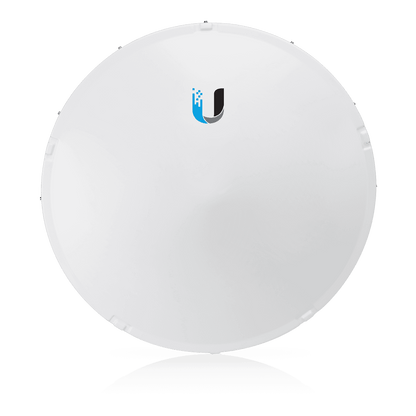

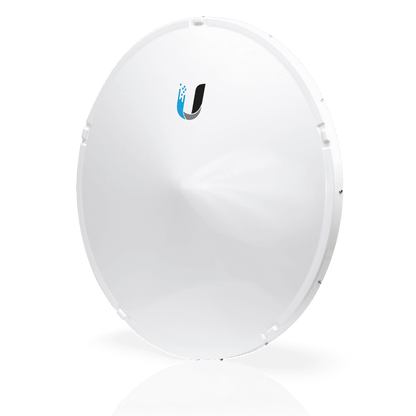

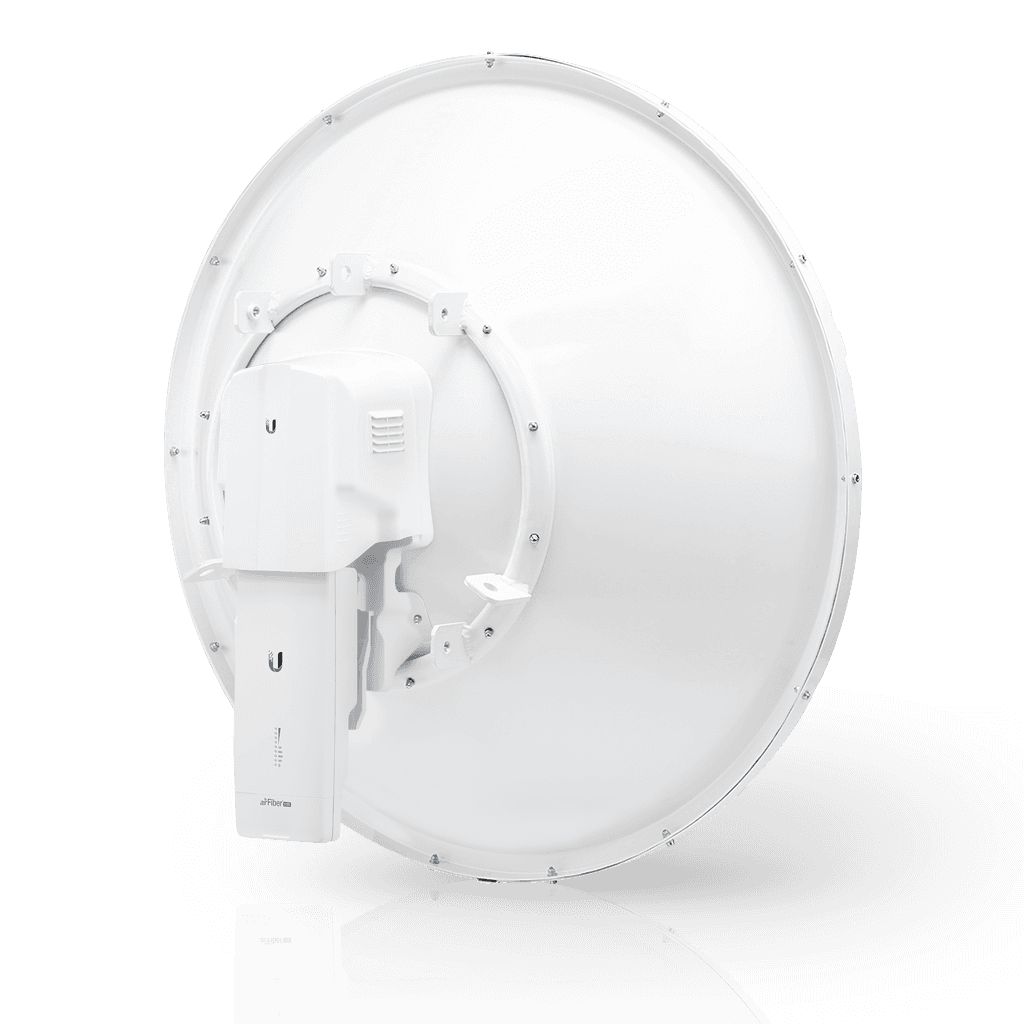

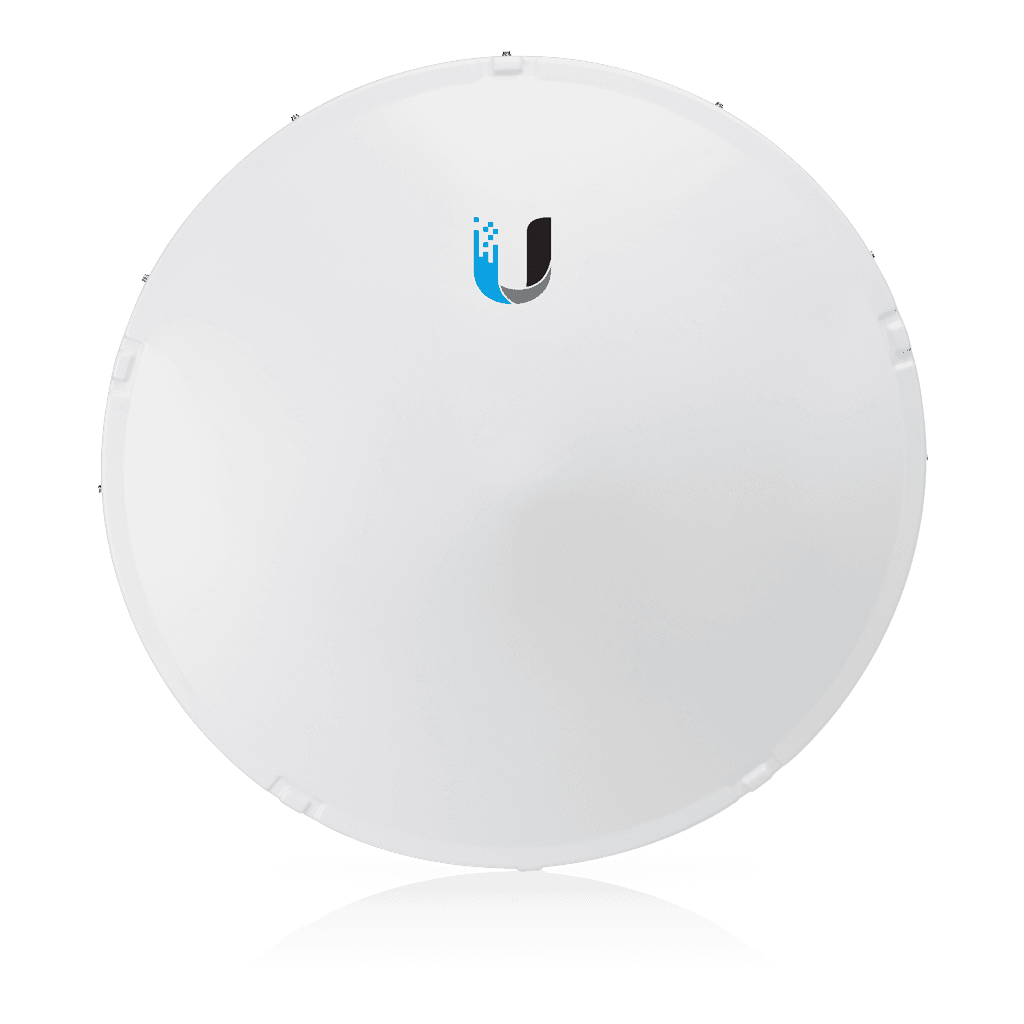

• airFiber AF-11G35
• Dimensions: 811 × 811 × 460 mm (31.9 × 31.9 × 18.1")
• Weight Without Mount: 7.14 kg (15.74 lb)
• Weight With Mount: 11.85 kg (26.12 lb)
• Wind Loading: 1538 N @ 200 km/h (346 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Mounting: Pole mount
• Frequency: 10.3–11.7 GHz
• Gain: 35 dBi
• HPOL Beamwidth: 2.5°
• VPOL Beamwidth: 2.5°
• Maximum VSWR: 2:1
• Polarization: Default H/V; after rotating OMT: ±45°
• Cross-Pol Isolation: 35 dB
• Pattern Regulatory: ETSI 302 217-4-2, Class 3, FCC Cat B
