Ubiquiti UISP airFiber 11GHz Dish Radio and High Band Duplexer Kit

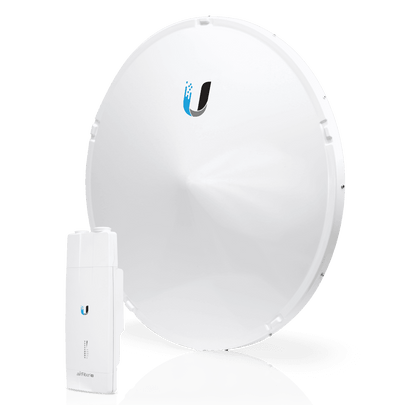

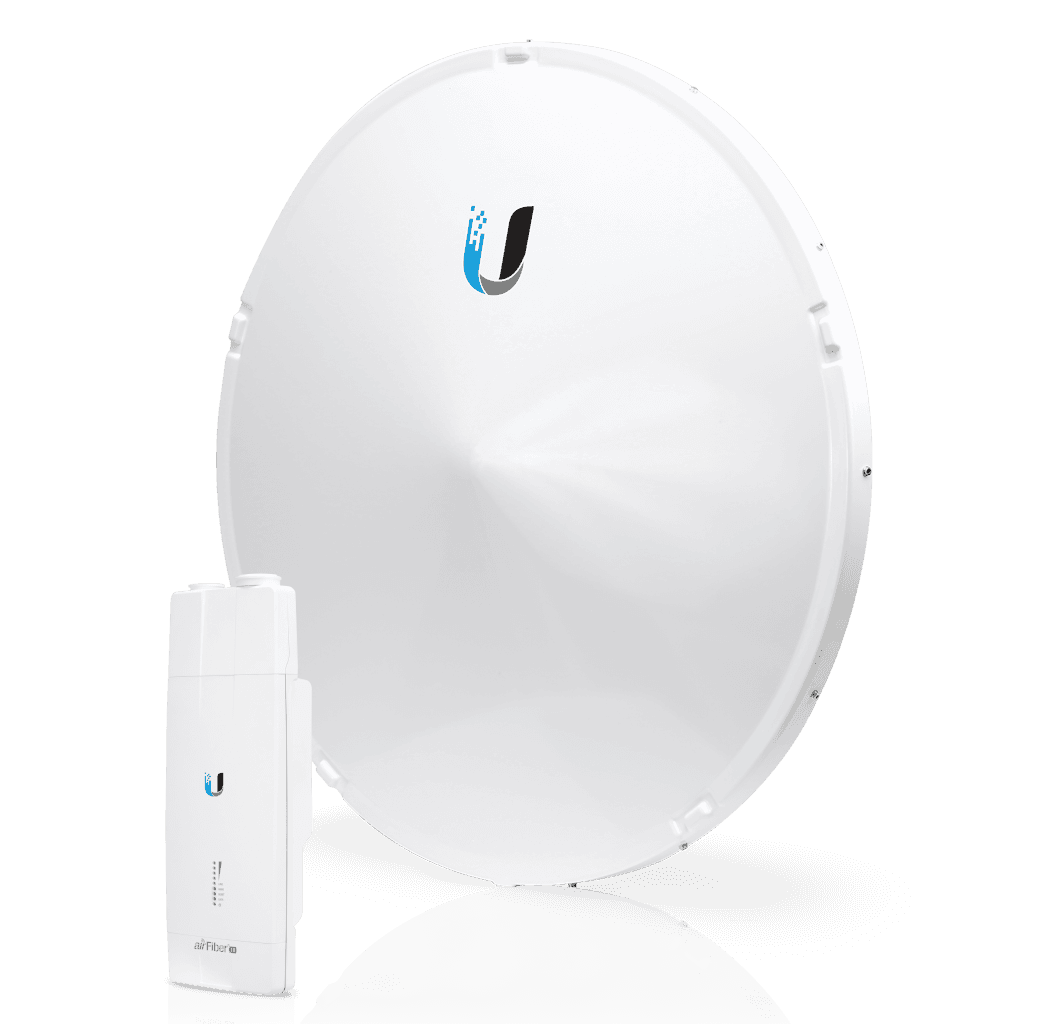

Ubiquiti's AF11-Complete-HB includes an AF-11 radio , an AF-11G35 35dBi dish antenna and an AF-11DUPH single high-band duplexer. Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network backhauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low-latency applications. It offers superior long-range performance and high throughput.

The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users can also program uplink and downlink duty cycles to suit their networking needs on the other end of the link.

This device is managed via the UISP network management platform.

*Note: Kit includes Antenna and Duplexer.

FEATURES:

• Frequency Operation: Operates in the licensed 11 GHz frequency band (10.7–11.7 GHz) to bypass congested 5 GHz interference.
• High Throughput: Delivers up to 1.2+ Gbps of real full-duplex throughput.
• Full-Duplex Performance: Supports separate transmit (TX) and receive (RX) frequencies.
• Wireless Modes: Supports SISO mode out of the box; upgradeable to MIMO mode with a second optional duplexer (AF-11-DUP-H).

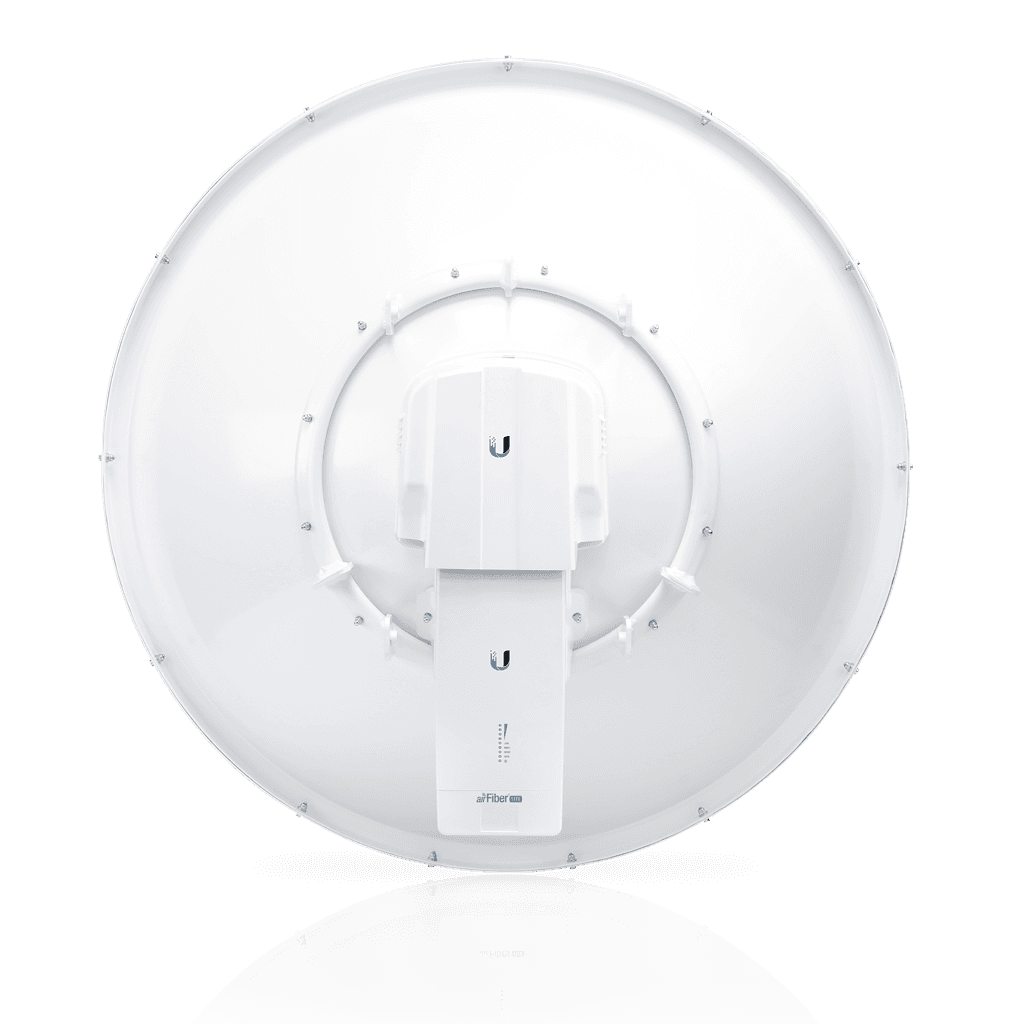

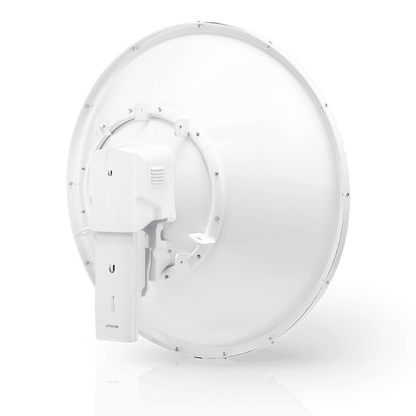

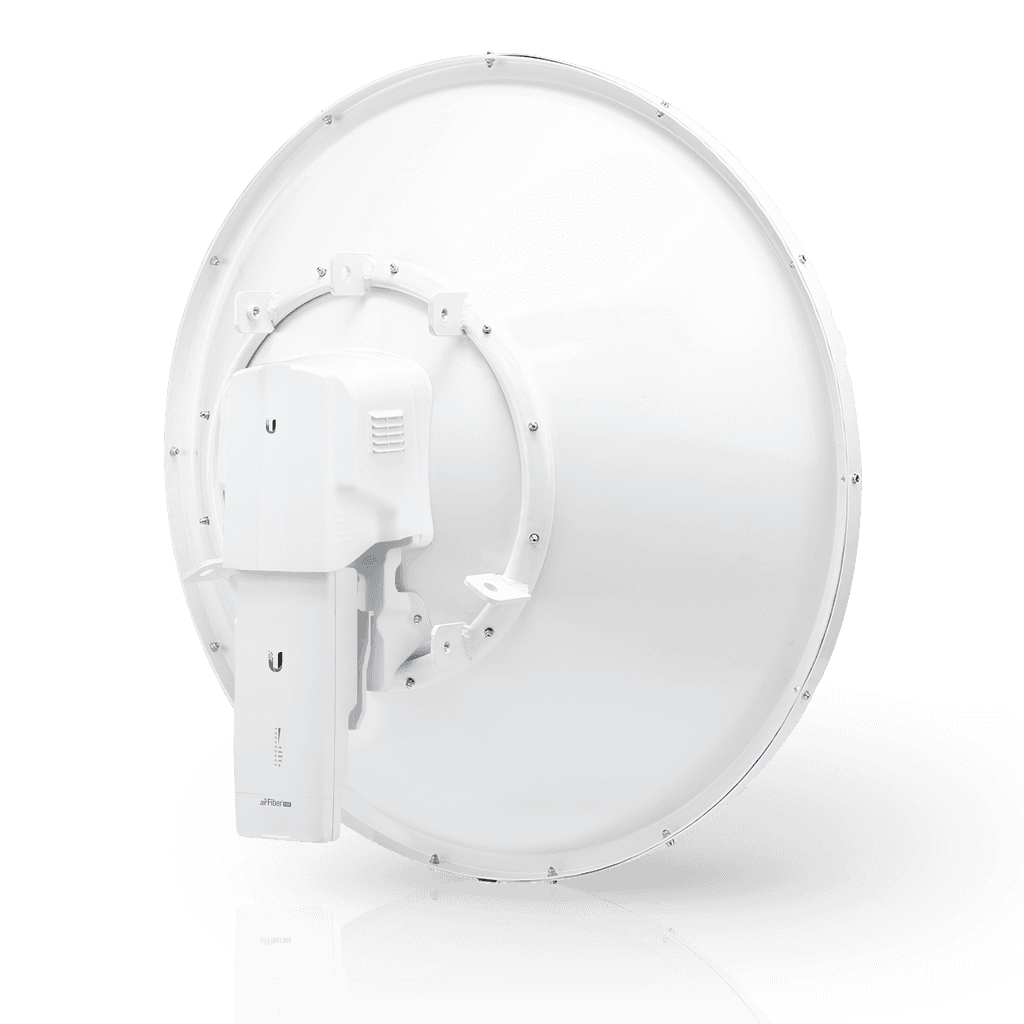

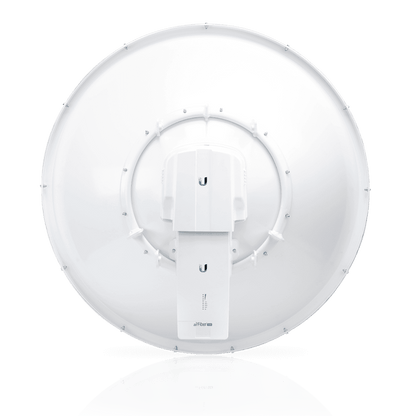

• Antenna Integration: Designed to seamlessly mount directly onto the included high-gain AF-11G35 dish antenna.
• Flexible Power: Accepts standard PoE or direct DC power inputs.
• Security: Features built-in 128-bit AES encryption for secure data links.

SPECIFICATIONS:

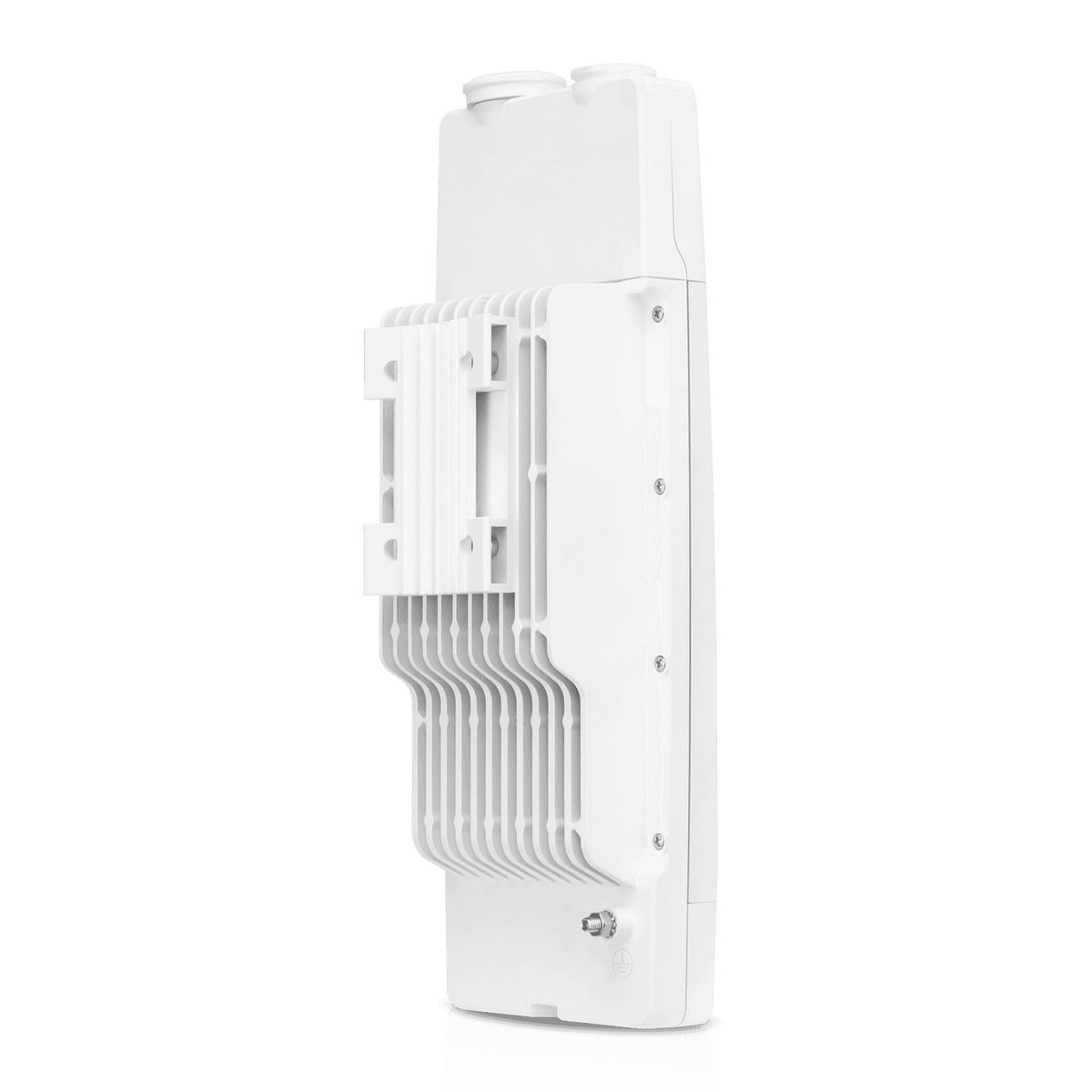

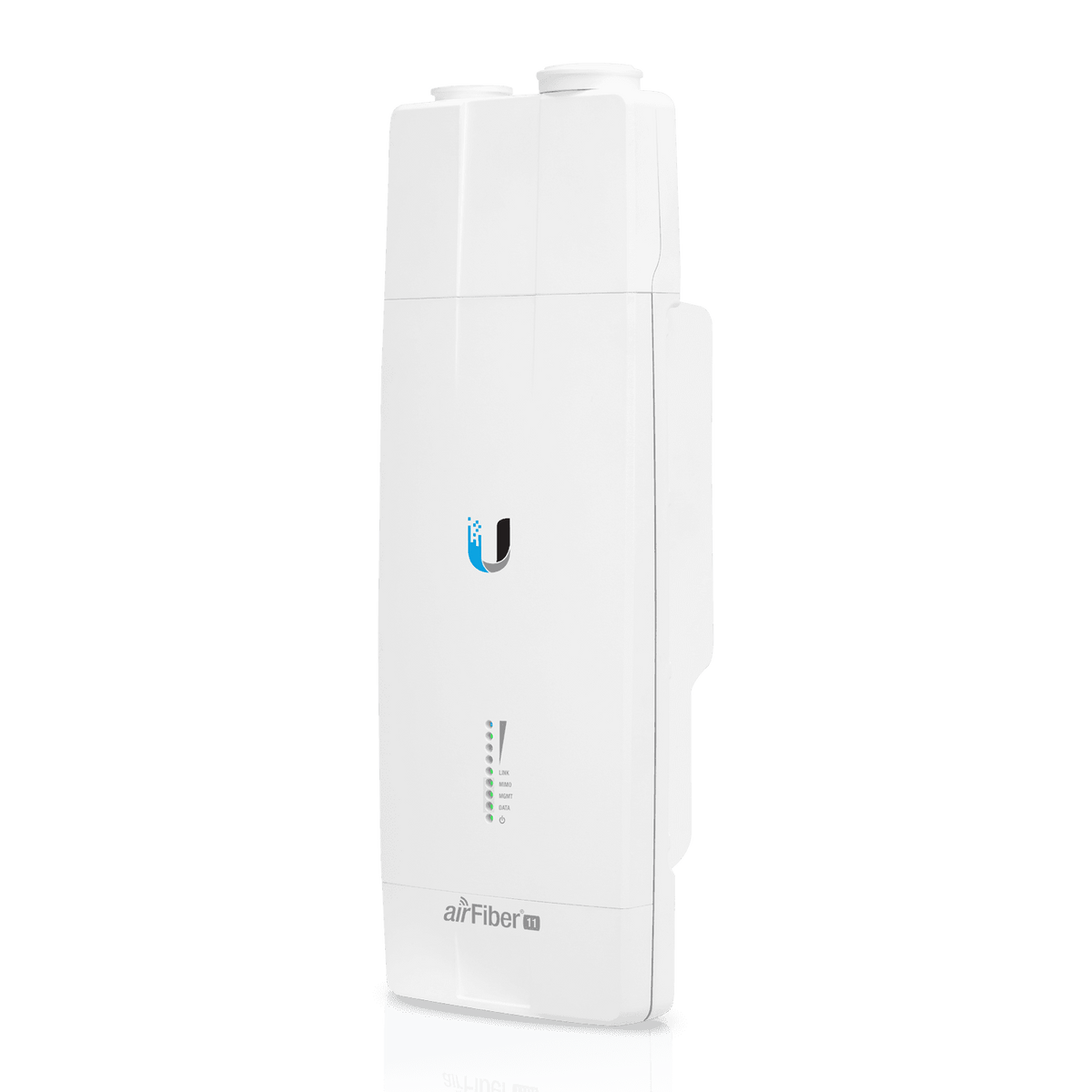

• airFiber AF-11:
• Dimensions: 327 × 112 × 86 mm (12.9 × 4.4 × 3.4")
• Weight: 2.3 kg (5 lb)
• Mounting: AF-11G35 mount compatible
• Networking interface: (1) GbE RJ45 port
• Networking interface: (1) 10/100 MbE RJ45 port
• Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
• Power method: Terminal block direct-wire
• Power supply: 50V DC, 1.2A Gigabit PoE adapter (included)
• Supported voltage range: 38–56V DC
• Maximum power consumption: 36W
• RF connectors: (4) SMA weatherproof, two per chain
• RF connectors: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1)
• RF connectors: (2) N-Type waterproof, one per duplexer
• Ambient operating temperature: -40 to 55°C (-40 to 131°F)
• Certifications: CE, FCC, IC
• NDAA compliant: Yes
• Modes: SISO/MIMO

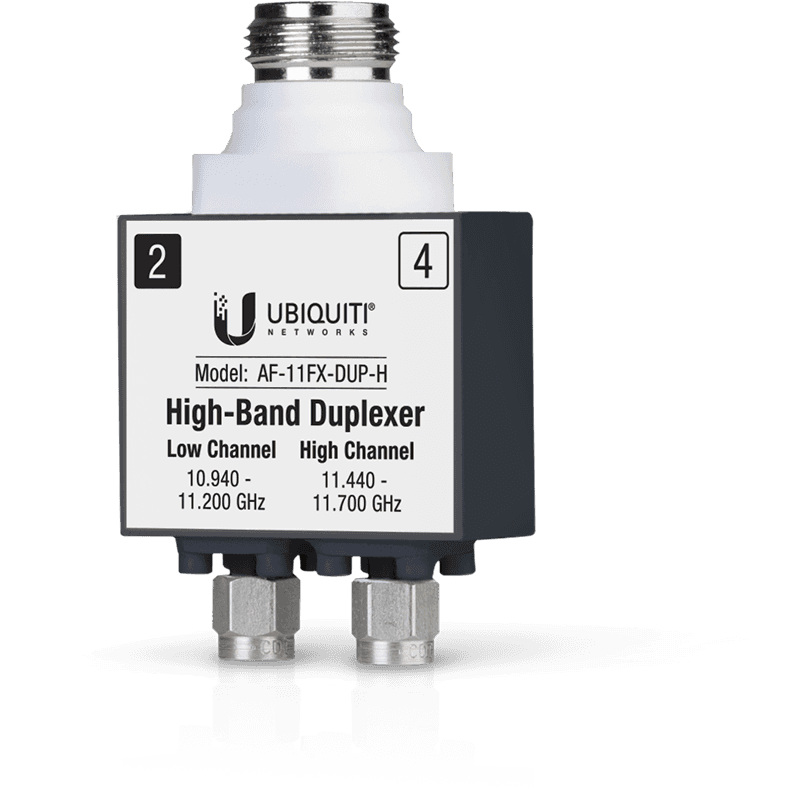

• High-Band Duplexer: (1) pre-installed for SISO mode
• MIMO mode: Second duplexer available, model AF-11-DUP-H
• Maximum throughput: 1.2+ Gbps
• Maximum range: 300+ km
• Encryption: 128-bit AES
• Operating frequency: 10.7–11.7 GHz
• Maximum conducted TX power: 30 dBm
• Frequency accuracy: ±1 ppm
• Channel bandwidth: 3.5 / 5 / 7 / 10 / 14 / 20 / 28 / 30 / 40 / 50 / 56 MHz selectable
• Uplink and downlink duty cycles: Programmable
• Operating frequency and TX power: Dependent on regional regulations
• Channel widths: May vary according to country/region regulations
• Compliance information: Refer to the Compliance chapter of the airFiber AF-11FX User Guide

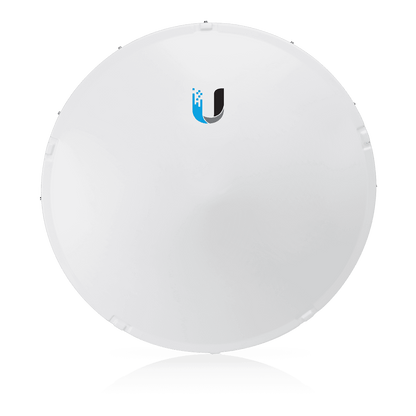

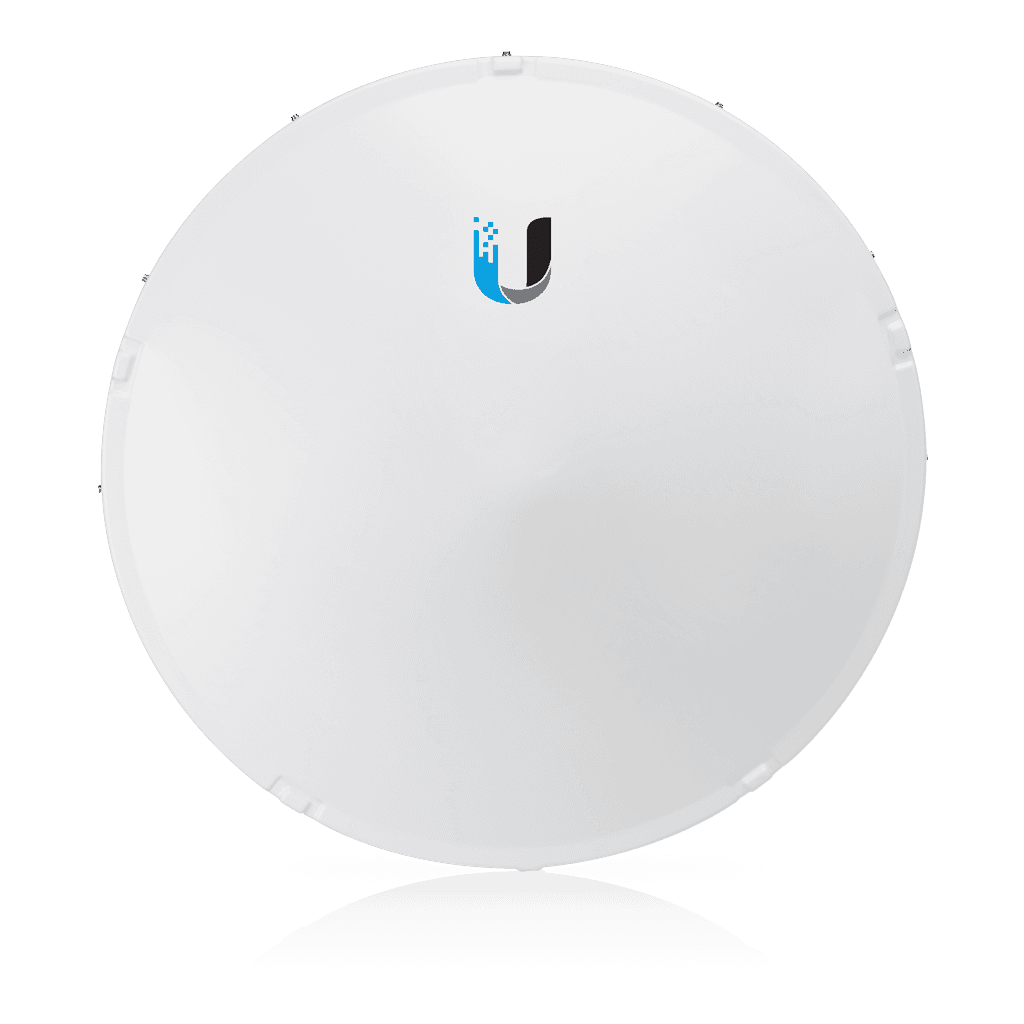

• airFiber AF-11G35:
• Dimensions: 811 × 811 × 460 mm (31.9 × 31.9 × 18.1")
• Weight without mount: 7.14 kg (15.74 lb)
• Weight with mount: 11.85 kg (26.12 lb)
• Wind loading: 1538 N @ 200 km/h (346 lbf @ 125 mph)
• Wind survivability: 200 km/h (125 mph)
• Mounting: Pole mount
• Frequency: 10.3–11.7 GHz
• Gain: 35 dBi
• HPOL beamwidth: 2.5°
• VPOL beamwidth: 2.5°
• Maximum VSWR: 2:1
• Polarization: Default H/V
• Polarization after rotating OMT: ±45°
• Cross-pol isolation: 35 dB
• Pattern regulatory: ETSI 302 217-4-2, Class 3
• Pattern regulatory: FCC Cat B

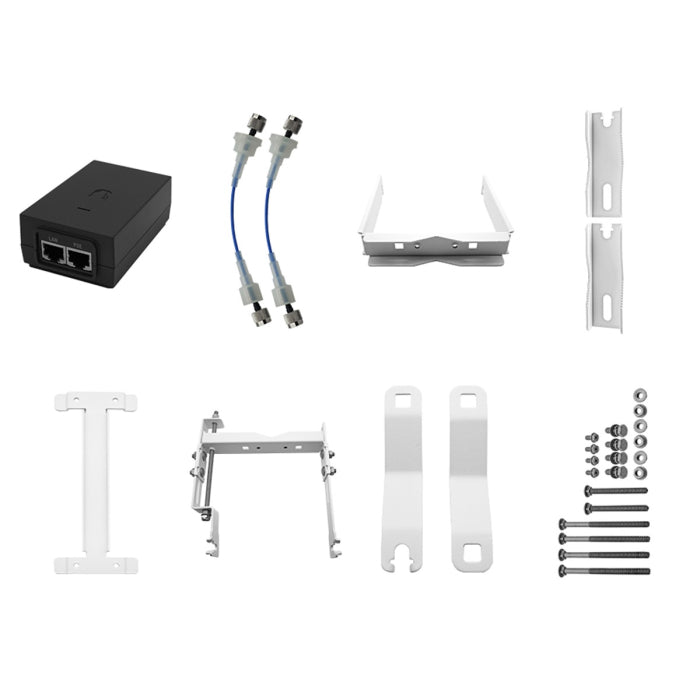

WHAT’S IN THE BOX:

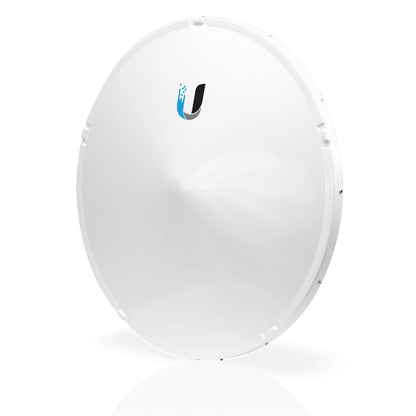

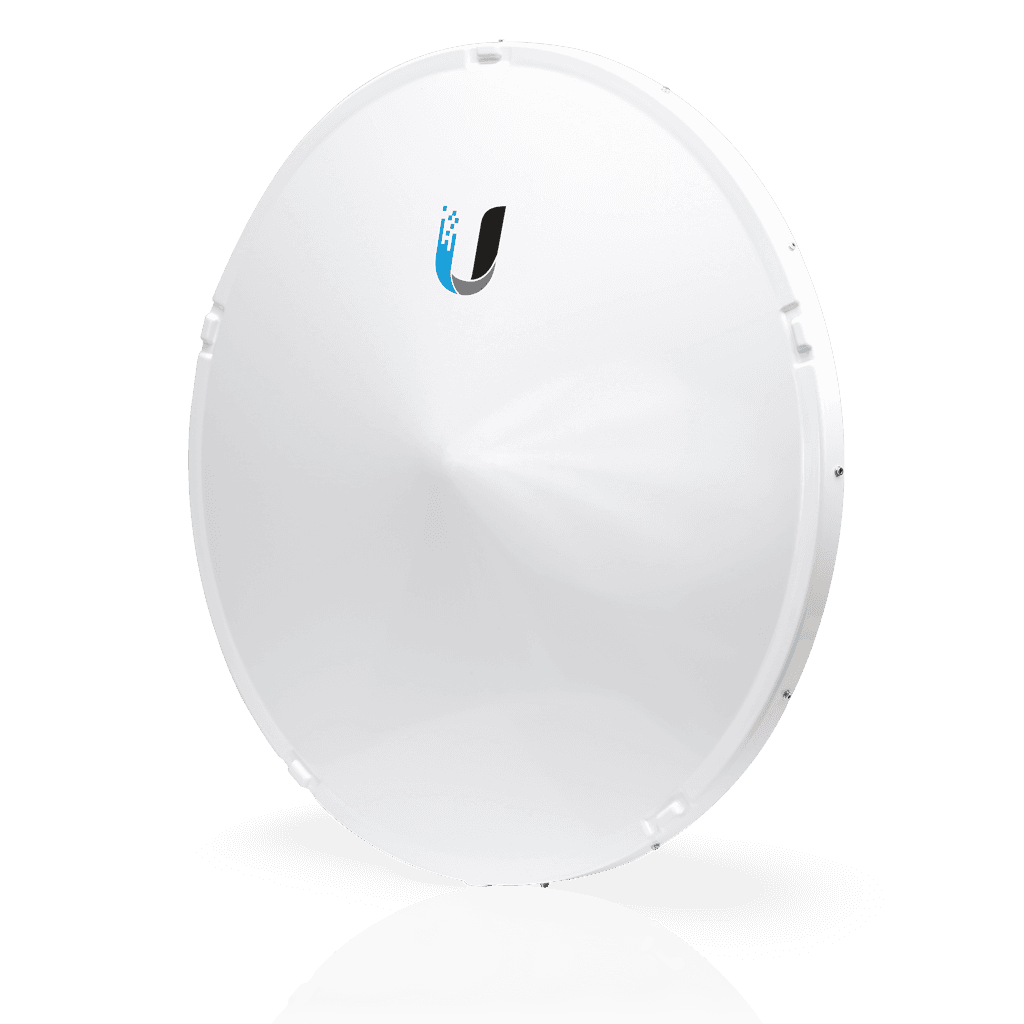

• AF-11G35 11 GHz Dish Antenna x1
• High-Band Duplexer (1 pre-installed for SISO mode; MIMO requires a second optional duplexer) x1

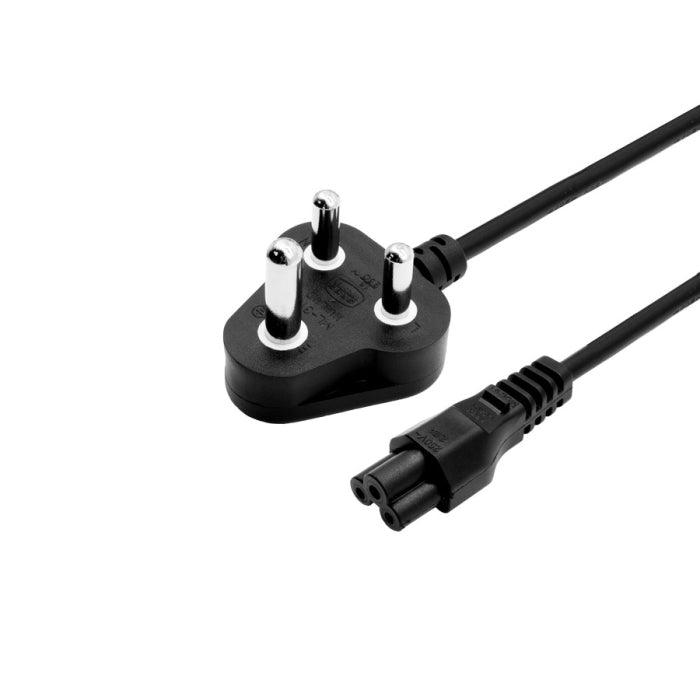

• Gigabit PoE (Power over Ethernet) Adapter and power cord x1
• Mounting hardware and alignment brackets for the dish antenna and radio x1

WARRANTY:

• 12 Months
