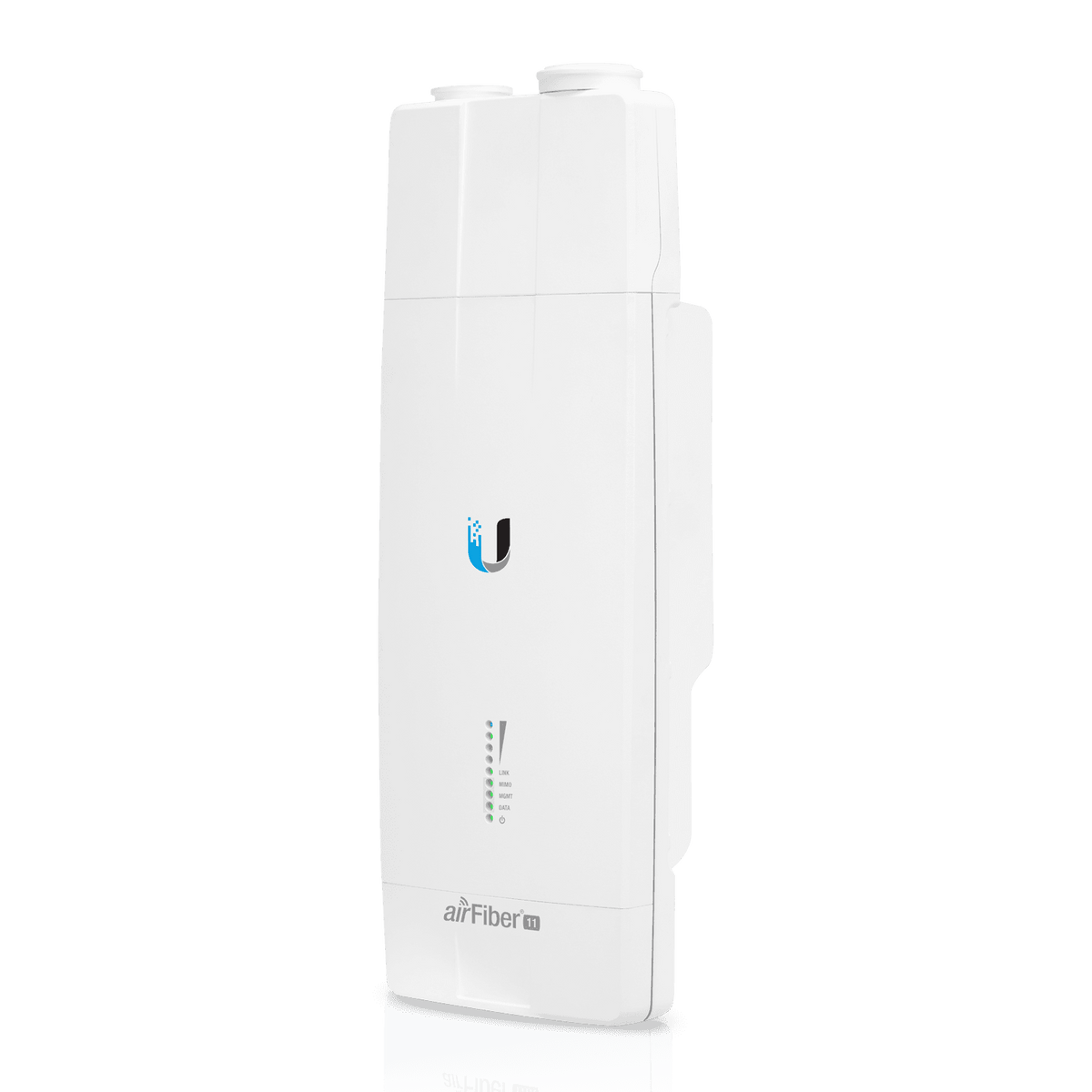

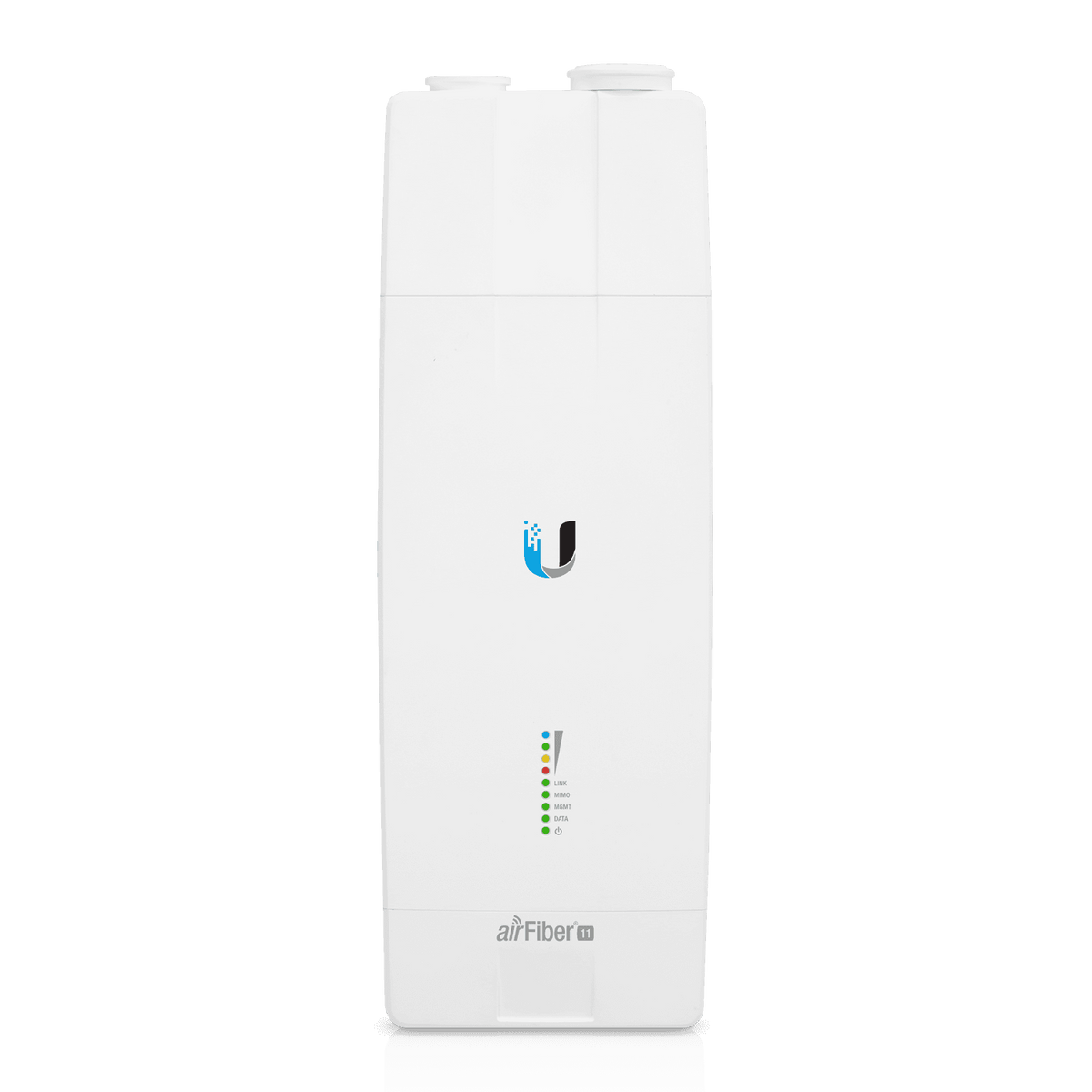

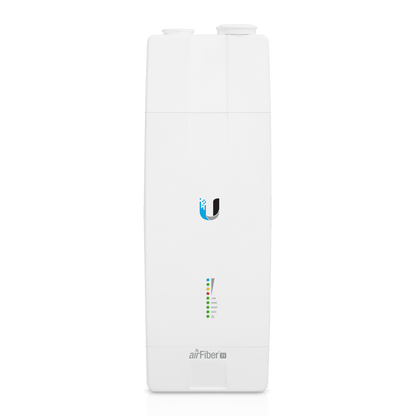

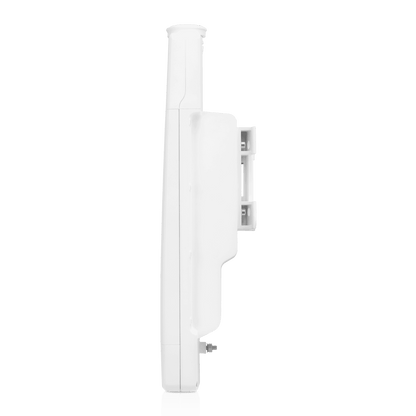

Ubiquiti UISP airFiber 11GHz Radio

Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

*Note: Duplexers and Antenna not included.

FEATURES:

• Operates in the licensed 10.7–11.7 GHz frequency band
• Throughput of up to 1.2+ Gbps over 300 km
• Full-duplex FDD for low latency and reliable link performance
• Supports SISO and MIMO configurations
• Modular duplexers for flexible frequency planning
• Compatible with 35 dBi AF-11G35 antenna
• Channel bandwidths from 3.5 to 56 MHz
• 1× Gigabit Ethernet port
• Powered via 50V DC passive PoE (max. 36W)
• Operating temperature: -40°C to 55°C
• Designed for outdoor deployment with various mounting options

SPECIFICATIONS:

• Dimensions: 327 × 112 × 86 mm (12.9 × 4.4 × 3.4")
• Weight: 2.3 kg (5 lb)

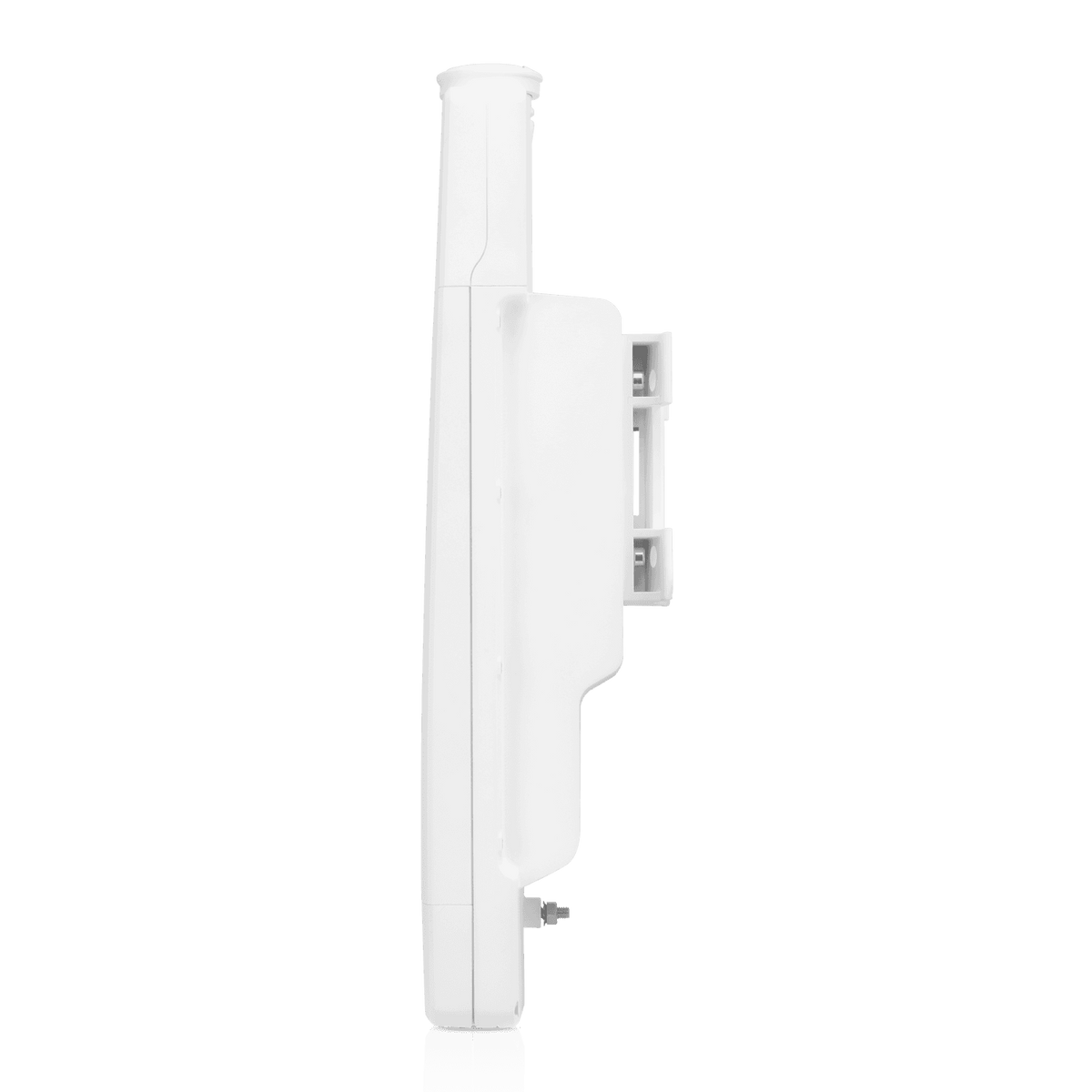

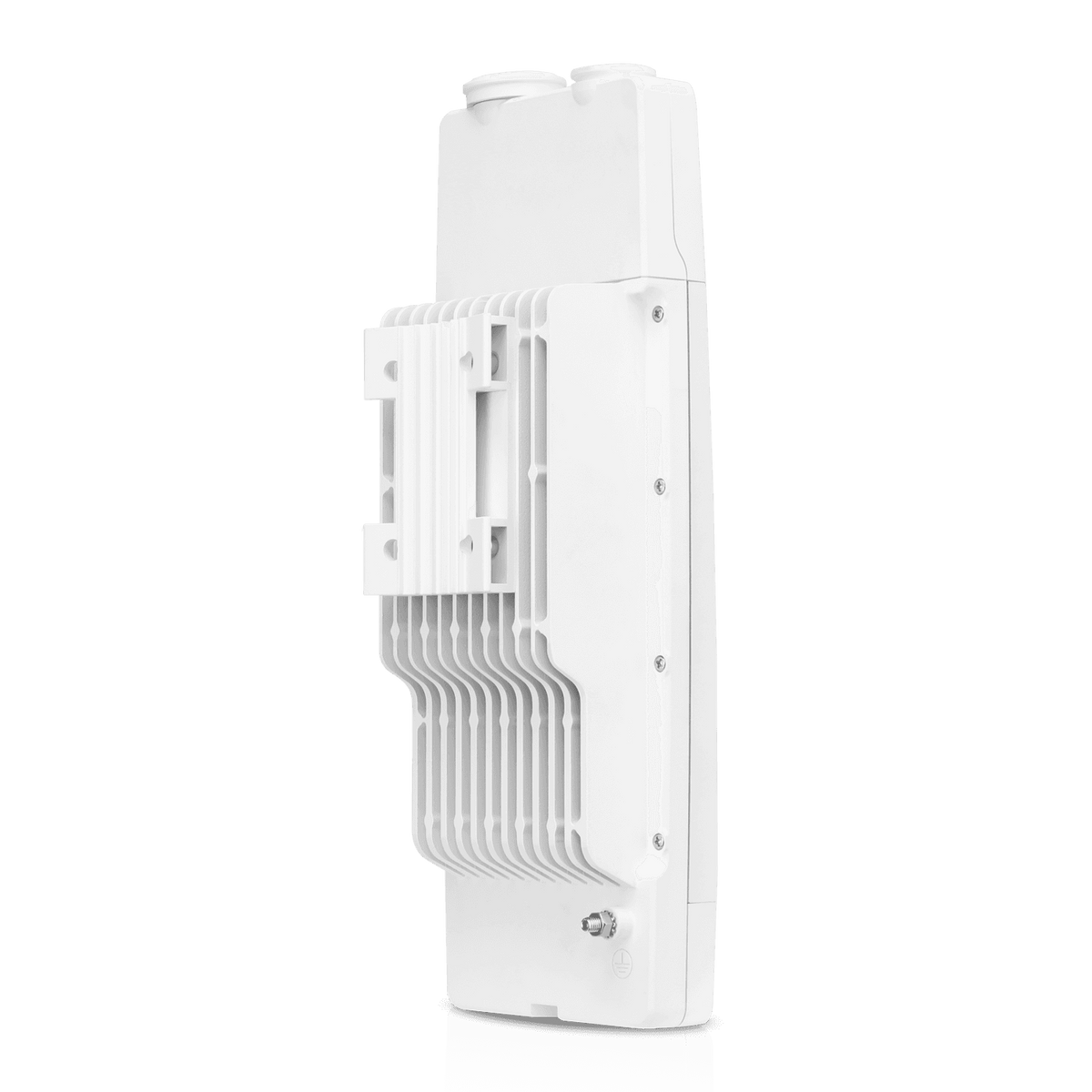

• Mounting: AF-11G35 mount compatible

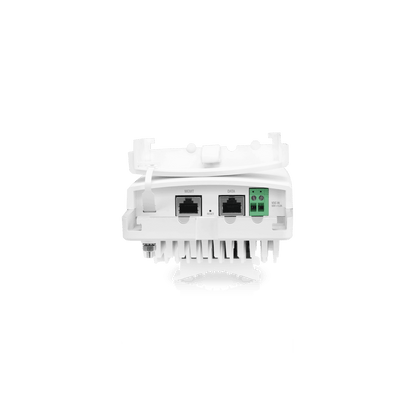

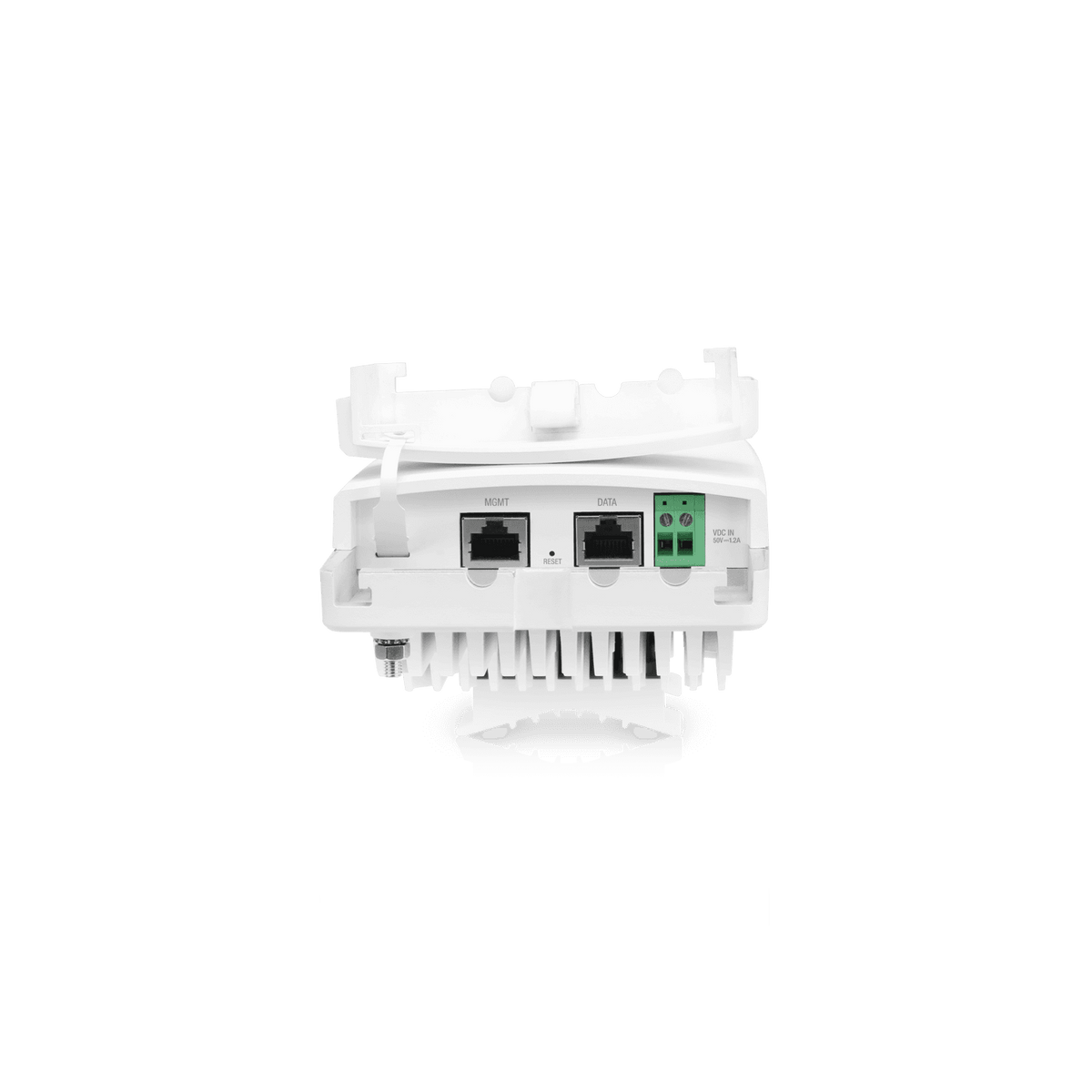

• Networking Interface: (1) GbE RJ45 port; (1) 10/100 MbE RJ45 port
• Power Method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); terminal block direct-wire
• Power Supply: 50V DC, 1.2A gigabit PoE adapter (included)
• Supported Voltage Range: 38–56V DC
• Max. Power Consumption: 36W

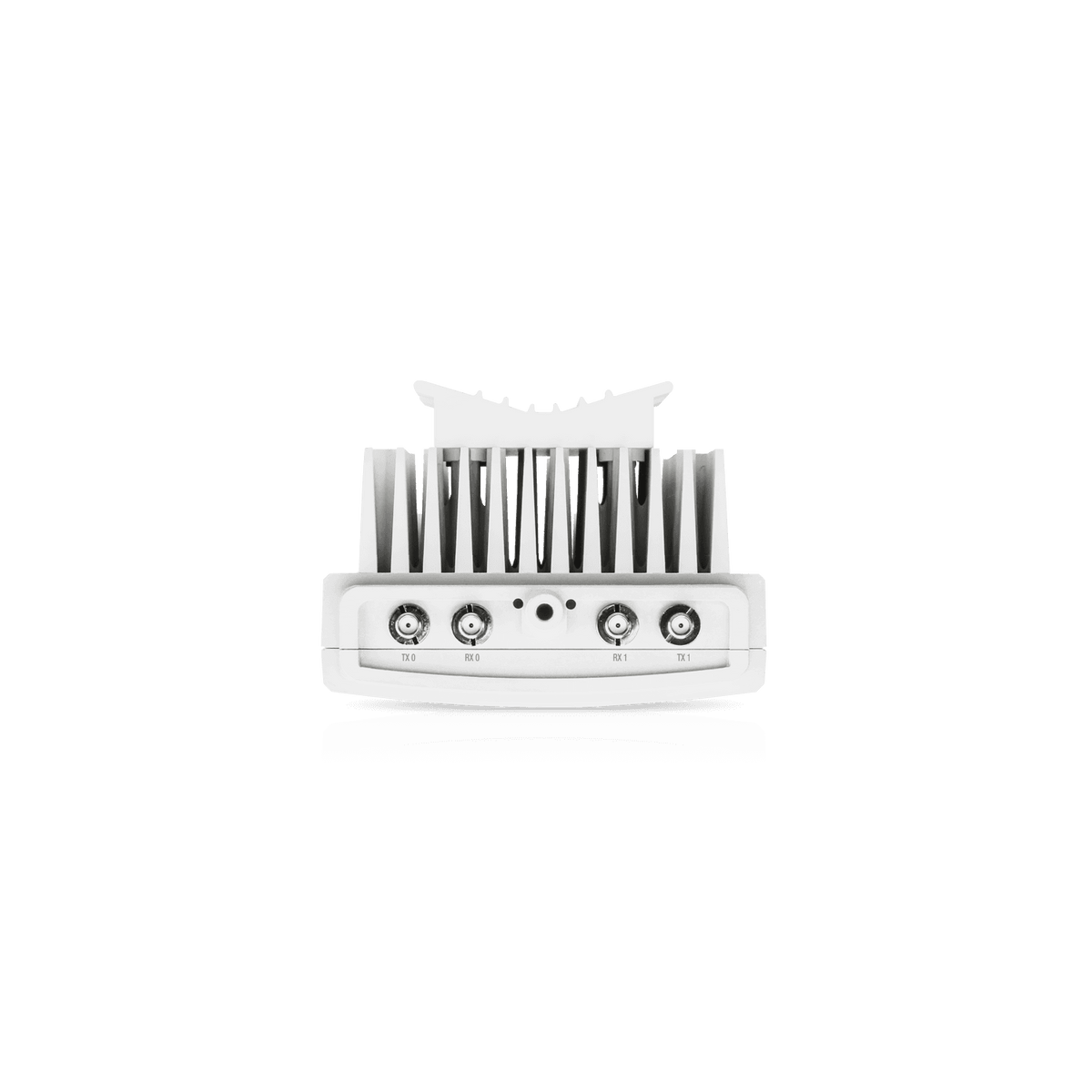

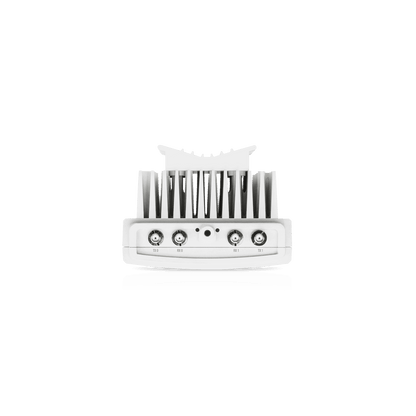

• RF Connectors: (4) SMA weatherproof, two per chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1); (2) N-Type waterproof, one per duplexer
• Ambient Operating Temperature: -40 to 55°C (-40 to 131°F)
• Certifications: CE, FCC, IC
• NDAA Compliant: Yes
• Modes: SISO/MIMO
• Max. Throughput: 1.2+ Gbps
• Max. Range: 300+ km
• Encryption: 128-bit AES
• Operating Frequency*: 10.7–11.7 GHz
• Max. Conducted TX Power*: 30 dBm
• Frequency Accuracy: ±1 ppm
• Channel Bandwidth*: 3.5 / 5 / 7 / 10 / 14 / 20 / 28 / 30 / 40 / 50 / 56 MHz selectable
• *Depends on regional regulations.

WHAT’S IN THE BOX:

• AirFiber AF-11 Radio unit x1

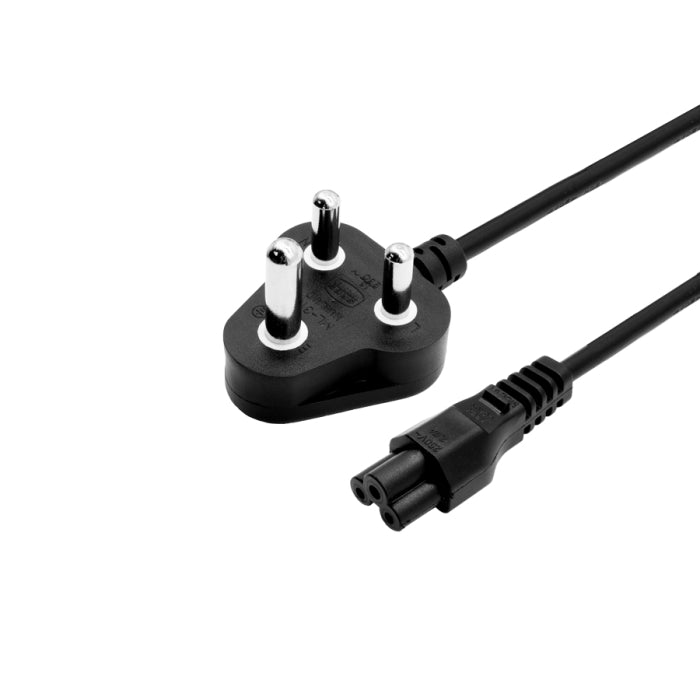

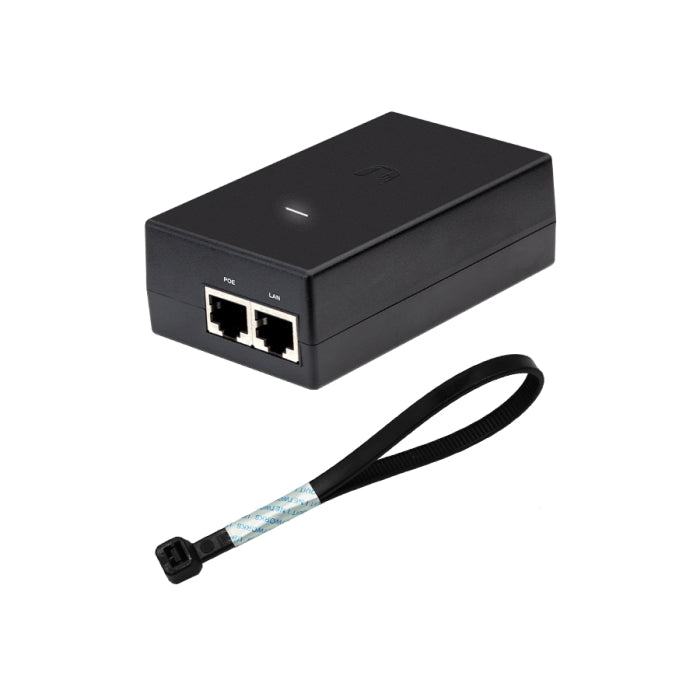

• 50V, 1.2A Gigabit PoE Adapter (with mounting bracket and power cord) x1
• Zip ties / hardware fasteners


WARRANTY:

• 12 Months
