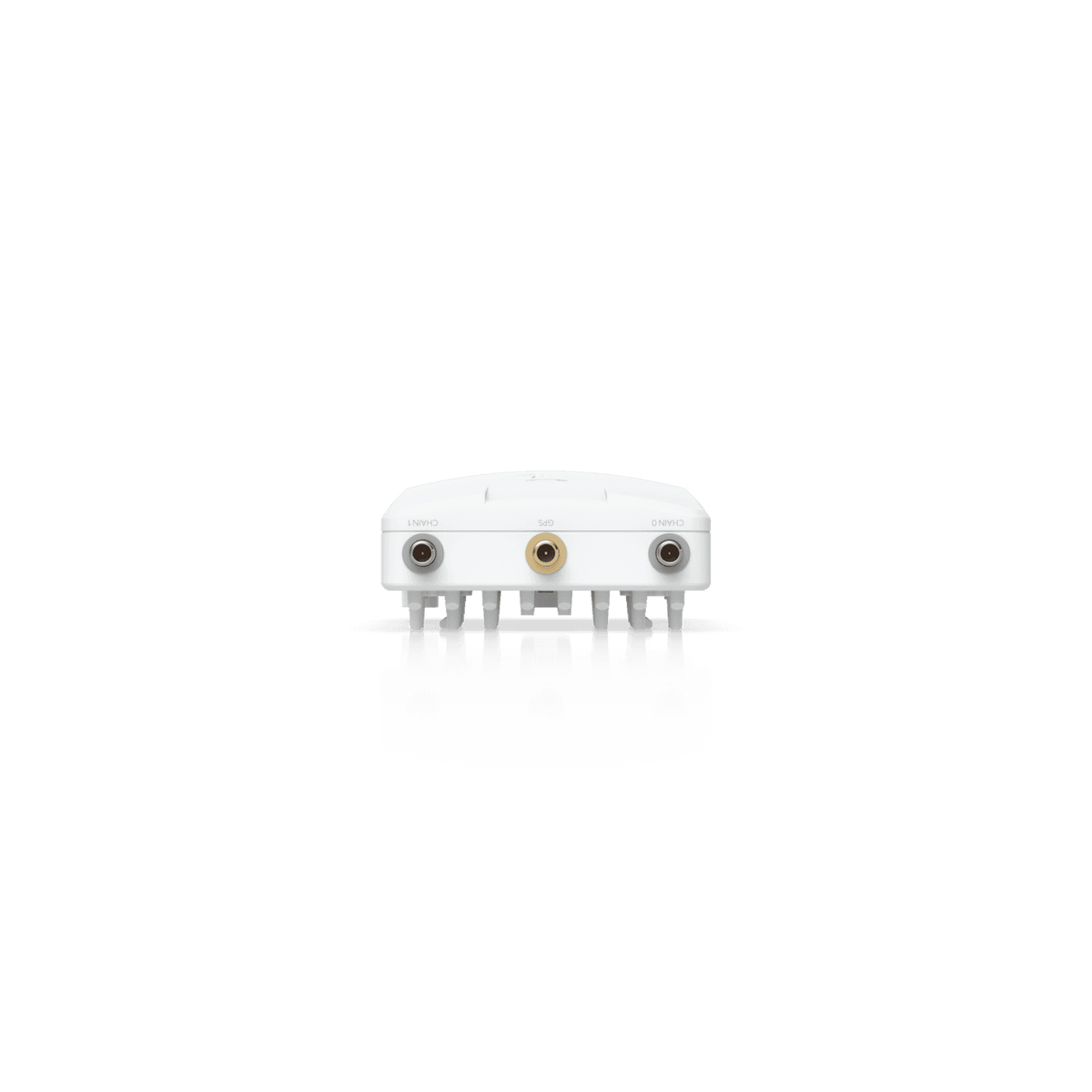

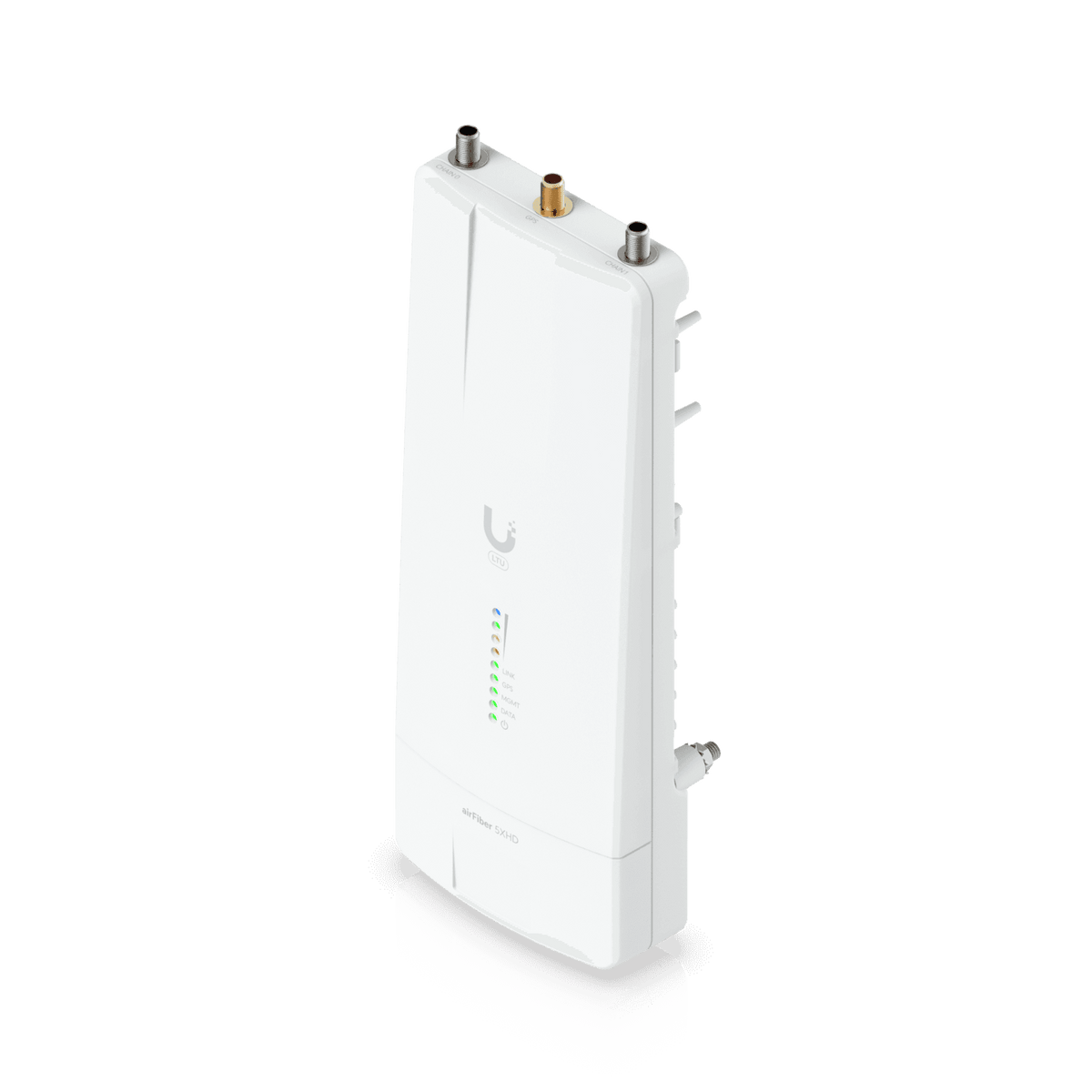

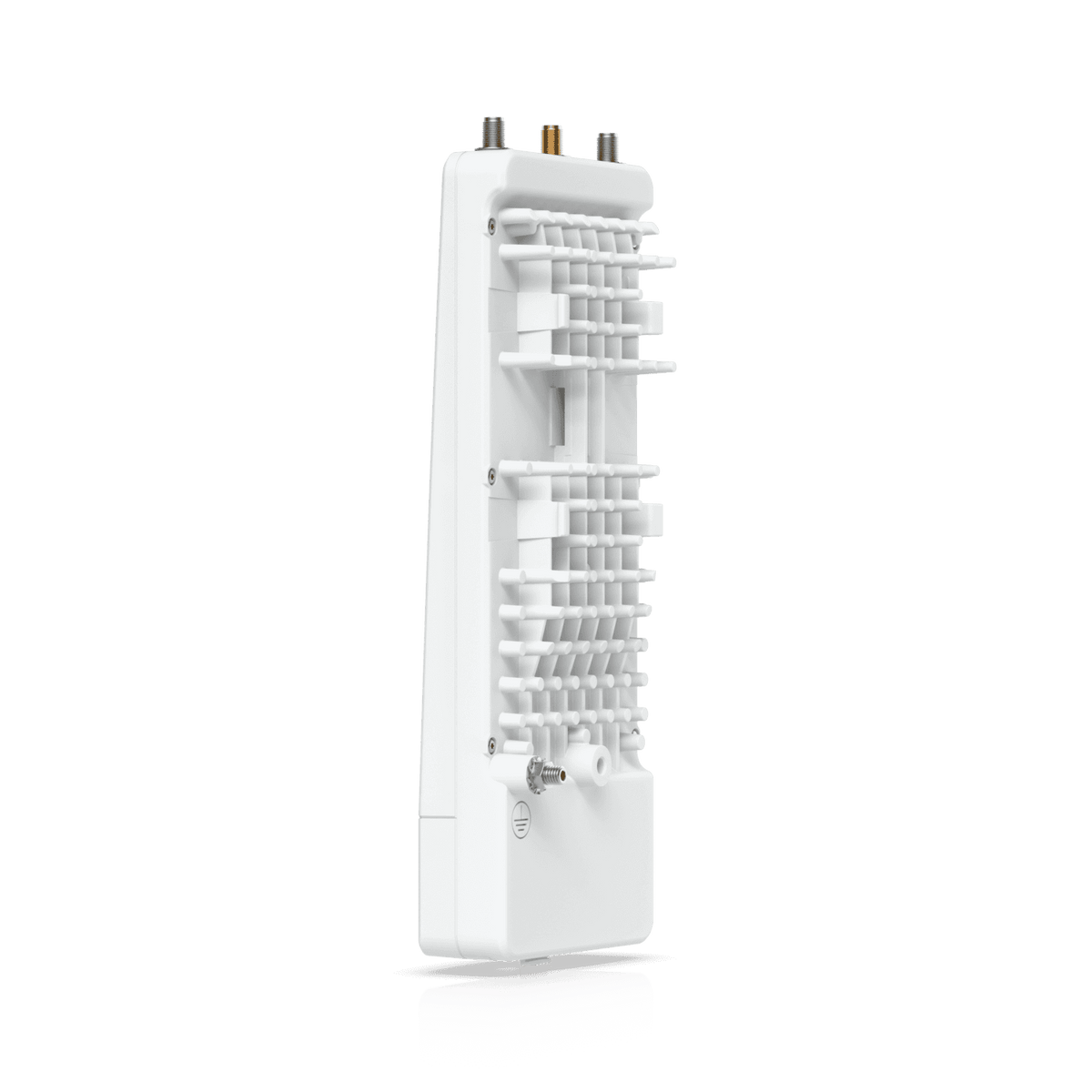

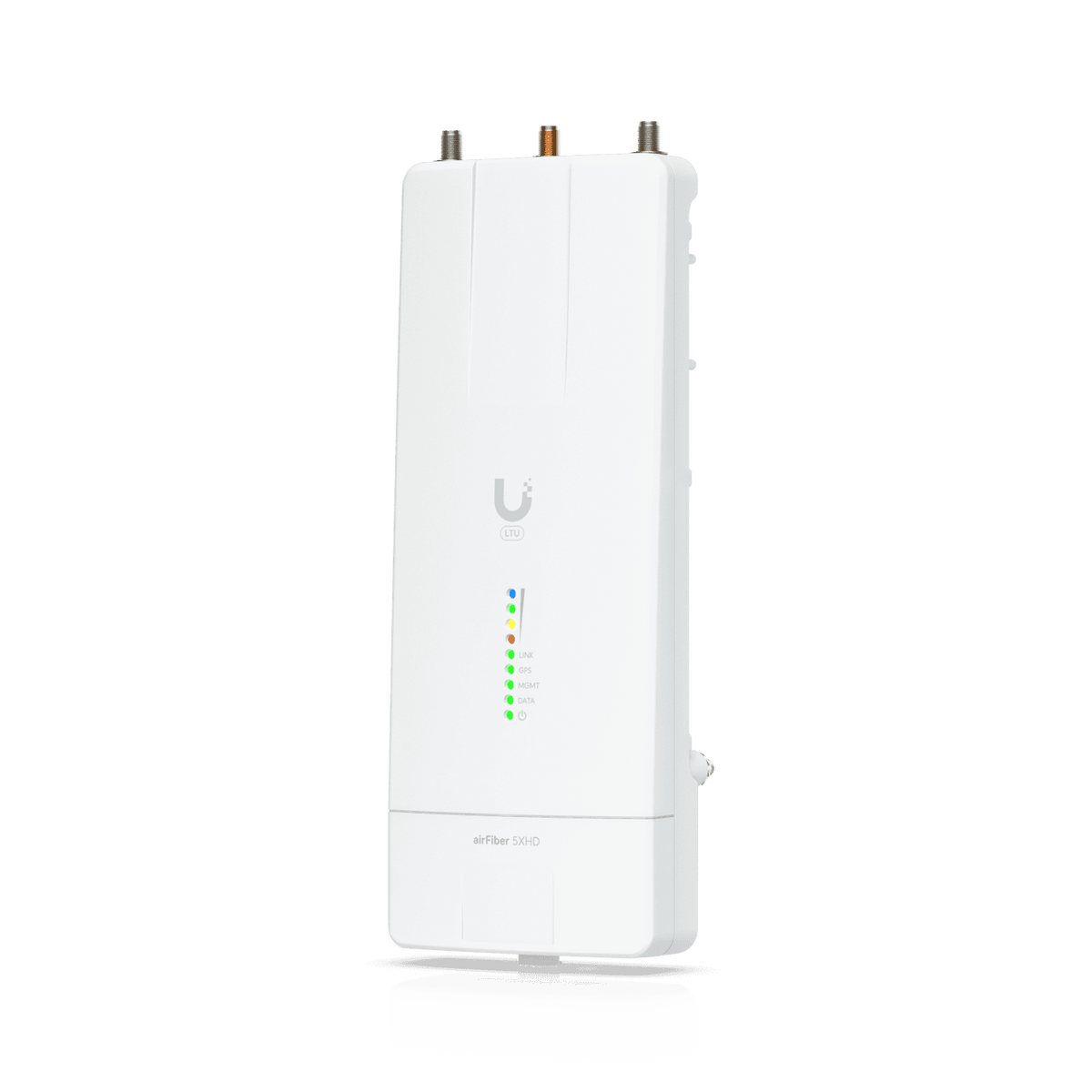

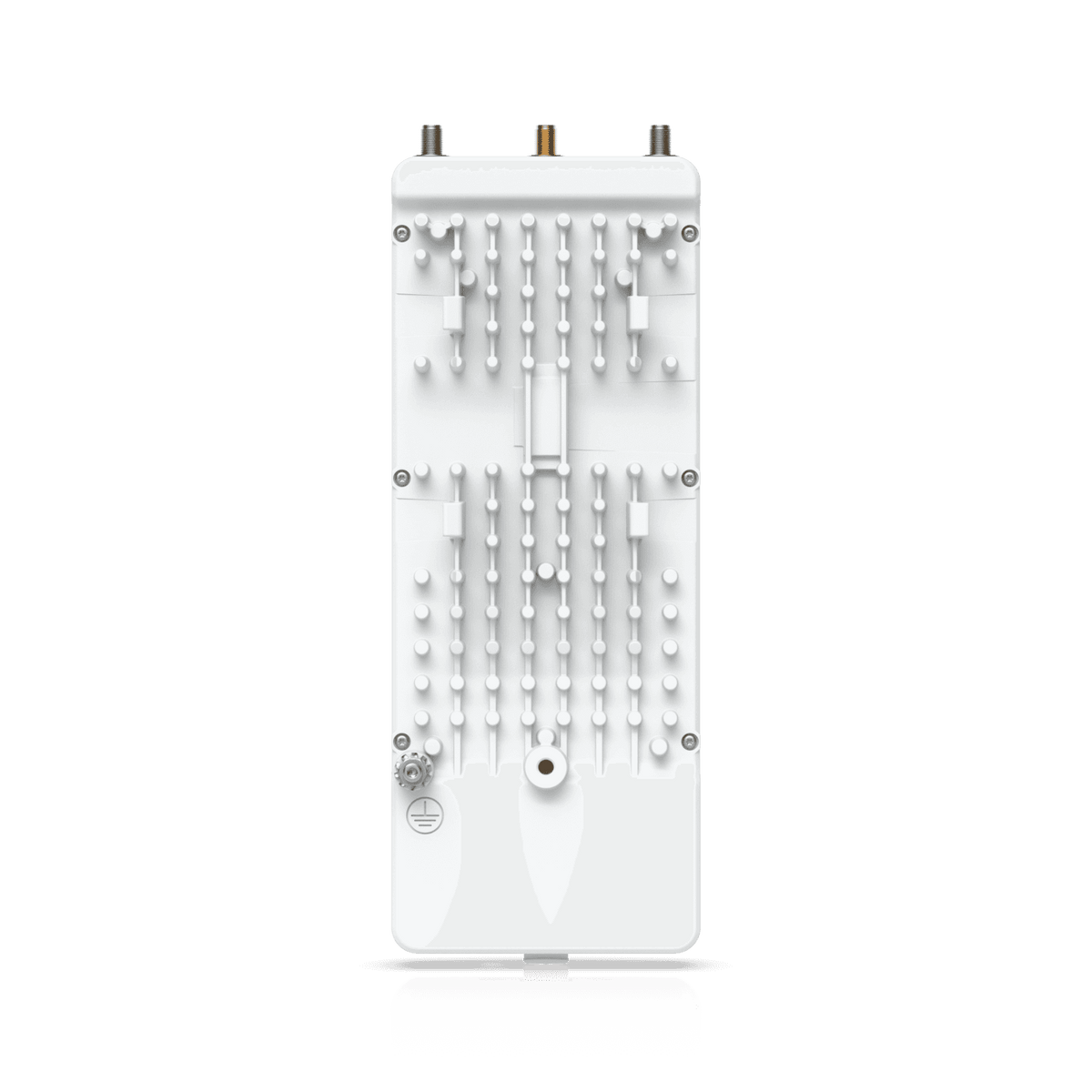

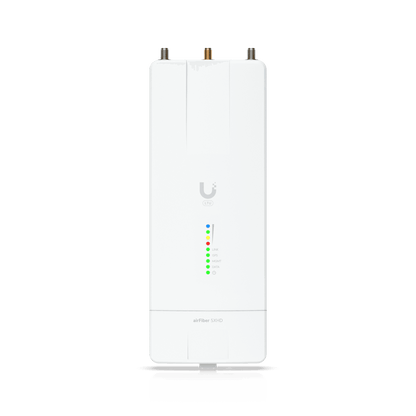

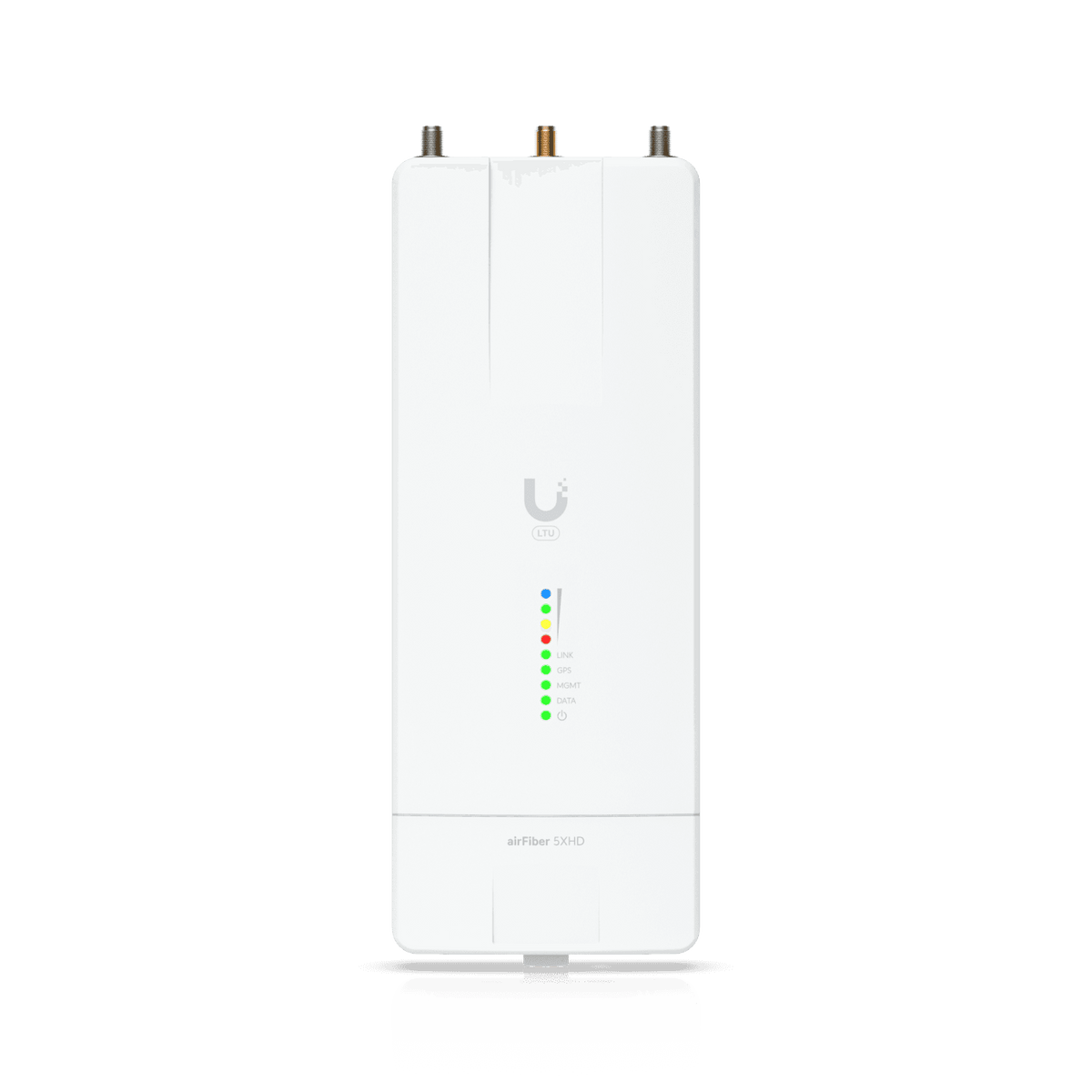

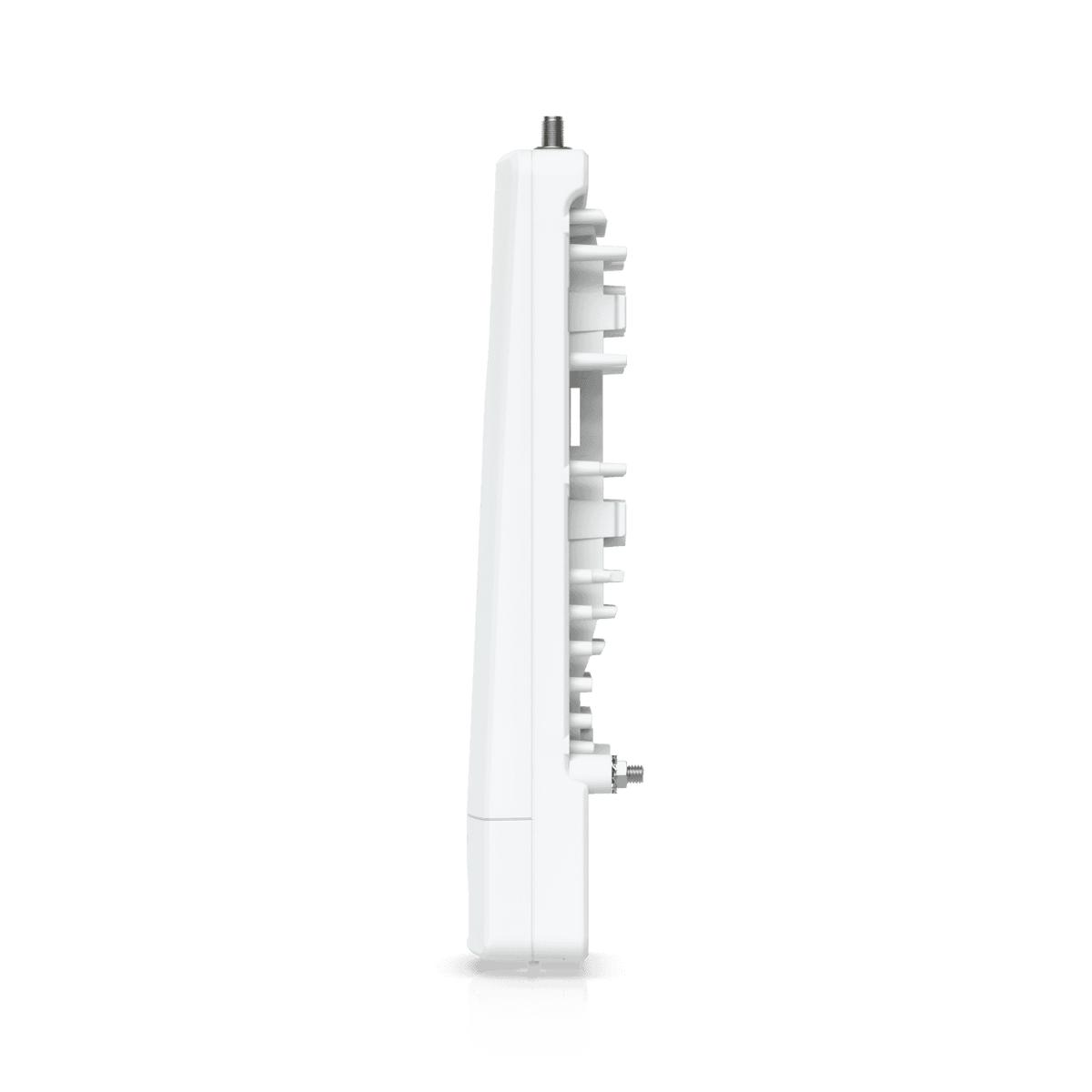

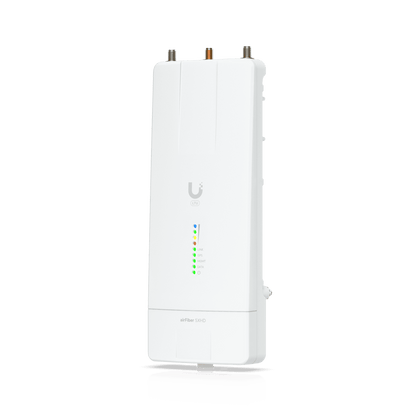

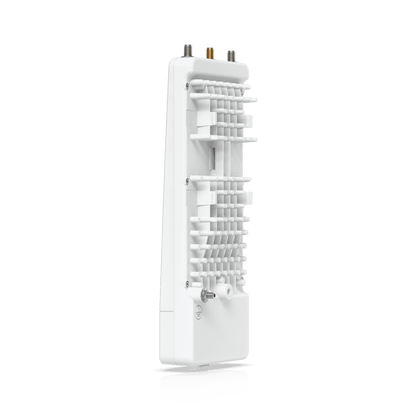

Ubiquiti UISP airFiber 5XHD 5GHz Radio

Ubiquiti's AF-5XHD is designed for use in the 5GHz frequency band offering channel bandwidths of up to 100MHz, GPS synchronization and uses airOS LTU, manageable via UISP. The AF-5XHD is designed to work with Ubiquiti® airFiber X slant-polarized antennas for improved noise immunity and signal-to-noise ratio but is also compatible with other dish antennas in the Ubiquiti range. This device is managed via the UISP network management platform.

FEATURES:

• LTU Silicon Architecture: Bypasses standard 802.11 Wi-Fi chip limitations to deliver vastly superior noise resiliency and over 2 Million packets per second (Mpps) processing.
• Throughput: Capable of up to 1.2+ Gbps of real aggregate throughput.
• Frequency Flexibility: Operates in the license-exempt 5 GHz band (split-frequency operation allows different TX and RX channels).
• Channel Widths: Supports wide channel bandwidths up to 100 MHz.
• Durability: Rated IP67 water and dust-resistant once the included upgrade kit is installed.
• Management: Built-in Bluetooth v4.0 allows you to configure the radio instantly using the UISP Mobile App on your phone.

SPECIFICATIONS:

• Mechanical:
• Dimensions: 224 × 82 × 48 mm (8.8 × 3.2 × 1.9")
• Weight: 0.4 kg (0.8 lb)
• Mounting: airFiber X mount (Rocket mount compatible)
• GPS Pole Mount: Included
• Weatherproofing: IP67*
• After installation of IP67 upgrade kit (included)
• Hardware:

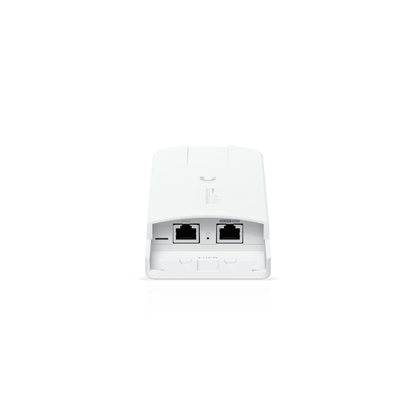

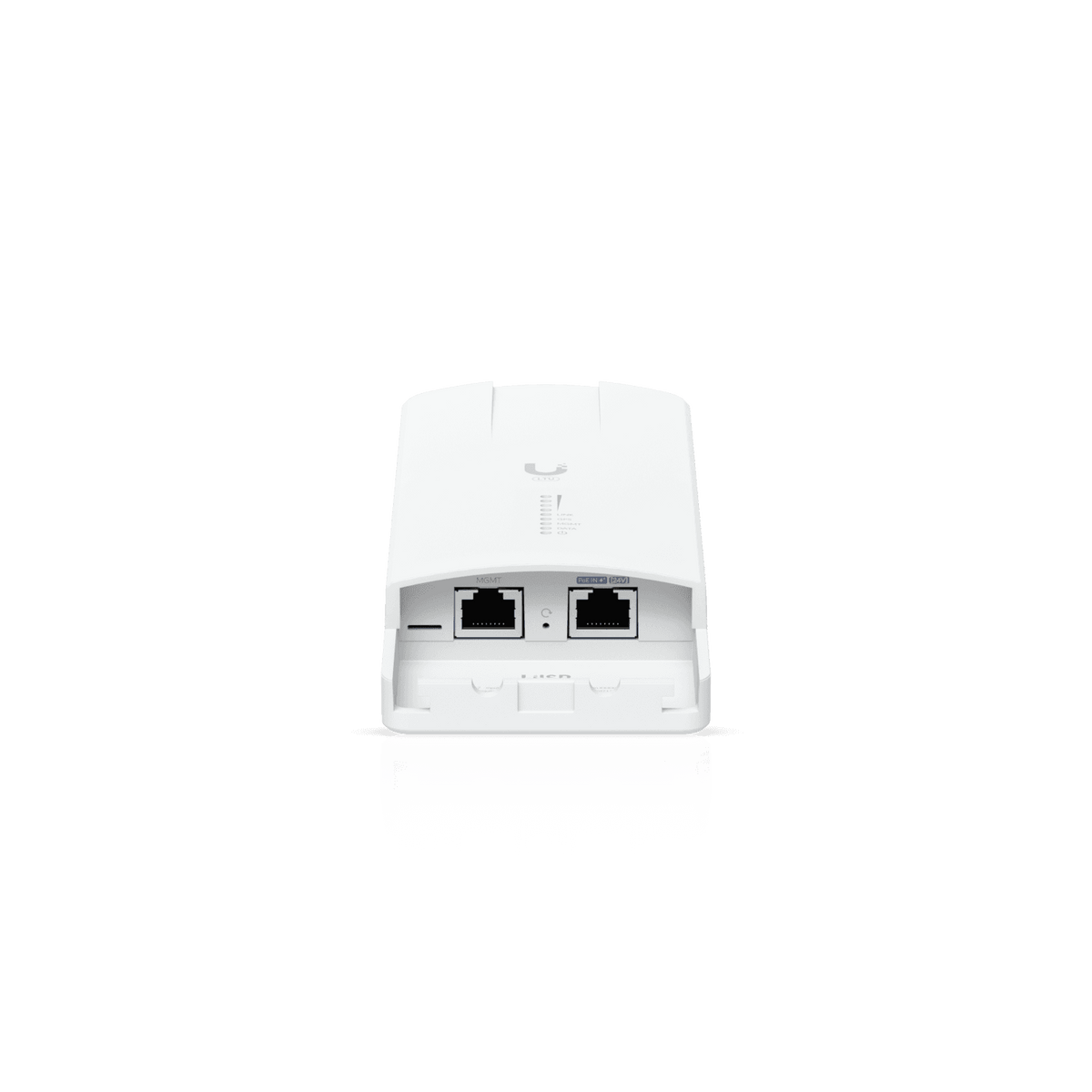

• Networking interface: (2) GbE RJ45 ports
• Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
• Power method: Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-)
• Power supply: 24V, 1A Gigabit PoE adapter (included)
• Supported voltage range: 18–54V DC
• Maximum power consumption: 12W
• GPS antenna: External, magnetic base
• Ambient operating temperature: -40 to 55°C (-40 to 131°F)
• Certifications: CE, FCC, IC
• NDAA compliant: Yes
• Software:
• Modes: PtP Master/Slave
• Maximum throughput: 1+ Gbps
• Maximum range: 100+ km*
• Throughput and range values may vary depending on environmental conditions
• Encryption: AES-256
• RF:
• Maximum TX power: 29 dBm*
• Depends on regional regulations
• Frequency accuracy: ±2.5 ppm without GPS synchronization
• Frequency accuracy: ±0.2 ppm with GPS synchronization
• Channel bandwidth: 10 / 20 / 30 / 40 / 50 / 60 / 80 / 100 MHz selectable
• Uplink and downlink duty cycles: Programmable
• Operating Frequency (MHz):
• Worldwide: 4800–6200 MHz*
• US/CA U-NII-1: 5150–5250 MHz
• US/CA U-NII-2A: 5250–5350 MHz
• US/CA U-NII-2C: 5470–5725 MHz
• US/CA U-NII-3: 5725–5850 MHz

WHAT’S IN THE BOX:

• airFiber AF-5XHD Radio x1
• External GPS Antenna (with a magnetic base) x1
• GPS Antenna Mount and metal strap x1
• IP67 Weatherproofing Upgrade Kit (shrouds and water-resistant tape) x1
• 24V, 1A Gigabit PoE Adapter with a power cord x1

WARRANTY:

• 12 Months
