Ubiquiti UISP airFiberX 5GHz 23dBi 45° Slant Dish Antenna

Ubiquiti's AF-5G23-S45 is a 5GHz 23dBi, 45° slanted dish antenna designed to seamlessly integrate with Ubiquiti radios. The industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity networks.

FEATURES:

• 45° Slant Polarization: Rotates the dual-linear polarization elements by 45 degrees. This enhances the signal-to-noise ratio (SNR) and improves RF noise immunity compared to standard horizontal/vertical polarization.
• Compact Form Factor: The smaller 378 mm diameter minimizes tower real estate requirements.
• Low Wind Loading: The integrated radome reduces wind resistance, managing a wind load of 190 N at its maximum rated wind survivability of 200 km/h (125 mph).
• High Isolation & Sidelobe Suppression: Reduces co-location interference, making it optimal for crowed towers where multiple transmitters operate close together.

SPECIFICATIONS:

• Dimensions: 378 × 378 × 290 mm (14.88 × 14.88 × 11.42")
• Weight with mount: 3.4 kg (7.5 lb)
• Frequency: 5.1–5.9 GHz
• Gain: 23 dBi
• Maximum VSWR: 1.5:1
• Wind survivability: 200 km/h (125 mph)
• Wind loading: 190 N @ 200 km/h (43 lbf @ 125 mph)
• Polarization: Dual Linear
• F/B ratio: 33 dB
• ETSI specification: EN 302 326 DN2
• Mounting: Universal Pole Mount for Ø 38–64 mm (Ø 1.5–2.5") poles
• NDAA compliant: Yes

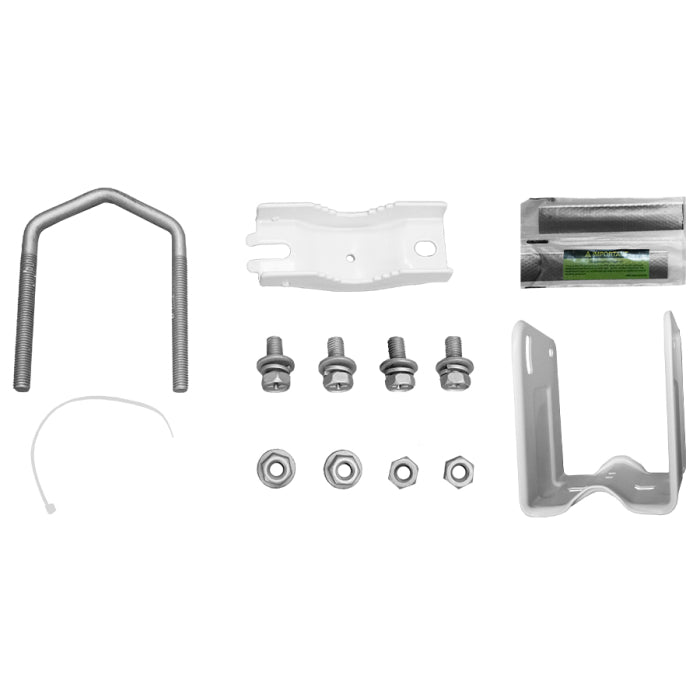

WHAT’S IN THE BOX:

• AF-5G23-S45 Dish Antenna with an integrated radome x1
• Protective Shroud (weatherproofing cover for the radio attachment area) x1
• Universal Pole Mount Bracket and Clamp Bracket x1
• U-Bolt and Fasteners (Hex bolts, flange nuts, hex nuts) x1
• RF Coaxial Jumper Cables (weatherproof cables to link the radio to the dish feed) x1

WARRANTY:

• 12 Months
