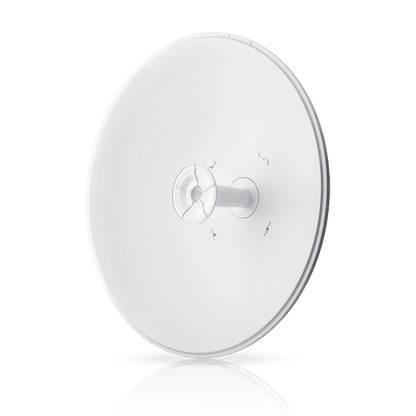

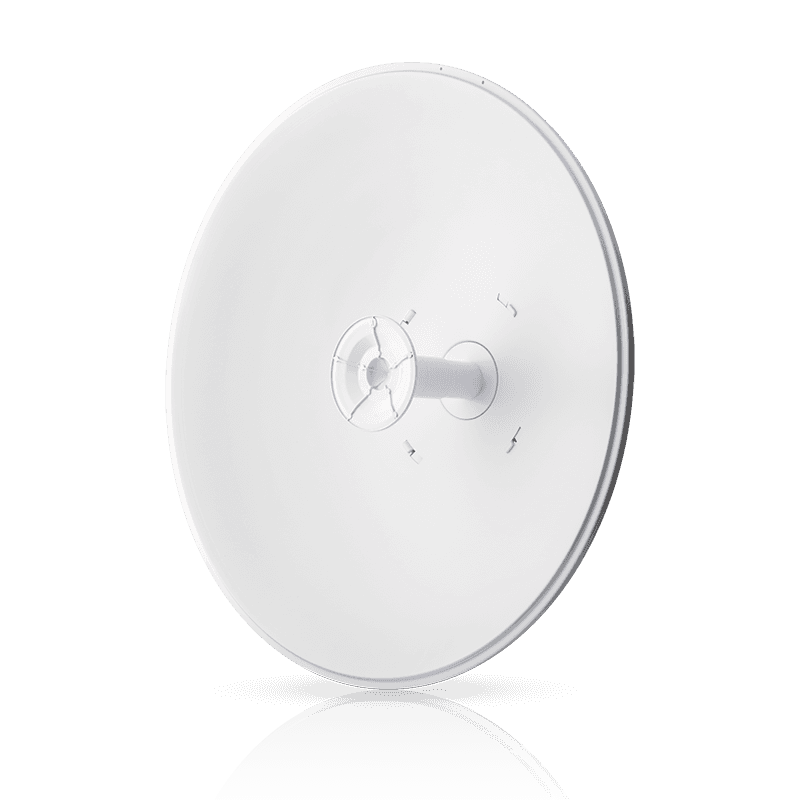

Ubiquiti UISP airFiberX 5GHz 30dBi 45° Slant Dish Antenna

Ubiquiti's AF-5G30-S45 is a 5GHz 30dBi, 45° slanted dish antenna designed to seamlessly integrate with Ubiquity radios. The industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity networks.

FEATURES:

• Native 45° Slant Polarization: By rotating the dual-linear polarization elements by 45 degrees, it dramatically improves the signal-to-noise ratio (SNR) and provides vastly superior RF noise immunity compared to standard horizontal/vertical polarization.
• Carrier-Class 30 dBi Gain: Focuses RF energy into a tight 5° beamwidth (both horizontal and vertical), allowing you to establish highly stable, high-capacity Point-to-Point (PtP) links over extreme distances (often exceeding 10–20+ km depending on conditions).
• Broad 5 GHz Frequency Range: Supports a wide operating frequency spectrum from 4.9 GHz to 5.9 GHz, giving you maximum channel flexibility.
• Excellent Cross-Pol Isolation: Features a cross-pol isolation rating of 35 dB, which ensures that the two independent data streams do not cause destructive self-interference.

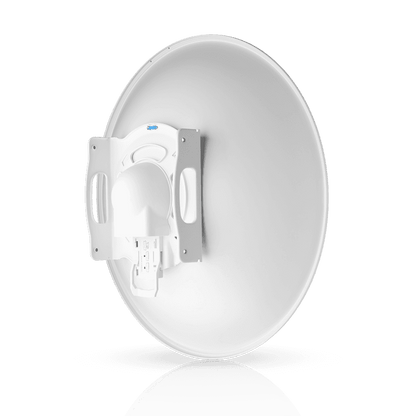

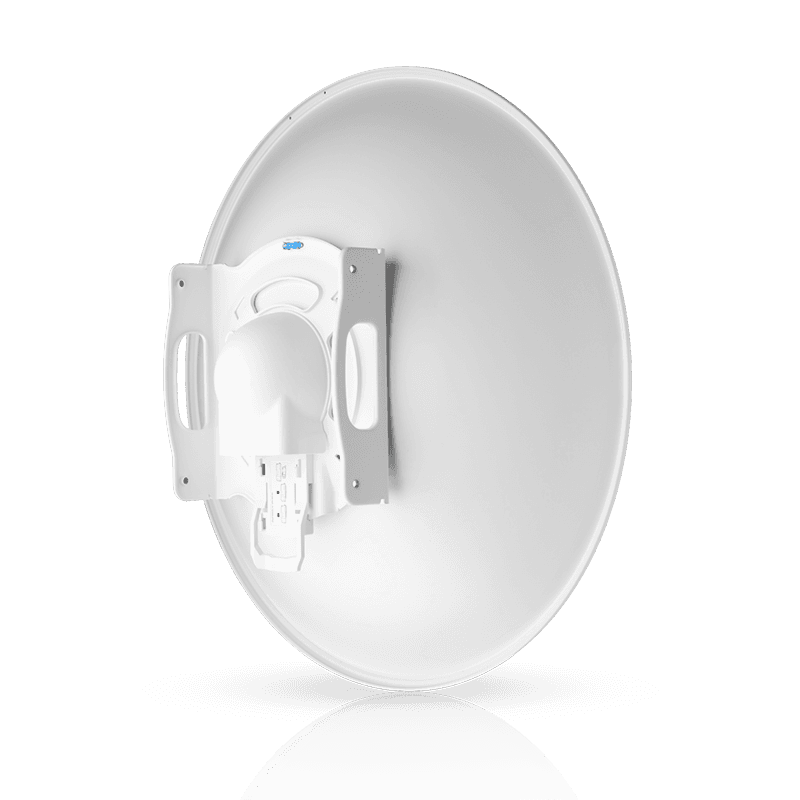

• Toolless airFiber Integration: The rear of the dish features a built-in mounting plate. An airFiber 5X or AF-5XHD radio snaps directly onto the dish frame securely without requiring extra brackets or tools.
• Ruggedized Construction: Built with industrial-grade materials to withstand harsh weather, featuring a wind survivability rating of 200 km/h (125 mph).

SPECIFICATIONS:

• Dimensions: 650 × 650 × 386 mm (25.6 × 25.6 × 15.2")
• Weight with Mount: 7.4 kg (16.31 lb)
• Frequency: 5.1–5.9 GHz
• Gain: 30 dBi
• Maximum VSWR: 1.6:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 790 N @ 200 km/h (178 lbf @ 125 mph)
• Polarization: Dual Linear
• F/B Ratio: 30 dB
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included
• NDAA Compliant: Yes

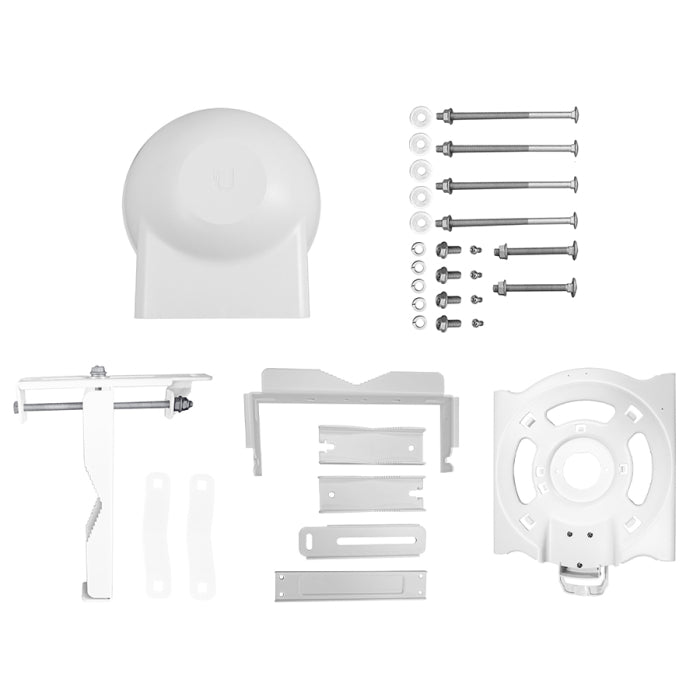

WHAT’S IN THE BOX:

• Dish Reflector: The 650 mm solid aluminum dish. x1
• Antenna Feed: The native Slant 45 center feedhorn assembly. x1
• Main Mounting Bracket & Elevation Rod: Heavy-duty rear mounting assembly with manual tilt adjustment. x1
• Pole Clamps & Stabilizer Brackets: Heavy-duty tower-mounting clamps. x1
• Weatherproof RF Coaxial Cables: Waterproof jumper cables to connect the radio to the feedhorn. x2
• Protective Shroud: A snap-on plastic cover to shield the radio and RF connections from wind, rain, and UV exposure. x1
• Hardware Pack: Complete set of carriage bolts, hex nuts, lock washers, and assembly screws. x1

WARRANTY:

• 12 Months
