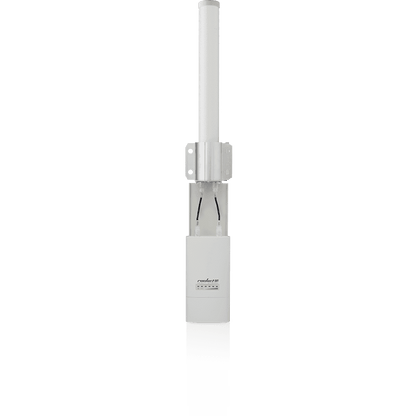

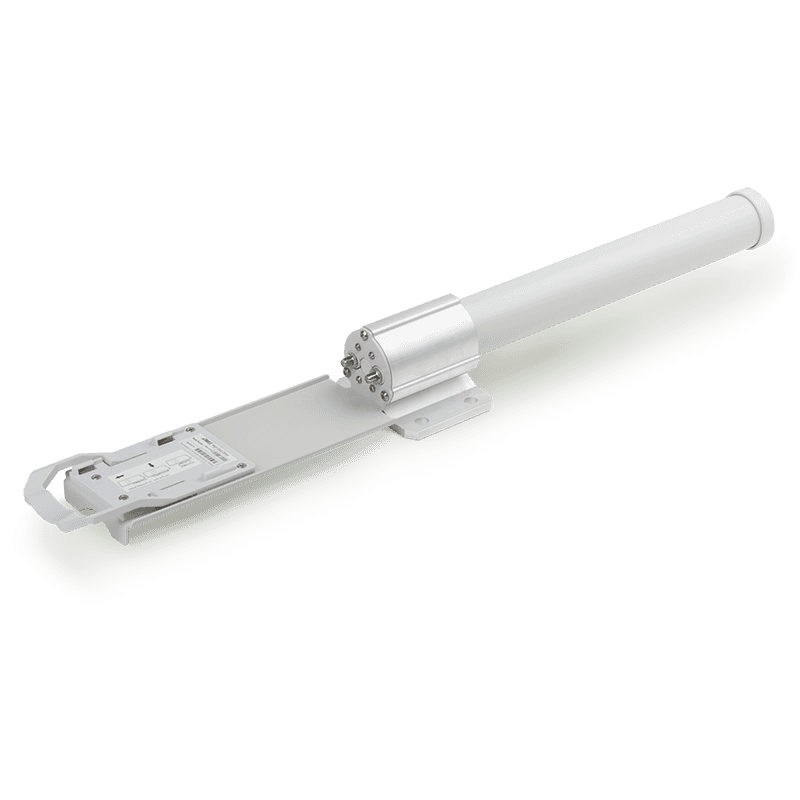

Ubiquiti UISP airMAX 5GHz 10dBi Omni Antenna

Ubiquiti's AMO-5G10 is a 5GHz 10dBi, 360° airMAX Omni antenna designed to seamlessly integrate with Ubiquiti Radio's.

*Note: Radio not included.

FEATURES:

• 360° Coverage: Provides full omnidirectional signal propagation to connect multiple local client stations at once.
• 2x2 Dual-Polarity MIMO: Combines horizontal and vertical polarization to maximize throughput and network efficiency.

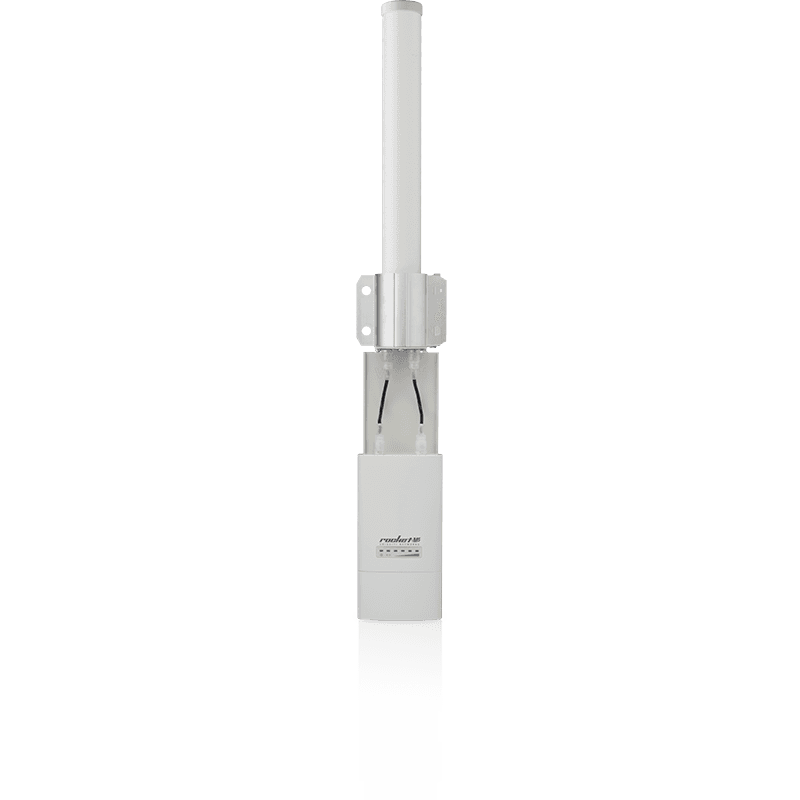

• Plug-and-Play Integration: Features a built-in bracket to mount a compatible Rocket radio (like the Rocket M5 or Rocket Prism) onto the antenna shell without tools.
• Durable Outdoor Build: Weatherproof design engineered to withstand wind loads up to 200 km/h (125 mph).

SPECIFICATIONS:

• Dimensions: 582 × 90 × 65 mm (22.9 × 3.5 × 2.6")
• Weight: 680 g (1.5 lb)
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 44.5 N at 160 km/h (10 lbf at 100 mph)
• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
• Downtilt: 4°
• Frequency Range: 5.45–5.85 GHz
• Antenna Gain: 10 dBi
• Elevation Beamwidth: 12°
• Max. VSWR: 1.6:1
• Polarization: Dual-Linear
• Cross-Pol Isolation: 25 dB Min.
• ETSI Specification: EN 302 326 DN2
• NDAA Compliant: yes

WHAT’S IN THE BOX:

• AMO-5G10 Omni Antenna x1

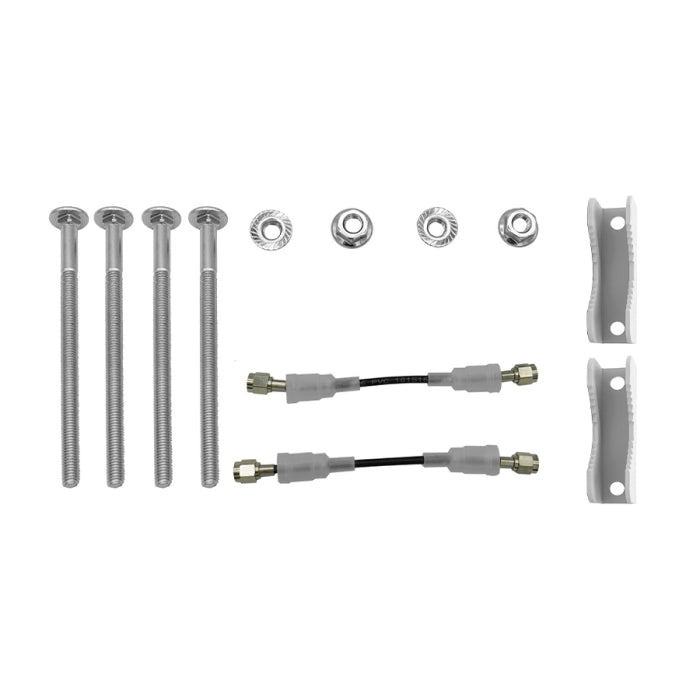

• Pole Clamps & Hardware (2 clamps, 4 bolts, 4 nuts) x1
• Weatherproof RF Cables / Jumpers x2

WARRANTY:

• 12 Months
