Ubiquiti UISP airMAX 5GHz 13dBi Omni Antenna

Ubiquiti's AMO-5G13 is a 5GHz 13dBi, 360° airMAX Omni antenna designed to seamlessly integrate with Ubiquiti Radio's.

*Note: Radio not included.

FEATURES:

• Operates in the 5.45–5.85 GHz frequency range
• 13 dBi gain with 360° coverage and 7° elevation beamwidth
• 2x2 dual-polarity MIMO support
• Cross-polarization isolation ≥ 25 dB
• Maximum VSWR: 1.5:1
• Weatherproof RF connectors
• Withstands wind speeds up to 200 km/h (125 mph)
• Includes universal pole mount and integrated Rocket mount

SPECIFICATIONS:

• Dimensions: 799 × 90 × 65 mm (31.5 × 3.5 × 2.6")
• Weight: 820 g (1.8 lb)
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 84.52 N at 200 km/h (19 lbf at 125 mph)
• Downtilt: 2°

• Frequency Range: 5.45–5.85 GHz
• Antenna Gain: 13 dBi
• Elevation Beamwidth: 7°
• Max. VSWR: 1.5:1
• Polarization: Dual-Linear
• Cross-Pol Isolation: 25 dB Min.
• ETSI Specification: EN 302 326 DN2
• NDAA Compliant: yes

WHAT’S IN THE BOX:

• AMO-5G13 Omni Antenna x1

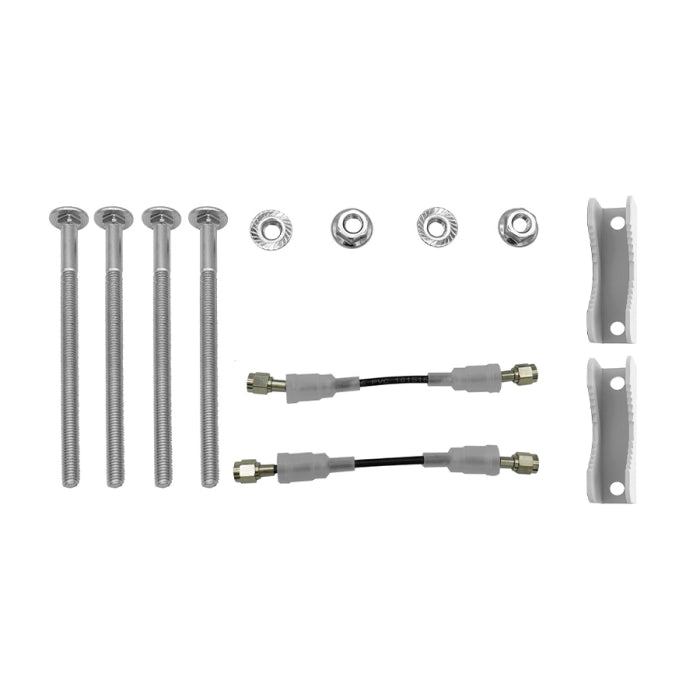

• Universal Pole Mount & Clamping Hardware x1
• Weatherproof RF Jumper Cables x2

WARRANTY:

• 12 Months
