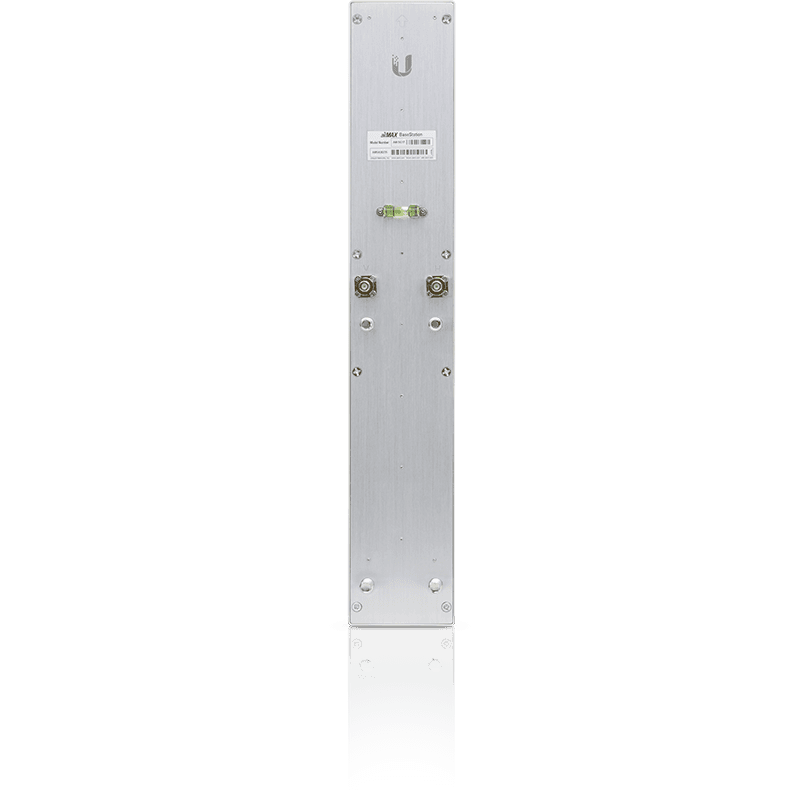

Ubiquiti UISP airMAX 5GHz 16dBi 120° Sector Antenna

Ubiquiti's AM-5G16-120 is a 5GHz 16dBi, 120° airMAX sector antenna designed to seamlessly integrate with Ubiquiti Radios. The antenna features excellent cross-polarization isolation for improved noise resistance and superior beam performance.

*Note: Radio not included.

FEATURES:

• Frequency Range: Operates from 5.10 to 5.85 GHz.
• Antenna Gain: Delivers 15.0 to 16.0 dBi of gain for strong signal coverage.
• Sector Coverage: Features a 120° horizontal beamwidth, ideal for Point-to-MultiPoint (PtMP) networks.
• Dual-Polarity 2x2 MIMO: Uses dual linear polarization to improve throughput and reduce noise interference.
• Seamless Integration: Includes a built-in mount that allows compatible Ubiquiti Rocket radios to snap securely into place without special tools.
• Durable Outdoor Design: Built to withstand harsh weather conditions and wind speeds up to 200 km/h (125 mph).

SPECIFICATIONS:

• Dimensions: 367 × 63 × 41 mm (14.4 × 2.5 × 1.6")
• Weight: 1.1 kg (2.4 lb)
• Frequency Range: 5.10–5.85 GHz
• Gain: 15.0–16.0 dBi
• HPOL Beamwidth: 137° (6 dB)
• VPOL Beamwidth: 118° (6 dB)
• Electrical Beamwidth: 8°
• Electrical Downtilt: 4°
• Max. VSWR: 1.5:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 26 N @ 160 km/h (6 lbf @ 100 mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 22 dB minimum
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, RocketM Bracket, and weatherproof RF jumpers included

WHAT’S IN THE BOX:

• Universal Pole Mount (clamps and bolts for attaching to a mast or pole) x1
• RocketM Mounting Bracket (built-in snap-to-fit mount for a Rocket radio) x1
• Weatherproof RF Jumpers / Pigtails (short coaxial cables to connect the radio to the antenna) x1
• Installation Guide / Quick Start Manual x1

WARRANTY:

• 12 Months
