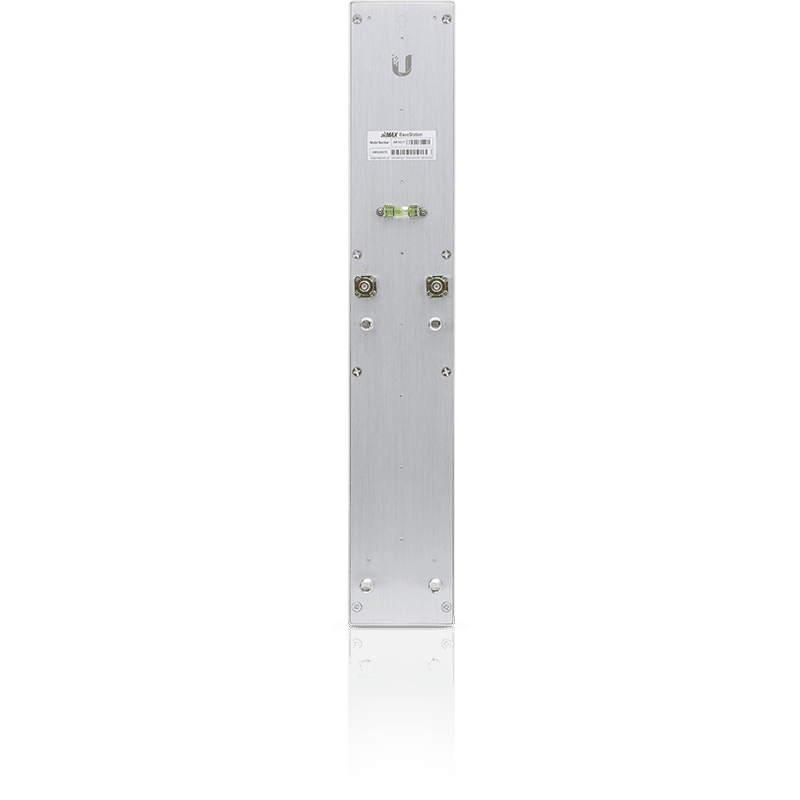

Ubiquiti UISP airMAX 5GHz 17dBi 90° Sector Antenna

Ubiquiti's AM-5G17-90 is a 5GHz 17dBi, 90° airMAX sector antenna designed to seamlessly integrate with Ubiquiti Radios. The antenna features excellent cross-polarization isolation for improved noise resistance and superior beam performance.

*Note: Radio not included.

FEATURES:

• Frequency Range: Operates across the 5.15 to 5.85 GHz spectrum.
• Higher Gain: Provides 17 dBi of gain, offering slightly longer range and better signal penetration than the 16 dBi version.
• 90° Beamwidth: Offers a narrower 90-degree horizontal coverage angle, allowing for higher density deployment and less noise overlap compared to a 120-degree sector.
• Dual-Polarity 2x2 MIMO: Uses dual linear polarization (Vertical and Horizontal) to maximize data throughput.
• Rocket Integration: Features a built-in snap-in mount on the back, allowing a Rocket radio (like the Rocket M5 or Rocket 5AC) to lock into place securely without tools.
• Industrial-Grade Construction: Engineered for outdoor durability with cross-pol isolation and wind load resistance up to 200 km/h (125 mph).

SPECIFICATIONS:

• Dimensions: 367 × 63 × 41 mm (14.4 × 2.5 × 1.6")
• Weight: 1.1 kg (2.4 lb)
• Frequency Range: 4.90–5.85 GHz
• Gain: 16.1–17.1 dBi
• HPOL Beamwidth: 72° (6 dB)
• VPOL Beamwidth: 93° (6 dB)
• Electrical Beamwidth: 8°
• Electrical Downtilt: 4°
• Max. VSWR: 1.5:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 26 N @ 160 km/h (6 lbf @ 100 mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 22 dB minimum
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, RocketM Bracket, and weatherproof RF jumpers included
• NDAA Compliant: Yes

WHAT’S IN THE BOX:

• AM-5G17-90 Antenna Panel x1
• Protective Shroud (weatherproof cover for the radio connection) x1
• Universal Pole Mount Brackets (includes U-bolts, clamps, and hardware for mast mounting) x1
• Weatherproof RF Jumpers (SMA-to-SMA pigtail cables to connect the antenna to the radio) x2
• Quick Start Guide x1

WARRANTY:

• 12 Months
