Ubiquiti UISP airMAX 5GHz 19dBi 120° Sector Antenna

Ubiquiti's AM-5G19-120 is a 5GHz 19dBi, 120° airMAX sector antenna designed to seamlessly integrate with Ubiquiti Radios. The antenna features excellent cross-polarization isolation for improved noise resistance and superior beam performance.

*Note: Radio not included.

FEATURES:

• Frequency Range: Operates within the 5.15 to 5.85 GHz wireless spectrum.
• High 19 dBi Gain: Provides a significant power boost over smaller models, allowing for longer reach and better signal quality for distant client stations.
• 120° Wide Beamwidth: Delivers a broad horizontal coverage angle, allowing a single sector to serve a wide footprint of subscribers.
• Dual-Polarity 2x2 MIMO: Combines vertical and horizontal polarization to optimize throughput and maintain stability in noisy environments.
• Integrated Rocket Mount: Features a built-in snap-in bracket on the back, letting you attach a compatible Rocket radio securely without any additional tools.
• Robust Wind & Weather Resistance: Built with industrial-strength construction to handle harsh outdoor elements and survive wind loads up to 200 km/h (125 mph).

SPECIFICATIONS:

• Dimensions: 700 × 135 × 73 mm (27.6 × 5.3 × 2.9")
• Weight: 5.9 kg (13 lb)
• Frequency Range: 5.15–5.85 GHz
• Gain: 18.6–19.1 dBi
• HPOL Beamwidth: 123° (6 dB)
• VPOL Beamwidth: 123° (6 dB)
• Electrical Beamwidth: 4°
• Electrical Downtilt: 2°
• Max. VSWR: 1.5:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 89 N @ 160 km/h (20 lbf @ 100 mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 28 dB minimum
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, RocketM Bracket, and weatherproof RF jumpers included

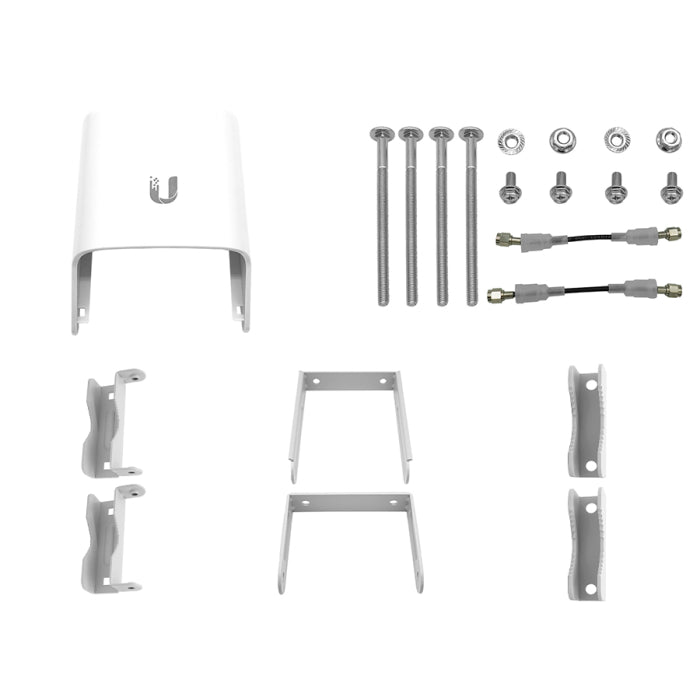

WHAT’S IN THE BOX:

• AM-5G19-120 Antenna Panel x1
• Protective Shroud (weatherproof cover to protect the radio and RF cables) x1
• Universal Pole Mount Brackets (heavy-duty clamps, elevation tilt brackets, and hardware for mast mounting) x1
• Weatherproof RF Jumpers (SMA-to-SMA pigtail cables to bridge the antenna to the radio) x2
• Quick Start Guide x1

WARRANTY:

• 12 Months
