Ubiquiti UISP airMAX 5GHz 20dBi 90° Sector Antenna

Ubiquiti's AM-5G20-90 is a 5GHz 20dBi, 90° airMAX sector antenna designed to seamlessly integrate with Ubiquiti Radios. The antenna features excellent cross-polarization isolation for improved noise resistance and superior beam performance.

*Note: Radio not included.

FEATURES:

• Frequency Range: Operates across the 5.15 to 5.85 GHz spectrum.
• Maximum 20 dBi Gain: Offers the highest gain in the airMAX 5 GHz sector lineup, providing maximum distance and excellent signal penetration for far-away client nodes.
• 90° Beamwidth: Features a tighter 90-degree horizontal coverage angle, which reduces noise interference from the sides and enables higher-density sector deployments.
• Dual-Polarity 2x2 MIMO: Combines vertical and horizontal polarization to ensure stable throughput and high data rates in congested environments.
• Plug-and-Play Rocket Mount: Equipped with a built-in snap-in bracket on the back, allowing a compatible Rocket radio (like the Rocket 5AC) to be installed securely without tools.
• Carrier-Class Durability: Designed with industrial-grade construction and advanced RF isolation to withstand harsh outdoor elements and wind speeds up to 200 km/h (125 mph).

SPECIFICATIONS:

• Dimensions: 700 × 135 × 70 mm (27.6 × 5.3 × 2.8")
• Weight: 5.9 kg (13 lb)
• Frequency Range: 5.15–5.85 GHz
• Gain: 19.4–20.3 dBi
• HPOL Beamwidth: 91° (6 dB)
• VPOL Beamwidth: 85° (6 dB)
• Electrical Beamwidth: 4°
• Electrical Downtilt: 2°
• Max. VSWR: 1.5:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 115 N @ 160 km/h (26 lbf @ 100 mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 28 dB minimum
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, RocketM Bracket, and weatherproof RF jumpers included
• NDAA Compliant: Yes

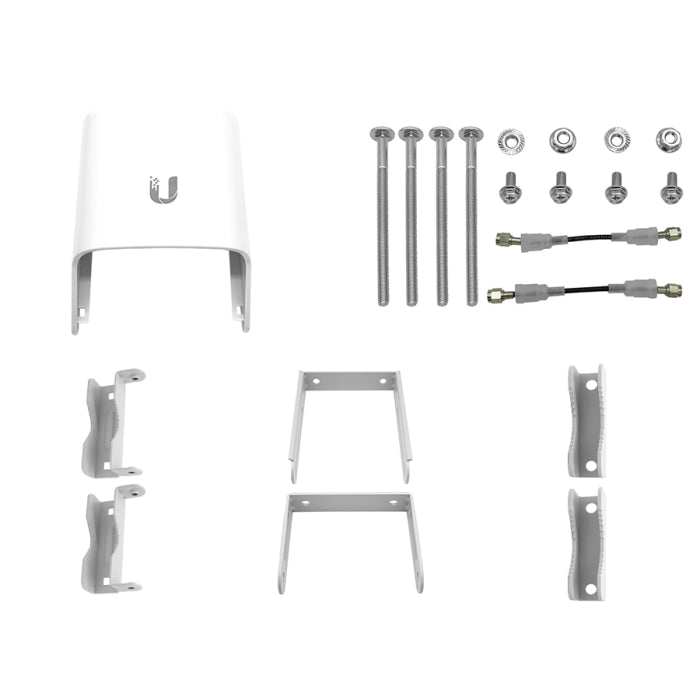

WHAT’S IN THE BOX:

• AM-5G20-90 Antenna Panel x1
• Protective Shroud (weatherproof cover for the radio connection and RF cables) x1
• Universal Pole Mount Brackets (heavy-duty elevation tilt brackets, U-bolts, clamps, and hardware for mast mounting) x1
• Weatherproof RF Jumpers (SMA-to-SMA pigtail cables to connect the antenna to the radio) x2
• Quick Start Guide x1

WARRANTY:

• 12 Months
