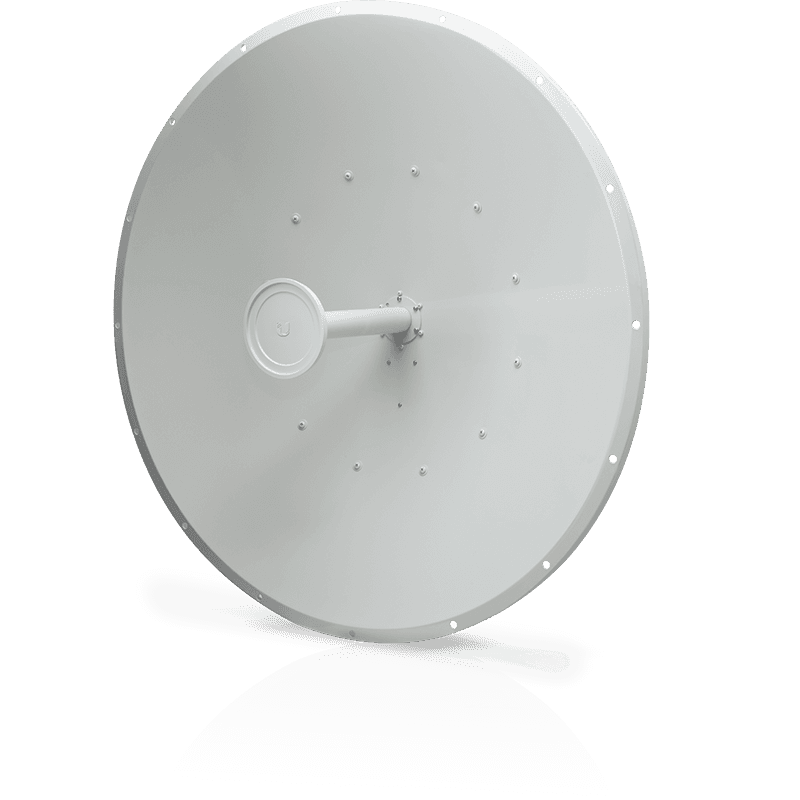

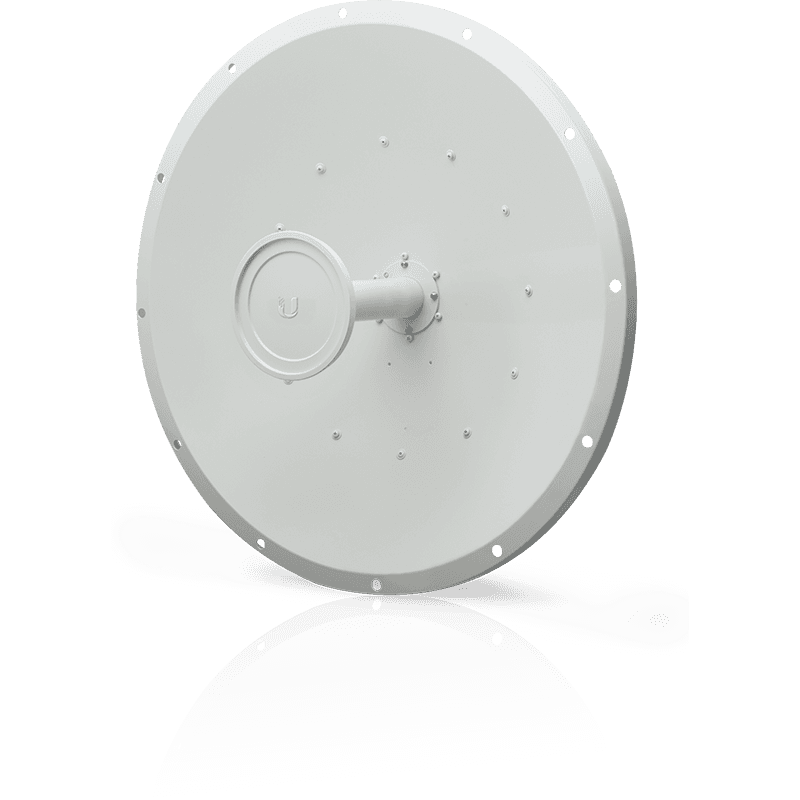

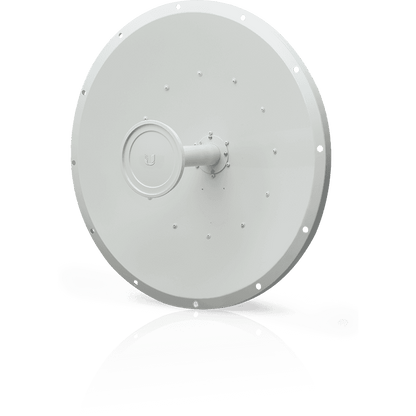

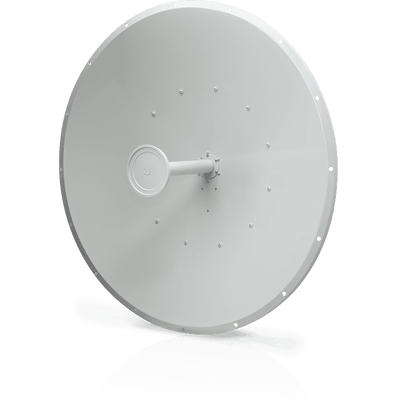

Ubiquiti UISP airMAX 5GHz 30dBi Dish Antenna

Ubiquiti's RD-5G30 is a 5GHz 30dBi dish antenna designed to seamlessly integrate with the Ubiquiti Radios.

Incorporating a dish reflector design for excellent beam directivity, the AIR-D530 features a robust mechanical design using industrial-strength hardware for outdoor applications.

*Note: Radio not included.

FEATURES:

• High-Gain Focused Performance: Delivers a powerful 30 dBi gain combined with a tight 5° beamwidth in both horizontal and vertical planes. This tight beam focus is designed for long-distance Point-to-Point (PtP) links spanning several kilometres.
• Broad Frequency Support: Operates seamlessly across the 4.9 GHz to 5.9 GHz spectrum. Note: It offers 26 dBi gain at the lower 4.9 GHz public safety band and full 30 dBi gain across the 5 GHz range.
• Dual-Linear Polarization: Utilizes horizontal and vertical polarization concurrently to maximize link capacity and throughput when paired with 2x2 MIMO Rocket base stations.
• Excellent Front-to-Back Isolation: Features a -34 dB front-to-back ratio, which blocks out standard interference originating behind the antenna array.
• Toolless Rocket Integration: Built with a specialized sliding mount on the rear. A compatible radio like the Rocket Prism 5AC or Rocket M5 snaps directly onto the dish frame without requiring any mounting tools.
• Rugged Mechanical Reliability: Weighing in at a substantial 9.8 kg, the dish body uses thicker, more heavy-set industrial metals than its "LW" counterpart. This rigid design minimizes dish deformation under extreme conditions and maintains a wind survivability rating of 200 km/h (125 mph).

SPECIFICATIONS:

• RD-5G30
• Dimensions: 650 × 650 × 304 mm (25.6 × 25.6 × 11.97")
• Weight: 9.8 kg (21.61 lb)
• Frequency Range: 4.9–5.8 GHz
• Gain: 4.9 GHz: 26 dBi; 5–5.9 GHz: 30 dBi
• HPOL Beamwidth: 5° (3 dB)
• VPOL Beamwidth: 5° (3 dB)
• F/B Ratio: 34 dB
• Maximum VSWR: 1.4:1
• Wind Loading: 787 N @ 200 km/h (177 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 35 dB minimum
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors included
• NDAA Compliant: Yes

WHAT’S IN THE BOX:

• Dish Reflector (The 650 mm solid metal dish) x1
• Antenna Feed (The center feedhorn assembly) x1
• Main Mounting Bracket & Elevation Rod (Heavy-duty rear bracket with an M16 elevation rod for manual tilt adjustment) x1
• Pole Clamps x2
• Stabilizer Brackets x2
• Weatherproof RF Coaxial Cables x2
• Protective Shroud (Slid-on plastic shield that covers the attached radio and RF connections from rain and UV exposure) x1
• Hardware Pack (Complete set of carriage bolts, hex nuts, lock washers, and specialized M4 feed screws) x1

WARRANTY:

• 12 Months
