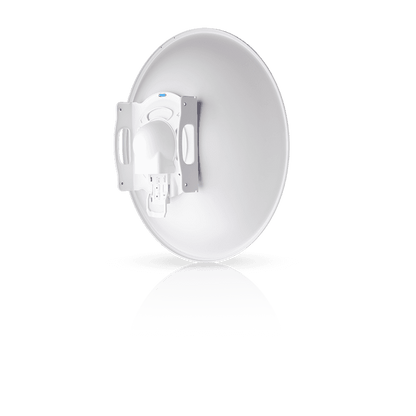

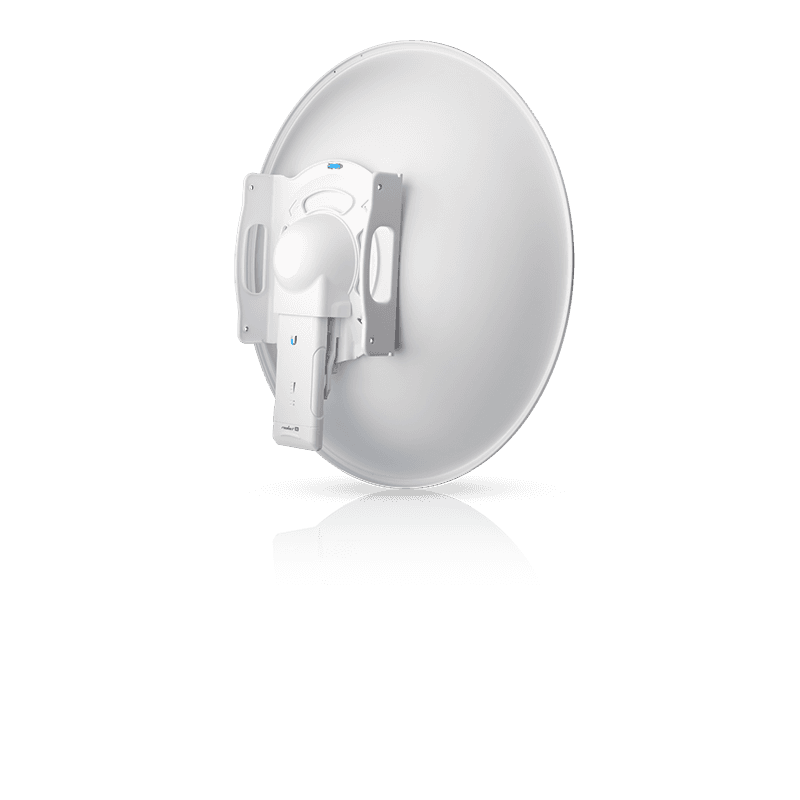

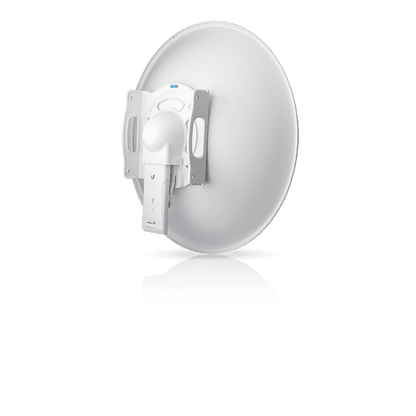

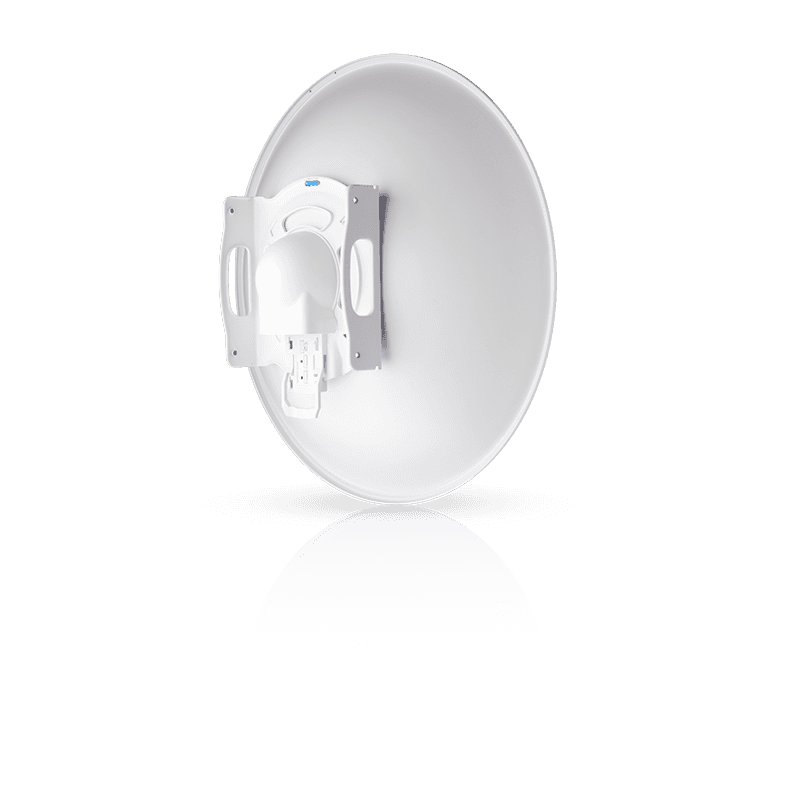

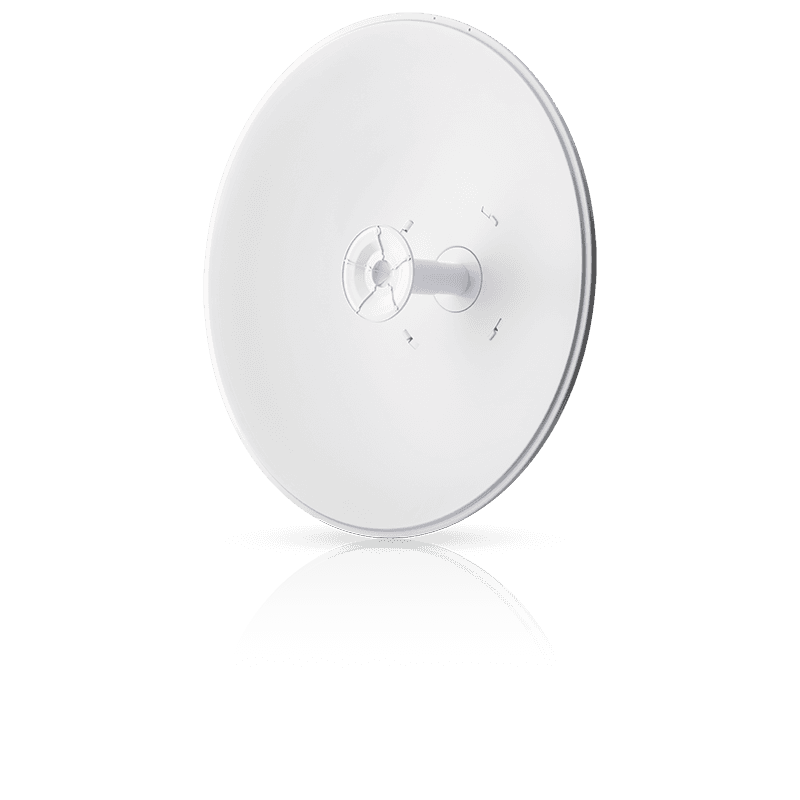

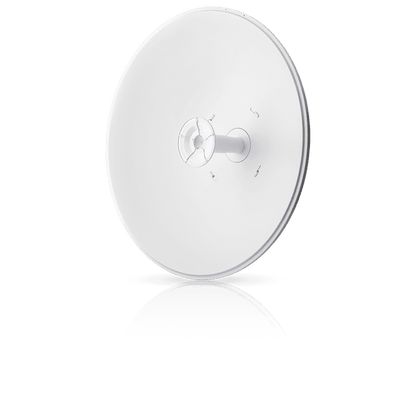

Ubiquiti UISP airMAX 5GHz 30dBi Light Weight Dish Antenna

Ubiquiti's AIR-D530LW is a 5GHz 30dBi lightweight dish antenna designed to seamlessly integrate with the Ubiquiti Radios.

*Note: Radio not included.

FEATURES:

• Operates in the 5.1–5.9 GHz frequency band
• 30 dBi gain with a narrow 5.8° beamwidth
• Extended-depth dish reflector for noise reduction
• Dual-linear polarisation with ≥35 dB cross-polarisation isolation
• Withstands wind speeds up to 200 km/h (125 mph)
• Wind loading: 790 N at 200 km/h
• Includes universal pole mount, Rocket bracket, and weatherproof RF connectors
• Compatible with Rocket radios
• Optional Precision Alignment Kit for fine azimuth and elevation adjustment

SPECIFICATIONS:

• Dimensions: 650 × 650 × 386 mm (25.6 × 25.6 × 15.2")
• Weight: 7.4 kg (16.31 lb)
• Frequency Range: 5.1–5.9 GHz
• Gain: 30 dBi
• HPOL Beamwidth: 5.8° (3 dB)
• VPOL Beamwidth: 5.8° (3 dB)
• F/B Ratio: 30 dB
• Maximum VSWR: 1.6:1
• Wind Loading: 790 N @ 200 km/h (178 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 35 dB minimum
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors included
• NDAA Compliant: Yes

WHAT’S IN THE BOX:

• Dish Reflector: The 650 mm extended-depth aluminum dish [RD-5G30-LW]. x1
• Antenna Feed: The center dual-linear feedhorn. x1
• Rear Housing & Main Bracket: A integrated assembly featuring a slotted quick-mount layout. x1
• Pole Clamps & U-Bolts: Heavy-duty hardware to secure the mount to a mast.
• RF Weatherproof Jumper Cables: Coaxial cables to connect your radio to the antenna feed. x2
• Protective Shroud: A snap-on plastic cover that shields the radio cavity and RF jumpers from rain, wind, and UV damage. x1
• Fastener Kit: All necessary screws, washers, and nuts required for structural assembly. x1

WARRANTY:

• 12 Months
