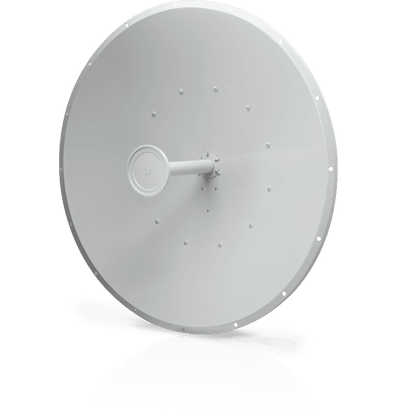

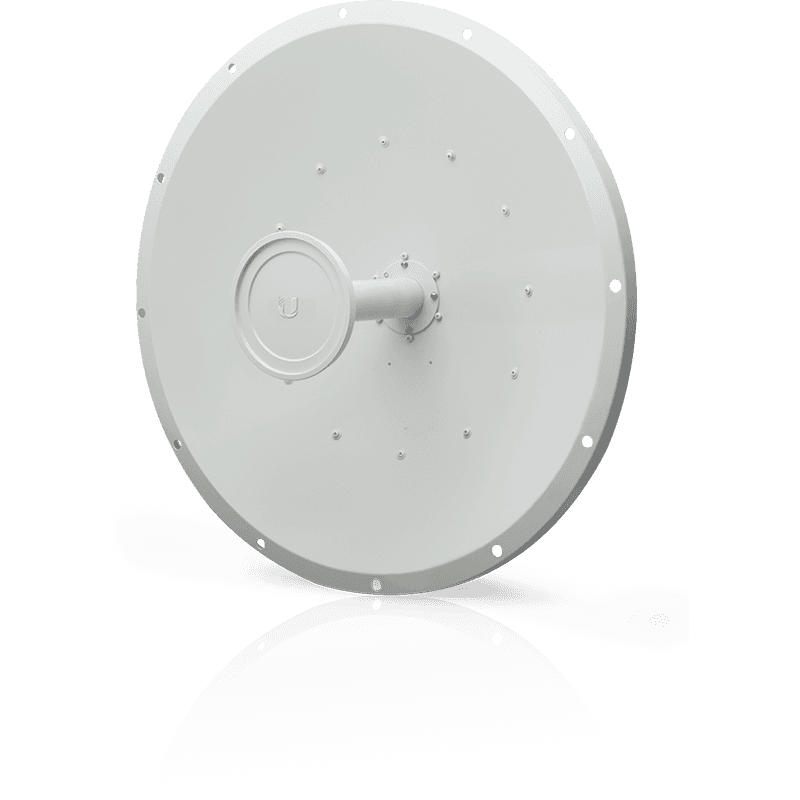

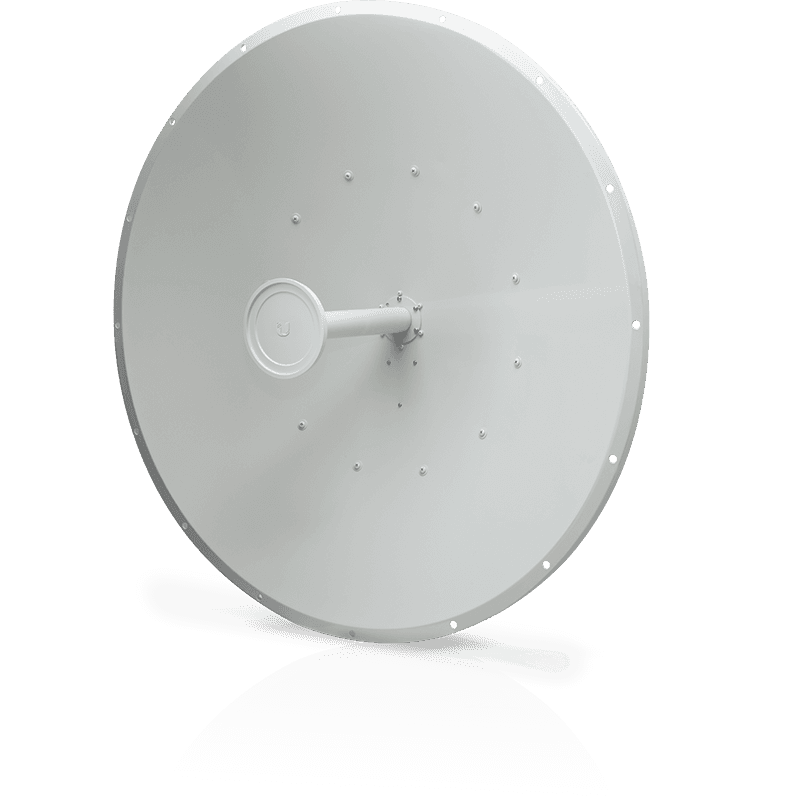

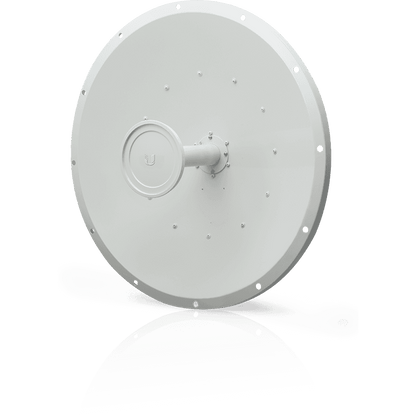

Ubiquiti UISP airMAX 5GHz 34dBi Dish Antenna

Ubiquiti's RD-5G34 is a 5GHz 34dBi dish antenna designed to seamlessly integrate with the Ubiquiti Radios.

Incorporating a dish reflector design for excellent beam directivity, the AIR-D534 features robust mechanical design using industrial-strength hardware for outdoor applications.

*Note: Radio not included.

FEATURES:

• Maximum 34 dBi Gain: Focuses RF energy into a razor-thin 3° beamwidth. This incredibly narrow focus directs all energy straight at the remote side, allowing you to establish stable links over massive distances (often exceeding 30–50+ km assuming a clear line of sight).
• Dual-Linear Polarization: Concurrently handles horizontal and vertical waves to allow 2x2 MIMO operation with compatible base stations.
• Extremely High Isolation: Delivers a -42 dB front-to-back ratio and a minimum of 35 dB cross-pol isolation. This prevents the antenna from hearing noise generated by other radios behind or to the sides of it on a crowded tower.
• Toolless Base Station Integration: Features the signature sliding rocket mount on the back plate. A radio like the Rocket Prism 5AC snaps directly into place without needing extra tools.
• Broad 5 GHz Coverage: Operates efficiently across the 4.9 GHz to 5.8 GHz frequency range (providing 30 dBi gain at 4.9 GHz and peaking at a full 34 dBi across the standard 5 GHz band).

SPECIFICATIONS:

• Dimensions: 1050 × 1050 × 421 mm (41.34 × 41.34 × 16.57")
• Weight: 13.5 kg (29.76 lb)
• Frequency Range: 4.9–5.8 GHz
• Gain: 4.9 GHz: 30 dBi; 5–5.8 GHz: 34 dBi
• HPOL Beamwidth: 3° (3 dB)
• VPOL Beamwidth: 3° (3 dB)
• F/B Ratio: 42 dB
• Maximum VSWR: 1.4:1
• Wind Loading: 1,779 N @ 200 km/h (400 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 35 dB minimum
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included

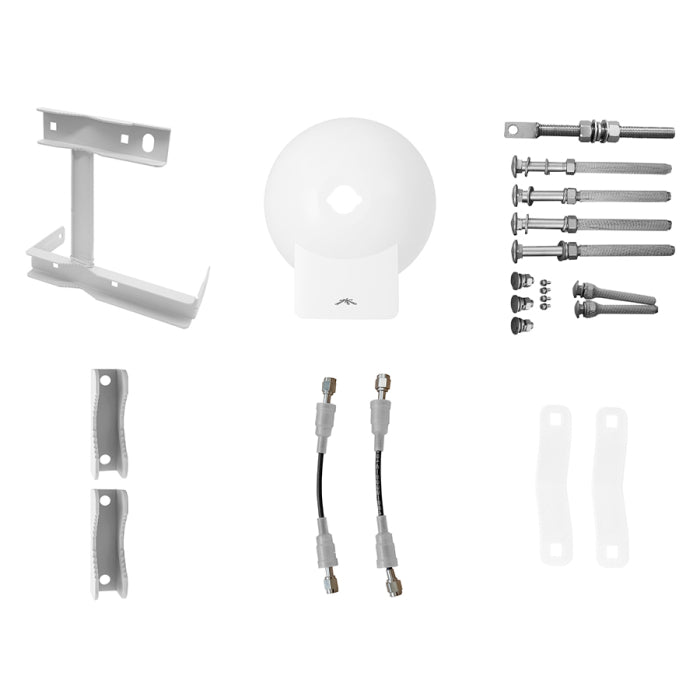

WHAT’S IN THE BOX:

• Dish Reflector: A massive 1,050 mm (1.05-meter) solid aluminum dish.
• Antenna Feed: The center dual-linear feedhorn. x1
• Main Mounting Bracket: A heavy-duty, industrial steel rear bracket assembly. x1
• M16 Elevation Rod: A thick, threaded rod with dual nuts for fine-tuning the tilt angle during alignment.
• Pole Clamps x2
• Stabilizer Brackets: Reinforced tower-mounting clamps to hold the massive structure securely against high winds. x2
• RF Weatherproof Jumper Cables (Qty. 2): SMA-to-SMA coaxial cables to link the radio to the dish feedhorn. x2
• Protective Shroud: A rigid metal/plastic cover that shields the attached radio and RF jumpers from severe outdoor environments. x1
• Fastener Kit: Full set of M12 carriage bolts, M10 bolts, M4 feed screws, washers, and nuts. x1

WARRANTY:

• 12 Months
