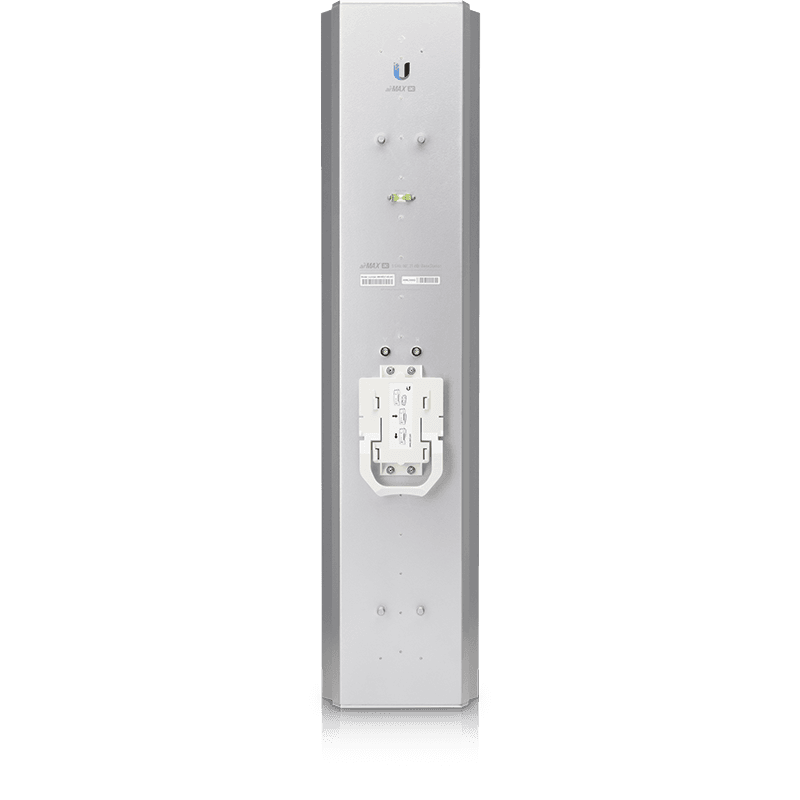

Ubiquiti UISP airMAX AC 5GHz 21dBi 60° Sector Antenna

• High 21 dBi Gain: Offers maximum signal strength and penetration for long-distance client links.
• Focused 60° Beamwidth: Narrower horizontal coverage compared to standard sectors, drastically reducing side-noise and allowing more antennas to be co-located on the same tower.
• Advanced Noise Isolation: Built with an integrated deflector shield that minimizes backlobes and sidelobes, maximizing the Signal-to-Noise Ratio (SNR) in crowded frequency spaces.
• 5 GHz Frequency Range: Operates wide across the 5.10 to 5.85 GHz spectrum.
• Dual-Linear 2x2 MIMO: Combines vertical and horizontal polarization to optimize overall data throughput.
• Toolless Rocket Mount: Features a built-in snap-in bracket on the back for plug-and-play integration with Rocket 5AC and RocketM5 radios.
• Industrial Build: Weatherproof design featuring an integrated bubble level for exact alignment and wind survivability up to 200 km/h.

SPECIFICATIONS:

• Dimensions: 750 × 173 × 78 mm (29.5 × 6.8 × 3")
• Weight: 4.8 kg (10.6 lb)
• Frequency Range: 5.10–5.85 GHz
• Gain: 21 dBi
• HPOL Beamwidth: 60° (6 dBi)
• VPOL Beamwidth: 60° (6 dBi)
• Electrical Beamwidth: 4°
• Electrical Downtilt: 2°
• Max. VSWR: 1.5:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 391 N @ 200 km/h (88 lbf @ 125 mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 25 dB minimum
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, RocketM Bracket, and weatherproof RF jumpers included
• NDAA Compliant: Yes

WHAT’S IN THE BOX:

• AM-5AC21-60 Antenna Panel (featuring a built-in bubble level for precise alignment) x1
• Protective Shroud (weatherproof cover for the radio enclosure) x1
• Universal Pole Mount Brackets (includes heavy-duty U-brackets, slotted brackets, U-bolts, and hardware for mast mounting) x1
• Weatherproof RF Jumpers (XM-style SMA-to-SMA pigtail cables to connect the antenna to the radio) x2
• Quick Start Guide x1

WARRANTY:

• 12 Months
