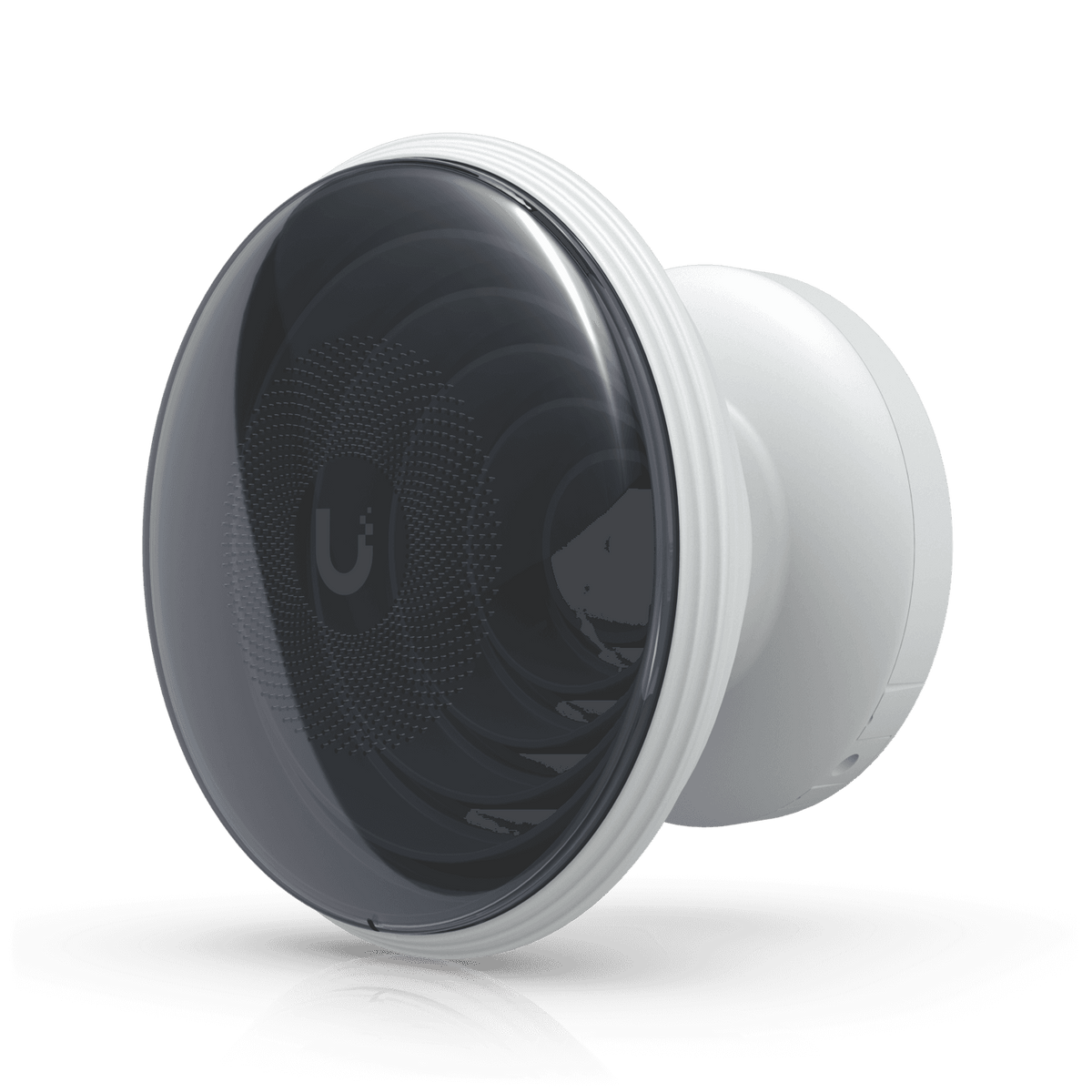

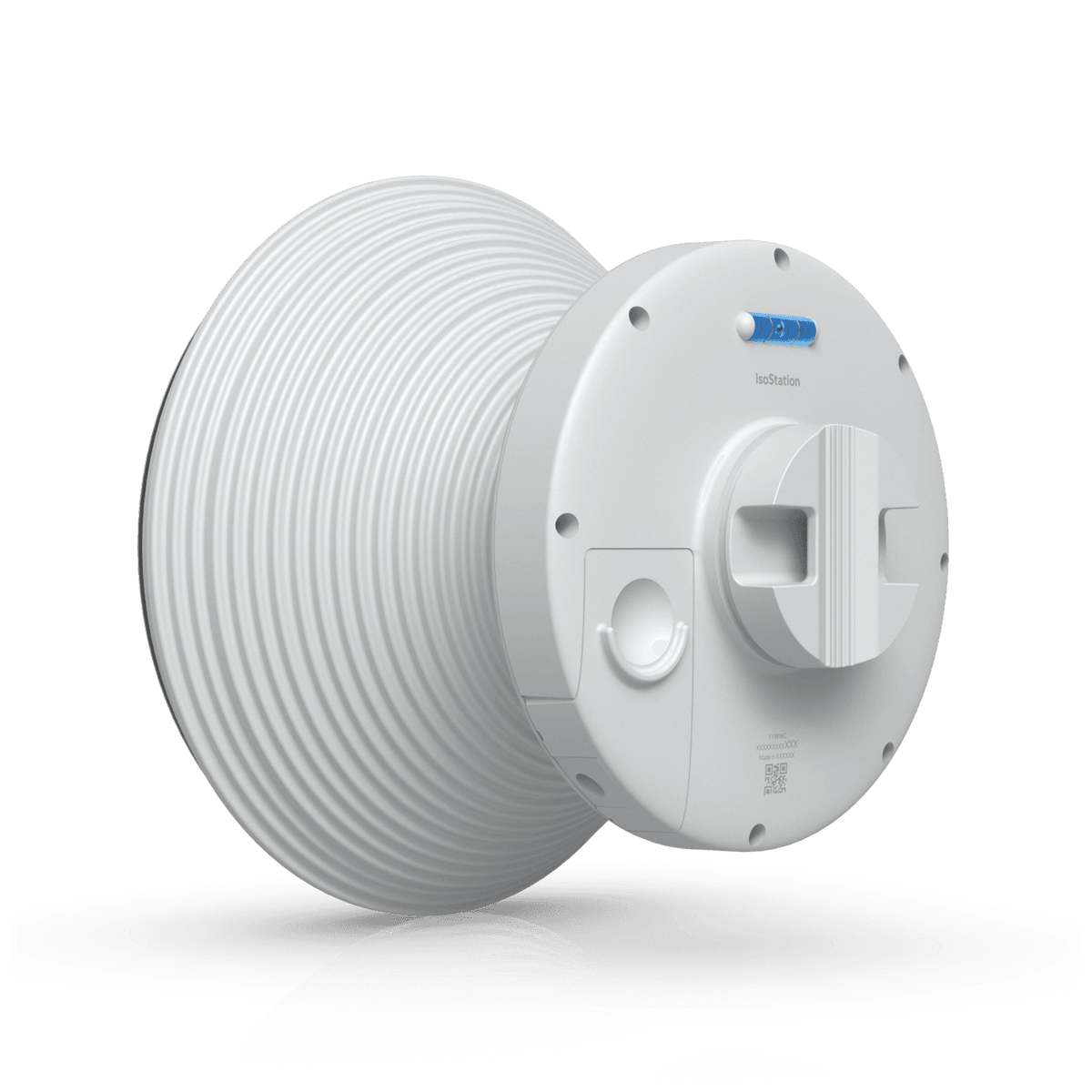

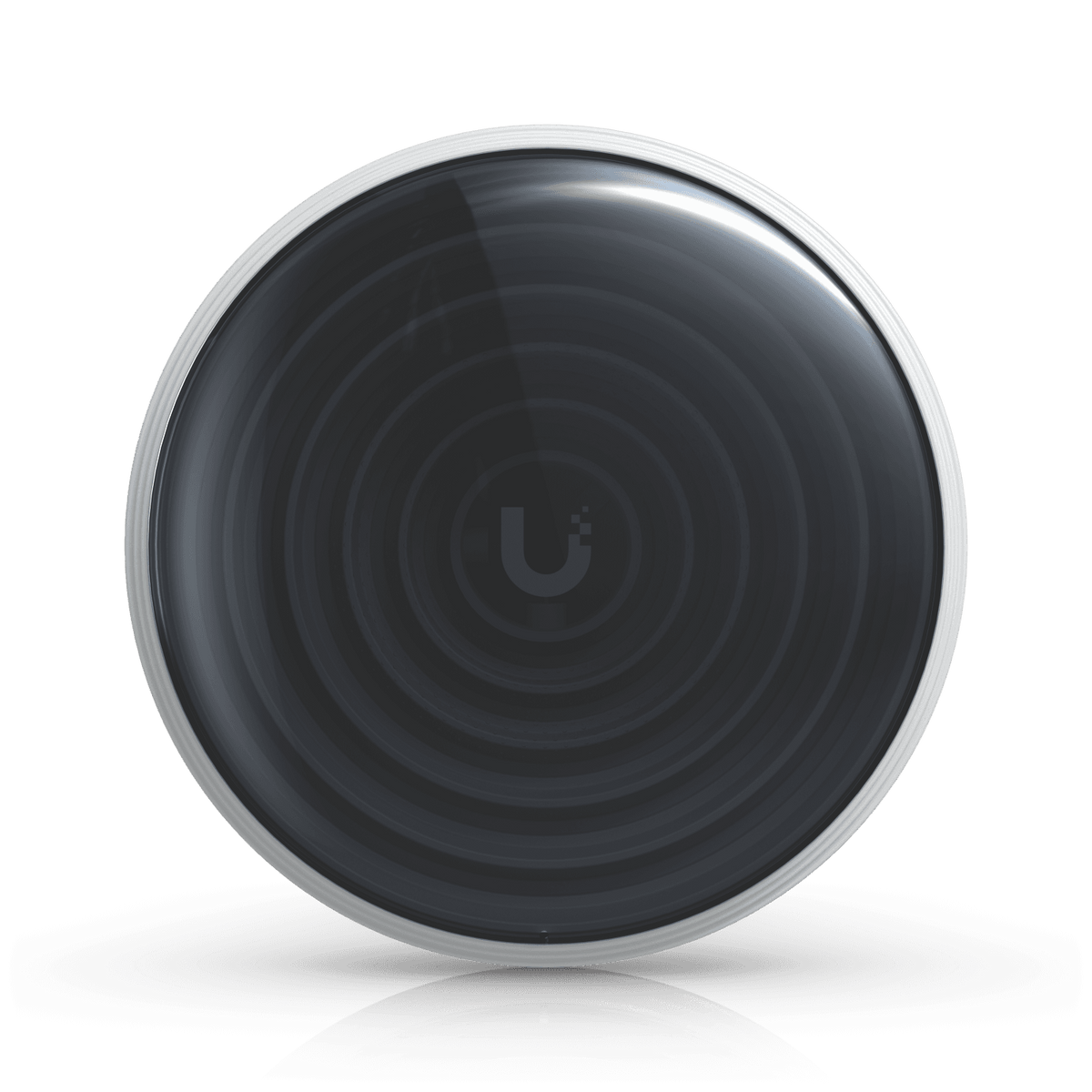

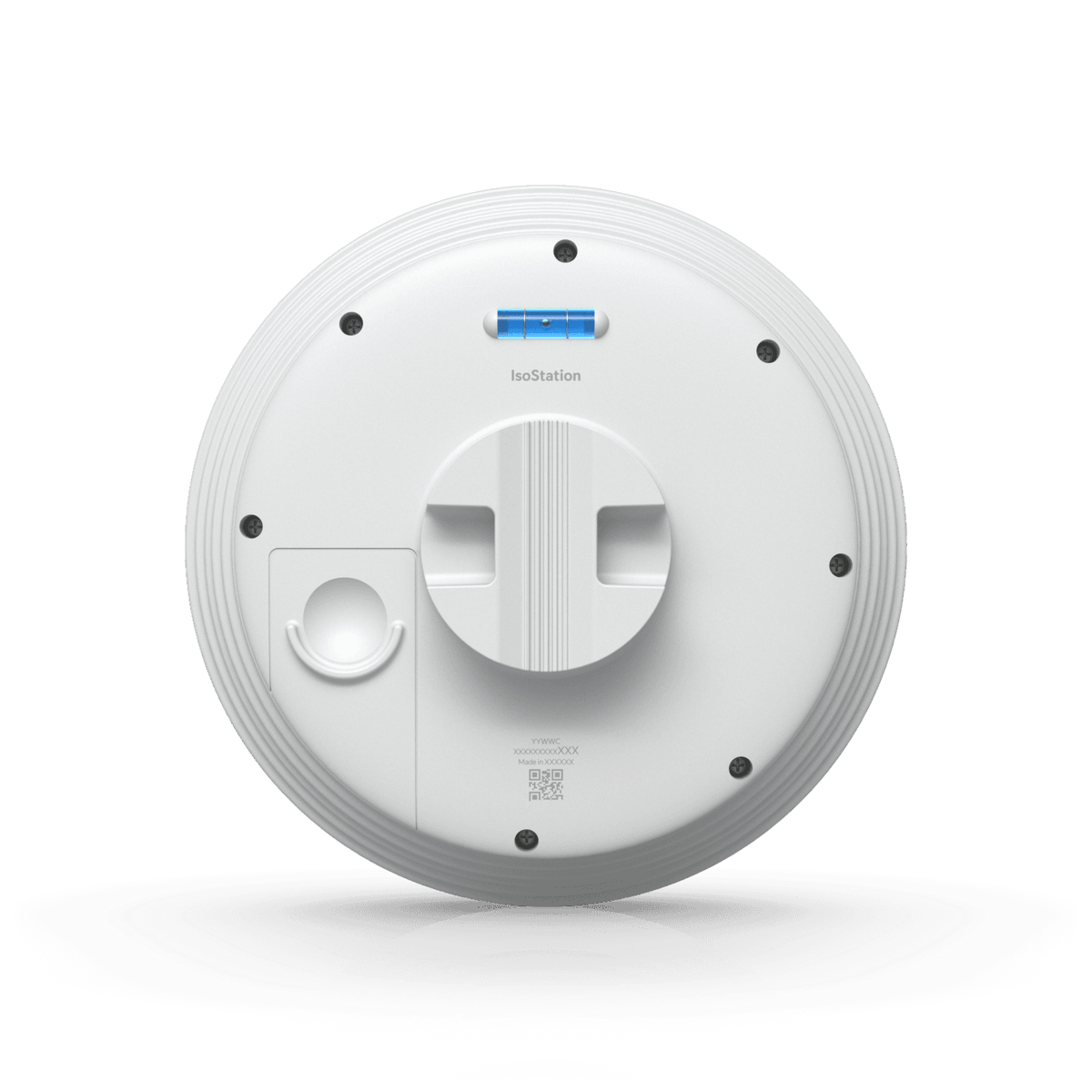

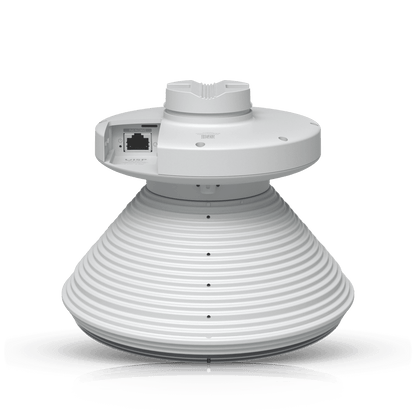

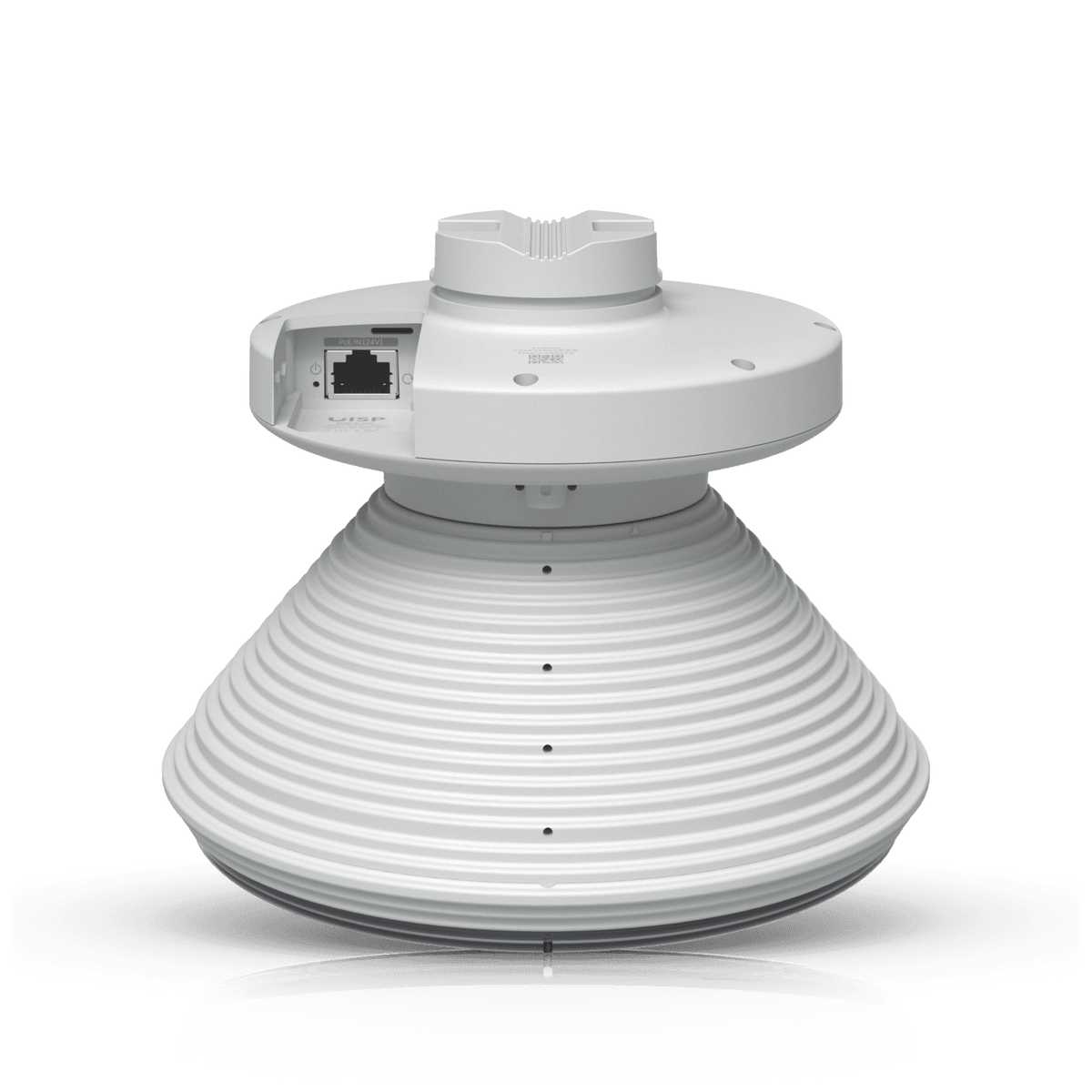

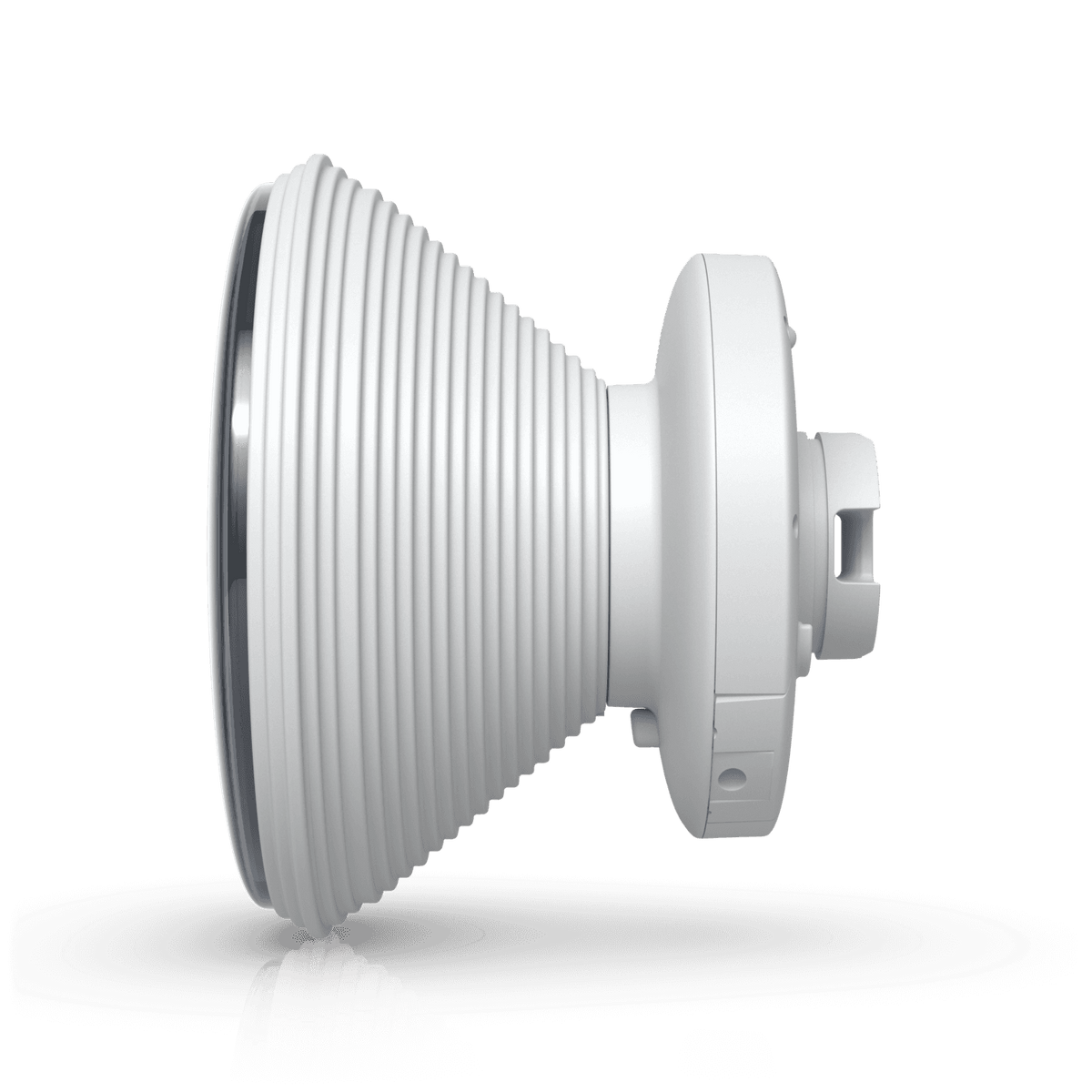

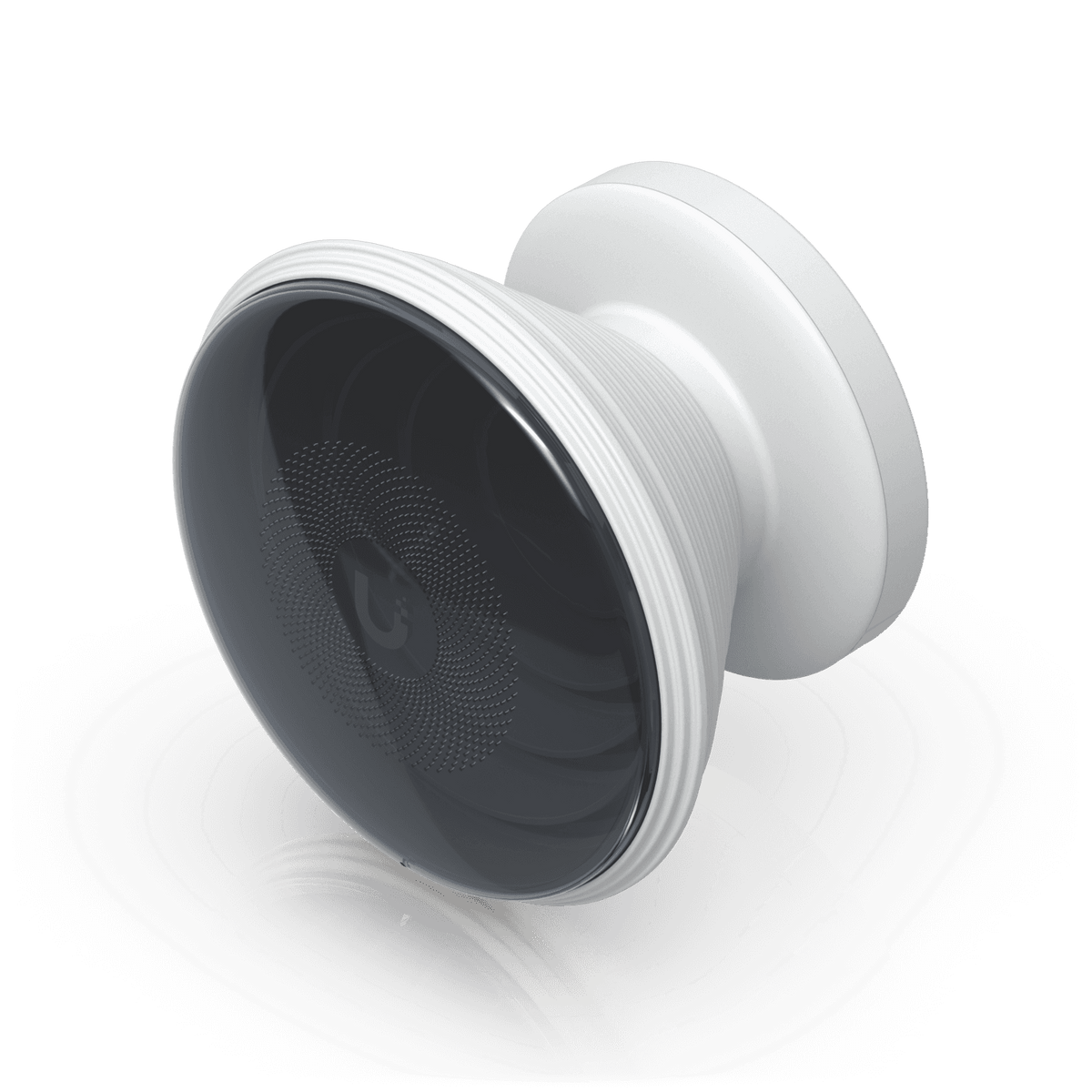

Ubiquiti UISP airMAX IsoStation AC 5GHz 14dBi Horn Radio

Ubiquiti's IS-5AC is a shielded airMAX ac 5GHz radio with a 14dBi, 45° symmetrical horn antenna. It can be used as a PtMP (point to multipoint) access point in high-interference environments and is easily co-located due to its small size. It can also be used as a short-range CPE (client premises equipment). The antenna can be interchanged with any of the other horn antennas from Ubiquiti's range (sold separately). The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

The IsoStation 5AC uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the IsoStation 5AC is versatile and cost-effective to deploy.

The IsoStation 5AC comes with a 45° isolation antenna.

FEATURES:

• Invisible Cable: Shoots high-speed internet through the air between two buildings over several kilometres.
• Laser-Focused Beam: Uses a cone-shaped "horn" antenna that focuses the wireless signal and blocks out background city noise.
• Interchangeable Cones: The front horn antenna can be twisted off and replaced with different angles depending on how wide you want the signal beam to be.
• Heavy-Duty Shielding: The entire body is made of die-cast metal to prevent signal leakage and survive extreme outdoor weather.
• Phone Setup: Features a built-in Bluetooth/Wi-Fi chip so technicians can configure it using a smartphone app while standing at the bottom of the ladder.
• Not for Phones: Does not broadcast standard Wi-Fi; it only talks to other Ubiquiti outdoor bridge radios.

SPECIFICATIONS:

• Dimensions:
• Without horn: 131 × 131 × 65 mm (5.2 × 5.2 × 2.6")
• With horn: 174 × 174 × 150 mm (6.9 × 6.9 × 5.9")
• Weight:
• Without horn: 408.2 g (0.9 lb)
• With horn: 725.7 g (1.6 lb)
• Mounting: Pole Mount (Included)
• Wind Loading: 36N at 200 km/h (8.09 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Networking Interface: 1 × GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 8.5W
• LEDs — Power: ✓
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC
• Operating Modes:
• Access Point
• Station
• Ubiquiti Specific Features:
• airMAX AC Mode: ✓
• Discovery Protocol: ✓
• Frequency Band Offset: ✓
• Traffic Shaping with Burst Support: ✓
• 30/50/60 MHz Channels: ✓
• Services:
• Bridging: ✓
• DHCP: ✓
• Ping Watchdog: ✓
• Routing: ✓
• SNMP: ✓
• SSH: ✓
• Webserver: ✓
• Distance Adjustment — Dynamic Ack: ✓
• QoS: WMM packet classification with user-level priority: High, Medium, Low
• Statistical Reporting:
• Data Rates: ✓
• Ethernet Link Rate: ✓
• Packet Errors: ✓
• Up Time: ✓
• Wireless Distance: ✓
• Antenna Gain: 14 dBi
• Antenna Beamwidth: 45° (Default Horn)
• Radio Frequency — Supported Frequency Range:
• Worldwide: 5150–5875 MHz
• US/CA:
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5470–5725 MHz
• U-NII-3: 5725–5850 MHz
• Management Radio — Supported Frequency Range:
• Worldwide: 2412–2472 MHz
• US/CA: 2412–2462 MHz

WHAT’S IN THE BOX:

• IsoStation 5AC Radio Base (The shielded metal core containing the main processing hardware) x1
• Horn-5-45 Antenna (A default 45° symmetrical horn waveguide that snaps onto the base) x1

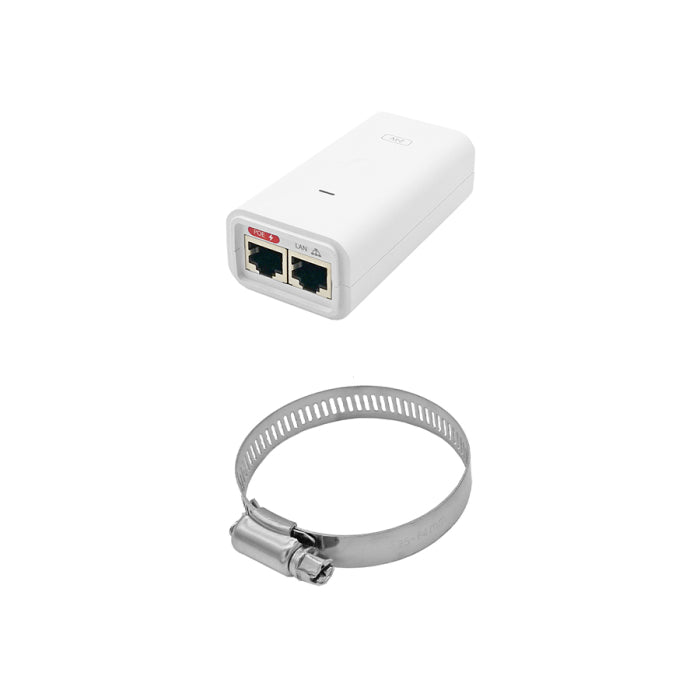

• Metal Strap (For secure, toolless pole mounting) x1
• 24V, 0.5A Gigabit PoE Injector with a wall-mounting bracket x1
• Power Cord x1

WARRANTY:

• 12 Months
